1N5819 Schottky Diode Explained with Key Specifications

The 1N5817, 1N5818, 1N5819 Schottky diode stands out as a vital component in modern electronics. Its low forward voltage drop and rapid switching speed make it indispensable for efficient power management. This diode excels in applications requiring minimal energy loss, such as low-voltage circuits and high-frequency systems. The 1N5819-E3/73 variant further enhances its versatility, offering reliable performance in rectification, voltage stabilization, and reverse polarity protection. By reducing power loss and improving efficiency, this diode plays a crucial role in extending battery life and ensuring optimal operation in energy-sensitive devices.

Key Takeaways

The 1N5819 Schottky diode features a low forward voltage drop of 0.3V to 0.6V, significantly reducing energy loss and enhancing efficiency in power-sensitive applications.
With a maximum reverse voltage rating of 40V and a forward current capacity of 1A, the 1N5819 is versatile for various applications, including power rectification and voltage regulation.
Its fast switching speed makes the 1N5819 ideal for high-frequency circuits, ensuring smooth operation in devices like DC-DC converters and switching power supplies.
The diode's robust thermal performance, operating between -65°C to 150°C, ensures reliability in extreme conditions, making it suitable for outdoor and high-temperature applications.
The 1N5819 serves critical roles in renewable energy systems, acting as a blocking diode in solar panels to prevent reverse current and protect sensitive components.
Engineers can enhance circuit performance by properly handling and soldering the 1N5819, avoiding common mistakes like exceeding voltage ratings and incorrect orientation.
The 1N5819's versatility extends to applications in battery chargers, motor controllers, and LED drivers, making it a valuable component in modern electronic designs.

What is the 1N5819 Schottky Diode?

Overview of Schottky diodes

Schottky diodes are a type of semiconductor device known for their unique construction and performance. Unlike standard diodes, they use a metal-to-semiconductor junction instead of a traditional p-n junction. This design results in several advantages, including a lower forward voltage drop and faster switching speeds. These characteristics make Schottky diodes ideal for applications requiring high efficiency and rapid response times.

Engineers often choose Schottky diodes for circuits where energy efficiency is critical. Their low forward voltage drop minimizes power loss, which is particularly beneficial in low-voltage systems. Additionally, their fast recovery time ensures smooth operation in high-frequency circuits, such as switching power supplies and inverters. These features highlight the versatility and importance of Schottky diodes in modern electronics.

Specific characteristics of the 1N5819

The 1N5819 Schottky diode stands out due to its specific features tailored for efficient performance. It operates with a forward voltage drop ranging from 0.3V to 0.6V, significantly reducing energy loss compared to standard diodes. Its maximum reverse voltage rating of 40V and forward current capacity of 1A make it suitable for a wide range of applications, from power rectification to voltage regulation.

This diode also exhibits exceptional switching speed, enabling it to handle high-frequency signals effectively. Its DO-41 package ensures compatibility with various circuit designs, providing flexibility for engineers. The 1N5819's ability to combine low power loss with reliable performance makes it a preferred choice in energy-sensitive devices and systems.

Importance of the 1N5819 in modern electronics

The 1N5819 Schottky diode plays a crucial role in advancing modern electronics. Its low forward voltage drop enhances energy efficiency, making it indispensable in battery-powered devices where conserving power is essential. By switching rapidly, it supports high-frequency applications, such as DC-DC converters and switching power supplies, ensuring smooth and reliable operation.

In renewable energy systems, the 1N5819 serves as a blocking diode in solar panels, preventing reverse current and protecting the cells. It also finds use in motor controllers, LED drivers, and battery chargers, where its efficiency and reliability contribute to optimal performance. The 1N5819's versatility and energy-saving capabilities underscore its significance in designing efficient and sustainable electronic systems.

Key Specifications of the 1N5819 Schottky Diode

Forward voltage drop (VF) and its significance

The 1N5819 Schottky diode is renowned for its exceptionally low forward voltage drop, which typically ranges from 0.3V to 0.6V depending on the current flowing through it. At a forward current of 1A, the forward voltage drop is approximately 0.6V. This characteristic significantly reduces power loss during operation, making the diode highly efficient in energy-sensitive applications.

In comparison to standard silicon diodes, which often exhibit a forward voltage drop of 0.7V to 1V, the 1N5819 offers a clear advantage. The reduced voltage drop minimizes heat generation, ensuring better thermal management in compact electronic designs. This feature proves particularly valuable in low-voltage circuits, where every fraction of a volt matters. By conserving energy, the 1N5819 enhances the overall efficiency of devices such as battery-powered gadgets, DC-DC converters, and LED drivers.

Maximum reverse voltage (VRRM) and current ratings

The 1N5819 Schottky diode can withstand a maximum reverse voltage of 40V, also known as the repetitive peak reverse voltage (VRRM). This specification ensures that the diode remains reliable and functional even in circuits where reverse voltage spikes may occur. Its forward current rating of 1A further highlights its capability to handle moderate power loads without compromising performance.

These ratings make the 1N5819 suitable for a wide range of applications, including power rectification and voltage regulation. For instance, in switching power supplies, the diode efficiently converts alternating current (AC) to direct current (DC) while maintaining stability under varying load conditions. Its ability to manage both forward and reverse voltage effectively ensures durability and consistent performance in demanding environments.

Junction temperature range (TJ) and thermal considerations

The 1N5819 Schottky diode operates within a junction temperature range of -65°C to 150°C. This broad range allows the diode to function reliably in extreme environmental conditions, from freezing temperatures to high-heat scenarios. The maximum junction temperature of 150°C ensures that the diode can handle thermal stress without degradation, provided proper heat dissipation measures are in place.

Thermal considerations play a crucial role in the diode's performance and longevity. Engineers often incorporate heat sinks or other cooling mechanisms to maintain optimal operating temperatures, especially in high-power applications. The diode's low forward voltage drop also contributes to reduced heat generation, further enhancing its thermal efficiency. These attributes make the 1N5819 a dependable choice for applications requiring robust thermal management, such as motor controllers and renewable energy systems.

Package types, including the 1n5819-e3/73 variant

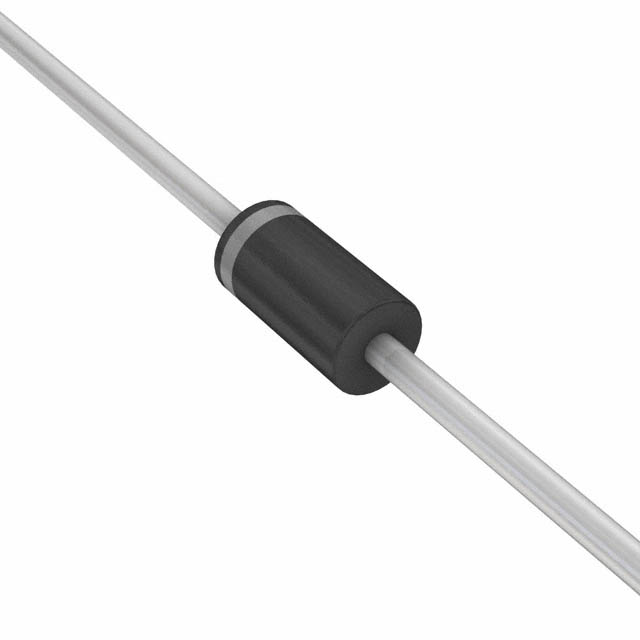

The 1N5819 Schottky diode is available in various package types, each designed to meet specific application needs. The most common package for this diode is the DO-41, a cylindrical, axial-lead design. This package ensures easy integration into circuit boards and provides excellent mechanical stability. Engineers often prefer the DO-41 package for its compatibility with through-hole mounting techniques, making it suitable for both prototyping and mass production.

One notable variant of the 1N5819 is the 1N5819-E3/73. This version retains all the core features of the standard diode, such as a low forward voltage drop and fast switching speed, while offering enhanced reliability. The 1N5819-E3/73 comes with solderable tin-plated terminals, ensuring strong and durable connections during assembly. Its molded plastic case provides robust protection against environmental factors, such as moisture and dust, which can compromise performance.

The versatility of the 1N5819 extends to its use in compact and portable devices. The DO-41 package's small size makes it ideal for space-constrained designs, such as embedded systems and battery-powered gadgets. Additionally, the 1N5819-E3/73 variant's high thermal efficiency supports applications requiring consistent performance under varying temperature conditions. These attributes make the 1N5819 a reliable choice for engineers seeking efficient rectification solutions across diverse industries.

Features and Advantages of the 1N5819 Schottky Diode

Low forward voltage drop for reduced power loss

The 1N5819 Schottky diode offers a significant advantage with its low forward voltage drop, typically ranging from 0.3V to 0.6V. This feature minimizes energy loss during operation, making it an ideal choice for applications where efficiency is critical. By reducing the voltage drop, the diode ensures that less energy converts into heat, which enhances thermal management and prolongs the lifespan of electronic components.

This characteristic proves especially beneficial in low-voltage circuits, such as battery-powered devices and portable electronics. Engineers often select the 1N5819 for these applications to maximize energy conservation and improve overall system performance. The low forward voltage drop also supports efficient power conversion in DC-DC converters and rectifiers, ensuring reliable operation in energy-sensitive systems.

Fast switching speed for high-frequency applications

The 1N5819 Schottky diode excels in high-frequency applications due to its high switching speed. Unlike standard diodes, which may struggle with rapid signal changes, the 1N5819 responds quickly to voltage variations. This capability makes it a preferred component in circuits requiring fast and precise signal processing.

In switching power supplies, the diode's high switching speed enables smooth and efficient conversion of AC to DC power. It also plays a crucial role in high-frequency inverters, where rapid response times are essential for maintaining stable output. Additionally, the diode's fast switching characteristics reduce the risk of signal distortion, ensuring consistent performance in sensitive electronic systems.

High efficiency in power conversion

The 1N5819 Schottky diode delivers high efficiency in power conversion, making it a valuable asset in modern electronics. Its ability to minimize low power loss ensures that more energy is transferred to the load, rather than being wasted as heat. This efficiency is particularly important in renewable energy systems, such as solar panels, where every watt of energy counts.

In DC-DC converters, the diode's efficiency contributes to stable voltage regulation and reduced energy consumption. Its performance also enhances the reliability of LED drivers and motor controllers, where consistent power delivery is essential. By combining low forward voltage drop with high switching speed, the 1N5819 achieves optimal efficiency across a wide range of applications, from consumer electronics to industrial systems.

Reliability and versatility in various applications

The 1N5819 Schottky diode demonstrates exceptional reliability and adaptability across a wide range of electronic applications. Its robust design ensures consistent performance, even under demanding conditions. Engineers value this diode for its ability to maintain efficiency and stability in diverse environments, making it a trusted component in both consumer and industrial electronics.

One of the key factors contributing to the reliability of the 1N5819 is its ability to handle thermal stress effectively. With an operating junction temperature range of -65°C to 150°C, it performs reliably in extreme temperatures. This makes it suitable for outdoor systems, such as solar panels, and high-temperature environments, like motor controllers. The diode's low forward voltage drop further reduces heat generation, enhancing its durability in long-term use.

The versatility of the 1N5819 lies in its compatibility with various circuit designs and applications. Its DO-41 package allows easy integration into through-hole mounting systems, ensuring mechanical stability and ease of assembly. Additionally, the 1N5819-E3/73 variant offers solderable tin-plated terminals and a molded plastic case, providing enhanced protection against environmental factors like moisture and dust. These features make the diode suitable for applications ranging from compact embedded systems to large-scale industrial equipment.

In renewable energy systems, the 1N5819 serves as a reliable blocking diode in solar panels, preventing reverse current and protecting sensitive components. In battery chargers, it ensures efficient energy transfer while safeguarding circuits from backflow. Its fast switching speed and low power loss make it indispensable in high-frequency applications, such as DC-DC converters and switching power supplies. These attributes highlight the diode's ability to adapt to the specific needs of different industries.

The 1N5819 also finds widespread use in consumer electronics, where its efficiency and reliability contribute to the longevity of devices. From LED drivers to portable gadgets, this diode supports energy conservation and optimal performance. Its versatility extends to automotive systems, lighting solutions, and motor controllers, where consistent operation is critical. By combining reliability with adaptability, the 1N5819 proves to be a valuable asset in modern electronic design.

Common Applications of the 1N5819 Schottky Diode

Power supply rectification and DC-DC converters

The 1N5819 Schottky diode plays a pivotal role in power supply circuits, particularly in rectification and DC-DC converters. Its low forward voltage drop ensures minimal energy loss during the conversion of alternating current (AC) to direct current (DC). This efficiency makes it a preferred choice for switching power supplies, where maintaining stable and reliable power output is critical.

In DC-DC converters, the diode supports both step-up (boost) and step-down (buck) configurations. Its fast switching speed allows it to handle high-frequency applications effectively, ensuring smooth voltage regulation. The diode's ability to manage a maximum average forward rectified current of 1A further enhances its suitability for moderate power loads. Engineers often rely on the 1N5819 for its consistent performance in circuits requiring efficient energy transfer and minimal heat generation.

Solar panel systems and renewable energy applications

The 1N5819 Schottky diode serves as a vital component in solar panel systems and other renewable energy applications. It functions as a blocking diode, preventing reverse current flow that could damage solar cells during periods of low sunlight or at night. This protective feature ensures the longevity and reliability of solar panels, making the diode indispensable in energy-harvesting systems.

Its low forward voltage drop maximizes energy transfer efficiency, which is crucial in renewable energy setups where every watt of power matters. The diode's fast switching capability also supports high-frequency applications in solar inverters, enabling seamless conversion of solar energy into usable electricity. By combining efficiency with reliability, the 1N5819 contributes to the advancement of sustainable energy technologies.

Battery chargers and reverse polarity protection

Battery charging circuits benefit significantly from the inclusion of the 1N5819 Schottky diode. It prevents backflow of current from the battery to the charger, safeguarding both the battery and the charging circuit. This feature ensures efficient and safe charging, particularly in portable devices and energy-sensitive systems.

The diode also provides reverse polarity protection, a critical function in circuits prone to accidental reverse connections. Its low forward voltage drop minimizes power loss, while its ability to handle high-frequency applications ensures reliable performance in modern battery chargers. The diode's robust design and thermal efficiency make it a trusted choice for engineers designing circuits that prioritize safety and energy conservation.

Motor drives, controllers, and lighting systems

The 1N5819 Schottky diode plays a critical role in motor drives, controllers, and lighting systems by ensuring efficient energy management and reliable operation. Its low forward voltage drop minimizes power loss, which is essential in systems where energy conservation directly impacts performance. This feature makes it a preferred choice for engineers designing circuits for motor control and lighting applications.

In motor drives, the diode acts as a freewheeling component, protecting circuits from voltage spikes generated by inductive loads. When motors switch off or change direction, they produce back electromotive force (EMF), which can damage sensitive components. The 1N5819 clamps these voltage spikes, safeguarding the circuit and ensuring smooth operation. Its fast switching speed further enhances its suitability for motor controllers, where rapid response times are crucial for maintaining precise control.

Lighting systems, particularly those using LEDs, benefit significantly from the 1N5819's efficiency. The diode supports LED drivers by providing stable rectification and reducing energy loss. Its ability to handle high-frequency signals ensures flicker-free lighting, which is vital for both residential and industrial applications. Additionally, the diode's compact DO-41 package allows easy integration into space-constrained designs, such as low-voltage lighting systems.

The versatility of the 1N5819 extends to its use in automotive lighting and industrial motor controllers. Its robust thermal performance, with an operating junction temperature range of -65°C to 150°C, ensures reliability in harsh environments. Engineers rely on this diode to deliver consistent performance in systems requiring durability and efficiency. By combining low power loss, fast switching, and thermal stability, the 1N5819 proves indispensable in motor drives, controllers, and lighting systems.

Comparison of the 1N5819 with Other Diodes

Differences between Schottky diodes and standard diodes

Schottky diodes differ significantly from standard diodes in their construction and performance. While standard diodes rely on a p-n junction, Schottky diodes use a metal-to-semiconductor junction. This unique design gives Schottky diodes distinct advantages, such as a lower forward voltage drop and faster switching speed. For instance, the 1N5819, a Schottky barrier diode, exhibits a forward voltage drop of approximately 0.3V to 0.6V, compared to the 0.7V to 1V range typical of standard diodes.

The lower forward voltage drop in Schottky diodes reduces power loss, making them ideal for energy-efficient systems. Their fast switching capability also ensures smooth operation in high-frequency circuits, such as switching power supplies and inverters. Standard diodes, on the other hand, are better suited for applications requiring higher reverse voltage ratings or where switching speed is less critical. These differences highlight why engineers often choose Schottky diodes like the 1N5819 for modern electronic designs prioritizing efficiency and performance.

Comparison with other Schottky diodes (e.g., 1N5817, 1N5818)

The 1N5819 shares many characteristics with other Schottky diodes, such as the 1N5817 and 1N5818, but it also has distinct specifications that set it apart. All three diodes belong to the same family and are known for their low forward voltage drop and fast switching speed. However, their maximum reverse voltage ratings differ, which influences their suitability for specific applications.

1N5817: This diode has a maximum reverse voltage of 20V, making it suitable for low-voltage applications.
1N5818: With a reverse voltage rating of 30V, this diode offers a balance between the 1N5817 and 1N5819.
1N5819: Its 40V reverse voltage rating makes it the most versatile among the three, capable of handling a wider range of voltage requirements.

The choice between these diodes depends on the application's voltage and current demands. For example, the 1N5819's higher reverse voltage rating makes it ideal for circuits requiring greater voltage tolerance, such as solar panel systems and motor controllers. In contrast, the 1N5817 and 1N5818 may be more cost-effective options for low-voltage designs.

When to choose the 1N5819 over other diodes

The 1N5819 stands out as the preferred choice in applications demanding efficient power management and reliable performance under moderate voltage conditions. Its low forward voltage drop minimizes energy loss, making it ideal for battery-powered devices and energy-sensitive systems. The diode's fast switching speed ensures smooth operation in high-frequency circuits, such as DC-DC converters and switching power supplies.

Engineers often select the 1N5819 for its ability to handle a maximum reverse voltage of 40V and a forward current of 1A. These specifications make it suitable for diverse applications, including rectification, voltage clamping, and reverse polarity protection. Its robust thermal performance, with an operating junction temperature range of -65°C to 150°C, further enhances its reliability in demanding environments.

In comparison to other Schottky diodes, the 1N5819 offers a balance of efficiency, versatility, and durability. It excels in scenarios where higher reverse voltage tolerance is required, such as renewable energy systems and motor drives. By combining low power loss with consistent performance, the 1N5819 proves to be a valuable component in modern electronic designs.

How to Use the 1N5819 Schottky Diode in Circuits

Basic circuit configurations and examples

The 1N5819 Schottky diode integrates seamlessly into various circuit configurations, making it a versatile component for electronic designs. One common application involves its use in power supply rectification. In this setup, the diode converts alternating current (AC) into direct current (DC) efficiently. Its low forward voltage drop ensures minimal energy loss, which is critical for maintaining stable power output in devices like switching power supplies.

Another practical example includes its role in DC-DC converters. Engineers often use the diode in both boost (step-up) and buck (step-down) configurations to regulate voltage levels. Its fast switching speed allows it to handle high-frequency signals effectively, ensuring smooth voltage transitions. Additionally, the diode serves as a free-wheeling component in motor control circuits, where it protects against voltage spikes generated by inductive loads.

In solar panel systems, the diode acts as a blocking component to prevent reverse current flow during low-light conditions. This function safeguards the solar cells and enhances the overall efficiency of the system. Similarly, in battery chargers, the diode prevents backflow of current, ensuring safe and efficient charging. These examples highlight the diode's adaptability across a wide range of applications.

Tips for proper handling and soldering

Proper handling and soldering of the 1N5819 Schottky diode are essential to ensure optimal performance and longevity. When working with the diode, always handle it by its leads to avoid damaging the sensitive semiconductor junction. Using anti-static precautions, such as grounding straps, can protect the diode from electrostatic discharge (ESD).

During soldering, maintain a controlled temperature to prevent overheating. Excessive heat can degrade the diode's performance or cause permanent damage. A soldering iron with a temperature range of 250°C to 300°C is ideal for this purpose. Apply heat for no longer than 5 seconds per joint to minimize thermal stress. Using a heat sink, such as a pair of tweezers or alligator clips, can further protect the diode by dissipating excess heat during the soldering process.

Ensure that the solder joints are clean and secure to establish reliable electrical connections. Avoid using excessive solder, as it may create short circuits or interfere with the diode's placement on the circuit board. Following these tips will help maintain the diode's efficiency and reliability in various applications.

Common mistakes to avoid when using the 1N5819

Avoiding common mistakes when using the 1N5819 Schottky diode can prevent circuit failures and ensure consistent performance. One frequent error involves exceeding the diode's maximum reverse voltage rating of 40V. Operating the diode beyond this limit can lead to breakdown and permanent damage. Always verify the voltage requirements of the circuit before integrating the diode.

Another mistake occurs when the diode is subjected to excessive current beyond its forward current rating of 1A. Overloading the diode can result in overheating and increased power dissipation, which may compromise its functionality. Properly calculating the current demands of the circuit is crucial to prevent such issues.

Improper orientation during installation is another common oversight. The diode has polarity, with the cathode marked by a band on its body. Reversing the polarity can disrupt the circuit's operation or damage other components. Double-check the orientation before soldering the diode into place.

Lastly, neglecting thermal management can reduce the diode's lifespan. The diode generates heat during operation, especially in high-power applications. Failing to incorporate heat sinks or other cooling mechanisms can lead to thermal stress and reduced efficiency. Addressing these common mistakes will help maximize the diode's performance and reliability in electronic circuits.

The 1N5819 Schottky diode stands out as a reliable and efficient component in modern electronics. Its low forward voltage drop, fast switching speed, and robust thermal performance make it indispensable for applications like rectification, voltage regulation, and reverse polarity protection. From power supplies to renewable energy systems, this diode ensures optimal energy management and consistent performance. Its versatility and efficiency highlight its importance in designing advanced circuits. For further technical insights, readers are encouraged to explore datasheets and additional resources to fully leverage the potential of this remarkable diode.

What makes the 1N5819 different from other Schottky diodes like the 1N5817 and 1N5818?

The 1N5819 stands out due to its higher reverse voltage rating of 40V, compared to the 20V rating of the 1N5817 and the 30V rating of the 1N5818. This makes the 1N5819 more versatile for applications requiring greater voltage tolerance. Additionally, the 1N5819 maintains a low forward voltage drop and fast switching speed, similar to its counterparts, ensuring efficient performance in energy-sensitive systems.

How does the 1N5819 compare to the 1N4148 diode?

The 1N5819 excels in low-voltage circuits under 12V due to its rapid switching speeds and minimal forward voltage drop, typically ranging from 0.3V to 0.6V. In contrast, the 1N4148 is designed for high-speed switching in unique applications, such as signal processing. While both diodes offer fast response times, the 1N5819 is better suited for power-related tasks like rectification and voltage regulation.

Can the 1N5819 handle high-frequency applications?

Yes, the 1N5819 Schottky diode is ideal for high-frequency applications. Its fast switching speed ensures smooth operation in circuits like DC-DC converters and switching power supplies. This capability reduces signal distortion and enhances efficiency, making it a preferred choice for engineers working on high-speed designs.

What is the significance of the 1N5819’s low forward voltage drop?

The low forward voltage drop of the 1N5819, typically between 0.3V and 0.6V, minimizes energy loss during operation. This feature reduces heat generation and improves thermal management, which is crucial in compact and energy-sensitive devices. It also enhances the overall efficiency of circuits, particularly in low-voltage systems like battery-powered gadgets and LED drivers.

Is the 1N5819 suitable for solar panel systems?

The 1N5819 is highly suitable for solar panel systems. It acts as a blocking diode, preventing reverse current flow that could damage solar cells during low-light conditions. Its low forward voltage drop maximizes energy transfer efficiency, while its robust thermal performance ensures reliability in outdoor environments.

What are the typical applications of the 1N5819?

The 1N5819 Schottky diode is used in a variety of applications, including:

Power supply rectification
DC-DC converters
Solar panel systems
Battery chargers
Motor controllers
LED drivers
Reverse polarity protection

Its versatility and efficiency make it a valuable component in both consumer and industrial electronics.

How does the 1N5819 ensure reliability in circuits?

The 1N5819 ensures reliability through its robust design and thermal efficiency. It operates within a wide junction temperature range of -65°C to 150°C, allowing it to perform consistently in extreme conditions. Its low forward voltage drop reduces heat generation, while its fast switching speed supports stable operation in high-frequency circuits.

What precautions should be taken when using the 1N5819?

To ensure optimal performance, avoid exceeding the diode’s maximum reverse voltage of 40V and forward current rating of 1A. Proper orientation during installation is essential, as reversing the polarity can disrupt circuit functionality. Additionally, incorporate thermal management measures, such as heat sinks, to prevent overheating in high-power applications.

Can the 1N5819 be used in motor control circuits?

Yes, the 1N5819 is commonly used in motor control circuits. It acts as a freewheeling diode, clamping voltage spikes generated by inductive loads. This protects sensitive components and ensures smooth operation. Its fast switching speed and low forward voltage drop make it an excellent choice for motor drives and controllers.

What package types are available for the 1N5819?

The 1N5819 is typically available in the DO-41 package, which features a cylindrical, axial-lead design. This package ensures easy integration into circuit boards and provides mechanical stability. The 1N5819-E3/73 variant offers additional benefits, such as solderable tin-plated terminals and a molded plastic case, enhancing durability and environmental resistance.
