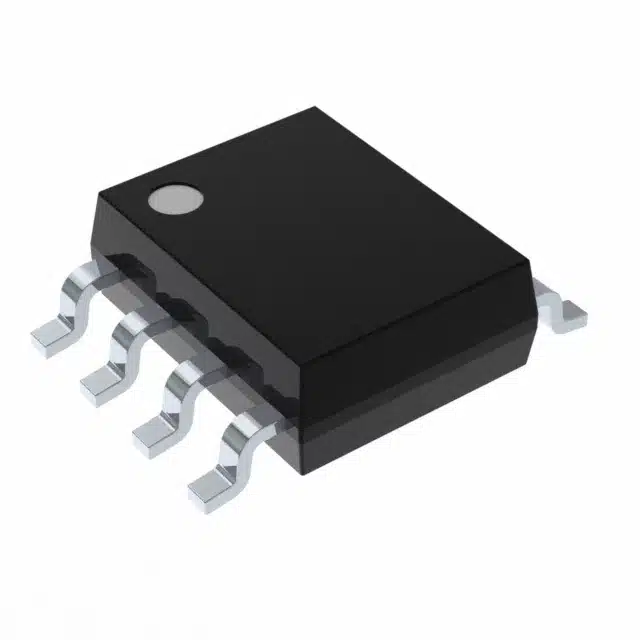

The Role of 25AA1024T-I/SM Serial EEPROM in Energy-Efficient Devices

The 25AA1024T-I/SM plays a vital role in advancing energy-efficient technologies. Its low power consumption and wide voltage range make it ideal for battery-powered devices. Designed for flexibility, it operates within 1.8V to 5.5V and supports deep power-down modes with a current of just 1 μA.

Specification	Value
Low-voltage operation	2.7V to 5.5V
Read current	10 mA (Max)
Write current	7 mA (Max)
Deep power-down current	1 μA (Max)
Operating Supply Voltage	1.8 V to 5.5 V

This Serial EEPROM enhances performance in IoT devices, renewable energy systems, and consumer electronics. It supports data logging, configuration memory, and firmware storage, making it indispensable for modern energy-efficient designs.

Key Takeaways

The 25AA1024T-I/SM Serial EEPROM uses little power, so it works well in battery devices.
Its SPI interface moves data quickly, helping IoT and smart sensors work better.
It keeps data safe for over 200 years and allows 1,000,000 writes, making it reliable and long-lasting for energy-saving designs.

Key Features and Technical Specifications of 25AA1024T-I/SM

Low Power Consumption and High Endurance

The 25AA1024T-I/SM is designed with energy efficiency in mind, making it ideal for low-power applications. Its low-voltage operation, ranging from 2.7V to 5.5V, ensures compatibility with battery-powered devices. The device consumes minimal power during operation, with a maximum read current of 10 mA and a write current of 7 mA. In deep power-down mode, it uses only 1 μA, significantly conserving energy in standby states.

This Serial EEPROM also boasts exceptional endurance, supporting over 1,000,000 erase/write cycles. This durability makes it suitable for applications requiring frequent data updates, such as IoT devices and industrial systems.

Specification	Value
Endurance	Over 1,000,000 cycles
Data Retention	> 200 years

SPI Interface and Data Retention Capabilities

The 25AA1024T-I/SM utilizes an SPI interface, which offers several advantages for energy-efficient devices. It supports high-speed data transfer, enabling fast read and write operations. This feature enhances the performance of devices that rely on quick data handling, such as smart sensors and portable gadgets.

The SPI interface also simplifies integration with microcontrollers, reducing development time for manufacturers. Additionally, the device ensures reliable data retention for over 200 years, making it a dependable choice for long-term data storage.

Advantage	Description
Low Power Consumption	Ideal for battery-powered devices due to its low standby current.
High-Speed Performance	Supports fast read and write operations for efficient data handling.
Easy Integration	Simplifies connection with microcontrollers and other systems.

Compact Design and Industrial-Grade Reliability

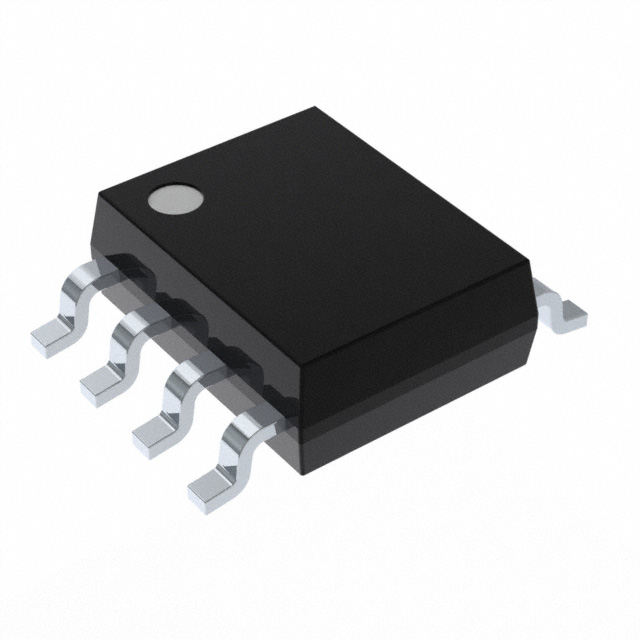

The compact SOIC-8 package of the 25AA1024T-I/SM makes it suitable for space-constrained environments. Its small footprint allows seamless integration into devices like handheld instruments and industrial controllers.

This Serial EEPROM operates reliably across a wide temperature range (-40°C to +85°C), ensuring consistent performance in harsh industrial settings. Its low power consumption further enhances reliability, especially in applications requiring continuous operation. The robust design and communication capabilities make it a trusted choice for industrial automation and energy-efficient systems.

Small footprint ideal for space-limited applications.
Reliable operation across industrial temperature ranges.
Designed for low-power, high-performance data storage.

Applications of 25AA1024T-I/SM in Energy-Efficient Devices

IoT Devices and Smart Sensors

The 25AA1024T-I/SM is a critical component in IoT devices and smart sensors. Its low power consumption and compact design make it ideal for battery-powered systems. The SPI interface ensures fast data access, while its non-volatile memory provides reliable storage for configuration settings and data retention.

Key IoT applications include:

Data logging in industrial automation.
Configuration storage in smart home devices.
Reliable memory for portable IoT gadgets.

Feature	Benefit
Low Standby Current	Suitable for battery-powered devices
Fast Read/Write Ops	Efficient data handling
Low Power Consumption	Enhances energy efficiency in IoT devices

Renewable Energy Systems and Battery Management

The 25AA1024T-I/SM enhances the performance of renewable energy systems. Its low power consumption suits battery-powered applications, while its non-volatile memory ensures secure data logging and configuration storage. The write protection feature adds an extra layer of security, making it a reliable choice for battery management systems.

Feature/Application	Description
Low Power Consumption	Ideal for renewable energy systems.
Non-volatile Memory Storage	Essential for data logging and configuration memory.
Write Protection	Ensures data security in battery management.

Consumer Electronics and Portable Gadgets

Consumer electronics and portable gadgets benefit significantly from the 25AA1024T-I/SM. Its low power consumption improves energy efficiency, making it suitable for battery-operated devices. Common applications include:

Memory storage in handheld devices.
Data retention in portable entertainment systems.
Reliable memory solutions for user-configurable gadgets.

The 25AA1024T-I/SM ensures efficient operation in devices requiring compact, energy-efficient memory solutions.

Advantages of 25AA1024T-I/SM in Energy-Efficient Designs

Power Optimization and Energy Savings

The 25AA1024T-I/SM excels in power optimization, making it a preferred choice for energy-efficient devices. Its low power consumption and wide operating voltage range (1.8V to 5.5V) allow it to function effectively in battery-powered systems. This capability ensures minimal energy usage, even during standby states.

Feature	Contribution to Power Optimization
Low Power Consumption	Suitable for battery-powered devices due to low standby current.
Wide Operating Voltage	Supports a broad voltage range from 1.8V to 5.5V for flexible applications.

The device achieves significant energy savings in low-power applications. Its low standby current further enhances its suitability for portable and battery-operated devices.

Feature	Description
Low Power Consumption	Designed for low power operation, suitable for battery-powered devices.
Low Standby Current	With its low standby current, the 25AA1024T-I/SM is suitable for battery-powered devices.

Longevity and Reliability in Low-Power Applications

The 25AA1024T-I/SM offers exceptional longevity and reliability, ensuring consistent performance in demanding environments. Its data retention capability of over 200 years and endurance of 1,000,000 write cycles per word make it a dependable solution for applications requiring frequent data updates.

200 years of data retention
1,000,000 endurance cycles per word

The device also operates reliably across a wide temperature range (-40°C to +85°C), making it suitable for industrial and outdoor applications. Its write protection feature enhances data security, further boosting reliability.

Feature	Description
Low Power Consumption	Designed for battery-operated devices
Temperature Range	-40°C to +85°C for reliability in various environments
Endurance	Rated at 1,000,000 write cycles
Write Protection	Enhances data security for reliability

Cost-Effectiveness for Manufacturers

The 25AA1024T-I/SM provides cost advantages for manufacturers by combining energy efficiency with robust performance. Its low power consumption reduces energy costs in battery-powered applications. Fast data access and robust communication capabilities ensure efficient operation, minimizing development and maintenance expenses.

Feature	Benefit
Low Power Consumption	Essential for battery-powered applications
Fast Data Access	Ensures efficient communication
Robust Communication	Provides reliable data transmission

This combination of features makes the 25AA1024T-I/SM a cost-effective solution for manufacturers aiming to create energy-efficient devices without compromising on performance or reliability.

The 25AA1024T-I/SM combines advanced features with energy efficiency, making it a vital component in modern devices. Its SPI interface, low power consumption, and high-speed performance ensure seamless integration and reliable operation. Applications like data logging, firmware storage, and configuration memory highlight its versatility in energy-efficient technologies.

Feature	Description
SPI Interface	Easy integration with microcontrollers and devices
Low Power Consumption	Suitable for battery-powered devices
Write Protection	Enhances data security in embedded systems
High-Speed Performance	Fast read and write operations

This Serial EEPROM supports sustainable design by reducing energy usage and enhancing device longevity. Its potential to drive future innovations in IoT, renewable energy, and consumer electronics underscores its importance in creating a greener, more efficient world.

What makes the 25AA1024T-I/SM suitable for energy-efficient devices?

Its low power consumption, wide voltage range, and deep power-down mode ensure minimal energy usage, making it ideal for battery-powered and energy-efficient systems.

How does the SPI interface benefit device integration?

The SPI interface enables fast data transfer and simplifies integration with microcontrollers, reducing development time and enhancing performance in energy-efficient applications.

Can the 25AA1024T-I/SM operate in extreme environments?

Yes, it functions reliably across a temperature range of -40°C to +85°C, ensuring consistent performance in industrial and outdoor applications.
