3 Ways to Use AD8622ARMZ-R7 in Instrumentation
The AD8622ARMZ-R7 is a high-performance operational amplifier designed for precision instrumentation and control systems. Its exceptional specifications, such as a supply voltage range of 5 V to 30 V, an input offset voltage of 10 μV, and a gain bandwidth product of 560 kHz, make it ideal for demanding applications.
Specification | Value |
|---|---|
Supply Voltage Range | 5 V to 30 V |
Gain Bandwidth Product | 560 kHz |
Input Offset Voltage | 10 μV |
Input Bias Current | 45 pA |
Slew Rate | 0.48 V/μs |
Output Current | 40 mA per channel |
This amplifier excels in three key areas: signal conditioning in sensor systems, precision current measurement in control loops, and low-noise amplification in medical instrumentation.
Key Takeaways
The AD8622ARMZ-R7 is great for boosting weak sensor signals. It helps get accurate readings in sensor systems.
Measuring current precisely is important in control systems. The AD8622ARMZ-R7 improves stability and works well in motor control.
Quiet signal boosting is key in medical tools. The AD8622ARMZ-R7 reduces noise, making health measurements more accurate.
Using good design methods, like picking the right parts and organizing the circuit board, helps the AD8622ARMZ-R7 work better.
Its wide temperature range and small size make it useful. It works in many areas, like factory machines or portable medical tools.
Signal Conditioning in Sensor Systems
Importance of Signal Conditioning
Challenges in achieving accurate sensor signals
Signal conditioning plays a critical role in ensuring accurate sensor readings. However, several challenges can arise during this process:
Signal Amplitude: Many sensors produce weak signals that are highly susceptible to noise and interference.
Linearity: Non-linear signals require correction to maintain measurement accuracy.
Excitation: Active sensors demand external power, which must be stable and noise-free.
Cold Junction Compensation: Thermocouples need compensation to provide precise temperature readings.
Isolation: Electrical isolation prevents external voltages from distorting sensor outputs.
Sampling Errors: Timing inaccuracies during digitization can lead to errors.
Simultaneous Sampling: Comparing multiple signals requires synchronized sampling to ensure reliability.
How the AD8622ARMZ-R7 improves signal integrity
The AD8622ARMZ-R7 addresses these challenges with its advanced features, ensuring superior signal integrity:
Feature | Specification |
|---|---|
Very low offset voltage | 125 μV maximum |
Input bias current | 200 pA maximum |
Low input offset voltage drift | 1.2 μV/°C maximum |
Very low voltage noise | 11 nV/√Hz |
Rail-to-rail output swing | Yes |
Operating temperature range | −40°C to +125°C |
These specifications make the AD8622ARMZ-R7 ideal for amplifying weak sensor signals while minimizing noise and distortion.
Practical Applications
Amplifying signals from temperature sensors and strain gauges
The AD8622ARMZ-R7 excels in amplifying low-level signals from temperature sensors and strain gauges. Its low offset voltage and bias current ensure precise signal amplification, making it suitable for industrial and environmental monitoring systems.
Reducing noise in environmental monitoring systems
Environmental monitoring systems often operate in noisy environments. The AD8622ARMZ-R7’s low voltage noise and rail-to-rail output swing help reduce interference, ensuring accurate data collection for applications like air quality monitoring and weather stations.
Design and Implementation Tips
Selecting feedback components for optimal gain
Choosing the right feedback resistors and capacitors is essential for achieving the desired gain and stability. Designers should calculate the gain-bandwidth product to ensure the AD8622ARMZ-R7 operates within its optimal range.
PCB layout techniques to minimize interference
Proper PCB layout is crucial for reducing noise and interference. Designers should:
Use short and direct signal paths.
Implement ground planes to shield sensitive traces.
Avoid placing high-frequency components near the AD8622ARMZ-R7.
These practices enhance the amplifier’s performance in signal conditioning circuits.
Precision Current Measurement in Control Loops
Role of Current Measurement in Control Systems
Ensuring stability and efficiency in control loops
Precision current measurement is essential for maintaining stability and efficiency in control systems. Accurate current sensing ensures that feedback loops operate correctly, enabling precise adjustments to system parameters. This is particularly important in applications like motor control and industrial automation, where even minor inaccuracies can lead to inefficiencies or system instability.
Advantages of using the AD8622ARMZ-R7 for precision sensing
The AD8622ARMZ-R7 offers several advantages for current measurement in control systems:
Low noise operation ensures clean signal processing.
High accuracy measurements improve system reliability.
Compact design allows integration into space-constrained applications.
Rail-to-rail output enhances dynamic range.
A low slew rate of 0.48 V/µs minimizes overshoot and ringing.

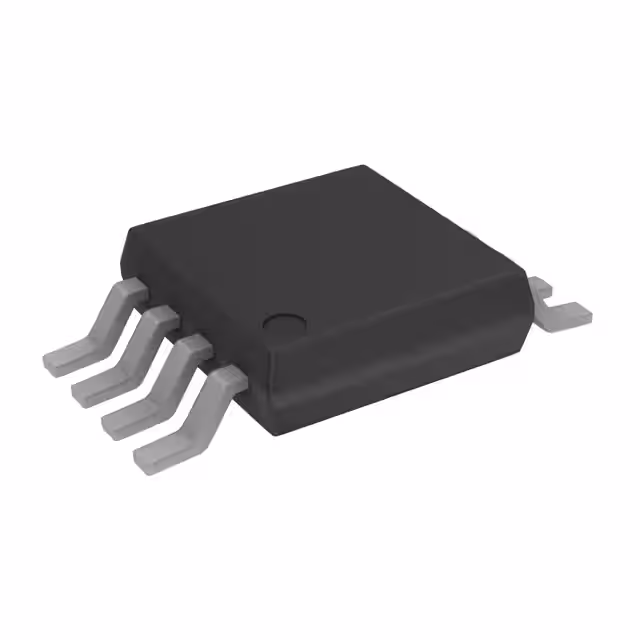

The 8-pin MSOP package saves board space, making it ideal for portable precision instrumentation and medical devices.
Practical Applications
Motor control systems and industrial automation
Motor control systems rely on precise current sensing to regulate speed and torque. The AD8622ARMZ-R7’s high accuracy and low noise characteristics make it an excellent choice for these applications. In industrial automation, it enhances the performance of feedback loops, ensuring smooth operation of machinery and equipment.
Enhancing accuracy in power supply feedback loops
Power supply circuits benefit from the AD8622ARMZ-R7’s ability to amplify small current signals with minimal distortion. This improves the accuracy of feedback loops, ensuring stable voltage regulation in sensitive electronic systems like laser diode control loops and strain gauge amplifiers.
Design and Implementation Tips
Choosing appropriate shunt resistors for current sensing
Selecting the right shunt resistor is critical for accurate current measurement. Designers should consider the resistor’s value, tolerance, and power rating to minimize errors and ensure compatibility with the AD8622ARMZ-R7’s input specifications.
Managing thermal effects in high-current applications
Thermal effects can impact the performance of current sensing circuits. To mitigate this, designers should use resistors with low temperature coefficients and ensure proper heat dissipation. The AD8622ARMZ-R7’s wide operating temperature range (-40°C to 125°C) provides additional reliability in demanding environments.
Feature | Description |
|---|---|
Slew Rate | 0.48 V/µs |
Input Offset Voltage | 10 μV |
Input Bias Current | 45 pA |
Gain Bandwidth Product | 560 kHz |
Output Current Drive | 40 mA per channel |
Supply Voltage Range | 5 V to 30 V |
Operating Temperature Range | -40°C to 125°C |
Package | 8-pin MSOP |
These design tips and features ensure optimal performance of the AD8622ARMZ-R7 in current measurement applications.
Low-Noise Amplification in Medical Instrumentation
Importance of Low Noise in Medical Devices
Impact of noise on sensitive physiological measurements
Medical devices often process weak physiological signals, such as those from the heart or brain. Noise can distort these signals, leading to inaccurate readings. Low-noise amplification is essential for enhancing weak signals while minimizing interference. This ensures accurate detection in applications like ECG, EEG, and MRI. In MRI systems, for example, low-noise amplifiers capture faint signals from the body, enabling clear imaging for effective diagnosis.
How the AD8622ARMZ-R7 ensures signal fidelity
The AD8622ARMZ-R7 provides exceptional signal fidelity through its advanced specifications:
Parameter | Value |
|---|---|
Maximum Input Offset Voltage | 0.125 mV @ ±15V |
Maximum Input Bias Current | 0.0002 µA @ ±15V |
Noise | 0.2 μV p-p (0.1 Hz to 10 Hz) |
Slew Rate | 0.48 V/µs @ ±15V |
Offset Drift | 0.5 µV/°C |
Its low offset voltage and bias current ensure high accuracy, while its low noise operation maintains signal clarity. These features make it ideal for medical instrumentation requiring precise and reliable signal processing.
Practical Applications
Amplifying ECG and EEG signals with minimal distortion
The AD8622ARMZ-R7 excels in amplifying ECG and EEG signals. Its low noise and offset voltage characteristics reduce distortion, ensuring accurate representation of physiological data. This is critical for diagnosing heart and brain conditions.
Improving diagnostic accuracy in patient monitoring systems
Patient monitoring systems rely on clean, amplified signals for accurate diagnostics. The AD8622ARMZ-R7 enhances signal quality, enabling healthcare professionals to make informed decisions. Its rail-to-rail output and low input bias current further improve performance in these systems.
Design and Implementation Tips
Shielding and grounding techniques for medical circuits
Proper shielding and grounding are vital for reducing noise in medical circuits. Designers should:
Isolate noise sources to maintain a low noise floor.
Minimize ground loops to prevent interference.
Use shielded cables and enclosures to protect sensitive components.
These practices ensure optimal performance of the AD8622ARMZ-R7 in medical applications.
Selecting low-noise power supplies for optimal performance
Power supply noise can degrade amplifier performance. Designers should choose low-noise power supplies and implement decoupling capacitors near the AD8622ARMZ-R7. This minimizes power supply ripple and ensures stable operation, especially in sensitive medical devices.
The AD8622ARMZ-R7 demonstrates its versatility and precision across three critical instrumentation applications: signal conditioning in sensor systems, precision current measurement in control loops, and low-noise amplification in medical devices. Its advanced features, such as low noise operation and high accuracy, make it indispensable for tasks like amplifying weak signals and ensuring stable feedback loops.
Key Benefits of the AD8622ARMZ-R7:
Portable precision instrumentation and medical devices.
Reliable performance in laser diode and strain gauge amplifiers.
Compact 8-pin MSOP package saves board space.
Wide operating temperature range supports diverse environments.
Feature | Benefit |
|---|---|
Low slew rate | Ensures stable and accurate signal processing |
Low noise operation | Enhances signal integrity in sensitive applications |
High accuracy measurements | Critical for precise instrumentation tasks |
The AD8622ARMZ-R7’s compact design and consistent performance make it suitable for a wide range of applications, from audio equipment to sensor interfaces. Its ability to deliver reliable results in challenging conditions highlights its value in modern instrumentation. Engineers and designers can confidently integrate this amplifier into their systems to achieve exceptional results.
What makes the AD8622ARMZ-R7 suitable for medical instrumentation?
The AD8622ARMZ-R7 offers low noise, high accuracy, and minimal offset voltage. These features ensure precise amplification of weak physiological signals, such as ECG and EEG data, making it ideal for medical devices requiring reliable performance.
Can the AD8622ARMZ-R7 handle high-temperature environments?
Yes, the AD8622ARMZ-R7 operates reliably within a wide temperature range of -40°C to 125°C. This capability makes it suitable for industrial and environmental applications that demand consistent performance in extreme conditions.
How does the AD8622ARMZ-R7 improve signal conditioning?
The AD8622ARMZ-R7 enhances signal conditioning by amplifying weak sensor signals with minimal distortion. Its low input bias current and offset voltage ensure accurate readings, while its rail-to-rail output swing maximizes dynamic range.
What are the key design tips for using the AD8622ARMZ-R7?
Designers should select appropriate feedback components to optimize gain and stability. Proper PCB layout techniques, such as using ground planes and short signal paths, help minimize interference and enhance performance.
Is the AD8622ARMZ-R7 suitable for portable devices?
Yes, the AD8622ARMZ-R7’s compact 8-pin MSOP package and low power consumption make it ideal for portable precision instrumentation, including medical and environmental monitoring devices.
