How the 3M 10326-52A0-008 Enhances Cable Management and Durability

The 10326-52A0-008 brings greater organization and strength to cable management. This connector stands out in high-density setups, where reliable electronic connections are critical. Many industries depend on the 3M 103 Series for robust performance, including industrial automation, medical equipment, telecommunications, and embedded systems. Engineers trust these connectors to keep systems running smoothly and to extend the lifespan of sensitive equipment.

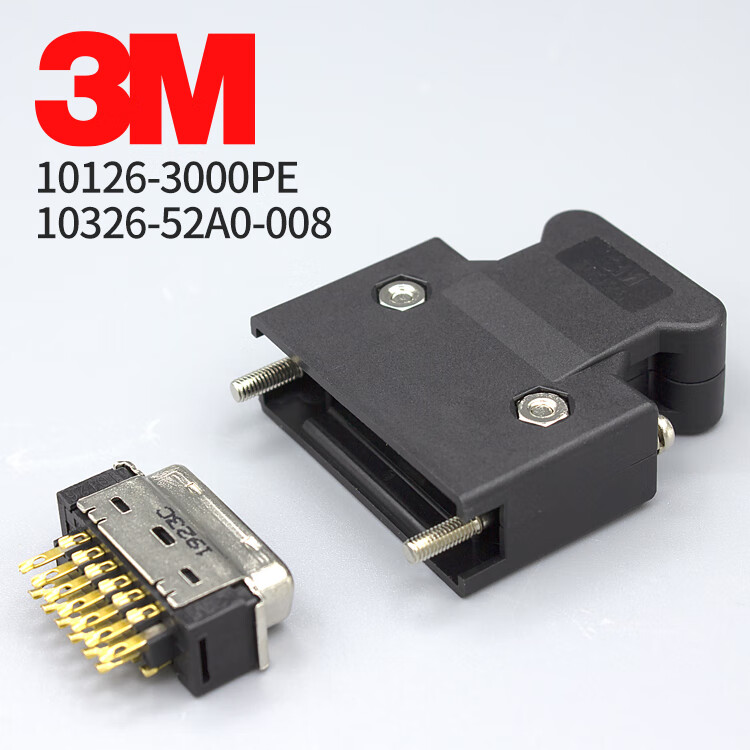

3M 103 Series Mini D Ribbon connector some inventory

10314-52A0-008,10320-52A0-008,10326-52A0-008,10336-52A0-008

10350-52A0-008,10314-52F0-008,10320-52F0-008,10326-52F0-008

10336-52F0-008,10350-52F0-008,10326-A200-00,10368-C200-00,10350-C500-00

Key Takeaways

The 3M 10326-52A0-008 connector organizes cables neatly with a compact design and clear pin layout, reducing errors and improving airflow.
Its insulation displacement contact (IDC) technology allows quick, tool-less wire installation, saving time and lowering mistakes.
Durable materials and strong construction help the connector resist wear, corrosion, and repeated use for long-lasting performance.
The connector withstands harsh conditions like humidity, temperature changes, vibration, and chemical exposure, ensuring reliable operation.
Engineers trust this connector in industries like automation, medical devices, and telecom for its balance of high capacity, light weight, and secure connections.

Cable Management Features

Design for Organization

The 3M 10326-52A0-008 connector brings order to complex wiring environments. Its compact form factor allows engineers to fit more connections into smaller spaces. This feature proves essential in control panels and densely packed electronic systems. The connector uses a precise pin layout, which helps users keep cables neat and separated.

Key organizational benefits include:
- Clearly labeled contacts for easy identification
- Uniform pin spacing to prevent cable overlap
- Secure locking mechanism to hold cables in place

Tip: Organized cabling reduces troubleshooting time and lowers the risk of accidental disconnections.

A well-organized cable system also improves airflow inside equipment. Better airflow can help prevent overheating and extend the life of electronic components. The 3M 10326-52A0-008 supports this by keeping cables aligned and out of the way.

Easy Installation

Engineers value connectors that save time during setup. The 3M 10326-52A0-008 features a user-friendly design that speeds up installation. Its insulation displacement contact (IDC) technology allows users to connect wires without stripping insulation. This method reduces installation steps and minimizes errors.

Installation advantages:

Tool-less wire insertion: Users press wires directly into the connector.
Consistent connections: IDC technology ensures every wire seats correctly.
Reduced training needs: Simple assembly means new technicians learn quickly.

Feature	Benefit
IDC Technology	Fast, reliable wire connection
Polarized Housing	Prevents incorrect mating
Latching Mechanism	Secures cables firmly

Note: Quick and reliable installation helps teams meet tight project deadlines and maintain high quality standards.

The 3M 10326-52A0-008 makes cable management easier from the start. Its design supports both organization and efficiency, making it a top choice for demanding electronic systems.

Durability Benefits

Material Strength

The 3M 10326-52A0-008 connector uses high-quality materials that provide lasting strength. Engineers select these connectors for their ability to withstand repeated use. The housing resists cracking and deformation, even when exposed to mechanical stress. The contacts use precision-engineered metal alloys. These metals maintain electrical conductivity and resist corrosion over time.

Key material strengths include:
- High tensile strength in the housing
- Corrosion-resistant contact surfaces
- Stable performance after multiple connection cycles

The connector endures up to 50 insertion and extraction cycles while keeping its electrical and mechanical properties within 20% of the original values. This level of durability ensures reliable connections in demanding environments. The robust construction also helps prevent accidental disconnects and signal loss.

Note: Strong materials help protect sensitive electronic systems from damage caused by vibration or impact.

Environmental Resistance

The 3M 10326-52A0-008 stands out for its ability to perform in harsh environments. Manufacturers test these connectors under extreme conditions to ensure reliability. The connector maintains insulation resistance above 500 megaohms after exposure to high humidity and temperature changes. It also passes vibration and impact tests, showing no significant loss of connection.

The following table summarizes key environmental tests and standards:

Test Type	Test Conditions	Standards Compliance
Humidity Cycling	10 cycles from -10°C to +65°C at 95% relative humidity	MIL-STD-202E106D
Salt Spray Exposure	48 hours at 35°C with 5% salt concentration	MIL-STD-202E101D
Thermal Shock	5 cycles between -55°C, +25°C, and +85°C	MIL-STD-202E107D
Regulated Temperature Humidity	96 hours at 40°C and 95% relative humidity	MIL-STD-202E103D
High Temperature Life	1,000 hours at 85°C with 110% rated current	MIL-STD-202E108D
H2S Gas Exposure	96 hours at 40°C, 3±1 PPM concentration, 70-85% RH	JEIDA-25-1974 (except solder plug)

After these tests, the connector shows no dielectric breakdown at 500 volts AC for one minute. It also resists solvents used in ultrasonic cleaning. The connector keeps working even after exposure to salt spray, humidity, and temperature extremes. These results demonstrate that the 3M 10326-52A0-008 can handle tough industrial, medical, and telecom environments.

Tip: Choosing connectors with proven environmental resistance helps reduce maintenance and downtime in critical systems.

3M 103 Series in Real-World Applications

Industrial and Medical Uses

The 3M 103 Series plays a vital role in industrial automation and medical equipment. Engineers use these connectors in programmable logic controllers (PLCs), robotics, and motor driver boards. The compact design allows for high-density connections, which helps save space in control panels. In medical settings, devices like ECG monitors and diagnostic machines rely on stable and secure connections. The 3M 10326-52A0-008 ensures that sensitive data travels without interruption. Its strong locking mechanism prevents accidental disconnects, which is critical in environments where reliability can affect safety.

Medical equipment often faces frequent cleaning and exposure to chemicals. The connector’s resistance to solvents and its durable housing help maintain performance over time. In both industrial and medical fields, the 3M 103 Series supports fast installation and easy maintenance, reducing downtime and improving productivity.

Telecom and Embedded Systems

Telecommunications networks and embedded systems demand connectors that can handle frequent use and harsh conditions. The 3M 10326-52A0-008 meets these needs with its robust electrical and mechanical properties. Network signal routing, PBX systems, and communication modules benefit from its high insulation resistance and secure contact retention. Embedded systems, such as development boards and lab testing instruments, require connectors that maintain performance after many connection cycles.

The following table highlights key performance metrics for the 3M 10326-52A0-008 in these environments:

Test Category	Key Performance Metrics / Conditions	Standards / Notes
Electrical Properties	Insulation resistance ≥ 500 MΩ (500 VDC, 1 min)	-
Mechanical Properties	Contact retention force ≥ 1 kg	Measured at 5 mm/min tension
	Vibration: No disconnection >1 μsec	MIL-STD-202E, 10-55 Hz, 2 hrs XYZ
Environmental Resistance	Salt spray: 35°C, 5% NaCl, 48 hr	MIL-STD-202E
	High temperature life: 85°C, 1000 hr at 110% current	MIL-STD-202E

These results show that the 3M 103 Series maintains reliable connections, even in demanding telecom and embedded system applications. Its proven durability and performance make it a trusted choice for engineers across multiple industries.

Comparing Cable Management Solutions

Unique Advantages

Many cable management products exist, but the 3M 10326-52A0-008 stands out for its balance of capacity, strength, and reliability. Most connectors in this class cannot match its combination of high core count and low weight. The 3M 10326-52A0-008 supports 26 cores while weighing only 14.6 grams. This makes it easier to handle and install, especially in dense electronic systems.

The connector uses a jack screw compatible hood. This feature provides secure fixation and helps prevent accidental disconnects. Nickel-plated screws and an earth plate offer effective EMI shielding, which protects sensitive signals from interference. Many alternative products lack this level of shielding, which can lead to signal loss or noise in demanding environments.

The table below highlights key performance metrics that set the 3M 10326-52A0-008 apart:

Performance Metric	Value/Condition
Supported Cores	26
Weight	14.6 g
Contact Retention Force	≥ 1 kg (0.8 kg for pressure welding type)
Insertion Force per Pole	≤ 150 g
Extraction Force per Pole	≥ 40 g
Vibration Resistance	10~55 Hz, 10 G, 2 hours in XYZ directions
Impact Resistance	50 G, 11 msec, 18 impacts total
Durability	50 insertion/extraction cycles

The 3M 103 Series also passes strict environmental tests. It resists humidity, salt spray, thermal shock, and high temperatures. These qualities ensure long-term performance in industrial, medical, and telecom settings.

Tip: Choosing connectors with proven EMI shielding and mechanical strength helps protect equipment and reduce maintenance.

The 3M 10326-52A0-008 offers a unique mix of light weight, high capacity, and robust protection. These features make it a preferred choice for engineers who need reliable cable management in critical applications.

The 3M 10326-52A0-008 and the 3M 103 Series deliver strong cable management and lasting durability. Engineers in fields like automation, medical equipment, and telecommunications trust these connectors for reliable performance.

High-density design supports complex systems.
Durable materials withstand harsh environments.

Choosing the 3M 103 Series helps teams reduce downtime and protect valuable equipment. These solutions offer long-term value for demanding applications.
