Practical Advice for 6N137 Optoisolators in Consumer Electronics and industrial systems

The 6N137 plays a crucial role in ensuring signal isolation and safety by preventing high-voltage circuits from damaging sensitive components. This enhances overall system reliability and shields against electrical noise interference. Widely utilized across various applications, the 6N137 is integral to industrial automation, such as protecting microcontrollers in PLCs, as well as in consumer electronics like gaming consoles, ensuring optimal performance.

Renowned for its reliability, the 6N137 boasts an impressive Mean Time Between Failures (MTBF) exceeding 252 million hours. Proper implementation of the 6N137 requires meticulous circuit design, including stable power supply and effective noise reduction techniques. For high-quality components tailored to diverse needs, trusted 6N137 distributors like keepbooming are a dependable choice.

Key Takeaways

• The 6N137 optoisolator keeps systems safe by separating high-voltage parts from delicate ones. This makes the system work better.

• Use the correct pull-up resistors to match circuit voltages. This stops signal problems and keeps communication clear.

• Keep the power supply steady for the 6N137. A stable voltage avoids signal loss and helps it work well.

• Good PCB design is very important. Keep wires short and separate ground areas to lower noise and improve signals.

• Test and clean the 6N137 often to keep it reliable. Look for dust, cracks, or weak spots to avoid problems.

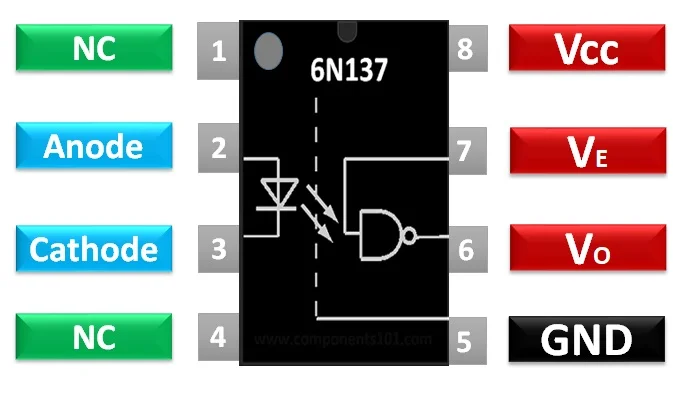

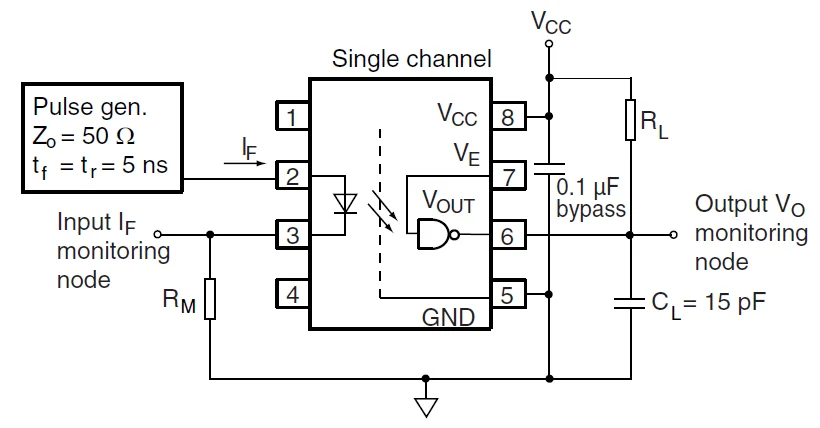

Key Features of 6N137 Optoisolators

Fast data transfer with high-speed performance

The 6N137 optoisolator is known for its fast speed. It works well in systems needing quick communication. It can transfer data at speeds up to 10 Mbps. This ensures smooth and fast signal sharing. It is useful in places like factories and communication systems. Its logic gate output makes it easy to connect with digital circuits. It works with common logic types like TTL and CMOS.

The 6N137 also handles noise very well. It has a noise immunity of 10 kV/µs. This helps reduce interference and keeps signals clear. It is great for noisy places like power plants and factories.

Saves energy with low power use

The 6N137 uses little power while still working well. This makes it good for devices that need to save energy. It also stops ground loops, which helps save energy.

Its low power use matches its fast data speed. This makes it a good choice for modern electronics. It works well in both home gadgets and factory systems.

Keeps circuits safe with electrical isolation

The 6N137 can handle up to 5000 VRMS for isolation. This protects parts from high voltage damage. It also stops noise from messing up the system.

It works in temperatures from -40°C to 85°C. This makes it useful in many different places. It also follows RoHS rules, making it safe and eco-friendly. The 6N137 helps keep electronic systems safe and reliable.

Works with TTL and CMOS logic levels

The 6N137 optoisolator works well with both TTL and CMOS logic levels. This makes it easy to use in many digital systems.

TTL and CMOS have different voltage needs. TTL usually uses 5V, while CMOS can work with lower voltages like 3.3V or 1.8V. The 6N137 connects these two by using a logic gate output. It helps devices communicate smoothly, no matter their voltage type.

Tip: Match input and output voltages to the connected devices. This avoids signal problems and keeps the system working well.

The open-collector output of the 6N137 is very helpful. It lets you add pull-up resistors to set the output voltage. For example, use a 10 kΩ resistor for a 5V TTL circuit. A 4.7 kΩ resistor works for a 3.3V CMOS system.

The 6N137 also has a Schottky-clamped transistor output. This helps it switch quickly and reduces delays. It is great for fast systems like communication tools and factory machines.

By working with both TTL and CMOS, the 6N137 makes designing circuits easier. Engineers can use it in systems with mixed logic without worrying about problems.

Practical Circuit Design Tips for 6N137

Input and output interfacing guidelines

To make the 6N137 work well, proper connections are key. On the input side, use a resistor to protect the LED. This resistor depends on the input voltage and LED current. For instance, a 1 kΩ resistor with 5V input limits current to 5 mA.

On the output side, the open-collector design is flexible. Add a pull-up resistor to set the output voltage. Use a 10 kΩ resistor for TTL circuits or a 4.7 kΩ resistor for CMOS systems. The fast output transistor works well in high-speed circuits.

Tip: Check input and output voltages to avoid signal issues.

Power supply considerations for stable operation

A steady power supply is important for the 6N137. It works best with 4.5V to 5.5V. Voltage changes can cause problems or signal loss. Place a 0.1 µF capacitor near the power pins to reduce noise.

Using isolated power supplies improves the device's isolation. It also stops ground loops and reduces interference. For industrial use, a regulated power source keeps performance steady.

Note: Don’t share power with high-current devices. This avoids voltage drops that may affect the 6N137.

PCB layout tips to reduce noise and interference

Good PCB design helps the 6N137 perform better. Keep the optocoupler close to the signal source. Shorter traces mean less noise.

Separate input and output ground planes to keep isolation. This stops output noise from affecting the input. Keep high-speed signals away from noisy parts like power converters.

Use shielding, like ground planes, to cut interference. For fast circuits, consistent trace impedance keeps signals clear.

Tip: Limit vias to avoid extra inductance that can hurt fast signals.

Choosing the Right Pull-Up Resistors

Pull-up resistors are important for the 6N137 optoisolator to work well. They set output voltage levels and keep signals clear in digital circuits. Picking the correct resistor needs thought about factors like speed, output impedance, and current transfer ratio (CTR).

Things to Think About for Pull-Up Resistors

When picking pull-up resistors, engineers must balance speed and efficiency. The table below shows key points to consider:

Helpful Tips for Picking Resistors

1. Match Resistor to Circuit Voltage
   Choose a resistor that fits the circuit's logic level. For example, use a 10 kΩ resistor for TTL circuits at 5V. A 4.7 kΩ resistor works for CMOS circuits at 3.3V. This keeps the output voltage in the right range.

2. Balance Speed and Signal Quality
   Fast circuits need smaller resistors for quick signal changes. A lower resistor value makes signals rise faster. But very small resistors use more power. Find a good balance between speed and energy use.

3. Think About Current Transfer Ratio (CTR)
   The CTR shows how much input current becomes output current. A high CTR is better for noisy systems or long signal paths. Pick a resistor that works well with the CTR for steady performance.

4. Test and Adjust for Your Circuit
   Different circuits need different resistor values. Test various resistors during design to find the best one. This ensures the circuit works well and stays reliable.

Tip: After adding the pull-up resistor, use a multimeter to check the output voltage. This confirms the resistor value matches the circuit's needs.

By choosing the right pull-up resistors, engineers can improve the 6N137 optoisolator's performance. Good resistor choices make signals smoother, save energy, and support fast operation in many systems.

Avoiding Common Problems with 6N137

Stopping signal problems and timing errors

Signal issues can harm how the 6N137 optoisolator works. These problems often happen due to bad circuit design or wrong parts. Engineers can follow these steps to avoid such troubles.

1. Pick the Right Input Resistors
   The LED inside the 6N137 needs a resistor to limit current. Using the wrong resistor can cause weak or bad signals. For example, a 1 kΩ resistor with 5V input keeps the current steady at 5 mA.

2. Keep Signal Paths Short
   Long signal paths can add noise and slow signals. Shorter paths make signals faster and clearer.

3. Match Timing with Other Parts
   The 6N137 is fast, but timing must match other parts. If not, glitches can happen. Check that the optoisolator's speed fits the system's timing needs.

Tip: Use an oscilloscope to check signals during testing. This helps find and fix problems early.

Using good grounding to stop noise

Good grounding keeps the 6N137 working well. Bad grounding can add noise and lower system performance.

• Separate Ground Areas
  Keep input and output grounds separate. This stops noise from the output side from affecting the input.

• Avoid Ground Loops
  Ground loops happen when extra ground paths create noise. Use isolated power supplies or optoisolators like the 6N137 to stop ground loops.

• Add Decoupling Capacitors
  A 0.1 µF capacitor near the power pins reduces noise. This helps the 6N137 work smoothly.

Note: Always connect the 6N137's ground pin directly to the ground area for best results.

Protecting the output stage from overload

The 6N137's output stage is made for certain loads. Overloading it can cause problems or damage.

• Use the Right Pull-Up Resistors
  Pull-up resistors control output current. A resistor that's too small can overload the output. A 10 kΩ resistor works for TTL circuits, and a 4.7 kΩ resistor is good for CMOS systems.

• Keep Output Current Safe
  The 6N137 has a maximum output current limit. Going over this can cause overheating or failure. Check the total current of connected parts to stay within the limit.

• Test with Real Loads
  Test the circuit with real-world loads to ensure it works well. This helps find overload problems before use.

Tip: Check the 6N137 datasheet for output current limits and design tips.

Handling tough conditions in industrial settings

Factories and industrial places often have tough conditions. These include very hot or cold temperatures, high moisture, and electrical noise. The 6N137 optoisolator is built to work well in such environments. Its strong design and ability to meet safety rules make it a reliable option for engineers.

Working in Extreme Conditions

The 6N137 works in temperatures from -40°C to 85°C. This means it performs well in freezing cold or very hot places. It also protects parts from voltage spikes and electrical noise. These problems are common in industrial systems. By stopping damage, the 6N137 helps machines last longer.

Tip: Use the 6N137 in areas with changing temperatures or electrical noise. This improves system performance.

Following Safety Rules

The 6N137 meets strict environmental rules, making it great for modern factories. It follows the RoHS3 rule, which limits harmful materials in electronics. It is also Pb-free, meaning it is made without lead. This supports safer and greener practices.

These rules show that the 6N137 is safe for the environment. Engineers can use it in systems that focus on being eco-friendly and sustainable.

Helping the Environment

The 6N137 uses little power, which saves energy in factories. Using less energy lowers the carbon footprint of machines. It also lasts a long time, so it doesn’t need to be replaced often. This reduces electronic waste.

Note: Adding parts like the 6N137 to designs helps both the environment and machine performance.

The 6N137 optoisolator handles tough conditions well. It works in extreme environments, meets safety rules, and helps the planet. This makes it a smart choice for industrial systems.

Applications of 6N137 in Real-World Systems

Industrial automation and motor control

The 6N137 optoisolator is important in factory systems. It keeps control signals safe from high-power motors. This protects sensitive parts from high-voltage spikes, common in factories.

Key benefits include:

• Better reliability in motor systems.

• Shields microcontrollers from electrical noise.

• Helps with accurate signal transmission.

In factories, the 6N137 ensures smooth data flow between controllers and motors. It reduces signal errors and works well in fast systems.

Tip: Use the 6N137 in motor systems to protect parts and keep systems stable in tough factory conditions.

Consumer electronics like gaming consoles and smart devices

The 6N137 optoisolator is used in gadgets like gaming consoles and smart devices. In one project, it was added to a brain-computer interface for safety. It separated the electrode circuit from the microcontroller, keeping users safe from faults.

Key features for consumer electronics:

• Fast data sharing for quick responses.

• Low power use, great for battery devices.

• Electrical isolation to protect users and parts.

In smart devices, the 6N137 improves data sharing between sensors and processors. Its small size and ability to work with TTL and CMOS logic make it a good fit for modern gadgets.

Note: When designing gadgets, use optoisolators like the 6N137 to keep important parts safe.

Communication systems such as RS-232 and USB interfaces

The 6N137 optoisolator is great for communication systems like RS-232 and USB. It supports fast data sharing with very little signal distortion.

The 6N137 ensures clear data sharing in systems like MIDI controllers and USB devices. Its speed reduces errors and boosts system performance.

Tip: For fast communication systems, use the 6N137 to keep signals clear and reliable.

Medical equipment needing strong isolation for safety

Medical tools must keep patients safe and work well. The 6N137 optoisolator helps by giving strong electrical isolation. It separates delicate devices from high-voltage circuits. This lowers the chance of shocks and interference.

The 6N137 can handle up to 5000 VRMS isolation voltage. This protects both patients and machines from voltage spikes. For example, in heart monitors, it keeps signals clear from outside electrical noise. This ensures accurate readings and safer use.

It also transfers data quickly, which is important for real-time medical tools. Devices like infusion pumps need fast communication between sensors and processors. The 6N137's speed keeps data flowing smoothly without delays.

Besides safety and speed, the 6N137 meets strict rules like RoHS3. This makes it a good choice for eco-friendly designs. Its low power use is perfect for portable devices like health trackers.

Engineers pick the 6N137 because it works in many medical systems. It supports TTL and CMOS logic levels, making it flexible. Its strong design works well even in tough places like operating rooms.

Tip: Use parts like the 6N137 for safe and reliable medical devices. This keeps patients safe and devices working well for a long time.

Troubleshooting and Maintaining 6N137 Optoisolators

Fixing problems like signal loss or distortion

Signal issues can make circuits with 6N137 optoisolators work poorly. Engineers use simple steps to find and fix these problems.

• Swap the diode for a 330-ohm resistor. Lower the series resistor to 820 ohms. This keeps voltage and current in the safe range.

• Remove extra pull-up resistors on pin 7. Change the pull-up resistor on pin 6 to 1 kΩ. This improves signal flow without errors.

• Use an oscilloscope to check slow signal edges. Replace the pull-up resistor with a 330-ohm one to make signals sharper.

• Add a 1 nF ceramic capacitor next to the 1N4148 diode. This stops unwanted interruptions and keeps data clear.

• Adding a locomotive to the track reduces ringing. This shows better circuit performance in real-world tests.

These fixes help keep signals clear and systems using the 6N137 running smoothly.

Checking isolation and performance

Testing the 6N137 optoisolator is important for safety and good performance. Engineers use different methods to check how well it works.

1. High Voltage Testing
   Apply high voltage to test the isolation barrier. This ensures the 6N137 can handle up to 5000 VRMS safely.

2. Signal Quality Check
   Watch signals passing through the optoisolator. Use an oscilloscope to check for delays or distortion. This ensures fast and clear data sharing.

3. Stress Testing
   Test the 6N137 in extreme heat, cold, and noisy conditions. This shows it works well in tough environments like factories.

Regular testing helps avoid failures and keeps the 6N137 reliable for a long time.

Replacing broken parts properly

Replacing a damaged 6N137 optoisolator needs care to avoid new problems. Engineers follow easy steps to do this right.

• Find the Problem
  Use tools like multimeters to check if the optoisolator is broken. Look for overheating or damage.

• Pick the Right Replacement
  Choose a new 6N137 that matches the circuit's needs. Check voltage, logic type, and isolation rating.

• Prepare the Circuit
  Turn off power and remove the broken part. Clean the area on the PCB for a good connection.

• Install and Test
  Solder the new 6N137 carefully. Align the pins correctly. Turn on the circuit and test signals to ensure it works well.

These steps help restore the circuit and keep it working reliably.

Maintenance tips for long-term reliability

Taking care of the 6N137 optoisolator keeps it working well. Follow these simple tips to make it last longer in different systems.

1. Clean and Check Regularly

Dust can build up on the circuit board and cause problems. Use a soft brush or air to clean it. Look for cracks or rust on solder joints. Broken connections can make signals weak or stop working.

Tip: Wear an anti-static wrist strap while cleaning to avoid ESD damage.

2. Watch the Working Conditions

The 6N137 works best between -40°C and 85°C. Too much heat, cold, or moisture can harm it. Keep it in a safe environment. In factories, use covers to shield it from tough conditions.

3. Test Isolation Strength Often

The isolation barrier can weaken over time. Check it with high-voltage tests to ensure it still protects against voltage spikes. This keeps sensitive parts safe.

4. Replace Old Parts

Even strong parts like the 6N137 wear out eventually. Swap out old or weak optoisolators to avoid sudden failures. Fresh parts keep the system running smoothly.

5. Store Properly

Keep unused 6N137 optoisolators in anti-static bags. Store them in a dry, cool place to protect them from damage.

Note: Following these tips helps the 6N137 stay reliable and perform well in both home and factory systems.

The 6N137 optoisolator is reliable and works very well. It quickly sends data, making it useful for many devices. Engineers can improve systems by using smart design tips. These tips help keep signals clear and parts safe.

This part is great for tough jobs, like in factories or gaming devices. It fits into many systems, showing its importance in today’s technology. Using these ideas will make systems work better and last longer.

FAQ

What does the 6N137 optoisolator do?

The 6N137 keeps low-voltage circuits safe from high-voltage systems. It stops electrical noise and protects delicate parts. Its fast speed makes it great for factories, communication tools, and gadgets.

How do you pick the right pull-up resistor for the 6N137?

Choose a pull-up resistor based on circuit voltage and speed needs. Use a 10 kΩ resistor for TTL circuits. For CMOS circuits, pick a 4.7 kΩ resistor. Smaller resistors make signals faster but use more power.

Can the 6N137 work in very hot or cold places?

Yes, the 6N137 works well between -40°C and 85°C. This makes it good for factories and outdoor devices. Careful circuit design and shielding help it perform better in tough conditions.

How does the 6N137 keep signals clear?

The 6N137 reduces noise with its strong noise immunity of 10 kV/µs. Its quick switching speed keeps signals accurate, even in noisy places like factories or power plants.

What are easy fixes for 6N137 problems?

Check if input resistors and pull-up resistors are correct. Make sure the power supply is steady. Use an oscilloscope to find signal issues. Replace broken parts and use good grounding to stop noise.
