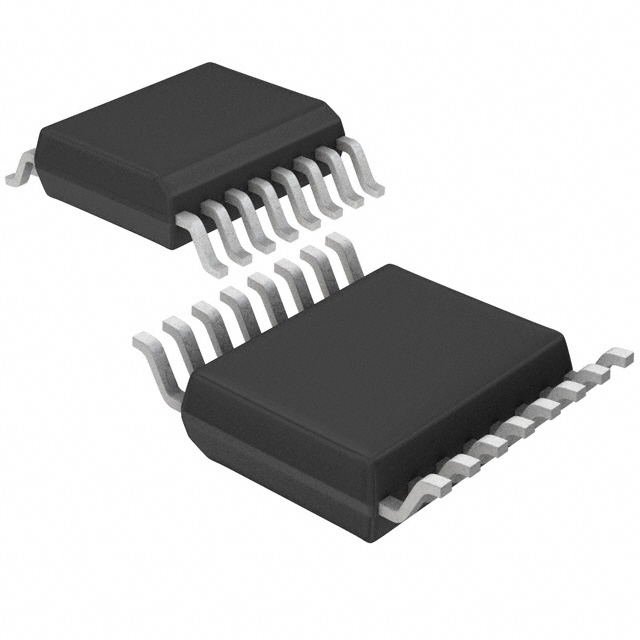

Why AD7793BRUZ-REEL is Perfect for Thermocouples and RTDs

The AD7793BRUZ-REEL offers exceptional precision and reliability for temperature measurement applications. Its 24-bit resolution and low RMS noise, as low as 40 nV at 4.17 Hz, ensure accurate readings even in demanding environments. Engineers value its low drift internal band gap reference and programmable excitation current sources, which enhance measurement stability. With a typical current consumption of just 400 μA, it supports energy-efficient designs. Industries such as precision measurement systems, industrial control, and data acquisition rely on the AD7793BRUZ for its ability to handle small analog signals with high accuracy.

Key Takeaways

• The AD7793BRUZ-REEL has 24-bit resolution for accurate temperature readings.

• It has low noise at 40 nV, keeping measurements steady.

• Built-in amplifiers make sensor connections easy without extra parts.

• Its energy-saving design uses only 400 μA, great for batteries.

• It works in temperatures from -40°C to +85°C, so it’s reliable.

Key Features of the AD7793BRUZ-REEL

High-Resolution 24-Bit ADC

The AD7793BRUZ-REEL delivers exceptional precision with its 24-bit resolution, making it ideal for applications requiring accurate analog-to-digital conversion. Its sigma-delta architecture ensures high performance, while the differential input type supports precise measurements. The ADC operates at a sampling rate of 470 samples per second, enabling fast and reliable data acquisition. Below is a summary of its technical specifications:

This high resolution ensures the AD7793BRUZ-REEL can detect even the smallest voltage changes, making it suitable for precision applications like weighing scales and temperature sensors.

Low Noise and Drift Performance

The AD7793BRUZ-REEL stands out for its low noise and drift characteristics. It achieves an RMS noise level of just 40 nV at an update rate of 4.17 Hz. This low noise level ensures stable and accurate readings, even in environments with electrical interference. Additionally, the ADC includes a precision low noise, low drift internal band gap reference. This feature enhances its drift performance, ensuring consistent accuracy over time and across varying operating conditions. Compared to similar ADCs, such as the MCP3428 and ADS1232, the AD7793BRUZ-REEL offers competitive performance, making it a reliable choice for high-accuracy applications.

Integrated Programmable Gain Amplifier (PGA)

The integrated programmable gain amplifier (PGA) in the AD7793BRUZ-REEL provides enhanced flexibility and accuracy. It allows direct connections to sensors, eliminating the need for external amplifiers. The PGA supports multiple input channels, enabling compatibility with various sensor types. Its high resolution and low noise further improve measurement accuracy. The table below highlights the advantages of the PGA:

This feature makes the AD7793BRUZ-REEL versatile and easy to integrate into a wide range of applications, from industrial process control to medical instruments.

On-Chip Reference for Stability

The AD7793BRUZ-REEL includes an on-chip reference that ensures stable and accurate measurements. This internal reference eliminates the need for an external voltage reference, simplifying the design process. Engineers can rely on its low drift characteristics to maintain consistent performance over time. The on-chip reference provides a stable voltage source, which is critical for precise analog-to-digital conversions.

Temperature variations often affect external references, leading to measurement errors. The AD7793BRUZ-REEL addresses this issue by integrating a highly stable band gap reference. This feature minimizes the impact of temperature changes, ensuring reliable operation in industrial and laboratory environments. The internal reference also reduces noise, further enhancing the accuracy of the ADC.

The on-chip reference supports applications requiring long-term stability. For example, in industrial process control, consistent performance is essential for monitoring and regulating critical parameters. The AD7793BRUZ-REEL’s internal reference ensures that measurements remain accurate, even in challenging conditions. This feature makes it a dependable choice for engineers designing systems that demand precision and reliability.

Low Power Consumption for Energy Efficiency

The AD7793BRUZ-REEL is designed with energy efficiency in mind. Its low power consumption, typically 400 μA, makes it suitable for battery-powered and portable devices. Engineers can use this ADC in applications where minimizing energy usage is a priority. The low power design helps extend battery life, reducing the need for frequent replacements.

Energy efficiency does not compromise performance. The AD7793BRUZ-REEL maintains high accuracy and low noise levels while consuming minimal power. This balance makes it ideal for applications such as IoT devices and medical instruments, where both precision and energy savings are critical.

The ADC also includes a power-down mode, which further reduces energy consumption when the device is not in use. This feature is particularly useful in systems that operate intermittently. By conserving power during idle periods, the AD7793BRUZ-REEL supports sustainable and cost-effective designs.

Low power consumption contributes to the ADC’s versatility. It can be used in remote monitoring systems, where energy efficiency is essential for long-term operation. The AD7793BRUZ-REEL’s ability to deliver high performance while consuming minimal power makes it a valuable component for modern electronic systems.

Why the AD7793BRUZ-REEL is Ideal for Thermocouples

High-Resolution ADC for Small Voltage Signals

Thermocouples generate small voltage signals that require precise measurement. The AD7793BRUZ-REEL excels in this area with its high-resolution 24-bit Σ-Δ ADC. This ADC features three differential analog inputs and an on-chip instrumentation amplifier. These features allow direct interfacing with small amplitude signals, eliminating the need for external amplifiers. With a gain setting of 64, the ADC achieves an impressive RMS noise level of 40 nV at an update rate of 4.17 Hz. This capability ensures accurate conversion of even the smallest voltage changes, making it ideal for thermocouple applications. Additionally, the ADC's multiple input channels provide versatility, enabling engineers to connect various thermocouples for diverse measurement needs.

Low Noise for Stable Readings

Stable readings are critical when working with thermocouples, especially in environments with electrical interference. The AD7793BRUZ-REEL addresses this challenge with its low noise design. The ADC integrates a low noise instrumentation amplifier and a 16-/24-bit Σ-Δ ADC, ensuring precise and stable measurements. By directly interfacing small signals to the ADC, the design minimizes noise interference, which is essential for accurate thermocouple readings. This low noise performance enhances reliability, making the AD7793BRUZ-REEL a dependable choice for applications requiring consistent temperature monitoring.

Support for Cold Junction Compensation

Thermocouples require cold junction compensation to ensure accurate temperature readings. The AD7793BRUZ-REEL supports this requirement through its advanced features. It integrates a 16-bit digital temperature sensor, which provides precise cold junction compensation. The ADC also includes programmable gain functionality, offering flexibility in measurement setups. Its ability to support three-channel K-type thermocouple measurements further enhances its versatility. The table below highlights key features related to cold junction compensation:

These features ensure precise and reliable temperature measurements, even in complex setups. The AD7793BRUZ-REEL simplifies the design process while maintaining high accuracy, making it an excellent choice for thermocouple applications.

Wide Temperature Range Compatibility

The AD7793BRUZ-REEL demonstrates exceptional performance across a wide temperature range, making it suitable for diverse environments. It operates reliably from -40°C to +85°C, ensuring accurate measurements in both extreme cold and high heat. This capability allows engineers to use it in applications where temperature fluctuations are common, such as industrial automation or outdoor monitoring systems.

Temperature sensors like thermocouples and RTDs often face challenges in maintaining accuracy under varying conditions. The AD7793BRUZ-REEL addresses this issue with its robust design and low drift characteristics. Its internal band gap reference minimizes the impact of temperature changes on measurement stability. This feature ensures consistent performance, even in demanding environments.

The ADC’s wide temperature range compatibility also supports applications in medical devices and laboratory equipment. These systems often require precise measurements in controlled but varying thermal conditions. By maintaining accuracy across its operating range, the AD7793BRUZ-REEL provides dependable results for critical applications.

In addition to its operational range, the ADC includes features that enhance its adaptability. Its programmable gain amplifier (PGA) and multiple input channels allow engineers to configure it for different sensor types and setups. This flexibility ensures that the ADC performs well in both standard and specialized environments.

The wide temperature range compatibility of the AD7793BRUZ-REEL makes it a versatile choice for engineers. Its ability to deliver reliable performance in extreme conditions ensures that it meets the needs of industries requiring precision and durability.

Why the AD7793BRUZ-REEL is Ideal for RTDs

Precision Resistance Measurement

The AD7793BRUZ-REEL excels in precision resistance measurement, making it a perfect match for RTD applications. Its 24-bit analog-to-digital converter (ADC) ensures high-resolution conversion, which is essential for detecting small resistance changes in RTDs. Low noise performance further enhances its ability to deliver accurate readings, even in challenging environments. These features allow engineers to achieve reliable temperature measurements in demanding applications, such as industrial process control and laboratory equipment. The AD7793BRUZ-REEL’s precision capabilities simplify the design of systems requiring consistent and accurate resistance measurements.

Linearity and Accuracy Across Temperature Ranges

RTDs require consistent linearity and accuracy across varying temperature ranges. The AD7793BRUZ-REEL meets this requirement with its robust specifications. Its sigma-delta architecture and 24-bit resolution ensure precise data conversion, while features like low gain error and integral nonlinearity (INL) maintain accuracy. The table below highlights its key specifications:

These characteristics make the AD7793BRUZ-REEL a dependable choice for RTD applications, ensuring accurate performance across a wide range of temperatures.

Built-In Excitation Current Sources

The AD7793BRUZ-REEL includes built-in excitation current sources, which are crucial for RTD applications. These current sources enable precise resistance measurements by providing a stable and consistent current through the RTD. The ADC also features a precision low noise reference, which improves signal integrity and ensures accurate readings. Programmable features allow engineers to customize the ADC for specific application needs. The table below outlines the benefits of these features:

These built-in features simplify the design process and enhance the overall performance of RTD-based systems. The AD7793BRUZ-REEL’s ability to deliver precise and reliable measurements makes it an excellent choice for engineers working with RTDs.

Compatibility with 2-Wire, 3-Wire, and 4-Wire RTDs

The AD7793BRUZ-REEL offers exceptional compatibility with 2-wire, 3-wire, and 4-wire RTDs, making it a versatile choice for engineers. Each RTD configuration has unique characteristics, and this ADC supports them all with precision and reliability.

2-wire RTDs are the simplest configuration. They use two leads to connect the sensor to the measurement system. However, lead resistance can introduce errors in measurements. The AD7793BRUZ-REEL minimizes these errors by leveraging its built-in programmable gain amplifier (PGA) and low noise design. These features ensure accurate resistance measurements, even in basic setups.

3-wire RTDs add a third lead to compensate for lead resistance. This configuration is widely used in industrial applications due to its balance of accuracy and simplicity. The AD7793BRUZ-REEL supports 3-wire RTDs by using its differential input channels and built-in excitation current sources. These features provide stable and precise measurements, even in environments with electrical noise.

4-wire RTDs offer the highest accuracy by completely eliminating the effects of lead resistance. This configuration uses separate leads for current and voltage measurements. The AD7793BRUZ-REEL excels in 4-wire RTD applications by providing high-resolution analog-to-digital conversion and low drift performance. Its ability to handle small resistance changes ensures reliable temperature readings in critical applications.

The ADC’s flexibility in supporting all three RTD configurations simplifies the design process for engineers. Whether used in industrial automation, medical devices, or laboratory equipment, the AD7793BRUZ-REEL delivers consistent and accurate results. Its compatibility with various RTD setups makes it a dependable choice for temperature measurement systems.

Applications of the AD7793BRUZ-REEL

Industrial Process Control

The AD7793BRUZ-REEL plays a vital role in industrial process control systems. Its high-resolution 24-bit ADC ensures precise measurements, making it ideal for monitoring and controlling critical parameters like temperature, pressure, and chemical concentrations. This ADC supports various industrial applications, as shown below:

The ADC’s low noise performance and flexible input options enhance its reliability in demanding environments. Engineers can depend on its consistent accuracy for industrial automation and process monitoring.

Medical and Laboratory Equipment

The AD7793BRUZ-REEL is widely used in medical and laboratory equipment due to its precision and low noise characteristics. Its 24-bit resolution ensures accurate conversion of analog signals, which is essential for applications like temperature monitoring and biological signal measurement. The ADC’s low power consumption makes it suitable for portable medical devices, while its flexible input options simplify integration into complex systems.

In laboratory settings, the AD7793BRUZ-REEL supports precision measurement tasks, such as chemical analysis and environmental monitoring. Its ability to maintain accuracy across a wide temperature range ensures dependable performance in controlled environments. Engineers designing medical and laboratory equipment benefit from its high resolution and stable operation.

Consumer Electronics and IoT Devices

The AD7793BRUZ-REEL is an excellent choice for consumer electronics and IoT devices requiring precise measurements. Its low power consumption extends battery life, making it ideal for portable and remote devices. Features like high resolution and low noise performance ensure accurate data acquisition, even in compact systems.

In IoT applications, the ADC enables reliable monitoring of environmental conditions, such as temperature and humidity. Its flexible input options allow seamless integration with various sensors, enhancing its versatility. The AD7793BRUZ-REEL supports the development of smart devices that require consistent and accurate performance.

Weighing Scales and Strain Gauge Systems

The AD7793BRUZ-REEL excels in weighing scales and strain gauge systems due to its high resolution and low noise performance. These features ensure precise measurements, which are critical for applications requiring accuracy and reliability. Engineers designing these systems benefit from the ADC's ability to handle small signals with exceptional stability.

Weighing scales rely on load cells to measure weight. These load cells generate small voltage signals proportional to the applied force. The AD7793BRUZ-REEL, with its 24-bit resolution, captures these signals with remarkable precision. Its integrated programmable gain amplifier (PGA) amplifies the small signals, eliminating the need for external amplifiers. This simplifies the design process and reduces system complexity.

Strain gauge systems measure deformation or strain in materials. These systems often operate in environments with electrical noise, which can affect measurement accuracy. The AD7793BRUZ-REEL addresses this challenge with its low noise design. It ensures stable and accurate readings, even in demanding conditions. The ADC's low drift characteristics further enhance its reliability, making it suitable for long-term monitoring applications.

Tip: The AD7793BRUZ-REEL's low power consumption makes it ideal for portable weighing scales and remote strain gauge systems.

The table below highlights key features of the AD7793BRUZ-REEL for these applications:

The AD7793BRUZ-REEL supports a wide range of weighing and strain gauge applications. Its precision and reliability make it a trusted choice for engineers in industrial, laboratory, and consumer settings.

The AD7793BRUZ-REEL stands out as a versatile ADC, designed for high-resolution and accurate conversion of analog signals. Its precision and low noise performance make it ideal for temperature measurement systems, including thermocouples and RTDs. Flexible input options enhance its adaptability across various applications, from industrial process control to medical devices.

Key features like a low noise instrumentation amplifier and programmable excitation current sources ensure reliable performance in demanding environments. Whether used in precision measurement systems, data acquisition, or consumer electronics, the AD7793BRUZ-REEL consistently delivers dependable results. Engineers and technicians can rely on its accuracy and stability for critical applications.

1. What makes the AD7793BRUZ-REEL suitable for temperature sensors like thermocouples and RTDs?

The AD7793BRUZ-REEL offers a 24-bit resolution, low noise performance, and built-in excitation current sources. These features ensure precise measurements of small signals from thermocouples and RTDs. Its compatibility with multiple sensor configurations enhances its versatility for temperature monitoring applications.

2. Can the AD7793BRUZ-REEL handle extreme temperature environments?

Yes, the AD7793BRUZ-REEL operates reliably between -40°C and +85°C. Its low drift internal reference and robust design ensure consistent accuracy in both cold and hot conditions. This makes it ideal for industrial and outdoor applications.

3. How does the AD7793BRUZ-REEL simplify system design for engineers?

The AD7793BRUZ-REEL integrates features like a programmable gain amplifier (PGA), on-chip reference, and built-in excitation current sources. These eliminate the need for external components, reducing system complexity and design time. Its flexible input options further streamline integration.

4. Is the AD7793BRUZ-REEL energy-efficient for portable devices?

Yes, the AD7793BRUZ-REEL consumes only 400 μA of current. It also includes a power-down mode to conserve energy during idle periods. These features make it suitable for battery-powered and portable systems, such as IoT devices and medical instruments.

5. What industries benefit most from the AD7793BRUZ-REEL?

Industries like industrial automation, medical equipment, and consumer electronics benefit from the AD7793BRUZ-REEL. Its precision, low noise, and energy efficiency make it ideal for applications such as process control, temperature monitoring, and weighing systems.

Note: The AD7793BRUZ-REEL’s versatility ensures it meets the needs of diverse applications requiring high accuracy and reliability.
