Unlock Amazing Video: AD8052ARZ Amplifiers for Consumer Video

The pursuit of perfect video quality drives innovation in consumer systems. For years, the AD8052ARZ Amplifiers have been a respected component in video amplification. This classic amplifier has a long history. Is this amplifier still a top contender for AD8052ARZ Amplifiers for Consumer video systems in 2025? Rapid technological advancements continue to emerge. This blog provides a comprehensive, up-to-date review of its features, performance, and relevance for modern video applications. The AD8051/AD8052/AD8054 are well suited for video.

Key Takeaways

• The AD8052ARZ amplifier is a good choice for many video systems. It offers strong performance and saves money.

• This amplifier keeps video signals clear. It helps maintain good color and sharp images.

• The AD8052ARZ works well with HD video. It can also handle some 4K video signals.

• It is easy to use this amplifier in new designs. It has a proven history of being reliable.

• Newer amplifiers exist. However, the AD8052ARZ remains a smart choice for many video projects.

AD8052ARZ: Core Specifications for Video

Key Features and Architecture for Video

The AD8052ARZ operates as a low-cost, high-speed, voltage feedback dual operational amplifier. This design makes it suitable for many video applications. Its architecture focuses on delivering clear signals. The amplifier maintains signal integrity across various frequencies. It also works well in high-speed portable equipment. This dual op-amp provides two independent amplification channels within one package. This feature saves space and simplifies circuit designs.

Technical Specifications: Bandwidth, Slew Rate, Noise, Distortion

The AD8052ARZ boasts impressive technical specifications. It offers a 300 MHz bandwidth. This bandwidth allows it to handle many video signals effectively. The amplifier also features a 260 V/µs slew rate. This high slew rate ensures fast signal transitions. It prevents blurring or smearing in video images. The AD8052ARZ has low input offset voltage. It also exhibits low distortion characteristics. These features contribute to accurate video reproduction. Fast settling times further enhance its performance. The amplifier provides a rail-to-rail output voltage swing. It operates on various power supplies, including +3 V, +5 V, or ±5 V. This flexibility makes it adaptable to different system requirements.

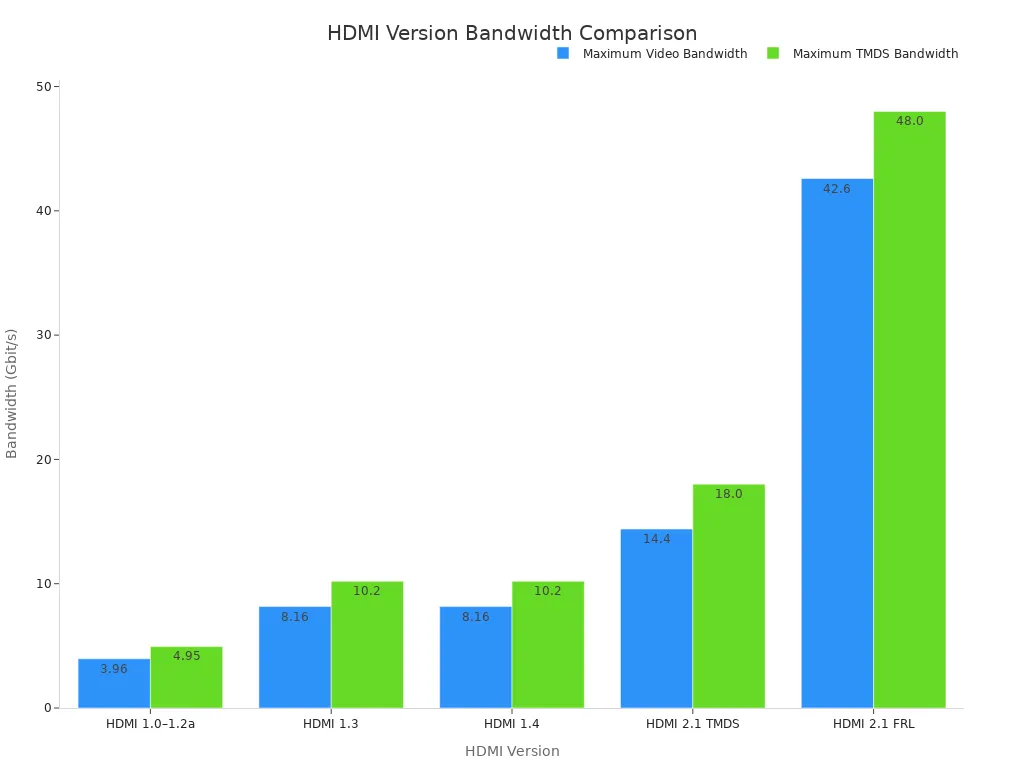

Modern video standards demand significant bandwidth. The table below shows typical bandwidths for various HDMI versions:

The 300 MHz bandwidth of the AD8052ARZ Amplifiers for Consumer video applications supports many standard definition and high-definition signals. Designers must consider the specific video standard when integrating this component.

Pin Configuration and Package

The AD8052ARZ comes in standard surface-mount packages. These packages include SOIC and MSOP. Its pin configuration is straightforward. This design allows for easy integration into printed circuit boards. Engineers can quickly incorporate it into their designs. The compact size of these packages also helps in creating smaller, more efficient devices.

AD8052ARZ Performance in Consumer Video

Signal Integrity and Video Fidelity

The AD8052ARZ amplifier plays a crucial role in maintaining video signal integrity. It ensures the video signal remains true to its original form. This amplifier preserves color accuracy, delivering vibrant and lifelike images. It also maintains sharpness, making details clear and crisp on the screen. The AD8052ARZ minimizes artifacts, which are unwanted visual distortions. For example, it prevents "ringing" or "ghosting" that can degrade picture quality. Its low distortion characteristics mean the amplifier does not introduce unwanted changes to the video signal. This results in a clean, high-fidelity video output. Designers often choose this amplifier for applications where visual quality is paramount.

HD and 4K Compatibility

The AD8052ARZ demonstrates strong performance with modern video standards. It handles high-definition (HD) content effectively. Its 300 MHz bandwidth supports many HD resolutions, including 1080p. For 4K content, its compatibility depends on the specific frame rate and color depth. While it may not support the highest-bandwidth 4K signals (like 4K at 60Hz with full color depth over a single analog channel), it can still be suitable for certain 4K applications. These include lower frame rate 4K signals or specific component video paths. For instance, in systems where the video signal undergoes processing before final output, the AD8052ARZ can amplify individual color components. This ensures a clear signal path for each part of the video.

Noise and Distortion Characteristics

The AD8052ARZ features excellent noise and distortion characteristics. Low noise means the amplifier adds very little unwanted electrical interference to the video signal. This translates to a cleaner visual experience. Viewers see less "grain" or "snow" on the screen. The picture appears smoother and more professional. Low distortion ensures the amplifier accurately reproduces the video signal's waveform. This prevents color shifts or geometric distortions in the image. The amplifier's ability to maintain signal purity directly impacts the visual quality. It helps deliver a faithful representation of the original video source.

Power Efficiency and Thermal Management

Power efficiency is an important consideration for consumer electronics. The AD8052ARZ operates with relatively low power consumption. This makes it suitable for portable devices and battery-powered systems. Low power consumption also means less heat generation. Effective thermal management is crucial for the longevity and reliability of electronic components. The AD8052ARZ's design helps keep operating temperatures down. This reduces the need for complex cooling solutions. It contributes to a more compact and reliable product. Its efficient operation benefits both the device's performance and its overall lifespan.

AD8052ARZ Advantages for Consumer Video

Cost-Effectiveness and Performance Value

The AD8052ARZ offers significant value in 2025. It balances cost with strong performance. Designers find it an economical choice for many video applications. It delivers high-quality video amplification without a premium price tag. This makes it attractive for consumer electronics manufacturers. They can achieve excellent visual output within budget constraints. The amplifier provides a reliable solution for maintaining signal integrity.

Reliability and Longevity

This amplifier has a proven track record. It remains an active part in many designs. Its long presence in the market speaks to its reliability. Engineers trust its consistent performance over time. This longevity reduces design risks and maintenance issues. It ensures stable operation in consumer devices for years. The AD8052ARZ's robust design contributes to its enduring appeal.

Ease of Integration

Integrating the AD8052ARZ into circuits is straightforward. It comes in standard surface-mount packages. Its pin configuration is simple. This allows for quick and easy PCB layout. Both experienced engineers and hobbyists find it user-friendly. Its clear documentation further aids the design process. The amplifier's standard footprint simplifies manufacturing.

Specific Use Cases and Applications

The AD8052ARZ shines in various video applications. It excels in video distribution systems, ensuring signals reach multiple displays without degradation. It provides effective signal buffering, isolating stages and preventing impedance mismatches. Display drivers also benefit from its capabilities, delivering clean signals to screens. It works well in active filters, shaping video frequency responses. Analog-to-digital drivers use it for precise signal conditioning before conversion. Clock buffers in video systems also employ this amplifier for stable timing. Professional cameras and CCD imaging systems rely on its performance for clear image acquisition. Even CD/DVD ROMs utilize it for signal processing. The AD8052ARZ Amplifiers for Consumer video applications are versatile, proving their worth across many devices.

AD8052ARZ Limitations for 2025

Comparison with Emerging Technologies

The AD8052ARZ remains a strong performer. However, the electronics industry constantly introduces new technologies. These emerging solutions often offer different advantages. For example, some newer amplifiers feature significantly higher bandwidths. They target extremely high-resolution video formats like 8K or very high refresh rate 4K. These advanced amplifiers often use current feedback architectures. Current feedback designs can achieve higher bandwidths at higher gains. This differs from the AD8052ARZ's voltage feedback design.

Other modern video amplifiers integrate more features. They might include built-in gain control, multiplexers, or advanced filtering. These integrated circuits simplify complex video signal chains. They reduce the need for external components. Some new amplifiers also prioritize ultra-low power consumption. This makes them ideal for tiny, battery-powered devices. The AD8052ARZ offers excellent performance for its class. Designers must consider these newer options when specific project demands push beyond its core strengths.

Potential Performance Bottlenecks

Designers can achieve excellent results with the AD8052ARZ. However, certain modern video applications require careful design choices. These choices ensure the amplifier performs optimally. For instance, very high-resolution video signals, like 4K at 60Hz or higher, demand significant bandwidth. While the AD8052ARZ's 300 MHz bandwidth supports many HD and some 4K signals, designers must manage the signal path carefully. Long PCB traces or improper impedance matching can degrade signal integrity. This can reduce the effective bandwidth of the system.

Power consumption also requires consideration. The AD8052ARZ offers good power efficiency. Yet, ultra-portable devices with tiny batteries might benefit from specialized ultra-low-power amplifiers. These newer chips consume only micro-watts. The AD8052ARZ also provides single-ended outputs. Many modern video interfaces use differential signaling for noise immunity. Designers might need to implement single-ended to differential conversion circuits. This adds complexity and components. Understanding these aspects helps designers maximize the AD8052ARZ's potential in diverse applications.

Design Best Practices for Maximizing Performance

Designers can unlock the AD8052ARZ's full potential with best practices. Proper PCB layout is critical for high-speed amplifiers. Keep signal traces short and direct. This minimizes parasitic capacitance and inductance. A solid ground plane is essential. It provides a stable reference and reduces noise.

Decoupling capacitors are also vital. Place them close to the amplifier's power supply pins. Use both high-frequency (e.g., 0.1 µF ceramic) and low-frequency (e.g., 10 µF tantalum) capacitors. This ensures a clean power supply.

Impedance matching prevents signal reflections. Video signals require careful impedance control, typically 75 ohms. Match the input and output impedances of the amplifier to the transmission lines. Use proper termination resistors at the end of video cables.

Carefully select feedback resistors for gain setting. Refer to the AD8052ARZ datasheet for stability guidelines. The datasheet provides curves and parameters. These help designers choose appropriate component values. Good thermal management also contributes to reliability. Even with its efficient operation, ensure adequate heat dissipation. This prolongs the amplifier's lifespan. Finally, shield sensitive video signals from external electromagnetic interference. This maintains signal purity.

Tip: Always consult the AD8052ARZ datasheet. It provides crucial information for optimal component selection and layout guidelines. Following these practices ensures the AD8052ARZ delivers its best performance in any video project.

Real-World AD8052ARZ Applications

Successful Integrations in Consumer Products

The AD8052ARZ has found its way into many consumer video products. Manufacturers often choose it for its reliable performance and cost-effectiveness. For example, older generation DVD players and set-top boxes frequently used this amplifier. It helped buffer and distribute video signals to televisions. Professional cameras and CCD imaging systems also integrate the AD8052ARZ. It ensures clear signal paths for image acquisition. Designers also employ it in video distribution amplifiers. These devices send video signals to multiple displays without quality loss. Its presence in these diverse products highlights its versatility and proven track record.

Community Feedback and Expert Opinions

Engineers and hobbyists widely respect the AD8052ARZ. They often praise its consistent performance and ease of use. Many consider it a "workhorse" amplifier for analog video applications. Online forums and design communities frequently recommend it for new projects. Experts highlight its low distortion and high slew rate as key benefits. These features contribute to excellent video fidelity. Designers also appreciate its availability and stable supply. This makes it a dependable choice for long-term product development. The consensus points to the AD8052ARZ as a solid, reliable component.

Optimization Tips for Video Projects

Designers can maximize the AD8052ARZ's performance in video projects. Proper PCB layout is crucial. Keep signal traces short and direct. This minimizes signal degradation. Use a solid ground plane to reduce noise. Decoupling capacitors are also essential. Place them close to the amplifier's power pins. This ensures a stable power supply. Match impedance carefully, typically 75 ohms for video. This prevents reflections and maintains signal integrity. Always consult the AD8052ARZ datasheet for specific component values and layout guidelines. Following these practices helps achieve optimal video quality.

Tip: For critical video paths, consider using shielded cables and connectors. This further protects signals from external interference.

The AD8052ARZ maintains its enduring appeal and relevance in 2025 for specific consumer video applications. It offers strong performance, cost-effectiveness, and proven reliability. While cutting-edge alternatives exist, its suitability depends on specific design requirements and budget. The AD8052ARZ Amplifiers for Consumer video remain a smart choice for designers who understand its sweet spot in the evolving electronics landscape.

What are your experiences with this classic amplifier in modern projects? Share your thoughts below!

Is the AD8052ARZ suitable for all modern 4K video applications?

The AD8052ARZ supports many HD and some 4K signals. Its 300 MHz bandwidth handles various resolutions. For the highest-bandwidth 4K signals, like 4K at 60Hz with full color depth, designers might need to consider other solutions. It works well for specific 4K component video paths.

What are the main benefits of using the AD8052ARZ in a video circuit?

It offers excellent signal integrity, preserving color and sharpness. The amplifier provides a cost-effective solution with reliable performance. Its ease of integration and proven track record make it a popular choice. It also features low noise and distortion.

How does the AD8052ARZ help maintain video signal quality?

The amplifier's low noise and distortion characteristics ensure a clean visual experience. It prevents unwanted electrical interference and signal degradation. Its high slew rate ensures fast signal transitions, avoiding blurring. This results in accurate and faithful video reproduction.

Can hobbyists easily integrate the AD8052ARZ into their projects?

Yes, hobbyists find the AD8052ARZ user-friendly. It comes in standard surface-mount packages. Its straightforward pin configuration simplifies PCB layout. Clear documentation also aids the design process. This makes it accessible for various video projects.
