Motion control systems demand precision, reliability, and resilience in challenging environments. The ADM2682EBRIZ addresses these needs by providing robust signal isolation and reducing noise interference. Its design ensures stable communication, even in electrically noisy settings, which enhances system reliability. This makes it an essential component for robotics and motion control applications. From robotic arms to industrial automation, the ADM2682EBRIZ supports high-speed data transmission while safeguarding sensitive electronics. Its ability to maintain signal integrity under harsh conditions ensures optimal performance in critical operations.

Key Takeaways

The ADM2682EBRIZ helps communication work well in noisy places. It is important for motion control systems.
It can send data up to 16 Mbps. This helps robots and machines stay in sync and on time.
Its small size makes it easy to fit in tight spaces. This makes system design simpler.
The transceiver’s strong isolation keeps parts safe from voltage surges. This improves safety and reliability.
Using the ADM2682EBRIZ makes signals clearer. It lowers noise and sends data correctly.

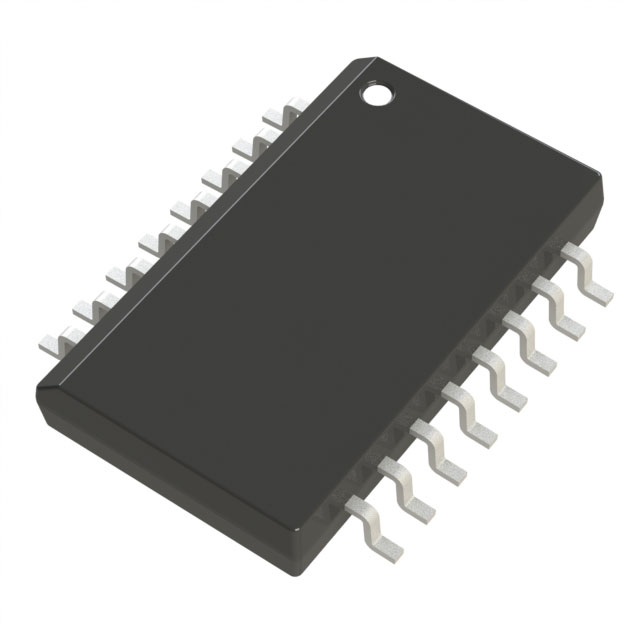

Overview of the ADM2682EBRIZ

The ADM2682EBRIZ is a high-performance isolated RS-485/RS-422 transceiver designed to meet the demands of modern motion control systems. Its robust design ensures reliable communication in electrically noisy environments, making it a preferred choice for industrial automation, robotics, and embedded systems. This transceiver combines high-speed data transmission with advanced isolation capabilities, offering a compact solution for space-constrained applications.

Key Features of the ADM2682EBRIZ

The ADM2682EBRIZ stands out due to its impressive technical specifications. These features make it an ideal component for motion control systems:

Feature	Specification
Data Rate	16Mbps
Channel Type	3 channels
Noise Immunity	Differential output
Operating Temperature Range	-40°C to 85°C
Isolation Voltage Rating	5000Vrms
Package Type	16-SOIC (0.295, 7.50mm width)
Package Dimensions	Height: 2.44mm, Width: 7.6mm

These specifications highlight its ability to handle high-speed data transfer while maintaining signal integrity. Its wide operating temperature range and high isolation voltage rating ensure stable performance in harsh industrial environments.

Why the ADM2682EBRIZ is Ideal for Robotics and Motion Control

High-speed data transmission

The ADM2682EBRIZ supports a data rate of up to 16 Mbps, enabling seamless communication between controllers and actuators. This high-speed capability ensures precise timing and synchronization, which are critical for motion control systems. Its differential output design further enhances signal quality, reducing the risk of errors during data transmission.

Robust isolation for noisy environments

With an isolation voltage rating of 5000Vrms, the ADM2682EBRIZ protects sensitive components from voltage spikes and electrical surges. This feature is particularly valuable in robotics and industrial automation, where electromagnetic interference (EMI) is common. The transceiver ensures reliable input and output signals, even in challenging conditions.

Compact design for space efficiency

The ADM2682EBRIZ features a 16-SOIC package with a height of 2.44mm and a width of 7.6mm. Its compact design allows engineers to integrate it into space-constrained systems without compromising performance. This makes it an excellent choice for embedded applications and tools requiring efficient use of board space.

By combining these features, the ADM2682EBRIZ delivers exceptional performance in motion control systems, ensuring precision, reliability, and efficiency.

Benefits of Using the ADM2682EBRIZ in Motion Control Systems

Improved Signal Integrity

Noise reduction in high-speed systems

The ADM2682EBRIZ significantly reduces noise in high-speed motion control systems. Its differential output design minimizes electromagnetic interference (EMI), ensuring clean and stable signals. This feature is particularly beneficial in environments with high electrical noise, such as industrial automation and robotics. By maintaining signal clarity, the transceiver enhances the overall performance of motion control systems.

Accurate data transmission in challenging environments

Accurate data transmission is critical in motion control applications. The ADM2682EBRIZ achieves this through its robust isolation and high-speed communication capabilities. It supports data rates of up to 16 Mbps, enabling precise and reliable communication between controllers and actuators. This ensures that even in harsh environments, the system operates with optimal accuracy and efficiency.

Enhanced Safety and Reliability

Protection against voltage spikes and surges

The ADM2682EBRIZ incorporates advanced safety features to protect against voltage spikes and surges. These include integrated 5 kVrms signal and power isolation and ±15 kV ESD protection. The table below highlights these features:

Feature	Description
Signal and Power Isolation	Integrated 5 kVrms signal and power isolation
ESD Protection	±15 kV ESD protection
Application	Designed for high-speed communication in industrial applications

These features safeguard sensitive components, ensuring uninterrupted operation in electrically noisy environments.

Stable operation in industrial settings

The ADM2682EBRIZ delivers stable performance in demanding industrial settings. Its robust design withstands harsh conditions, including extreme temperatures and electrical disturbances. This reliability makes it an ideal choice for motion control systems in factories and other industrial environments.

Tip: The ADM2682EBRIZ’s safety features not only protect the system but also extend the lifespan of connected components.

Simplified System Design

Fewer components required for isolation

The ADM2682EBRIZ integrates signal and power isolation into a single package. This reduces the need for additional isolation components, simplifying the overall system design. Engineers can achieve robust isolation without increasing the complexity of their circuits.

Streamlined architecture for easier implementation

The compact design of the ADM2682EBRIZ supports streamlined system architecture. Its 16-SOIC package fits seamlessly into embedded tools and space-constrained applications. This simplifies implementation, saving time and resources during the design process.

By offering improved signal integrity, enhanced safety, and simplified design, the ADM2682EBRIZ proves to be a valuable asset for motion control systems. Its features ensure reliable performance, even in the most challenging environments.

Step-by-Step Guide to Integrating the ADM2682EBRIZ

System Requirements

Voltage levels and power supply considerations

The ADM2682EBRIZ requires a stable power supply within the range of 3.0V to 5.5V. Ensuring the power supply meets this requirement prevents operational issues. Voltage levels on the A and B lines must remain between 1V and 3.5V to maintain compatibility. Devices operating at different voltage levels may need level-shifting circuitry to ensure proper communication.

Compatible components and prerequisites

Before integrating the ADM2682EBRIZ, engineers should confirm the compatibility of signal levels between all devices in the network. Proper wiring of the data lines (A and B) is essential to avoid short circuits. Termination resistors should be used to prevent signal reflections. Twisted-pair cables are recommended to minimize electromagnetic interference, ensuring reliable input and output signals.

Circuit Design and Layout

Pin configurations and connections

The ADM2682EBRIZ features a straightforward pin configuration that simplifies integration. Engineers should carefully connect the A and B lines to the corresponding data lines in the circuit. Proper grounding is critical to avoid noise issues. A solid and low-impedance ground connection ensures stable operation.

Best practices for PCB layout

Effective PCB layout is crucial for maintaining signal integrity. Engineers should use proper termination resistors and twisted-pair cables to reduce noise and reflections. Communication lines should be kept as short as possible to minimize noise pickup. The ADM2682EBRIZ must operate within its recommended temperature range of −40°C to +85°C. Heat sinks or adequate airflow can help manage thermal conditions in high-power applications.

Testing and Validation

Verifying signal integrity and isolation

Testing ensures the ADM2682EBRIZ performs as expected. Engineers should verify that the power supply voltage remains within the required range. Proper termination resistors at the ends of communication lines prevent signal reflections. Monitoring systems can track signal quality and voltage levels, ensuring reliable operation.

Troubleshooting common issues

Common issues during testing include misconfigured communication settings, grounding problems, and faulty connections. Engineers should double-check settings like baud rate and parity. Visual inspection of wiring and connections can identify poor contacts. Adding ESD protection diodes to the A and B lines safeguards against static discharge.

By following these steps, engineers can integrate the ADM2682EBRIZ into motion control systems efficiently. Its compact design and time-saving embedded tools simplify the process, ensuring reliable performance under demanding conditions.

Applications of the ADM2682EBRIZ in Robotics

Use Cases in Robotics and Automation

Robotic arms and precision control

The ADM2682EBRIZ plays a vital role in robotic arms, where precision and reliability are essential. Its high-speed data rate of 16 Mbps ensures fast and accurate communication between controllers and actuators. This capability allows robotic arms to perform intricate tasks with exceptional precision. The transceiver’s robust electromagnetic compatibility (EMC) performance ensures stable operation in environments with high electrical noise. Additionally, its low power consumption makes it ideal for energy-efficient precision control systems. The table below highlights its key features for robotic arms:

Feature	Description
High Speed	Supports fast communication for precise movements.
Low Power Consumption	Optimized for energy-efficient systems.
Robust EMC Performance	Operates reliably in noisy environments.
5 kV rms Isolation	Ensures secure communication in industrial settings.
±15 kV ESD Protection	Safeguards data integrity against electrostatic discharge risks.

Autonomous vehicles and sensor integration

In autonomous vehicles, the ADM2682EBRIZ facilitates seamless integration of sensors and controllers. Its ability to transmit data reliably over long distances ensures accurate sensor readings, which are critical for navigation and obstacle detection. The transceiver’s differential output design minimizes noise interference, enhancing the performance of autonomous systems in challenging environments.

Industrial automation and machine safety

The ADM2682EBRIZ supports motor control applications in industrial automation, ensuring smooth and efficient operation of machinery. Its 5 kVrms isolation protects sensitive components from voltage spikes, enhancing machine safety. The transceiver’s compact design allows it to fit into space-constrained systems, making it a versatile choice for various automation tasks.

Application Type	Description
Industrial Automation	Used in control systems and process control systems, essential for robotics and automation.
Communication Networks	Facilitates reliable communication over long distances in noisy environments.
Motor Drives	Supports motor control applications in automation.

Performance Enhancements in Motion Control

Improved precision and efficiency

The ADM2682EBRIZ enhances motion control systems by delivering precise and efficient communication. Its high-speed data rate ensures accurate timing and synchronization between components. The transceiver’s differential output design reduces noise, maintaining signal integrity even in harsh environments. These features enable motion control systems to achieve higher precision and efficiency.

Increased reliability in harsh environments

Reliability is crucial in motion control systems operating in industrial settings. The ADM2682EBRIZ’s wide operating temperature range of -40°C to 85°C ensures stable performance under extreme conditions. Its ±15 kV ESD protection safeguards components from electrostatic discharge, while its isolated power supply increases system reliability. These attributes make it a dependable choice for motion control applications in demanding environments.

Feature	Description
Data Rate	16 Mbps
Noise Immunity	Differential output for improved noise immunity
Operating Temperature Range	-40°C to 85°C
Isolated Power Supply	Increases reliability
ESD Protection	±15 kV on RS-485 I/O lines

Note: The ADM2682EBRIZ’s robust design ensures consistent performance, making it an invaluable component for motion control systems in robotics and automation.

The ADM2682EBRIZ offers significant advantages for motion control systems. Its ability to maintain signal integrity through RS-485/RS-422 protocols ensures reliable long-distance communication. Features like high-speed data transmission, robust EMC performance, and ±15 kV ESD protection enhance its suitability for robotics and automation. Proper wiring and the use of twisted-pair cables further optimize performance. Engineers benefit from its low power consumption and compact design, which simplify system integration.

Tip: Explore the ADM2682EBRIZ to achieve precision, reliability, and efficiency in robotics and motion control applications. Its advanced features make it an essential tool for modern engineering challenges.

What is the primary function of the ADM2682EBRIZ?

The ADM2682EBRIZ ensures high-speed communication with robust signal isolation. It protects sensitive components from electrical noise, voltage spikes, and surges. This makes it ideal for motion control systems, robotics, and industrial automation.

How does the ADM2682EBRIZ improve system reliability?

The ADM2682EBRIZ enhances reliability by providing 5 kVrms isolation and ±15 kV ESD protection. These features safeguard components from electrical disturbances, ensuring stable operation in harsh environments.

Can the ADM2682EBRIZ handle high-speed data transmission?

Yes, the ADM2682EBRIZ supports data rates up to 16 Mbps. This capability ensures precise communication between controllers and actuators, which is essential for motion control and robotics applications.

What are the key design advantages of the ADM2682EBRIZ?

The ADM2682EBRIZ features a compact 16-SOIC package, reducing space requirements. Its integrated signal and power isolation simplify system design by minimizing the need for additional components.

Is the ADM2682EBRIZ suitable for industrial environments?

Yes, the ADM2682EBRIZ operates reliably in industrial settings. Its wide temperature range (-40°C to 85°C) and noise immunity make it suitable for demanding applications like factory automation and process control.

Tip: For optimal performance, follow best practices for PCB layout and use twisted-pair cables to minimize noise interference.
