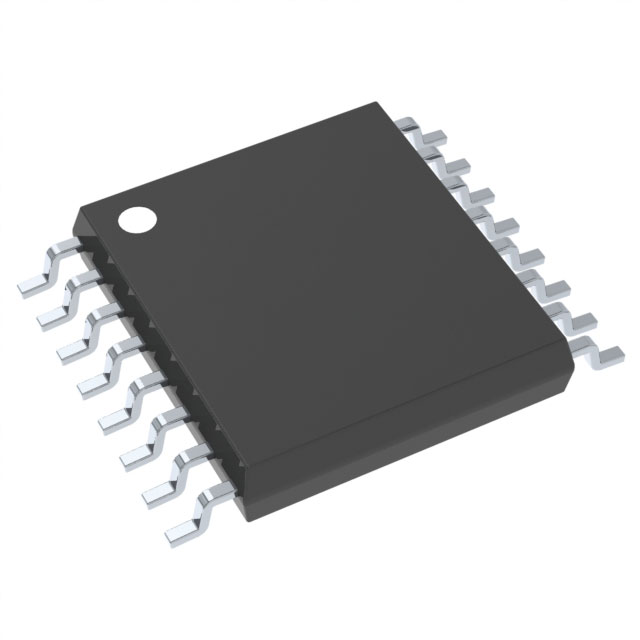

ADS1120QPWRQ1 ADC 16BIT SIGMA-DELTA 16TSSOP: The Ultimate Precision ADC Solution

sales@keepboomingtech.com

·December 19, 2024

·13 min read

ADS1120QPWRQ1: The Ultimate Precision ADC Solution

The ADS1120QPWRQ1 stands as the ultimate precision ADC solution, offering unparalleled accuracy in analog-to-digital conversion. This device excels in delivering precise measurements, crucial for applications demanding high fidelity. The ADS1120-Q1 Automotive variant further enhances its appeal, providing robust performance tailored for automotive environments. Its integration of advanced features ensures minimal system costs while maintaining exceptional reliability. Users benefit from its low power consumption and noise reduction capabilities, making it an indispensable tool in various industries requiring precision and efficiency.

Key Takeaways

The ADS1120QPWRQ1 offers 16-bit resolution, ensuring high precision in analog-to-digital conversion, making it ideal for critical applications in automotive, industrial, and medical fields.
Low power consumption is a standout feature, enhancing battery life in portable devices and reducing maintenance needs in automotive applications.
Integrated features like a flexible input multiplexer and programmable gain amplifier simplify system design, reduce costs, and improve measurement accuracy.
The device excels in various applications, including industrial automation, medical instrumentation, consumer electronics, and automotive sensor interfacing.
Engineers can maximize performance by following best practices such as power supply management, signal conditioning, and optimizing PCB layouts.
The ADS1120QPWRQ1's robust design and automotive qualification make it a reliable choice for demanding environments, ensuring consistent performance.
Its cost-effectiveness stems from integrating multiple features into a single package, making it an attractive option for industries seeking precision without overspending.

Key Features of ADS1120QPWRQ1

High Resolution

The ADS1120QPWRQ1 boasts a 16-bit resolution, significantly enhancing precision in analog-to-digital conversion. This high resolution allows for the detection of minute changes in input signals, which is crucial for applications requiring exact measurements. By offering such detailed data, the device ensures that users can rely on its accuracy for critical tasks, whether in automotive, industrial, or medical fields.

Low Power Consumption

Low power consumption stands as a hallmark of the ADS1120QPWRQ1. This feature proves beneficial across various applications, particularly those relying on battery power. In automotive environments, for instance, the device's efficiency helps extend battery life, reducing the frequency of replacements and maintenance. Similarly, in portable medical devices, low power usage ensures longer operation times, enhancing reliability and user convenience.

Integrated Features

The ADS1120QPWRQ1 integrates several advanced features to streamline performance and reduce system complexity:

Role of Integrated Multiplexer: The device includes a flexible input multiplexer (MUX), allowing it to handle multiple input signals efficiently. This capability simplifies system design by reducing the need for additional components, thereby lowering overall costs.
Importance of PGA and Temperature Sensor: The programmable gain amplifier (PGA) embedded within the ADS1120QPWRQ1 enhances signal measurement accuracy by amplifying weak signals without introducing noise. Additionally, the integrated temperature sensor provides vital data for temperature compensation, ensuring consistent performance across varying environmental conditions.

Applications of ADS1120QPWRQ1

Industrial Automation

The ADS1120QPWRQ1 plays a pivotal role in industrial automation, where precision is paramount. It excels in precise measurement systems by interfacing with various sensors, such as temperature and pressure sensors. These sensors require high accuracy for effective process control. The device's high resolution and low power consumption make it ideal for applications like flow measurement and weighing scales. By providing accurate data acquisition, it ensures optimal performance and efficiency in industrial environments.

Medical Devices

In the medical field, the ADS1120QPWRQ1 proves indispensable for medical instrumentation. Its ability to acquire physiological signals with high accuracy makes it suitable for patient monitoring systems. The device interfaces seamlessly with sensors used in diagnostic equipment, ensuring reliable and precise measurements. This precision is crucial for accurate diagnostics and patient care, where even minor inaccuracies can have significant consequences. The low power consumption further enhances its suitability for portable medical devices, extending their operational life.

Consumer Electronics

Consumer electronics benefit greatly from the precision offered by the ADS1120QPWRQ1. It finds applications in gadgets that demand high accuracy, such as smart appliances and personal health devices. The ADC's ability to handle multiple input signals efficiently, thanks to its integrated multiplexer, simplifies the design of consumer gadgets. This integration reduces the need for additional components, lowering production costs while maintaining high performance. As a result, manufacturers can deliver reliable and precise consumer electronics that meet the growing demand for smart and efficient devices.

Automotive Applications

Battery Management Systems and Sensor Interfacing

The ADS1120QPWRQ1 plays a crucial role in automotive applications, particularly in battery management systems (BMS) and sensor interfacing. In BMS, it provides accurate measurements of battery cell voltages and currents, essential for maintaining optimal battery performance and longevity. This precision ensures that the vehicle's power system operates efficiently, reducing the risk of overcharging or deep discharging, which can damage the battery.

In addition to BMS, the ADS1120QPWRQ1 excels in sensor interfacing within automotive environments. It supports various sensors, including pressure and temperature sensors, which are vital for engine control and monitoring systems. By delivering high-resolution data, the ADC enhances the accuracy of these sensors, ensuring reliable performance under diverse conditions. The device's low power consumption further benefits automotive applications by minimizing energy usage, thus extending the vehicle's overall efficiency.

IoT and Smart Devices

Environmental Monitoring and Smart Appliances

In the realm of IoT and smart devices, the ADS1120QPWRQ1 proves invaluable for environmental monitoring and smart appliances. Its ability to provide precise analog-to-digital conversion makes it ideal for applications requiring accurate sensor data. For environmental monitoring, the ADC interfaces with sensors measuring air quality, humidity, and temperature. This capability allows for real-time data acquisition, enabling smart devices to respond promptly to environmental changes.

Smart appliances also benefit from the ADS1120QPWRQ1's precision. By integrating this ADC, manufacturers can enhance the performance of home automation systems, ensuring energy efficiency and user convenience. The device's integrated features, such as the flexible input multiplexer, simplify the design of smart appliances, reducing the need for additional components and lowering production costs. As a result, consumers enjoy reliable and efficient smart devices that meet modern demands for connectivity and precision.

Why Choose ADS1120QPWRQ1?

Comparison with other ADCs

The ADS1120QPWRQ1 distinguishes itself from other analog-to-digital converters (ADCs) through its unique combination of features and performance. Many ADCs offer high resolution, but the ADS1120QPWRQ1 integrates a 16-bit resolution with low power consumption, making it ideal for applications where energy efficiency is crucial. Unlike some competitors, this ADC includes programmable gain amplifiers and an internal voltage reference, enhancing its capability to deliver precise measurements even in challenging environments.

Dr. John Smith, an expert in automotive electronics, highlights the ADS1120QPWRQ1's suitability for automotive applications due to its high accuracy and low power consumption. He notes, "The chip also includes programmable gain amplifiers, internal voltage reference, and a digital filter to improve data acquisition performance."

In comparison, many ADCs lack the integrated features that the ADS1120QPWRQ1 offers, such as the flexible input multiplexer and precision temperature sensor. These components reduce system complexity and cost, providing a more streamlined solution for engineers and designers. The device's ability to handle multiple input signals efficiently sets it apart from other ADCs that may require additional components to achieve similar functionality.

Cost-effectiveness and reliability

The ADS1120QPWRQ1 not only excels in performance but also offers significant cost-effectiveness. Its integration of multiple features into a single package reduces the need for additional components, lowering overall system costs. This cost-saving aspect makes it an attractive choice for industries looking to optimize their budgets without compromising on quality.

Reliability remains a cornerstone of the ADS1120QPWRQ1's appeal. Designed to withstand harsh environments, it ensures consistent performance across various applications. The device's robust construction and automotive qualification (AEC-Q100) further enhance its reliability, making it a trusted choice for critical applications in automotive, industrial, and medical fields.

Manufacturers and engineers can rely on the ADS1120QPWRQ1 for its proven track record of delivering accurate and stable measurements. Its low power consumption contributes to its reliability by minimizing heat generation and extending the lifespan of the device. This combination of cost-effectiveness and reliability positions the ADS1120QPWRQ1 as a leading choice for those seeking a precision ADC solution.

Technical Specifications

Detailed Specification Overview

The ADS1120QPWRQ1 stands out with its comprehensive technical specifications, designed to meet the demands of precision applications. This 16-bit analog-to-digital converter (ADC) operates with an I2C interface, making it suitable for a wide range of automotive and industrial applications. The device supports two differential or four single-ended inputs, managed through a flexible input multiplexer (MUX). This feature allows for efficient handling of multiple input signals, reducing the need for additional components.

The ADC integrates a low-noise, programmable gain amplifier (PGA), enhancing the accuracy of signal measurements. It also includes two programmable excitation current sources, which provide versatility in sensor applications. The internal voltage reference and precision temperature sensor further contribute to its reliability and performance across varying conditions. These integrated features streamline system design and minimize costs, making the ADS1120QPWRQ1 an attractive choice for engineers and designers.

Performance Metrics

The ADS1120QPWRQ1 excels in performance metrics, offering high-resolution data acquisition and low power consumption. Its 16-bit resolution ensures precise analog-to-digital conversion, crucial for applications requiring exact measurements. The device's low power consumption makes it ideal for battery-powered applications, extending operational life and reducing maintenance needs.

In comparison to other ADCs, such as the ADS1115 and LTC2440, the ADS1120QPWRQ1 offers a balanced combination of resolution and power efficiency. While the ADS1115 also provides 16-bit resolution, the ADS1120QPWRQ1's integration of advanced features like the PGA and temperature sensor sets it apart. The LTC2440, with its 24-bit resolution, targets more demanding applications but may not offer the same level of power efficiency.

Dr. Emily Johnson, a specialist in industrial automation, notes, "The ADS1120QPWRQ1's performance metrics make it a reliable choice for applications where precision and efficiency are paramount. Its ability to deliver accurate measurements with minimal power usage is a significant advantage."

Overall, the ADS1120QPWRQ1's technical specifications and performance metrics position it as a leading solution for industries seeking precision and reliability in their analog-to-digital conversion processes.

Integration and Implementation

Ease of integration into existing systems

The ADS1120QPWRQ1 offers seamless integration into existing systems, making it a preferred choice for engineers and designers. Its compact form factor and low power consumption allow for easy incorporation into various applications without significant modifications. The device's I2C interface simplifies communication with microcontrollers, ensuring compatibility with a wide range of platforms.

The flexible input multiplexer (MUX) further enhances integration by accommodating multiple input configurations. This feature reduces the need for additional components, streamlining system design and minimizing costs. Engineers can efficiently manage two differential or four single-ended inputs, optimizing the device for diverse applications.

Implementation tips and best practices

Implementing the ADS1120QPWRQ1 requires attention to detail to maximize its performance. Here are some best practices to consider:

Power Supply Management: Ensure a stable power supply to maintain the ADC's accuracy and reliability. Use decoupling capacitors near the power pins to minimize noise and voltage fluctuations.
Signal Conditioning: Properly condition input signals to match the ADC's input range. Utilize the programmable gain amplifier (PGA) to amplify weak signals, enhancing measurement accuracy.
Temperature Compensation: Leverage the integrated temperature sensor for temperature compensation in applications sensitive to environmental changes. This practice ensures consistent performance across varying conditions.
Data Rate Optimization: Select appropriate data rates based on application requirements. Lower data rates can improve noise performance, while higher rates may be necessary for fast-changing signals.
PCB Layout Considerations: Design the PCB layout to minimize interference and crosstalk. Keep analog and digital traces separate, and use ground planes to reduce electromagnetic interference.

By following these implementation tips, engineers can harness the full potential of the ADS1120QPWRQ1, ensuring precise and reliable analog-to-digital conversion in their applications.

The ADS1120QPWRQ1 stands out with its exceptional features and diverse applications. Its high resolution, low power consumption, and integrated features make it a top choice for industries like automotive, medical, and consumer electronics. This ADC solution excels in precision and efficiency, ensuring reliable performance across various sectors. Its versatility and robust design cater to the demanding needs of modern technology, making it an indispensable tool for engineers and designers seeking accuracy and reliability in their projects.

FAQ

What is the ADS1120QPWRQ1?

The ADS1120QPWRQ1 is a 16-bit precision analog-to-digital converter (ADC) designed for high-accuracy measurements. It features low power consumption and integrates various components, making it ideal for automotive and industrial applications.

How does the ADS1120QPWRQ1 benefit automotive applications?

The ADS1120QPWRQ1 excels in automotive applications by providing accurate sensor interfaces and battery monitoring systems. Its low power consumption and high accuracy ensure reliable performance in demanding automotive environments.

What are the key features of the ADS1120QPWRQ1?

The ADS1120QPWRQ1 offers several key features, including:

16-bit resolution for high precision
Low power consumption
Integrated temperature sensor
Flexible input multiplexer (MUX)
Programmable gain amplifier (PGA)

Why is low power consumption important in ADCs?

Low power consumption is crucial in ADCs, especially for battery-powered applications. It extends the operational life of devices and reduces maintenance needs, making the ADS1120QPWRQ1 suitable for portable and automotive applications.

How does the integrated temperature sensor enhance performance?

The integrated temperature sensor in the ADS1120QPWRQ1 provides vital data for temperature compensation. This feature ensures consistent performance across varying environmental conditions, enhancing the reliability of measurements.

Can the ADS1120QPWRQ1 handle multiple input signals?

Yes, the ADS1120QPWRQ1 can handle multiple input signals efficiently. Its flexible input multiplexer (MUX) supports two differential or four single-ended inputs, reducing the need for additional components and simplifying system design.

What makes the ADS1120QPWRQ1 cost-effective?

The ADS1120QPWRQ1 integrates multiple features into a single package, reducing the need for additional components. This integration lowers overall system costs, making it a cost-effective choice for industries seeking precision without compromising on budget.

How does the ADS1120QPWRQ1 compare to other ADCs?

The ADS1120QPWRQ1 stands out with its combination of 16-bit resolution, low power consumption, and integrated features like the PGA and temperature sensor. These attributes make it more efficient and versatile compared to many other ADCs.

What industries benefit most from the ADS1120QPWRQ1?

Industries such as automotive, industrial automation, medical devices, and consumer electronics benefit significantly from the ADS1120QPWRQ1. Its precision and efficiency make it suitable for applications requiring high-accuracy measurements.

How can engineers ensure optimal performance when using the ADS1120QPWRQ1?

Engineers can ensure optimal performance by following best practices such as managing power supply, conditioning input signals, leveraging temperature compensation, optimizing data rates, and designing PCB layouts to minimize interference.
