ADS1231IDR Tips for Load Cell Optimization

sales@keepboomingtech.com

·December 28, 2024

·15 min read

ADS1231IDR Tips for Load Cell Optimization

Optimizing load cell performance plays a crucial role in achieving precise and dependable measurements. Accurate data is essential in applications like weighing scales, process control, and industrial systems. The ADS1231IDR, a high-precision 24-bit analog-to-digital converter, simplifies this process by offering advanced features tailored for load cell applications. Its low-noise amplifier and support for full-scale differential input ensure reliable measurement results. This ADC provides a seamless solution for demanding environments, making it an ideal choice for professionals seeking accuracy and efficiency in their measurement systems.

Key Takeaways

Utilize the ADS1231IDR's high-resolution 24-bit ADC for precise measurements, capturing even the smallest variations in load cell signals.
Ensure proper wiring and connections to the load cell to maintain signal integrity and minimize noise interference.
Regularly calibrate your load cell system using known weights to ensure accurate measurements and maintain system reliability.
Implement best practices for troubleshooting, such as checking for loose connections and environmental factors that may affect performance.
Take advantage of the ADS1231IDR's selectable data rates to balance speed and noise rejection based on your specific application needs.
Use high-quality components and shielded cables to enhance the overall performance and longevity of your load cell system.
Document calibration results and troubleshooting steps to track performance and ensure consistent accuracy over time.

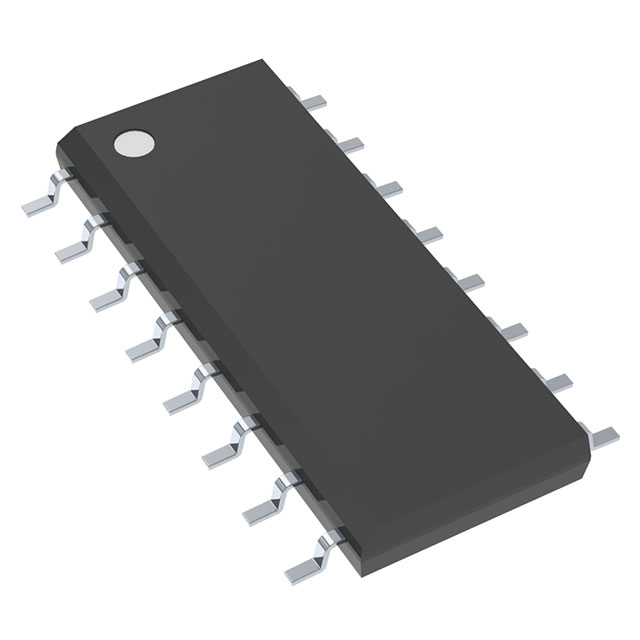

Understanding the ADS1231IDR for Load Cell Applications

The ADS1231IDR stands out as a reliable solution for enhancing the performance of load cell systems. Its design caters specifically to bridge sensor applications, making it an essential component in industries that rely on precise weight and force measurements. By integrating advanced features, this 24-bit ADC ensures accurate data acquisition, even in challenging environments. Below is a closer look at its key features and why it is ideal for load cells.

Key Features of the ADS1231IDR

The ADS1231IDR offers a range of features that make it a top choice for load cell applications:

High-Resolution 24-Bit ADC: This feature ensures exceptional precision, capturing even the smallest variations in load cell signals.
Integrated Low-Noise Amplifier: With a gain of 128, the amplifier enhances weak signals from load cells, ensuring reliable data output.
Full-Scale Differential Input: The ADC supports a range of ±19.5mV, making it suitable for various load cell configurations.
Internal Oscillator: This eliminates the need for an external clock source, simplifying the setup process.
Low-Side Power Switch: This feature allows direct control of the load cell's power, improving energy efficiency.
Selectable Data Rates: Users can choose between 10SPS and 80SPS, balancing speed and noise rejection based on their application needs.
Input EMI Filter: This filter minimizes electromagnetic interference, ensuring clean and accurate signal processing.

These features collectively make the ADS1231IDR a comprehensive front-end solution for load cells, strain gauges, and other bridge sensor systems.

Why the ADS1231IDR is Ideal for Load Cells

The ADS1231IDR excels in load cell applications due to its ability to address the unique challenges of these systems. Load cells often operate in environments where precision and stability are critical. The ADC's low-noise performance ensures that even minute changes in load or strain are captured accurately. Its compatibility with full-scale differential inputs allows it to handle a wide range of load cell outputs, making it versatile for different setups.

The internal low-noise amplifier amplifies weak signals from load cells, ensuring that the data remains accurate and reliable. Additionally, the selectable data rates provide flexibility, enabling users to prioritize either speed or noise rejection based on their specific application. The inclusion of a low-side power switch further enhances its suitability by reducing power consumption when the system is idle.

In industrial applications, such as weighing scales or force measurement systems, the ADS1231IDR simplifies the process of obtaining high-resolution data. Its robust design and advanced features ensure consistent performance, even in demanding conditions. Whether used with strain gauges or other bridge sensors, this ADC delivers the precision and reliability required for accurate measurements.

Setting Up the ADS1231IDR with Load Cells

Proper setup of the ADS1231IDR with load cells ensures accurate and reliable performance. This section provides a step-by-step guide to wiring, connections, and initial configuration, enabling users to maximize the potential of this high-resolution 24-bit ADC.

Wiring and Connections

Establishing correct wiring is crucial for integrating the ADS1231IDR with load cells. The ADC supports direct connections to bridge sensors, simplifying the setup process. Follow these steps to ensure proper wiring:

Connect the Load Cell to the ADC:
Attach the load cell’s excitation wires to the ADC’s excitation pins. These wires supply power to the load cell. Connect the signal wires from the load cell to the ADC’s differential input pins. This configuration ensures the ADC captures precise variations in the load cell’s output.
Power Supply:
Provide a stable power source to the ADS1231IDR. The ADC operates efficiently with a supply voltage of 2.7V to 5.3V. Ensure the power supply is noise-free to maintain the integrity of the measurements.
Grounding:
Proper grounding minimizes interference. Connect the load cell’s ground wire to the ADC’s ground pin. This step reduces noise and ensures accurate signal processing.
External Reference Voltage (Optional):
For ratiometric measurements, connect an external reference voltage up to 5V. This enhances the ADC’s performance in applications requiring high precision.

Tip: Use shielded cables for wiring to reduce electromagnetic interference. Keep the cables as short as possible to minimize signal degradation.

Initial Configuration

After completing the wiring, configure the ADS1231IDR for optimal performance. The following steps outline the initial setup process:

Select the Data Rate:
The ADS1231IDR offers two selectable data rates: 10SPS and 80SPS. Choose 10SPS for applications prioritizing noise rejection, such as strain gauge measurements. Opt for 80SPS for faster data acquisition in dynamic environments.
Enable the Low-Side Power Switch:
Activate the low-side power switch to control the load cell’s power. This feature improves energy efficiency by reducing power consumption when the system is idle.
Verify Signal Integrity:
Check the differential input signal from the load cell. Ensure the signal falls within the ADC’s input range of ±19.5mV. This step confirms that the load cell is functioning correctly and the ADC is ready for calibration.
Test the System:
Perform a preliminary test by applying a known weight to the load cell. Verify that the ADC outputs consistent and accurate readings. This test ensures the system is correctly configured and ready for calibration.

By following these steps, users can set up the ADS1231IDR with load cells effectively. Proper wiring and configuration lay the foundation for accurate weight and force measurements in various applications.

Calibration Techniques for Accurate Load Cell Measurements

Calibration plays a vital role in ensuring the accuracy and reliability of load cell systems. Proper calibration aligns the load cell's output with the actual force or weight applied, making it indispensable for precise measurement needs. This section outlines a step-by-step calibration process and practical tips to achieve optimal load cell accuracy.

Step-by-Step Calibration Process

A systematic approach to calibration ensures that load cells deliver consistent and accurate results. Follow these steps to perform effective calibration:

Prepare the Load Cell Interface:
Verify that the load cell interface is correctly set up. Ensure all connections between the load cell, the ADS1231IDR, and the power supply are secure. Check for stable grounding to minimize noise interference.
Apply a Known Weight:
Place a calibrated weight on the load cell. This weight serves as a reference point for the calibration process. Use weights that match the expected range of the load cell to ensure accurate scaling.
Record the Output Signal:
Measure the output signal from the load cell interface using the ADS1231IDR. The ADC captures the input signal and converts it into a digital value. Record this value for each reference weight applied.
Calculate the Calibration Factor:
Determine the calibration factor by dividing the known weight by the corresponding output signal. This factor establishes the relationship between the load cell's output and the actual load applied.
Program the Calibration Factor:
Input the calculated calibration factor into the system. This step ensures that the load cell interface translates future measurements into accurate weight or force values.
Verify the Calibration:
Test the calibration by applying different weights within the load cell's range. Compare the measured values with the actual weights to confirm the accuracy of the calibration.

Note: Regular calibration is essential to maintain accuracy. The frequency of calibration depends on the load cell's usage, environmental conditions, and industry standards.

Practical Tips for Effective Calibration

Implementing best practices during calibration enhances the performance of load cells and ensures high-resolution measurement results. Consider the following tips:

Use High-Quality Reference Weights:
Select weights that meet industry standards for calibration. High-quality weights improve the accuracy of the calibration process.
Minimize Environmental Interference:
Perform calibration in a controlled environment. Factors like temperature fluctuations, vibrations, and electromagnetic interference can affect the strain gauges and the load cell's performance.
Inspect the Load Cell Regularly:
Check for physical damage or wear on the load cell and its components. Damaged sensors or strain gauges can compromise the accuracy of measurements.
Document Calibration Data:
Maintain records of calibration results, including the calibration factor and test weights used. Documentation helps track the load cell's performance over time.
Calibrate After System Changes:
Recalibrate the load cell interface whenever modifications are made to the system, such as replacing strain gauges or adjusting the load cell's mounting.
Follow Industry Standards:
Adhere to calibration standards like ISO 376, which outlines best practices for load cell calibration. Compliance with these standards ensures consistent and reliable results.

By following these steps and tips, users can optimize the performance of their load cells. Proper calibration not only ensures precise measurement needs but also extends the lifespan of the sensors and the overall system.

Troubleshooting and Optimizing Load Cell Performance

Load cells are critical components in measurement systems, but they can encounter issues that affect their accuracy and reliability. Identifying and resolving these problems ensures consistent performance and precise data collection. This section explores common challenges and provides actionable tips to optimize load cell performance.

Common Issues and Their Solutions

Load cells may face several challenges during operation. Understanding these issues and their solutions helps maintain accurate measurements:

Inconsistent Readings:
Fluctuating readings often result from poor connections or environmental interference. Inspect the wiring for loose or damaged connections. Use shielded cables to minimize electromagnetic interference. Ensure proper grounding to stabilize the load cell output.
Zero Drift:
A load cell may fail to return to zero after removing the load. This issue often arises from temperature changes or mechanical stress. Perform zero balance calibration to reset the load cell to zero. Regularly check for physical damage or misalignment in the strain gauges.
Nonlinear Output:
Nonlinear behavior occurs when the load cell output does not correspond proportionally to the applied load. Verify the calibration process and ensure the use of high-quality reference weights. Replace damaged sensors or strain gauges to restore linearity.
Overloading:
Applying excessive force can damage the load cell. Inspect the load cell for visible signs of deformation. Replace the load cell if necessary and implement overload protection mechanisms to prevent future damage.
Signal Noise:
Noise in the output signal can compromise accuracy. Use an input EMI filter to reduce electromagnetic interference. Ensure the power supply is stable and noise-free. Shorten cable lengths to minimize signal degradation.

Tip: Document all troubleshooting steps and solutions. This practice aids in tracking recurring issues and ensures accountability.

Tips for Optimizing Load Cell Performance

Optimizing load cell performance involves proactive measures to enhance accuracy and reliability. The following tips help achieve optimal results:

Regular Calibration:
Calibrate load cells periodically to maintain accuracy. Use known weights to validate the calibration process. Regular calibration ensures the load cell output aligns with the actual load applied.
Environmental Control:
Minimize environmental factors like temperature fluctuations, vibrations, and humidity. These conditions can affect the strain gauges and compromise the load cell's performance. Use protective enclosures to shield the load cells from harsh environments.
Proper Mounting:
Ensure the load cell is securely mounted to prevent misalignment. Misaligned load cells can produce inaccurate readings. Follow the manufacturer's guidelines for mounting to achieve optimal performance.
Monitor Data Rates:
Select appropriate data rates based on the application. Lower data rates prioritize noise rejection, while higher rates enable faster data acquisition. Adjust the data rates to balance speed and accuracy.
Inspect Strain Gauges:
Regularly check the strain gauges for wear or damage. Damaged gauges can lead to inaccurate measurements. Replace faulty components promptly to maintain system integrity.
Use Quality Components:
Invest in high-quality load cells and accessories. Reliable components reduce the likelihood of errors and extend the system's lifespan.
Validate System Performance:
Test the system with known weights or forces after setup or calibration. Validation ensures the load cell output matches the expected values, confirming the system's accuracy.

By addressing common issues and implementing these optimization tips, users can enhance the performance of their load cells. Proper maintenance and proactive measures ensure reliable and accurate measurements across various applications.

Proper setup, calibration, and optimization are essential for achieving accurate and reliable load cell measurements. These steps ensure that systems perform consistently, even in demanding environments. By applying the tips outlined in this guide, users can enhance measurement precision and extend the lifespan of their equipment.

The ADS1231IDR stands out as a powerful tool for load cell optimization. Its high resolution, low-noise performance, and advanced features make it ideal for bridge sensor applications. Professionals can rely on this ADC to simplify processes and deliver dependable results across industrial, medical, and scientific systems.

What are the common applications of the ADS1231IDR?

The ADS1231IDR finds extensive use in applications requiring precision and reliability. Common examples include weigh scales, strain gauges, load cells, and industrial process control systems. Its high resolution and accuracy make it a preferred choice for industries that demand precise measurement and data acquisition.

Why is the ADS1231IDR ideal for load cell applications?

The ADS1231IDR offers features specifically designed for load cell systems. Its integrated low-noise amplifier enhances weak signals, while the full-scale differential input supports a wide range of load cell outputs. These capabilities ensure accurate and reliable measurements, even in challenging environments.

How does the ADS1231IDR simplify setup with load cells?

The ADS1231IDR simplifies setup by supporting direct connections to bridge sensors. Its onboard oscillator eliminates the need for an external clock source, reducing complexity. Additionally, the low-side power switch allows efficient power management, making the setup process straightforward and user-friendly.

What data rates does the ADS1231IDR support?

The ADS1231IDR provides two selectable data rates: 10SPS and 80SPS. The 10SPS rate prioritizes noise rejection, making it suitable for applications like strain gauge measurements. The 80SPS rate enables faster data acquisition, ideal for dynamic environments requiring quick responses.

How does the ADS1231IDR handle environmental interference?

The ADS1231IDR includes an input EMI filter to minimize electromagnetic interference. Proper grounding and the use of shielded cables further enhance its ability to handle environmental noise. These features ensure clean and accurate signal processing in various conditions.

What is the importance of calibration when using the ADS1231IDR?

Calibration ensures the load cell's output aligns with the actual force or weight applied. The ADS1231IDR captures precise digital values during calibration, allowing users to calculate and program accurate calibration factors. Regular calibration maintains measurement accuracy and system reliability.

Can the ADS1231IDR retain calibration data after power loss?

The ADS1231IDR does not retain calibration data when power is removed. Users must implement methods to store calibration factors externally. This ensures the system remains calibrated and ready for use after power restoration.

What industries benefit most from the ADS1231IDR?

Industries such as manufacturing, logistics, and healthcare benefit significantly from the ADS1231IDR. Applications like industrial weighing systems, medical devices, and scientific research rely on its precision and reliability for accurate data acquisition.

How does the ADS1231IDR improve energy efficiency?

The ADS1231IDR features a low-side power switch that controls the load cell's power. This switch reduces power consumption when the system is idle, enhancing energy efficiency. This feature is particularly beneficial for battery-operated or energy-sensitive applications.

What makes the ADS1231IDR stand out compared to other ADCs?

The ADS1231IDR combines high resolution, low-noise performance, and advanced features like an integrated amplifier and onboard oscillator. These attributes make it a comprehensive solution for bridge sensor applications. Its ability to balance precision and simplicity sets it apart from other ADCs in the market.
