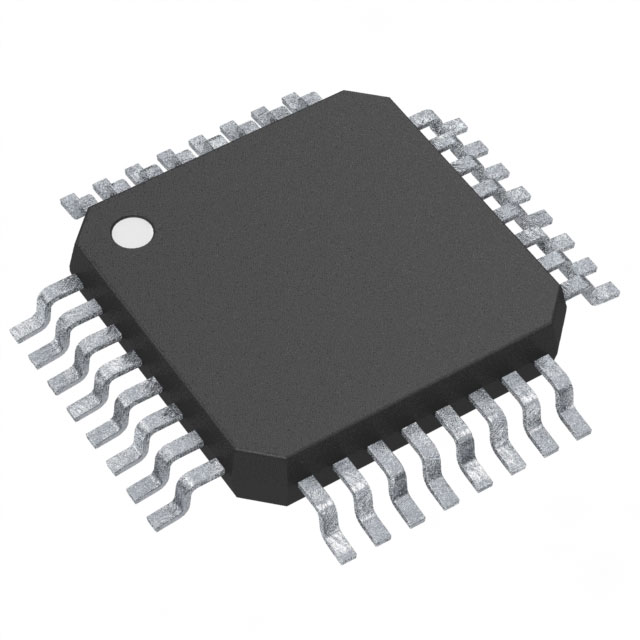

ADS131A04IPBS: A Game-Changer in Process Control

Industrial process control demands solutions that deliver consistent performance in challenging environments. The ADS131A04IPBS rises to this challenge with its advanced design and transformative features. Its 24-bit resolution ADC ensures exceptional precision, while its low noise performance guarantees reliable data conversion even in noisy settings. The device's robust construction, including a wide power supply range and integrated temperature sensor, enhances its reliability in diverse applications.

The following table highlights the key features that set the ADS131A04IPBS apart:

Feature	Description
24-bit Resolution ADC	Provides high precision and accuracy for demanding data acquisition applications.
Four Analog Input Channels	Allows simultaneous sampling of up to four analog signals, suitable for multi-channel systems.
Integrated Programmable Gain Amplifier	Offers flexible gain adjustment for optimal signal amplification and noise reduction.
Low Noise and High Accuracy	Ensures reliable data conversion in noisy environments.
Internal Temperature Sensor	Monitors and controls the ADC operation.
Flexible Serial Interface Options	Supports various serial interfaces, including SPI and I2C.
Power Supply Range of 2.7V to 5.5V	Operates over a wide power supply range for various applications.

By combining precision, low noise, and a robust design, the ADS131A04IPBS redefines efficiency and reliability in industrial process control.

Key Takeaways

The ADS131A04IPBS has a 24-bit ADC for very clear data.
It has four input channels to collect many signals at once.
Its low noise makes it work well even in loud places.
The power range of 2.7V to 5.5V makes it flexible for use.
The built-in amplifier boosts signals for accurate real-time control.

Industrial Process Control Overview

What Is Industrial Process Control?

Industrial process control refers to the methods and systems used to monitor and regulate industrial operations. These systems ensure that processes run efficiently, safely, and within desired parameters. By maintaining control over variables like temperature, pressure, and flow rate, industries can achieve consistent product quality and operational stability.

Modern industrial process control systems consist of several key components, each serving a specific function:

Component	Function
SCADA Systems	Central hub for monitoring and controlling industrial processes, providing a graphical interface.
Distributed Control Systems	Controls complex processes at a local level, ensuring efficient operation.
Programmable Logic Controllers	Automates processes and provides real-time control for specific machines and equipment.
Intelligent Electronic Devices	Used for control, protection, and monitoring in power systems.
Human-Machine Interface	Interface for operators to interact with the system and monitor processes.
Remote Terminal Units	Bridges field devices and central control systems, enabling remote monitoring and control.

These components work together to create a seamless operational environment, enabling industries to meet production goals while minimizing downtime.

Challenges in Industrial Process Control

Ensuring Measurement Accuracy and Precision

Accurate measurement is critical in industrial sensing. Processes often exhibit nonlinear behavior, with dynamics changing based on production rates and conditions. For example, pH control can show drastic variations in process gains, complicating control efforts. Sensor dynamics, affected by fouling or installation errors, can lead to measurement lag and reduced precision. Addressing these issues requires advanced systems capable of maintaining accuracy under varying conditions.

Operating in Harsh Industrial Environments

Industrial environments often expose equipment to extreme temperatures, vibrations, and electromagnetic interference. These conditions can degrade system performance and reliability. Robust designs, like those found in the ADS131A04IPBS, ensure operational stability even in challenging settings. Features such as noise immunity and wide operating temperature ranges make these systems suitable for harsh environments.

Integrating with Modern Automation Systems

Integrating new technologies with existing systems remains a significant challenge. Legacy systems may lack compatibility with modern automation solutions, complicating upgrades. Control strategies must also adapt to changing requirements, ensuring scalability and flexibility. Advanced solutions, such as programmable logic controllers and distributed control systems, help bridge this gap by providing real-time control and adaptability.

Key Features of the ADS131A04IPBS

High-Performance Specifications

Multi-Channel ADC for Simultaneous Data Acquisition

The ADS131A04IPBS stands out as a 24-bit, 4-channel delta-sigma ADC. This design enables simultaneous sampling of up to four analog signals, making it ideal for multi-channel data acquisition systems. Its low noise and high accuracy ensure reliable performance, even in demanding industrial environments. These features make it a preferred choice for applications requiring precise and synchronized data collection.

Key benefits of its multi-channel ADC include:

Enhanced efficiency in capturing multiple signals simultaneously.
Reliable data conversion, critical for industrial automation and monitoring.
Compatibility with diverse industrial systems due to its flexible design.

High Resolution and Scalable Sampling Rates

The ADS131A04IPBS delivers exceptional resolution with its 24-bit ADC, ensuring precise analog-to-digital conversion. Its scalable sampling rates allow users to adjust performance based on specific application needs. This flexibility supports a wide range of industrial tasks, from high-speed data acquisition to low-power monitoring.

Specification	Description
24-bit Resolution ADC	Provides high precision and accuracy for demanding data acquisition applications.
Four Analog Input Channels	Allows simultaneous sampling of up to four analog signals, suitable for multi-channel systems.
Integrated Programmable Gain Amplifier	Offers flexible gain adjustment for optimal signal amplification and noise reduction.

Robust Design for Industrial Applications

Wide Operating Temperature Range

The ADS131A04IPBS operates effectively across a broad temperature range, ensuring reliability in harsh industrial settings. Its robust design withstands extreme conditions, making it suitable for automotive and manufacturing environments.

Noise Immunity and Signal Integrity

This ADC maintains signal integrity through advanced noise immunity features. Its integrated programmable gain amplifier optimizes signal amplification, reducing noise interference. High EMI immunity ensures consistent performance in environments with significant electromagnetic interference.

Feature	Benefit
Low Noise and High Accuracy	Ensures reliable data conversion in noisy environments.
Integrated Programmable Gain Amplifier	Provides flexible gain adjustment for optimal signal amplification and noise reduction.
High EMI Immunity	Ensures reliable operation in harsh environments, suitable for demanding applications.

Power Efficiency and Compact Form Factor

The ADS131A04IPBS excels in power efficiency, operating within a supply range of 2.7V to 5.5V. Its ultra-low-power design makes it ideal for portable and battery-powered applications. This compact analog-to-digital converter supports industrial, medical, and instrumentation tasks, ensuring high performance with minimal energy consumption.

Key advantages of its power efficiency include:

Extended battery life in portable devices.
Reduced energy costs in industrial systems.
Compatibility with ultra-low-power applications requiring precise data acquisition.

Applications of the ADS131A04IPBS in Industrial Process Control

Monitoring Systems

Real-Time Data Acquisition in Manufacturing

The ADS131A04IPBS plays a vital role in real-time data acquisition within manufacturing environments. Its low noise and high accuracy make it ideal for precise data conversion in monitoring systems. By capturing analog input signals from up to four channels simultaneously, it ensures accurate and synchronized data collection. This capability is essential for tracking critical parameters like temperature, pressure, and flow rate in industrial processes. The device's robust design also ensures reliable performance in noisy and harsh manufacturing settings.

Precision Monitoring in Energy Systems

Energy systems demand high-precision monitoring to ensure efficiency and reliability. The ADS131A04IPBS meets these requirements through its advanced features:

It provides a 24-bit resolution ADC, enabling high-precision data conversion.
It converts analog input signals from up to four channels into digital data with exceptional accuracy and low noise performance.

These features make the ADS131A04IPBS a preferred choice for applications like voltage monitoring, current measurement, and power factor analysis in energy systems.

Automation and Control

Integration with PLCs and SCADA Systems

The ADS131A04IPBS integrates seamlessly with programmable logic controllers (PLCs) and supervisory control and data acquisition (SCADA) systems. Its flexible serial interface options, including SPI and I2C, allow easy communication with modern automation platforms. This integration enhances the efficiency of industrial processes by enabling real-time data exchange and control. The device's compatibility with microcontroller-based systems further simplifies its deployment in automated environments.

Enhancing Feedback Loops in Automated Processes

Feedback loops are critical for maintaining stability and precision in automated processes. The ADS131A04IPBS enhances these loops by providing accurate and timely data. Its high-resolution ADC ensures precise monitoring of input signals, such as voltage and current, which are essential for adjusting process parameters. This capability improves the overall efficiency and reliability of automation systems.

Safety and Fault Detection

Early Detection of Equipment Failures

The ADS131A04IPBS contributes significantly to early fault detection in industrial equipment. Its high-resolution, 24-bit, 4-channel delta-sigma ADC ensures accurate signal monitoring. The device's 110 dB dynamic range minimizes noise, allowing it to detect subtle changes in input signals. With a data rate of up to 64 kSPS per channel, it facilitates rapid data acquisition, enabling timely identification of anomalies.

Feature	Description
24-bit, 4-channel, low-power, delta-sigma ADC	Provides high resolution for accurate signal monitoring.
High precision with 110 dB dynamic range	Ensures minimal noise, allowing for the detection of subtle changes in signals.
Up to 64 kSPS data rate per channel	Facilitates rapid data acquisition, enabling timely detection of anomalies.

Ensuring Compliance with Safety Standards

Industrial safety standards require precise monitoring and control of critical parameters. The ADS131A04IPBS ensures compliance by delivering reliable and accurate data. Its ability to monitor voltage and other input signals with high precision makes it suitable for safety-critical applications. By detecting faults early, it helps prevent equipment failures and ensures safe operation in industrial environments.

Benefits of Using the ADS131A04IPBS

Improved Accuracy and Precision

The ADS131A04IPBS delivers exceptional accuracy and precision, making it a reliable choice for industrial applications. Its 24-bit resolution ADC ensures high precision, enabling accurate data acquisition even in demanding environments. The device's low noise performance further enhances its ability to provide reliable data conversion, even in noisy industrial settings.

Key features contributing to its accuracy include:

24-bit resolution ADC for precise data acquisition.
Low noise design for reliable performance in noisy environments.
Four fully differential input channels for synchronized and accurate signal monitoring.

These features make the ADS131A04IPBS suitable for applications requiring precise input data, such as industrial process control, energy monitoring, and medical instrumentation. Its ability to maintain high precision under varying conditions ensures consistent performance across diverse industrial tasks.

Enhanced System Reliability

The ADS131A04IPBS enhances system reliability by maintaining consistent performance in challenging industrial environments. Its robust design ensures reliable data conversion, even in the presence of electromagnetic interference or extreme temperatures.

Feature	Benefit
Low Noise	Ensures reliable data conversion in noisy environments.
High Accuracy	Provides precise data, enhancing overall system reliability.

By delivering accurate input data, the ADS131A04IPBS minimizes errors in industrial systems. This reliability is critical for maintaining operational stability and ensuring the safety of automated processes. Its robust construction and advanced features make it a dependable solution for industries requiring consistent and precise data acquisition.

Increased Efficiency and Cost Savings

The ADS131A04IPBS improves efficiency by streamlining data acquisition processes. Its multi-channel ADC allows simultaneous monitoring of multiple input signals, reducing the time and resources needed for data collection. The device's low power consumption further enhances efficiency, making it ideal for battery-powered applications.

Cost savings are achieved through its reliable performance and robust design. By minimizing errors and reducing the need for frequent maintenance, the ADS131A04IPBS lowers operational costs. Its suitability for industrial process control systems ensures precise input data, reducing waste and improving overall productivity.

Key benefits include:

Low noise and high accuracy for reliable data conversion.
Multi-channel ADC for efficient monitoring of multiple input signals.
Low power consumption for reduced energy costs in industrial systems.

These features make the ADS131A04IPBS a cost-effective solution for industries seeking to enhance efficiency and reduce operational expenses.

Scalability for Diverse Industrial Applications

The ADS131A04IPBS demonstrates exceptional scalability, making it suitable for a wide range of industrial applications. Its advanced features allow it to adapt to diverse operational requirements, ensuring reliable performance across various industries.

One of its key strengths lies in its ability to handle multiple input signals simultaneously. The device's four analog input channels enable synchronized data acquisition, which is essential for multi-channel systems. This capability ensures precise monitoring of critical parameters, such as voltage, current, and temperature, in complex industrial setups.

The ADS131A04IPBS also supports embedded applications that demand high precision and flexibility. Its 24-bit resolution ADC delivers accurate data conversion, even in noisy environments. The integrated programmable gain amplifier further enhances its adaptability by allowing users to optimize signal amplification based on specific needs.

The device's flexible serial interface options, including SPI and I2C, simplify integration with modern automation systems. This feature ensures seamless communication with programmable logic controllers and other embedded applications. Additionally, its wide power supply range of 2.7V to 5.5V makes it compatible with various operational scenarios, from low-power devices to high-performance industrial systems.

The following table highlights the features that contribute to the scalability of the ADS131A04IPBS:

Feature	Description
24-bit Resolution ADC	Provides high precision and accuracy for demanding data acquisition applications.
Four Analog Input Channels	Allows simultaneous sampling of up to four analog signals, making it suitable for multi-channel data acquisition systems.
Integrated Programmable Gain Amplifier	Offers flexible gain adjustment for optimal signal amplification and noise reduction.
Low Noise and High Accuracy	Ensures reliable data conversion in noisy environments.
Flexible Serial Interface Options	Supports various serial interfaces, including SPI and I2C communication protocols.
Power Supply Range of 2.7V to 5.5V	Operates over a wide power supply range, making it suitable for various application scenarios.

These features make the ADS131A04IPBS a versatile solution for industries requiring precise input monitoring and reliable data acquisition. Its scalability ensures it can meet the demands of both simple and complex industrial systems, making it an ideal choice for embedded applications and beyond.

The ADS131A04IPBS delivers unmatched precision, reliability, and efficiency for industrial process control. Its 24-bit resolution ADC, multi-channel capability, and low noise design ensure accurate data acquisition in demanding environments. Features like the integrated programmable gain amplifier and flexible serial interfaces enhance its adaptability across diverse applications.

This device addresses modern industrial challenges, from real-time monitoring to automation and safety systems. Its robust design and scalability make it a transformative solution for industries seeking to optimize operations. Explore the ADS131A04IPBS to unlock its potential in your specific applications.

What makes the ADS131A04IPBS suitable for industrial environments?

The ADS131A04IPBS features a robust design with noise immunity, a wide operating temperature range, and high EMI resistance. These attributes ensure reliable performance in harsh industrial settings, making it ideal for demanding applications like manufacturing and energy monitoring.

How does the ADS131A04IPBS improve data acquisition accuracy?

Its 24-bit resolution ADC and low noise design enable precise analog-to-digital conversion. The integrated programmable gain amplifier optimizes signal amplification, ensuring accurate data acquisition even in noisy environments. These features make it a reliable choice for precision monitoring.

Can the ADS131A04IPBS integrate with existing automation systems?

Yes, the ADS131A04IPBS supports flexible serial interfaces like SPI and I2C. These options allow seamless integration with programmable logic controllers (PLCs), SCADA systems, and other modern automation platforms, enhancing real-time data exchange and control.

What applications benefit most from the ADS131A04IPBS?

The ADS131A04IPBS excels in applications requiring high precision and reliability. These include real-time manufacturing monitoring, energy system analysis, safety-critical fault detection, and automation processes. Its scalability also supports diverse industrial and embedded systems.

Why is the ADS131A04IPBS ideal for battery-powered devices?

The ADS131A04IPBS operates with ultra-low power consumption, extending battery life in portable devices. Its compact form factor and efficient design make it suitable for remote sensing, medical instrumentation, and other battery-operated applications requiring accurate data acquisition.
