ADS8866IDGSR Digital Converter: A Guide to Its Applications

The ADS8866IDGSR is a high-performance, 16-bit analog-to-digital converter (ADC) designed to deliver exceptional precision and efficiency. Its successive approximation register (SAR) architecture ensures accurate data conversion, making it ideal for applications requiring high-resolution results. With a sampling rate of up to 100 kSPS and low power consumption, this digital converter optimizes performance in battery-powered devices. Its compact 10-VSSOP package further enhances its suitability for space-constrained designs, ensuring seamless integration into modern electronics. The ADS8866IDGSR stands out as a reliable solution for achieving precision and efficiency in demanding environments.

Key Takeaways

The ADS8866IDGSR features a high-resolution 16-bit ADC with a sampling rate of up to 100 kSPS, making it ideal for applications requiring precise data conversion.
Its low power consumption extends battery life, making it perfect for portable devices like medical instruments and IoT systems.
The compact 10-VSSOP package allows for easy integration into space-constrained designs, enhancing its versatility in modern electronics.
With a wide operating temperature range of -40°C to 85°C, the ADS8866IDGSR ensures reliable performance in diverse and harsh environments.
Engineers can optimize performance by implementing effective PCB layout and power supply decoupling techniques to minimize noise and ensure stable operation.
The device's SPI interface simplifies integration with microcontrollers, facilitating seamless communication in embedded systems.
As demand for portable medical devices and IoT applications grows, the ADS8866IDGSR remains a key component in delivering accurate and efficient performance.

Overview of the ADS8866IDGSR Digital Converter

The ADS8866IDGSR digital converter offers a combination of precision, efficiency, and compact design, making it a standout choice for modern electronic applications. Its advanced features and benefits cater to a wide range of industries, ensuring reliable performance in demanding environments.

Key Features and Specifications

High-resolution 16-bit ADC with SAR architecture

The ADS8866IDGSR employs a 16-bit resolution, enabling it to capture fine details in analog signals. Its successive approximation register (SAR) architecture ensures rapid and accurate analog-to-digital conversion. This design supports a sampling rate of up to 100 kSPS, making it suitable for high-speed data acquisition tasks.

Low power consumption for extended battery life

This digital converter operates with minimal power requirements, optimizing energy efficiency in battery-powered devices. Its low-power design extends battery life, making it ideal for portable applications such as medical devices and IoT systems.

Compact 10-VSSOP package for space-constrained designs

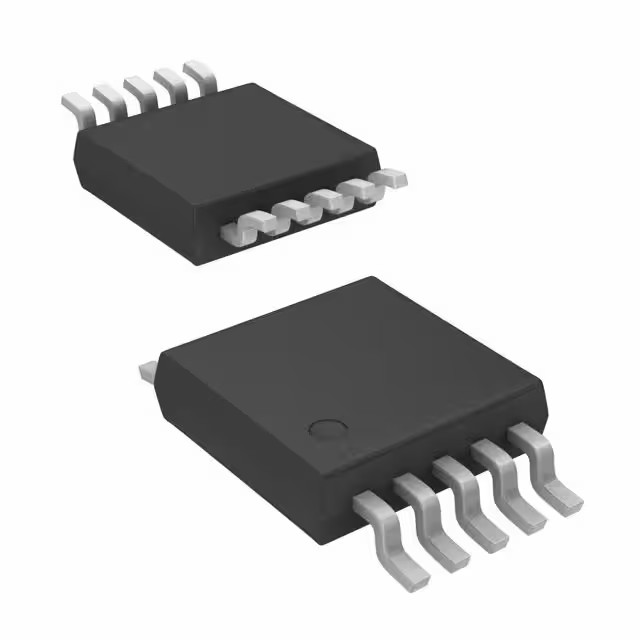

The ADS8866IDGSR comes in a compact 10-VSSOP package, which simplifies integration into space-limited designs. This small form factor allows engineers to incorporate the device into modern electronics without compromising on performance or functionality.

Benefits of the ADS8866IDGSR

Enhanced signal accuracy and precision

The ADS8866IDGSR delivers exceptional signal accuracy, ensuring precise data conversion. Its excellent AC and DC performance, including a signal-to-noise ratio (SNR) of 93 dB and total harmonic distortion (THD) of -108 dB, guarantees high-quality results in critical applications.

Optimized for portable and IoT devices

Designed with portability in mind, this digital converter excels in applications requiring low power and high precision. Its compatibility with IoT devices enhances sensor data acquisition and processing, supporting the growing demand for connected technologies.

Wide operating temperature range for diverse environments

The ADS8866IDGSR operates reliably across a temperature range of -40°C to 85°C. This capability makes it suitable for industrial-grade applications and ensures consistent performance in harsh or variable environmental conditions.

How the ADS8866IDGSR Digital Converter Works

Analog-to-Digital Conversion Process

Explanation of SAR (Successive Approximation Register) architecture

The ADS8866IDGSR employs a Successive Approximation Register (SAR) architecture to perform analog-to-digital conversion. This method divides the input signal into smaller segments, enabling precise and efficient conversion. The SAR process begins by comparing the input voltage to a reference voltage. It then adjusts the approximation bit by bit until the closest digital value is determined. This iterative approach ensures high accuracy and speed, making it suitable for applications requiring detailed signal analysis.

Role of sampling and quantization in signal conversion

Sampling and quantization play critical roles in the conversion process. Sampling captures the analog signal at specific intervals, creating discrete points that represent the continuous waveform. Quantization assigns a numerical value to each sampled point, converting it into a digital format. The ADS8866IDGSR excels in this process by maintaining a high sampling rate of up to 100 kSPS. This capability ensures accurate data representation, even for rapidly changing signals.

Integration with Battery-Powered Systems

Power management features for efficiency

The ADS8866IDGSR incorporates advanced power management features to enhance efficiency. Its low power consumption minimizes energy usage, which is essential for battery-powered systems. By reducing power demands, the device extends the operational life of portable devices. This efficiency makes it an excellent choice for applications where conserving energy is a priority.

Compatibility with microcontrollers and processors

The ADS8866IDGSR integrates seamlessly with microcontrollers and processors, simplifying system design. Its SPI interface enables straightforward communication, ensuring reliable data transfer between components. This compatibility allows engineers to incorporate the digital converter into various systems without additional complexity. The device’s design supports a wide range of applications, from medical instruments to IoT devices, where precise data acquisition is crucial.

Applications of the ADS8866IDGSR in Battery-Powered Devices

The ADS8866IDGSR excels in various applications that demand precision, efficiency, and low power consumption. Its design supports a wide range of battery-powered devices, ensuring optimal performance in critical use cases.

Portable Medical Devices

Examples: Glucose monitors, portable ECG machines

Portable medical devices require high accuracy and energy efficiency to deliver reliable diagnostics and monitoring. The ADS8866IDGSR plays a vital role in these applications by providing precise data conversion while consuming minimal power. For example, glucose monitors rely on accurate signal processing to measure blood sugar levels effectively. Similarly, portable ECG machines depend on the device’s ability to capture detailed electrical signals from the heart. The low power consumption of the ADS8866IDGSR ensures extended battery life, making it ideal for continuous use in healthcare settings.

Importance of precision and low power consumption

Precision is critical in medical applications where even minor inaccuracies can lead to incorrect diagnoses. The ADS8866IDGSR ensures high-resolution data acquisition, enabling healthcare professionals to make informed decisions. Its low power consumption further enhances its suitability for portable applications, allowing devices to operate efficiently without frequent battery replacements. This combination of precision and energy efficiency makes it a trusted choice for medical technology.

IoT and Wearable Devices

Examples: Smartwatches, fitness trackers

IoT and wearable devices, such as smartwatches and fitness trackers, rely on efficient data acquisition and processing to function effectively. The ADS8866IDGSR supports these applications by enabling accurate sensor readings and seamless integration with microcontrollers. For instance, fitness trackers use the device to monitor heart rate, activity levels, and other vital metrics. Smartwatches benefit from its compact design and low power requirements, ensuring smooth operation without compromising battery life.

Role in sensor data acquisition and processing

The ADS8866IDGSR enhances the performance of IoT devices by delivering accurate sensor data. Its high-resolution analog-to-digital conversion ensures that even subtle changes in sensor inputs are captured and processed. This capability is essential for applications like environmental monitoring in wearables, where precise data is crucial for real-time analysis. The device’s compatibility with modern processors simplifies its integration into IoT systems, supporting the growing demand for connected technologies.

Industrial and Environmental Monitoring

Examples: Remote sensors, portable analyzers

Industrial and environmental monitoring applications often operate in challenging conditions, requiring devices that can maintain accuracy and reliability. The ADS8866IDGSR meets these demands by offering high precision and a wide operating temperature range. Remote sensors, for example, use the device to monitor variables like temperature, pressure, and humidity in industrial settings. Portable analyzers benefit from its compact design and efficient voltage regulation, enabling accurate measurements in field environments.

Benefits of high accuracy in harsh environments

Harsh environments demand robust devices capable of delivering consistent performance. The ADS8866IDGSR ensures reliable data acquisition even under extreme conditions, thanks to its advanced design and wide voltage range. Its ability to maintain accuracy in fluctuating temperatures makes it a valuable component in industrial and environmental monitoring systems. By supporting precise measurements, the device helps industries optimize processes and ensure compliance with safety standards.

Comparison with Similar Digital Converters

Key Competitors in the Market

Comparison of resolution, power consumption, and size

The ADS8866IDGSR stands out among its competitors due to its 16-bit resolution and efficient power consumption. Many other digital converters in the market offer lower resolutions, which can compromise the accuracy of data acquisition. The ADS8866IDGSR achieves a sampling rate of 100 kSPS, ensuring rapid and precise data conversion. In contrast, some competing models operate at slower rates, limiting their suitability for high-speed applications.

Size also plays a critical role in modern designs. The ADS8866IDGSR features a compact 10-VSSOP package, making it ideal for space-constrained devices. Competing converters often come in larger packages, which can pose challenges for engineers working on portable or miniaturized systems. This combination of high resolution, low power consumption, and small size makes the ADS8866IDGSR a preferred choice for demanding applications.

Differences in integration capabilities and performance

Integration capabilities significantly impact the usability of digital converters. The ADS8866IDGSR offers a SPI-compatible serial interface, simplifying communication with microcontrollers and processors. This feature ensures seamless integration into various systems, from medical devices to industrial equipment. Competing converters may lack such compatibility, requiring additional components for interfacing, which increases design complexity.

In terms of performance, the ADS8866IDGSR excels with its superior AC and DC characteristics. It delivers a signal-to-noise ratio (SNR) of 93 dB and total harmonic distortion (THD) of -108 dB, ensuring high-quality data conversion. Many alternatives fail to match this level of precision, particularly in applications requiring stable output under varying conditions. The ADS8866IDGSR also operates across a wide voltage range, enhancing its reliability in diverse environments.

Advantages of the ADS8866IDGSR

Superior performance in low-power applications

The ADS8866IDGSR is optimized for low-power applications, making it an excellent choice for battery-powered devices. Its minimal power consumption extends battery life, ensuring efficient operation in portable systems. Competing converters often consume more power, reducing their suitability for energy-sensitive applications. The ADS8866IDGSR maintains stable output while conserving energy, a critical advantage in devices like wearables and remote sensors.

Better signal-to-noise ratio (SNR) and accuracy

Accuracy is a defining feature of the ADS8866IDGSR. Its high SNR and low THD ensure precise data acquisition, even in noisy environments. Competing models frequently struggle to achieve similar levels of accuracy, particularly in applications requiring detailed signal analysis. The ADS8866IDGSR consistently delivers reliable performance, making it a trusted solution for industries that demand precision. Its ability to maintain stable output under challenging conditions further solidifies its position as a market leader.

Practical Considerations for Implementing the ADS8866IDGSR

Design Tips for Engineers

PCB layout considerations for noise reduction

Engineers must prioritize noise reduction when designing printed circuit boards (PCBs) for the ADS8866IDGSR. Proper grounding techniques play a critical role in minimizing interference. A solid ground plane ensures stable operation by reducing electromagnetic noise. Placing the digital and analog components on separate sections of the PCB further prevents signal interference. Traces carrying high-frequency signals should remain as short as possible to avoid unwanted coupling. Engineers should also route sensitive analog signals away from noisy digital lines to maintain signal integrity.

Shielding techniques can enhance noise reduction. Adding a grounded shield around sensitive traces protects them from external interference. Engineers should also avoid sharp corners in trace routing, as these can cause signal reflections. By implementing these strategies, engineers can ensure the ADS8866IDGSR operates with optimal precision.

Power supply decoupling techniques

Power supply decoupling is essential for stable voltage delivery to the ADS8866IDGSR. Engineers should place decoupling capacitors close to the device's power pins. These capacitors filter out high-frequency noise and stabilize the voltage supply. A combination of capacitors with different values, such as 0.1 µF and 10 µF, provides effective filtering across a wide frequency range.

Using low-impedance capacitors improves performance. Engineers should also ensure proper placement of bypass capacitors to reduce voltage fluctuations. Traces connecting the capacitors to the power pins must remain short to minimize resistance and inductance. These techniques ensure reliable voltage regulation in custom embedded circuits, enhancing the device's performance in precision applications.

Integration Guidelines

Interfacing with microcontrollers and processors

The ADS8866IDGSR integrates seamlessly with microcontrollers and processors through its SPI interface. Engineers should configure the SPI clock speed to match the device's requirements for accurate data transfer. Proper termination of SPI lines prevents signal reflections and ensures reliable communication. Engineers must also verify that the microcontroller's voltage levels align with the ADS8866IDGSR's input requirements.

Pull-up or pull-down resistors may be necessary for unused pins to prevent floating states. Engineers should consult the device's datasheet for detailed pin configurations. By following these guidelines, they can achieve efficient integration of the ADS8866IDGSR into custom embedded circuits.

Calibration and testing for optimal performance

Calibration ensures the ADS8866IDGSR delivers accurate results in real-world applications. Engineers should perform offset and gain calibration to correct any inherent errors in the device. Using precision voltage references during calibration enhances accuracy. Testing the device under various operating conditions verifies its reliability across its full temperature and voltage range.

Engineers should also validate the device's performance in the final system. This includes testing the ADC's response to different input signals and verifying its compatibility with other components. Regular testing and calibration maintain the ADS8866IDGSR's performance, ensuring consistent data acquisition in demanding applications.

Future Potential and Trends in Digital Converters

Role of the ADS8866IDGSR in Emerging Technologies

Growth of IoT and edge computing applications

The ADS8866IDGSR plays a pivotal role in advancing IoT and edge computing technologies. These fields demand precise data acquisition and efficient processing to support real-time decision-making. The device's high-resolution conversion ensures accurate sensor readings, which are essential for IoT systems monitoring environmental conditions, industrial processes, or wearable health metrics. Its low power consumption aligns with the energy efficiency requirements of edge devices, enabling prolonged operation in remote or battery-powered setups. As IoT networks expand, the ADS8866IDGSR will continue to support the seamless integration of sensors and processors, driving innovation in connected ecosystems.

Increasing demand for portable medical devices

The rising need for portable medical devices highlights the importance of reliable digital converters like the ADS8866IDGSR. Healthcare professionals rely on compact, battery-powered equipment for patient monitoring and diagnostics. The ADS8866IDGSR ensures precise signal conversion, which is critical for devices such as glucose monitors and portable ECG machines. Its ability to operate efficiently under varying voltage conditions enhances its suitability for medical applications. As the demand for portable healthcare solutions grows, the ADS8866IDGSR will remain a key component in delivering accurate and energy-efficient performance.

Innovations in Digital Converter Technology

Trends in miniaturization and power efficiency

The trend toward miniaturization and power efficiency continues to shape the development of digital converters. Engineers prioritize compact designs to meet the needs of modern electronics, where space constraints are common. The ADS8866IDGSR exemplifies this trend with its 10-VSSOP package, which simplifies integration into small devices. Power efficiency also remains a critical focus. Devices like the ADS8866IDGSR optimize energy usage, ensuring extended battery life without compromising performance. These advancements reflect the industry's commitment to creating solutions that balance size, efficiency, and functionality.

Potential advancements in ADC technology

Future advancements in ADC technology promise to enhance performance and broaden application possibilities. Innovations may include higher sampling rates, improved signal-to-noise ratios, and expanded voltage ranges. These improvements will enable digital converters to handle more complex signals with greater accuracy. Additionally, the integration of machine learning algorithms into ADC systems could revolutionize data processing, allowing devices to adapt dynamically to changing conditions. The ADS8866IDGSR, with its robust design and proven capabilities, serves as a foundation for exploring these emerging possibilities in precision electronics.

The ADS8866IDGSR stands out as a high-resolution, low-power digital converter designed for precision and efficiency. Its compact design and advanced features make it an essential device for battery-powered applications, including medical devices, IoT systems, and industrial monitoring tools. By delivering accurate data conversion and reliable performance, it supports engineers in creating innovative solutions. The ADS8866IDGSR also plays a pivotal role in advancing precision electronics, ensuring seamless integration into emerging technologies. Its ability to operate across diverse voltage ranges further highlights its versatility and importance in modern electronic systems.

FAQ

What are the key features of the ADS8866IDGSR?

The ADS8866IDGSR offers a range of advanced features that make it a standout choice for precision applications. These include:

A sampling rate of 100 kHz for rapid data acquisition.
No latency output for real-time performance.
A unipolar, single-ended input range from 0 to +VREF.
SPI-compatible serial interface with a daisy-chain option.
Excellent AC and DC performance, including:
- Signal-to-Noise Ratio (SNR): 93 dB.
- Total Harmonic Distortion (THD): –108 dB.
- Integral Nonlinearity (INL): ±1.0 LSB (typical), ±2.0 LSB (maximum).
- Differential Nonlinearity (DNL): ±1.0 LSB (maximum).
16-bit resolution for high-precision measurements.
A wide operating range suitable for diverse environments.

Where can I find the ADS8866IDGSR product link?

The ADS8866IDGSR product link is available on multiple platforms, including specialized electronics websites like lisleapex.com. These platforms provide detailed product information and purchasing options.

Is there a datasheet available for the ADS8866IDGSR?

Yes, a datasheet is available for the ADS8866IDGSR. This document provides comprehensive technical details, including specifications, performance metrics, and integration guidelines. Engineers can use it as a reference for designing systems with this digital converter.

How does the ADS8866IDGSR compare to similar products?

The ADS8866IDGSR is often compared to other models like the ADS8867IDGSR and ADS8865IDGSR. While all these converters share high-resolution capabilities, the ADS8866IDGSR stands out for its balance of precision, low power consumption, and compact design. Its SPI interface and wide operating range further enhance its versatility.

What are the differences between the ADS8866IDGSR and ADS8866IDGS?

The ADS8866IDGSR and ADS8866IDGS share many core features but differ in packaging and specific performance metrics. Engineers should review the datasheets for both models to determine the best fit for their application.

Can the ADS8866IDGSR be used in industrial applications?

Yes, the ADS8866IDGSR is well-suited for industrial applications. Its high accuracy, wide operating temperature range, and robust design make it ideal for tasks like remote sensing, process control, and environmental monitoring.

What other products are related to the ADS8866IDGSR?

The ADS8866IDGSR is part of a family of digital converters that includes models like the ADS8867IDGSR, ADS8865IDGSR, and ADS8864IDGSR. These products cater to various precision and performance requirements, offering engineers a range of options for their designs.

How does the ADS8866IDGSR ensure reliable performance?

The ADS8866IDGSR ensures reliable performance through its advanced SAR architecture, excellent AC and DC characteristics, and robust design. Features like no latency output and a wide operating range contribute to its consistent and accurate data conversion.

Is the ADS8866IDGSR compatible with microcontrollers?

Yes, the ADS8866IDGSR integrates seamlessly with microcontrollers and processors. Its SPI-compatible serial interface simplifies communication, making it easy to incorporate into embedded systems.

What industries benefit most from the ADS8866IDGSR?

Industries such as healthcare, IoT, industrial automation, and environmental monitoring benefit significantly from the ADS8866IDGSR. Its precision, low power consumption, and compact design make it a versatile solution for applications requiring accurate data acquisition and efficient performance.
