ADXL327BCPZ Made Easy for IoT Applications

The ADXL327BCPZ is a three-axis accelerometer designed for motion sensing in IoT devices. Its ability to detect acceleration and tilt makes it essential for applications like smart homes, fitness trackers, and industrial monitoring. This sensor offers precise motion detection while consuming minimal power, making it ideal for battery-operated devices. By simplifying data collection, it enables developers to create responsive and efficient IoT systems. Its compact design ensures easy integration into various projects, from wearable technology to robotics.

Key Takeaways

• The ADXL327BCPZ is a sensor that detects movement in three directions. It works well for IoT devices and uses little power.

• Its small size makes it easy to use in many projects. It is great for wearables, smart homes, and factory tools.

• You can connect the ADXL327BCPZ using simple parts like a microcontroller and wires. This makes testing ideas easier.

• The sensor is very sensitive, so it tracks movement accurately. This is important for things like fitness trackers and checking vibrations.

• Trying out the ADXL327BCPZ can help create cool projects. Examples include fall alarms and devices controlled by hand movements.

Key Features of the ADXL327BCPZ

Specifications Overview

3-axis motion sensing capabilities

The ADXL327BCPZ offers precise three-axis motion sensing, enabling it to detect acceleration along the X, Y, and Z axes. This capability makes it suitable for applications requiring accurate motion tracking, such as fitness devices and robotics. Its high sensitivity ensures reliable performance in detecting even subtle movements.

Wide input voltage range (1.8V to 3.6V)

This accelerometer supports a broad input voltage range, from 1.8V to 3.6V. This flexibility allows it to integrate seamlessly with various microcontrollers and power sources, making it adaptable for diverse IoT projects. Devices with limited power supply options can benefit from this feature.

Compact and lightweight design

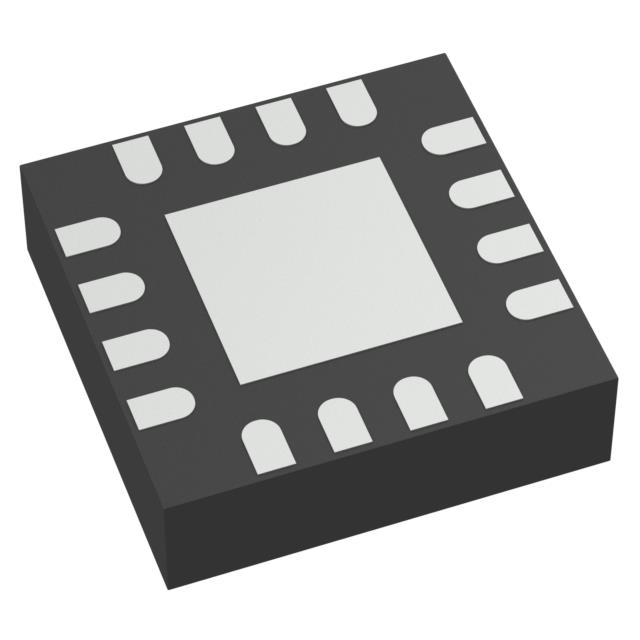

The ADXL327BCPZ features a compact 16-LQFN package, making it ideal for space-constrained applications. Its lightweight design ensures minimal impact on the overall weight of devices, such as wearables or drones. Developers can easily incorporate it into designs without compromising portability.

Benefits for IoT Applications

Low power consumption for battery-operated devices

The ADXL327BCPZ consumes only 350 μA of current, making it highly efficient for battery-powered IoT devices. This low power requirement extends the battery life of devices like smart home sensors and fitness trackers, reducing the need for frequent recharging.

High sensitivity for precise motion detection

With a sensitivity of 420 mV/g, the ADXL327BCPZ excels in detecting small changes in motion or tilt. This precision is crucial for applications like industrial monitoring, where accurate vibration detection can prevent equipment failures.

Versatility across various IoT use cases

The ADXL327BCPZ supports a wide range of IoT applications. It is commonly used in:

• Smart home devices, such as security systems.

• Industrial control systems for vibration monitoring.

• Automotive infotainment systems for motion-based controls.

Its adaptability ensures it meets the needs of developers across multiple industries.

The ADXL327BCPZ stands out for its balance of sensitivity and power efficiency, making it a preferred choice for IoT applications.

Setting Up the ADXL327BCPZ

Components You’ll Need

To set up the ADXL327BCPZ for IoT applications, a few essential components are required. These components ensure proper functionality and seamless integration with your project.

• ADXL327BCPZ accelerometer: The core component for motion sensing.

• Microcontroller: Devices like Arduino or ESP32 work well for reading and processing data.

• Breadboard and jumper wires: These simplify connections and allow for easy prototyping.

• Power source: A stable power supply is necessary to operate the accelerometer and microcontroller.

The table below highlights key parameters of the ADXL327BCPZ:

Wiring the ADXL327BCPZ

Connecting power pins (VCC and GND)

Start by connecting the VCC pin of the ADXL327BCPZ to the 3.3V or 5V output of the microcontroller. Attach the GND pin to the ground (GND) of the microcontroller. These connections provide the necessary power for the accelerometer to function.

Wiring the X, Y, and Z output pins to the microcontroller

The ADXL327BCPZ outputs analog signals for the X, Y, and Z axes. Connect these pins to the analog input pins of the microcontroller. For example, on an Arduino, use pins A0, A1, and A2. This setup allows the microcontroller to read motion data from all three axes.

Ensuring stable and secure connections

Use jumper wires to establish firm connections between the components. A breadboard helps organize the wiring and prevents loose connections. Double-check each connection to avoid errors during operation.

Tip: Label the wires for easy identification and troubleshooting.

By following these steps, developers can prepare the ADXL327BCPZ for integration into their IoT projects.

Programming the ADXL327BCPZ

Setting Up the Software Environment

Installing required libraries

To program the ADXL327BCPZ, developers need to install the necessary libraries. For Arduino users, the Arduino IDE provides built-in support for analog input, so no additional libraries are required. However, for advanced data processing, libraries like "Adafruit Sensor" or "AccelStepper" can be helpful. These libraries simplify tasks such as filtering and interpreting accelerometer data. Install them through the Library Manager in the Arduino IDE by searching for the library name and clicking "Install."

Configuring the microcontroller IDE

Configuring the IDE ensures compatibility with the microcontroller. For Arduino, select the correct board and port under the "Tools" menu. For ESP32, install the ESP32 board package through the Board Manager. Verify the IDE settings to match the microcontroller's specifications. This step ensures smooth communication between the ADXL327BCPZ and the microcontroller.

Writing and Testing Code

Reading analog data from the accelerometer

The ADXL327BCPZ outputs analog signals for the X, Y, and Z axes. Use the analogRead() function in Arduino to read these values. Assign each axis to a specific analog pin on the microcontroller.

Converting raw data into meaningful values

Raw data from the accelerometer represents voltage changes. Convert these values into acceleration (g) using the formula:

Acceleration (g) = (Analog Value - Zero-g Voltage) / Sensitivity

For the ADXL327BCPZ, the zero-g voltage is approximately 1.5V, and the sensitivity is 420 mV/g.

Sample code for data reading and processing

Below is a sample Arduino code snippet to read and process data:

const int xPin = A0;
const int yPin = A1;
const int zPin = A2;

void setup() {
  Serial.begin(9600);
}

void loop() {
  int xValue = analogRead(xPin);
  int yValue = analogRead(yPin);
  int zValue = analogRead(zPin);

  float xG = (xValue * (3.3 / 1023) - 1.5) / 0.42;
  float yG = (yValue * (3.3 / 1023) - 1.5) / 0.42;
  float zG = (zValue * (3.3 / 1023) - 1.5) / 0.42;

  Serial.print("X: "); Serial.print(xG); Serial.print(" g, ");
  Serial.print("Y: "); Serial.print(yG); Serial.print(" g, ");
  Serial.print("Z: "); Serial.println(zG); Serial.print(" g");
  delay(500);
}

Debugging and Optimization

Verifying data output in the serial monitor

Open the Serial Monitor in the Arduino IDE to view the output. Ensure the values change when the accelerometer moves. This step confirms the sensor is functioning correctly.

Troubleshooting common issues

If the output appears incorrect, check the wiring and ensure the power supply is stable. Verify the analog pins match the code. Adjust the zero-g voltage or sensitivity values if necessary.

Tip: Use a multimeter to measure the actual zero-g voltage for precise calibration.

IoT Applications of the ADXL327BCPZ

Real-World Use Cases

Motion detection for smart home devices

The ADXL327BCPZ plays a vital role in smart home systems. It detects motion to trigger actions like turning on lights or activating security cameras. Its high sensitivity ensures accurate detection, even for subtle movements. This makes it ideal for applications such as smart locks and intrusion detection systems.

Fitness tracking and wearable technology

Fitness trackers and wearable devices rely on accelerometers to monitor physical activity. The ADXL327BCPZ measures steps, tracks movement patterns, and calculates calories burned. Its low power consumption extends battery life, making it suitable for continuous use in wearables like smartwatches and health monitors.

Vibration monitoring in industrial IoT

Industrial IoT systems use the ADXL327BCPZ for vibration analysis. It monitors machinery to detect imbalances or irregularities. This helps predict equipment failures and reduces downtime. Its precision and reliability make it a valuable tool for predictive maintenance in factories and industrial plants.

Project Ideas

Fall detection system for elderly care

Developers can use the ADXL327BCPZ to create a fall detection system. The accelerometer detects sudden changes in motion, identifying when a fall occurs. This system can send alerts to caregivers, ensuring timely assistance for elderly individuals.

Gesture-controlled IoT devices

The ADXL327BCPZ enables gesture recognition for controlling IoT devices. For example, users can wave their hand to turn on a device or adjust settings. This application enhances user interaction and provides a hands-free experience.

Vehicle acceleration and tilt monitoring

In automotive applications, the ADXL327BCPZ monitors acceleration and tilt. It helps track vehicle performance and stability. This data can improve safety by detecting sharp turns or sudden stops. It also supports advanced features like rollover detection.

Tip: Combining the ADXL327BCPZ with wireless communication modules can enhance these projects by enabling real-time data transmission.

Integrating the ADXL327BCPZ into IoT projects involves straightforward steps. Developers can connect the accelerometer to a microcontroller, write code to process motion data, and test the setup for accuracy. Its compact design and low power consumption make it ideal for diverse applications, from smart homes to industrial monitoring. The sensor’s ease of use allows even beginners to implement motion sensing in their projects. By exploring its capabilities, developers can create innovative IoT solutions that enhance everyday life.

Note: Experimentation with different use cases can unlock the full potential of this versatile accelerometer.

What makes the ADXL327BCPZ suitable for IoT applications?

The ADXL327BCPZ offers low power consumption, high sensitivity, and a compact design. These features make it ideal for battery-operated IoT devices like wearables, smart home systems, and industrial sensors. Its versatility supports a wide range of motion-sensing applications.

How does the ADXL327BCPZ measure motion?

The accelerometer detects acceleration along three axes (X, Y, Z). It converts motion into analog voltage signals. Developers can process these signals using a microcontroller to calculate acceleration or tilt values for various applications.

Can beginners use the ADXL327BCPZ in projects?

Yes, the ADXL327BCPZ is beginner-friendly. Its straightforward wiring and compatibility with popular microcontrollers like Arduino simplify integration. Sample code and tutorials help users quickly implement motion sensing in their projects.

What is the power requirement for the ADXL327BCPZ?

The ADXL327BCPZ operates within a voltage range of 1.8V to 3.6V. It consumes only 350 μA of current, making it highly efficient for battery-powered devices. This low power usage extends the lifespan of portable IoT systems.

What are some common troubleshooting tips for the ADXL327BCPZ?

Verify wiring connections and ensure the power supply is stable. Check that the microcontroller pins match the code. Use a multimeter to measure the zero-g voltage for accurate calibration. Review the serial monitor output to confirm proper data readings.

Tip: Double-check all connections to avoid errors during setup.
