Boost Infotainment Systems With TCAN1042VDRQ1

Modern vehicles depend on sophisticated communication systems to provide seamless infotainment and telematics experiences. The TCAN1042VDRQ1, part of the TCAN1042x-Q1 family, including TCAN1042V, TCAN1042H, and TCAN1042G, is essential for enabling high-speed and reliable data transfer across various electronic control units (ECUs). Its robust design ensures stable communication, even in demanding automotive environments. By adhering to stringent automotive standards, the TCAN1042x-Q1 family enhances system performance and reliability. This transceiver facilitates efficient communication between infotainment modules, ensuring smooth operation for navigation, entertainment, and connectivity features.

Key Takeaways

• The TCAN1042VDRQ1 allows fast data transfer up to 5 Mbps. This ensures quick and steady communication between car control units (ECUs).

• Its low-power standby mode saves energy. This makes it great for modern cars that focus on efficiency and battery life.

• It has built-in safety features like ESD protection up to ±15 kV. These features make it strong and reliable in tough car environments.

• The TCAN1042VDRQ1 meets strict car industry rules. This ensures it works well in important systems like infotainment and telematics.

• To use the TCAN1042VDRQ1 properly, you need good system design. Hardware setup and software testing are also important to make it work its best and keep the system reliable.

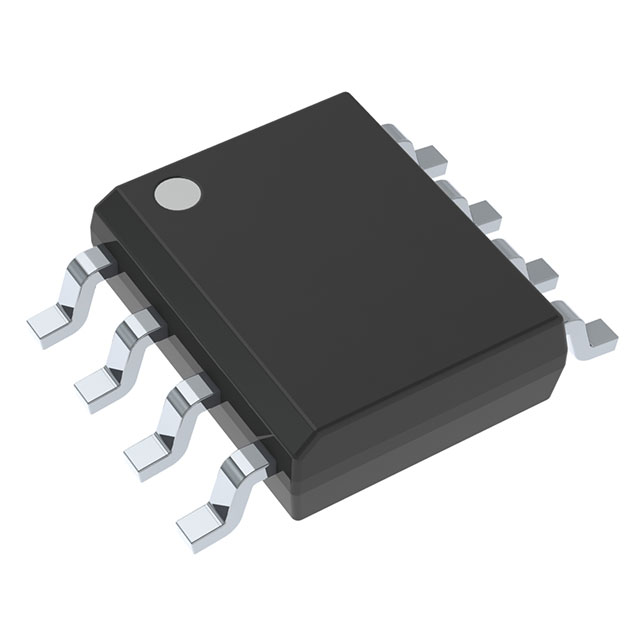

Overview of TCAN1042VDRQ1

Key Features and Capabilities

The TCAN1042VDRQ1 offers a range of features that make it a standout choice for automotive communication systems. It supports high-speed data transfer rates of up to 5 Mbps, ensuring rapid and reliable communication between electronic control units (ECUs). Its low-power standby mode minimizes energy consumption, making it ideal for modern vehicles prioritizing efficiency. Built-in protection features, such as thermal shutdown and electrostatic discharge (ESD) protection up to ±15 kV, enhance the device's robustness. Additionally, the transceiver meets stringent automotive standards, ensuring reliability in demanding environments.

Automotive Standards Compliance

The TCAN1042VDRQ1 complies with several critical automotive standards, ensuring its performance and reliability in various applications. It adheres to the ISO 11898-2:2016 standard for high-speed CAN physical layers and supports CAN FD networks up to 2 Mbps. For enhanced robustness, versions with the 'G' suffix enable data rates of up to 5 Mbps. The transceiver also meets AEC-Q100 Grade 1 qualifications, which certify its reliability under automotive-grade conditions. Furthermore, it supports electromagnetic compatibility (EMC) performance as per SAE J2962-2 and IEC 62228-3 standards, ensuring stable operation in electrically noisy environments.

Why TCAN1042VDRQ1 is Ideal for Infotainment Systems

The TCAN1042VDRQ1 excels in infotainment systems due to its high-speed communication capabilities and robust design. It supports data rates up to 5 Mbps, enabling seamless interaction between infotainment modules such as head units, digital dashboards, and connectivity systems. Its wide operating temperature range of -55°C to 125°C ensures reliable performance in extreme automotive environments. The transceiver's low-power standby mode further enhances energy efficiency, a critical factor for modern vehicles. These features make it an excellent choice for infotainment systems requiring fast, reliable, and energy-efficient communication.

Benefits of TCAN1042VDRQ1 in Infotainment and Telematics

Enhanced Communication Between ECUs

The TCAN1042VDRQ1 significantly improves communication between electronic control units (ECUs) in infotainment systems. Its compliance with ISO 11898-2 standards ensures reliable high-speed CAN communication. The transceiver supports data rates of up to 5 Mbps, enabling faster data transfer between ECUs. This capability is essential for infotainment modules like head units and digital dashboards, which require rapid and seamless data exchange.

Additionally, the TCAN1042VDRQ1 includes advanced protection features. Electrostatic discharge (ESD) protection up to ±15 kV safeguards the system against electrical surges. Bus fault protection further enhances reliability, ensuring stable operation in automotive environments. These features make the TCAN1042VDRQ1 a dependable choice for maintaining uninterrupted communication in modern vehicles.

Improved System Efficiency and Reliability

The TCAN1042VDRQ1 enhances system efficiency by enabling faster and error-free data transmission. Its robust design minimizes communication delays, ensuring infotainment systems operate smoothly. The transceiver's compliance with automotive-grade standards, such as AEC-Q100 Grade 1, guarantees reliability under extreme conditions.

Infotainment systems often face challenges like electromagnetic interference and harsh thermal environments. The TCAN1042VDRQ1 addresses these issues with its electromagnetic compatibility (EMC) robustness and wide operating temperature range. These features ensure consistent performance, even in demanding automotive scenarios. By reducing the risk of communication errors, the transceiver contributes to a more efficient and reliable infotainment experience.

Energy Efficiency with Low Power Modes

Energy efficiency is a critical factor in modern automotive systems. The TCAN1042VDRQ1 incorporates several features to minimize power consumption. Its low-power standby mode and sleep mode reduce power usage to as low as 1 μA. These modes are particularly beneficial for vehicles with advanced infotainment systems, as they help conserve battery life.

The transceiver also includes a silent mode, which reduces electromagnetic interference while maintaining low power consumption. Integrated voltage and low-dropout (LDO) regulators ensure a stable power supply, further enhancing energy efficiency. These features make the TCAN1042VDRQ1 an excellent choice for energy-conscious automotive applications.

Robustness in Harsh Automotive Environments

Automotive environments often present extreme challenges for electronic components. The TCAN1042VDRQ1 demonstrates exceptional durability and reliability in such conditions. Its design ensures stable performance even in the presence of electromagnetic interference (EMI), a common issue in vehicles. This resistance to EMI guarantees uninterrupted communication between electronic control units (ECUs), which is critical for infotainment and telematics systems.

The transceiver includes built-in protection features that enhance its robustness. These features safeguard the device against fault conditions, such as overvoltage and electrostatic discharge (ESD). With ESD protection up to ±15 kV, the TCAN1042VDRQ1 withstands electrical surges that could otherwise damage sensitive components. Additionally, its thermal shutdown mechanism prevents overheating, ensuring reliable operation in high-temperature environments.

Several tests and case studies highlight the transceiver's ability to perform in harsh conditions. Engineers have validated its resistance to electromagnetic interference, confirming its reliability in electrically noisy settings. The chip's fault protection features have also been tested extensively, proving its durability under challenging scenarios. These attributes make the TCAN1042VDRQ1 a dependable choice for automotive applications requiring robust communication solutions.

The wide operating temperature range of -55°C to 125°C further enhances its suitability for extreme environments. This capability allows the transceiver to function reliably in both freezing and scorching conditions. By combining advanced protection mechanisms with a resilient design, the TCAN1042VDRQ1 ensures consistent performance in demanding automotive scenarios.

Tip: Robustness in automotive environments not only improves system reliability but also reduces maintenance costs by minimizing component failures.

Technical Specifications of TCAN1042VDRQ1

Voltage and Power Requirements

The TCAN1042VDRQ1 operates within a supply voltage range of 4.5 to 5.5 volts, ensuring compatibility with standard automotive power systems. Its supply current is rated at 110 mA, which supports high-speed data transmission without compromising energy efficiency. This transceiver is designed to meet the demands of modern vehicles, where power efficiency and reliability are critical.

The table below compares the voltage and power requirements of the TCAN1042VDRQ1 with a similar component, the TCAN1044AEVDRQ1:

This comparison highlights the TCAN1042VDRQ1's ability to deliver higher data rates while maintaining robust power requirements, making it an excellent choice for advanced automotive applications.

Data Transmission and Fault Protection

The TCAN1042VDRQ1 supports data transmission rates of up to 2 Mbps for CAN FD networks. For applications requiring even faster communication, the 'G' variant achieves speeds of up to 5 Mbps. These capabilities ensure seamless data exchange between electronic control units (ECUs) in infotainment and telematics systems.

The transceiver includes several fault protection mechanisms to enhance reliability. It offers electrostatic discharge (ESD) protection up to ±15 kV and bus fault protection of ±58 V for non-H variants and ±70 V for H variants. Additional features, such as undervoltage protection and a driver dominant timeout, safeguard the system against potential failures. The table below summarizes these specifications:

These features ensure the TCAN1042VDRQ1 delivers reliable performance in demanding automotive environments.

Operating Temperature and EMC Robustness

The TCAN1042VDRQ1 operates within a wide temperature range of -55°C to 125°C, making it suitable for extreme automotive conditions. This capability ensures consistent performance in both freezing and high-temperature environments.

To address electromagnetic compatibility (EMC) challenges, the transceiver incorporates advanced design features that minimize interference. Its compliance with EMC standards, such as SAE J2962-2 and IEC 62228-3, guarantees stable operation in electrically noisy settings. These attributes make the TCAN1042VDRQ1 a dependable choice for maintaining uninterrupted communication in modern vehicles.

Note: The wide operating temperature range and EMC robustness of the TCAN1042VDRQ1 reduce the risk of system failures, enhancing overall reliability in automotive applications.

Built-in Safety Features

The TCAN1042VDRQ1 includes several built-in safety features that enhance system reliability and protect against potential failures. These features ensure stable operation in demanding automotive environments, making the transceiver a dependable choice for modern vehicles.

One of the key safety features is its electrostatic discharge (ESD) protection, which safeguards the device against electrical surges. With protection levels up to ±15 kV, the transceiver can withstand sudden voltage spikes, reducing the risk of damage to sensitive components. Additionally, the bus fault protection feature offers robust defense against voltage faults, with non-H variants supporting up to ±58 V and H variants up to ±70 V.

The transceiver also includes undervoltage protection on its VCC and VIO supply terminals. This feature prevents malfunctions caused by insufficient voltage levels, ensuring consistent performance. Another critical safety mechanism is the driver dominant timeout (TXD DTO), which supports data rates as low as 10 kbps. This capability helps maintain reliable communication even in low-speed scenarios.

Thermal shutdown protection (TSD) is another essential feature. It prevents overheating by shutting down the device when temperatures exceed safe limits. This mechanism ensures reliable operation in high-temperature environments, which are common in automotive applications. The transceiver also exhibits ideal passive behavior when unpowered, maintaining high impedance on bus and logic terminals to avoid unnecessary load.

The table below summarizes the built-in safety features of the TCAN1042VDRQ1:

These features collectively enhance the reliability and safety of the TCAN1042VDRQ1, ensuring it performs consistently in challenging automotive conditions.

Note: Built-in safety features not only improve system reliability but also reduce the likelihood of costly repairs by preventing component failures.

Integration of TCAN1042VDRQ1 into Infotainment Systems

System Design and Planning

Integrating TCAN1042VDRQ1 into an infotainment system begins with careful system design and planning. Engineers must identify the communication requirements of the infotainment modules, such as head units, digital dashboards, and connectivity systems. This step ensures compatibility with the Controller Area Network (CAN) protocol and the transceiver's high-speed data transfer capabilities.

A detailed schematic of the system architecture helps map out the connections between electronic control units (ECUs). Engineers should also consider the power supply requirements of the TCAN1042VDRQ1, ensuring a stable voltage range of 4.5 to 5.5 volts. Additionally, planning for fault protection mechanisms, such as electrostatic discharge (ESD) and overvoltage safeguards, enhances system reliability.

Hardware Setup and Configuration

The hardware setup involves connecting the TCAN1042VDRQ1 to the CAN bus and other system components. Engineers must ensure proper pin configurations for the transceiver, including the TXD (transmit data) and RXD (receive data) pins. These connections enable seamless communication between the transceiver and the microcontroller.

To optimize performance, engineers should implement robust grounding techniques and use shielded cables to minimize electromagnetic interference (EMI). Configuring the transceiver's low-power modes, such as standby and sleep modes, further enhances energy efficiency. Testing the hardware setup with diagnostic tools ensures all connections function correctly before proceeding to the software stage.

Software Implementation and Testing

Software implementation involves programming the microcontroller to manage data transmission and reception through the TCAN1042VDRQ1. Engineers must configure the CAN protocol settings, including baud rate and message filtering, to match the system's requirements. Writing efficient code ensures smooth communication between infotainment modules.

Testing the software is crucial to verify the transceiver's performance under various conditions. Engineers should simulate real-world scenarios, such as high data loads and fault conditions, to evaluate the system's reliability. Debugging tools help identify and resolve any issues, ensuring the TCAN1042VDRQ1 operates seamlessly within the infotainment system.

Tip: Combining thorough hardware and software testing minimizes integration challenges and ensures optimal system performance.

Troubleshooting and Optimization

Integrating the TCAN1042VDRQ1 into infotainment systems requires careful attention to detail. Engineers often encounter challenges during this process, but addressing these issues ensures optimal performance.

• Power Supply Issues: Maintaining the supply voltage within the specified range of 4.5 to 5.5 volts is essential. Engineers should use decoupling capacitors to reduce noise and stabilize the power supply. This practice minimizes voltage fluctuations that could disrupt communication.

• CAN Bus Connections: Properly connecting the CAN_H and CAN_L lines is critical. Voltage levels on these lines must remain within the specified ranges to ensure reliable data transmission. Incorrect connections can lead to communication errors or system malfunctions.

• Data Rate Adjustments: Configuring the baud rate to match the transceiver's capabilities is vital. Engineers should consider the system's requirements and adjust the data rate accordingly. This step ensures smooth communication between electronic control units (ECUs).

• Propagation Delay and Skew: Accounting for propagation delay and skew in the design helps maintain signal integrity. Engineers should evaluate these factors during the planning phase to prevent data loss or corruption.

• Temperature Considerations: Operating the TCAN1042VDRQ1 within its specified temperature range of -55°C to 125°C ensures reliable performance. Extreme temperatures can affect the transceiver's functionality, so maintaining proper thermal management is crucial.

• PCB Layout Practices: Following good PCB layout practices minimizes electromagnetic interference (EMI). Engineers should use proper grounding techniques and shielded cables to reduce noise and enhance signal quality.

By addressing these common challenges, engineers can optimize the integration of the TCAN1042VDRQ1. Thorough testing and validation further ensure the system operates reliably under real-world conditions.

Tip: Regularly monitoring system performance during operation helps identify and resolve potential issues early, reducing downtime and maintenance costs.

Real-World Applications of TCAN1042VDRQ1

In-Car Entertainment and Navigation

The TCAN1042VDRQ1 plays a vital role in modern in-car entertainment and navigation systems. It ensures seamless communication between infotainment modules, such as head units, digital dashboards, and connectivity systems. By supporting high-speed data rates of up to 5 Mbps, it enables rapid data exchange, which is essential for real-time navigation updates and multimedia streaming.

The transceiver’s low-power standby mode enhances energy efficiency, making it suitable for vehicles with advanced infotainment features. Its robust design, including electrostatic discharge (ESD) protection up to ±15 kV, ensures reliable operation even in electrically noisy environments. These features allow drivers and passengers to enjoy uninterrupted entertainment and accurate navigation, improving the overall driving experience.

Vehicle Diagnostics and Monitoring

The TCAN1042VDRQ1 enhances vehicle diagnostics and monitoring systems by providing reliable and high-speed communication. Its compliance with the ISO11898-2 (2016) High-Speed CAN standard ensures compatibility with modern diagnostic tools. The transceiver supports data rates of up to 2 Mbps, with options for 5 Mbps in certain variants, enabling faster data transfer for real-time monitoring.

Key features that improve diagnostic systems include:

• ESD protection up to ±15 kV and bus fault protection.

• Low-power standby mode with a remote wake request feature.

• Thermal shutdown protection and undervoltage protection on supply terminals.

These capabilities allow technicians to quickly identify and address issues, ensuring vehicles remain in optimal condition. The transceiver’s reliability also supports over-the-air (OTA) updates, enabling remote system upgrades without requiring physical intervention.

Advanced Driver Assistance Systems (ADAS)

The TCAN1042VDRQ1 supports advanced driver assistance systems (ADAS) by facilitating high-speed communication between sensors, cameras, and central processing units. Its robust communication interface ensures stable data transfer, even in challenging automotive environments. The table below highlights its key features for ADAS applications:

These features make the TCAN1042VDRQ1 an ideal choice for ADAS, ensuring reliable communication for systems like adaptive cruise control, lane-keeping assistance, and collision avoidance. Its ability to operate in extreme temperatures further enhances its suitability for safety-critical applications.

Electric and Hybrid Vehicle Communication

Electric and hybrid vehicles rely on advanced communication systems to ensure seamless operation between critical components. The TCAN1042VDRQ1 plays a pivotal role in enabling efficient communication within these vehicles. Its adherence to the ISO11898-2 (2016) High-Speed CAN physical layer standard ensures compatibility with modern automotive networks. This transceiver supports data rates of up to 2 Mbps, with certain variants offering speeds of up to 5 Mbps, making it suitable for high-speed data exchange.

The TCAN1042VDRQ1 enhances communication between essential systems, such as battery management systems (BMS), power inverters, and motor controllers. These components require reliable and fast data transfer to maintain optimal performance. The transceiver’s low-power standby mode, combined with a remote wake request feature, minimizes energy consumption, which is crucial for electric and hybrid vehicles aiming to maximize battery efficiency.

Tip: Using components with low-power modes, like the TCAN1042VDRQ1, helps extend the range of electric vehicles by conserving energy during idle periods.

Robust protection features further enhance the transceiver’s reliability in electric and hybrid vehicles. Electrostatic discharge (ESD) protection and fault protection mechanisms safeguard the system against electrical surges and voltage faults. These features ensure stable operation in harsh automotive environments. Additionally, the transceiver meets AEC-Q100 qualifications, certifying its durability under demanding conditions.

The TCAN1042VDRQ1’s ability to support high-speed communication, combined with its energy-efficient design and robust protection features, makes it an ideal choice for electric and hybrid vehicle applications. Its integration into these vehicles ensures efficient operation and contributes to the advancement of sustainable automotive technologies.

The TCAN1042VDRQ1 offers numerous advantages for infotainment and telematics systems. It meets the ISO11898-2 standard for high-speed CAN communication and supports CAN FD networks up to 2 Mbps. Its low-power standby mode with a remote wake request enhances energy efficiency. Protection features, such as ESD and fault protection, ensure robust performance in automotive environments.

Proper integration of the TCAN1042VDRQ1 is crucial for achieving optimal system performance. Engineers must carefully plan system design, configure hardware, and test software to ensure seamless operation. These steps maximize the transceiver's potential and enhance system reliability.

Automotive developers seeking reliable and efficient communication solutions should consider the TCAN1042VDRQ1. Its advanced features and robust design make it an ideal choice for modern vehicles.

What makes the TCAN1042VDRQ1 suitable for automotive applications?

The TCAN1042VDRQ1 meets ISO 11898-2 and AEC-Q100 Grade 1 standards. It supports high-speed data rates, operates in extreme temperatures, and includes robust protection features like ESD and thermal shutdown. These attributes ensure reliable performance in demanding automotive environments.

Can the TCAN1042VDRQ1 reduce energy consumption in vehicles?

Yes, the TCAN1042VDRQ1 includes low-power standby and sleep modes. These features reduce power usage to as low as 1 μA, making it ideal for energy-efficient vehicles. Its silent mode also minimizes electromagnetic interference while conserving energy.

How does the TCAN1042VDRQ1 enhance infotainment systems?

The TCAN1042VDRQ1 enables high-speed communication between infotainment modules like head units and digital dashboards. Its robust design ensures reliable data transfer, even in noisy environments. Features like low-power modes and fault protection improve system efficiency and reliability.

What protection features does the TCAN1042VDRQ1 offer?

The TCAN1042VDRQ1 includes ESD protection up to ±15 kV, bus fault protection, and thermal shutdown. It also offers undervoltage protection and a driver dominant timeout. These features safeguard the system against electrical surges, overheating, and voltage faults.

Is the TCAN1042VDRQ1 compatible with electric vehicles?

Yes, the TCAN1042VDRQ1 supports communication between battery management systems, power inverters, and motor controllers. Its low-power modes optimize energy efficiency, while its robust protection features ensure reliable operation in electric and hybrid vehicles.
