How to Choose the Right IGBT Like STGD6M65DF2 for Motor Applications

Choosing the right IGBT plays a crucial role in motor drive applications. It directly influences motor efficiency, reliability, and overall performance. For instance, the STGD6M65DF2 stands out as a high-performance IGBT, offering features tailored for demanding motor systems. Its low conduction losses and thermally-efficient design ensure reduced operational losses and lower power dissipation.

The STGD6M65DF2 further enhances motor applications with its 650 V voltage rating, 6 A current capacity, and soft recovery antiparallel diode for fast switching. These attributes make it a reliable choice for achieving optimal motor performance.

Key Takeaways

• Picking the right IGBT, like STGD6M65DF2, helps motors work better.

• Choose IGBTs with low energy loss and good heat handling to save money and make them last longer.

• Make sure the IGBT matches the voltage and current your motor needs to avoid damage and work well.

• Check how fast it switches and handles heat to control the motor better and keep it cool.

• Look for safety features like short-circuit protection to keep motor systems safe and reliable.

Understanding IGBTs and Their Role in Motor Drives

What is an IGBT?

An insulated-gate bipolar transistor (IGBT) is a semiconductor device that combines the high-speed switching capabilities of a MOSFET with the high-current handling capacity of a bipolar junction transistor (BJT). This hybrid design makes IGBTs ideal for power-intensive applications, including motor drives. By efficiently managing high voltage and current, IGBTs play a critical role in modern power conversion systems. Their ability to operate at high frequencies while minimizing energy losses makes them indispensable in variable-frequency drives and other motor control technologies.

How IGBTs Work in Motor Drive Applications

IGBTs function as efficient switching devices in motor drive systems. They regulate the flow of power by rapidly switching between on and off states, enabling precise control of motor speed and torque. Key principles behind their operation include:

• Meeting high voltage and current requirements in motor drive applications.

• Enhancing efficiency by effectively managing power dissipation.

• Maintaining thermal stability to ensure safe operation under demanding conditions.

• Utilizing advanced structures, such as Trench-Gate Field-Stop technology, to reduce conduction losses.

• Withstanding short circuit conditions, which is essential for reliable motor control.

In variable-frequency drives, IGBTs convert fixed-frequency AC power into variable-frequency AC power, allowing motors to operate at different speeds. This capability improves energy efficiency and extends the lifespan of motor systems.

Benefits of IGBTs in Motor Drives

IGBTs offer several measurable benefits in motor drive applications. Their advanced design, including features like the field-stop layer, significantly reduces conduction losses, which enhances overall efficiency. When paired with fast-recovery diodes, IGBTs further improve performance by minimizing switching losses. These characteristics make them essential for maximizing efficiency in electric motors.

Additionally, IGBTs excel in managing power dissipation and thermal characteristics, ensuring robust performance even in high-temperature environments. Their ability to handle high voltage and current requirements makes them a preferred choice for motor drives in industrial and commercial applications. By enabling precise motor control, IGBTs contribute to improved energy efficiency and system reliability.

Key Criteria for Selecting IGBT Components

Voltage and Current Ratings

Voltage and current ratings are critical when selecting IGBT components for motor applications. These ratings determine the device's ability to handle power demands without failure. IGBTs are designed to meet high voltage and current requirements, making them suitable for power applications above 1kW. Typical operating voltages for motor drives range from 1200V to 1700V, ensuring compatibility with industrial systems. For consumer products like washing machines, low voltage applications below 600V are common.

IGBTs also excel in low-frequency applications, where their robust design ensures reliable performance. Selecting the correct voltage and current ratings prevents overloading and enhances the overall efficiency of the motor system. This careful selection ensures the IGBT operates within its safe limits, reducing the risk of damage and prolonging its lifespan.

Switching Speed and Efficiency

Switching speed and efficiency significantly impact the performance of IGBTs in motor drives. High-speed switching allows precise control of motor speed and torque, which is essential for achieving optimal motor performance. Advanced IGBT technologies, such as Trench-Gate Field-Stop (TGFS), balance conduction and switching losses effectively. This balance enhances motor control efficiency while minimizing energy waste.

The device structure, including features like an asymmetric design and field-stop layer, plays a vital role in managing switching speed. These innovations reduce conduction losses and improve overall power efficiency. By optimizing switching characteristics, IGBTs ensure smooth motor operation and lower energy consumption, making them indispensable in modern motor drive systems.

Thermal Management and Heat Dissipation

Thermal management is a crucial factor in ensuring the reliability of IGBT components. Effective heat dissipation prevents overheating, which can lead to device failure. The relationship between IGBT size, thermal capacity, and short-circuit withstand times highlights the importance of managing heat effectively.

IGBTs designed for motor applications often include features that enhance thermal performance. These features allow the component to operate safely under high-temperature conditions. Proper thermal management not only improves reliability but also extends the lifespan of the IGBT. By maintaining optimal operating temperatures, motor systems achieve consistent performance and reduced maintenance costs.

Protection Features and Reliability

Protection features play a vital role in ensuring the reliability of an IGBT in motor applications. These features safeguard the device from potential damage caused by overcurrent, overvoltage, and thermal stress. For instance, many IGBTs include built-in short-circuit protection, which prevents excessive current from flowing through the device during fault conditions. This capability enhances the overall safety of motor systems.

Voltage spikes often occur during rapid switching operations. To address this, IGBTs incorporate clamping diodes or snubber circuits that limit voltage surges. These components protect the device and maintain stable operation under high-stress conditions. Additionally, advanced IGBTs feature soft recovery diodes, which reduce electromagnetic interference during switching transitions.

Thermal protection mechanisms are equally important. Effective thermal management systems, such as integrated temperature sensors, monitor the device's heat levels. These sensors help prevent overheating, ensuring the IGBT operates within its safe temperature range. By combining these protection features, IGBTs deliver consistent performance and extend the lifespan of motor systems.

Cost vs. Performance Considerations

Balancing cost and performance is crucial when selecting an IGBT for motor applications. High-performance IGBTs often come with advanced features, such as faster switching speeds and higher voltage ratings. These attributes improve motor efficiency and reduce power losses. However, they may also increase the overall cost of the system.

For applications requiring moderate power levels, choosing an IGBT with standard voltage and current ratings can provide a cost-effective solution. These devices meet the basic requirements of motor drives without unnecessary expenses. On the other hand, industrial systems with higher power demands benefit from premium IGBTs. These components offer superior thermal management and switching efficiency, justifying their higher price.

Evaluating the specific needs of the motor application helps determine the right balance between cost and performance. This approach ensures optimal system efficiency while staying within budget constraints.

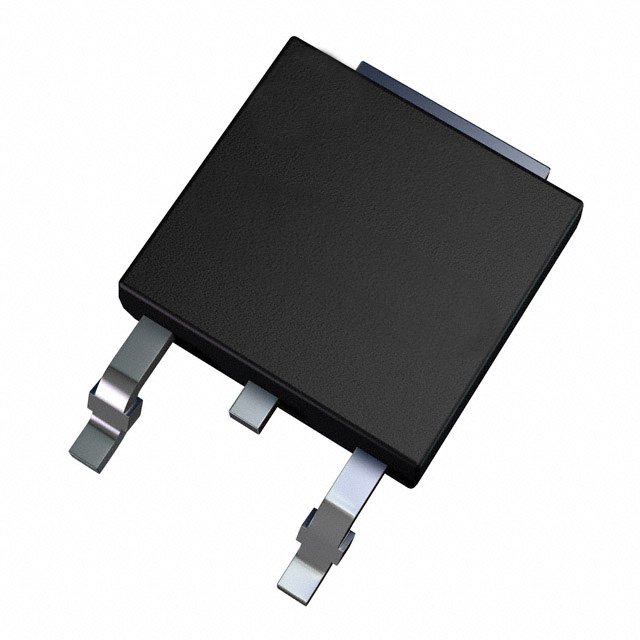

Features of the STGD6M65DF2 for Motor Applications

Key Specifications of the STGD6M65DF2

The STGD6M65DF2 offers several key specifications that make it ideal for motor drives and power inverters. These specifications include:

• Low loss operation for improved efficiency.

• Voltage rating of 650 V, suitable for high-power applications.

• Current capacity of 6 A, ensuring reliable performance in motor systems.

• Short-circuit withstand time of 6 µs, enhancing device protection.

• Saturated collector-emitter voltage (VCE(sat)) of 1.55 V, reducing conduction losses.

• Soft recovery antiparallel diode for fast and efficient switching.

• Low thermal resistance, ensuring effective heat dissipation.

• Tight parameter distribution for consistent performance.

These features enable the STGD6M65DF2 to handle demanding motor applications while maintaining efficiency and reliability.

Advantages of the STGD6M65DF2 in Motor Drives

The STGD6M65DF2 provides several advantages when used in motor drives. Its low loss operation minimizes energy waste, which improves overall system efficiency. The soft recovery antiparallel diode ensures smooth switching, reducing electromagnetic interference and enhancing motor control precision.

The device's low thermal resistance allows it to operate safely under high-temperature conditions, which increases its lifespan. Its short-circuit withstand time of 6 µs protects the motor system from potential damage during fault conditions. These advantages make the STGD6M65DF2 a reliable choice for motor drives requiring high efficiency and robust performance.

Application Scenarios for the STGD6M65DF2

The STGD6M65DF2 has been successfully used in various real-world applications. These include:

• Power electronics systems for industrial and commercial use.

• Inverters for renewable energy integration, such as solar and wind power systems.

• Variable frequency drives (VFD) for precise motor speed control.

• Power inverters in HVAC systems and electric vehicles.

These scenarios highlight the versatility of the STGD6M65DF2 in handling diverse motor and power applications. Its ability to deliver consistent performance across different environments makes it a preferred choice for engineers and system designers.

Step-by-Step Guide to Evaluating IGBT Modules

Define Your Motor Drive Requirements

Defining motor drive requirements is the first step in evaluating igbt modules. This process ensures the selected module aligns with the application's specific needs. Follow these steps to establish clear requirements:

1. Voltage and Current Ratings: Identify the maximum voltage and current the motor drive will encounter. Select an igbt module capable of handling peak conditions rather than average values.

2. Switching Speed and Frequency: Determine the required switching speed. High-speed switching modules suit applications demanding precise control, while standard modules work well for lower frequencies.

3. Thermal Management: Evaluate the cooling needs of the system. Modules with built-in heat sinks or compatibility with external cooling solutions ensure efficient thermal management.

4. Isolation Requirements: Assess the level of electrical isolation needed, especially for high-voltage applications. This is critical for safety in industrial and automotive systems.

5. Protection Features: Look for modules with features like overcurrent protection and short-circuit protection to prevent device failure.

6. Environmental Suitability: Consider the operating environment. Modules designed for extreme conditions, such as temperature fluctuations or moisture, enhance reliability.

Compare IGBT Specifications to Application Needs

Comparing igbt specifications to application requirements ensures optimal performance. Focus on the following aspects:

• Short-circuit withstand capability must match the time interval needed to detect faults. Advanced igbt modules can handle short circuits for up to 10 µs, which is essential for motor control.

• Evaluate the trade-offs between switching frequencies and conduction losses. Higher frequencies improve control precision but may increase energy losses.

• Ensure the module operates within its Safe Operating Area (SOA) to prevent damage.

• Select modules with lower operational losses and superior thermal management to enhance efficiency.

Evaluate Thermal and Protection Features

Thermal and protection features are vital for the longevity and reliability of igbt modules. Effective cooling systems, such as built-in heat sinks or external cooling compatibility, maintain efficiency by preventing overheating. Modules with over-temperature shutdown and temperature monitoring further safeguard against thermal stress.

Protection features like short-circuit and overcurrent protection enhance reliability by preventing faults from damaging the module. These features ensure the motor system operates safely under demanding conditions. By prioritizing these aspects, engineers can select igbt modules that deliver consistent performance and durability.

Test and Validate Performance in Real-World Scenarios

Testing and validating an IGBT in real-world scenarios ensures its reliability and performance under actual operating conditions. Engineers must follow a systematic approach to evaluate the device thoroughly.

1. Simulate Operating Conditions
   Engineers replicate the motor drive's operating environment to test the IGBT. This includes applying the expected voltage, current, and temperature ranges. Simulations help identify how the IGBT performs under typical and extreme conditions. For instance, testing the device's switching behavior at different frequencies reveals its efficiency and stability.

2. Measure Thermal Performance
   Monitoring heat dissipation is critical during testing. Engineers measure the IGBT's junction temperature and thermal resistance to ensure it operates within safe limits. Effective thermal management prevents overheating and extends the device's lifespan.

3. Evaluate Switching Characteristics
   Switching tests assess the IGBT's ability to handle rapid transitions between on and off states. These tests measure parameters like turn-on and turn-off times, energy losses, and voltage spikes. Smooth and efficient switching ensures precise motor control and reduces energy waste.

4. Test Protection Features
   Engineers verify the IGBT's protection mechanisms, such as short-circuit withstand capability and overcurrent protection. These features safeguard the device during faults, ensuring the motor system remains operational.

5. Conduct Long-Term Reliability Tests
   Extended testing under continuous operation evaluates the IGBT's durability. Engineers monitor performance over time to detect potential issues, such as wear or degradation.

Tip: Use specialized testing equipment, such as oscilloscopes and thermal imaging cameras, to gather accurate data during validation.

Testing and validating IGBTs in real-world scenarios ensures they meet the application's demands. This process guarantees optimal performance, reliability, and efficiency in motor drive systems.

Selecting the right IGBT is essential for achieving reliable and efficient motor drives. Factors like short circuit withstand capability, conduction losses, and the Safe Operating Area (SOA) play a critical role in ensuring optimal performance. Devices rated at 650 V, such as the STGD6M65DF2, provide a balance of efficiency and reliability, making them ideal for motor control applications.

The STGD6M65DF2 stands out with its 650 V voltage rating, 6 A current capacity, and advanced features like a soft recovery antiparallel diode. These specifications ensure smooth operation, low thermal resistance, and robust protection in demanding motor drives. Careful evaluation of IGBT modules guarantees consistent performance and long-term efficiency in motor systems.

What makes IGBTs suitable for motor drive applications?

IGBTs combine the fast switching of MOSFETs with the high current capacity of BJTs. This hybrid design allows precise motor control, efficient power conversion, and reduced energy losses. Their ability to handle high voltages and currents makes them ideal for motor drive systems in industrial and commercial settings.

How does the STGD6M65DF2 improve motor efficiency?

The STGD6M65DF2 minimizes conduction and switching losses through its advanced design. Its soft recovery antiparallel diode ensures smooth switching, reducing energy waste. Additionally, its low thermal resistance enhances heat dissipation, allowing motors to operate efficiently under demanding conditions.

Can the STGD6M65DF2 handle high-temperature environments?

Yes, the STGD6M65DF2 features low thermal resistance and effective heat dissipation. These attributes enable it to perform reliably in high-temperature environments. Its robust thermal management ensures consistent operation and extends the lifespan of motor systems.

What protection features does the STGD6M65DF2 offer?

The STGD6M65DF2 includes short-circuit withstand capability and soft recovery diodes. These features protect the device from overcurrent and voltage spikes. Its advanced design ensures reliable operation, even during fault conditions, making it a safe choice for motor applications.

How do I test an IGBT for my motor application?

Testing involves simulating operating conditions, measuring thermal performance, and evaluating switching characteristics. Engineers should also verify protection features like short-circuit withstand capability. Long-term reliability tests ensure the IGBT meets the application's demands under real-world conditions.
