How to Use Common Mode Chokes for Noise Reduction in Power Systems

Unwanted noise can disrupt the performance of power systems, leading to inefficiency and potential failures. Common mode chokes – power provide an effective solution by suppressing high-frequency noise and preserving the integrity of desired signals. These components achieve noise attenuation levels ranging from 15 to 25 dB and can isolate up to 1500 V between windings. Studies highlight their ability to improve the common mode rejection ratio (CMRR) in applications like Ethernet transformers, ensuring stable operation. AC common mode chokes, with their diverse core materials and designs, cater to various noise suppression needs across power systems.

Key Takeaways

Common mode chokes help cut down noise in power systems. This makes the systems work better and more efficiently.
To pick the right choke, check how well it blocks noise, the frequency it works with, and how much current it can handle.
Installing chokes correctly is very important. Put them near noise sources and in the right position for best results.
Common mode chokes make systems safer and more reliable. They block electromagnetic interference and keep electricity separate where needed.
Knowing how common mode chokes work helps engineers build better systems. This leads to steady and efficient power delivery.

Understanding Common Mode Chokes – Power

What Are Common Mode Chokes?

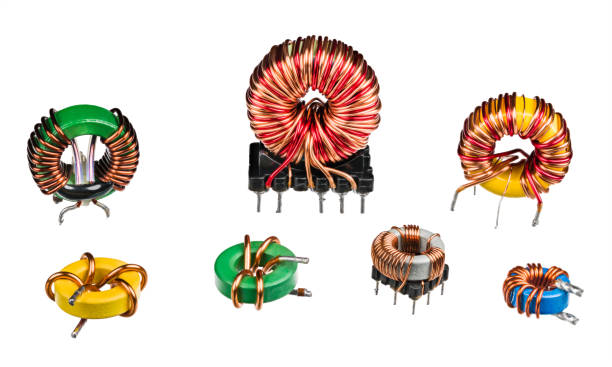

A common mode choke is a passive electronic component designed to suppress electromagnetic interference (EMI) and radiofrequency interference (RFI) in electrical circuits. It consists of a magnetic core wrapped with two or more coils of wire. These coils are wound in such a way that they allow differential mode signals (desired signals) to pass while blocking common mode noise (unwanted signals). By leveraging the principle of inductance, common mode chokes effectively filter high-frequency noise without affecting the normal operation of the circuit.

Scientific research highlights the importance of behavioral models in understanding the performance of common mode chokes. These models demonstrate how design parameters, such as core material and winding configuration, influence noise attenuation. For instance, studies comparing chokes for silicon carbide (SiC) drives operating at different frequencies reveal that switching frequency significantly impacts choke effectiveness. Lower-frequency chokes tend to be more efficient in noise suppression, emphasizing the need for careful design optimization.

Purpose and Applications in Power Systems

Common mode chokes – power play a critical role in ensuring the stability and efficiency of power systems. Their primary purpose is to reduce EMI and RFI, which can disrupt the operation of sensitive electronic equipment. These components are widely used in industrial, electrical, and telecommunications sectors, where reliable power delivery is essential. In power-line communication systems, common mode chokes protect data integrity by blocking high-frequency noise that could interfere with signal transmission.

Applications of common mode chokes extend to various domains, including data processing, manufacturing, and renewable energy systems. For example, they are integral to the design of Ethernet transformers, where they enhance the common mode rejection ratio (CMRR) and improve signal quality. Industry standards document their performance advantages, such as increased efficiency, high inductance, and low EMI radiation. These attributes make common mode chokes indispensable for modern power systems.

Key Components and Structure

The structure of a common mode choke consists of a magnetic core and wire windings. The core material, often ferrite or powdered iron, determines the choke's permeability and frequency response. Wire windings are arranged to create opposing magnetic fields for common mode currents, effectively canceling out noise. Advanced designs, such as the Coilcraft CJ5100 and PTRF Series, optimize noise attenuation across specific frequency ranges, catering to diverse application needs.

Technical specifications provide insights into the performance metrics of common mode chokes. For instance, the PDLF Series reduces noise by a factor of 32 from 15 MHz to 300 MHz, while the M2022 suppresses noise up to 500 MHz in a compact package. These components are available in various configurations, including low-profile designs for space-constrained applications. Measurement methods, such as SPICE modeling and impedance analysis, enable accurate evaluation of choke performance, ensuring optimal selection for specific use cases.

How Common Mode Chokes Work

The Principle of Noise Suppression

Common mode chokes suppress noise by leveraging the interaction between magnetic fields and electrical currents. These components consist of two closely coupled windings on a magnetic core. When common mode noise flows through the windings, it generates opposing magnetic fields that cancel each other out. This process blocks unwanted signals while allowing differential mode signals to pass through.

The study titled Physical Modeling of Saturated Common Mode Choke highlights the importance of core material properties and non-linear magnetization effects in this process. It explains how these factors influence the choke's ability to suppress high-frequency signals effectively, especially under conditions like saturation and DC bias. By focusing on these physical principles, engineers can design chokes that optimize noise reduction in electronic circuits.

Types of Noise Addressed

Common mode chokes target various types of noise that disrupt electronic systems. These include:

Common mode noise: Generated by unshielded electronics and motors, this noise often leads to electromagnetic interference (EMI).
Electromagnetic interference (EMI): A major source of signal degradation in power systems.
Differential mode noise: Occurs when signals on two lines interfere with each other.

These components are particularly effective in filtering out high-frequency signals, ensuring reliable operation in sensitive applications. For example, laboratory measurements on the DC2822A demo board show that common mode chokes reduce emissions to levels between 30 dBµV and 35 dBµV, well below the conducted emissions limit line of 60 dBµV.

The Role of Magnetic Flux and Inductance

Magnetic flux and inductance play a critical role in the performance of common mode chokes. The windings generate magnetic flux that cancels out common mode noise, while the inductance determines the choke's impedance at specific frequencies.

Research on high-frequency equivalent circuit models reveals how design parameters like core material and winding configuration influence these properties. For instance:

Integrated magnetic circuits improve EMI reduction compared to conventional designs.
Sensitivity analysis highlights the impact of inductance on filtering effectiveness.

By optimizing these factors, engineers can create chokes that suppress high-frequency signals without compromising power delivery or signal integrity.

Practical Steps for Using Common Mode Chokes – Power

Selecting the Right Common Mode Choke

Choosing the correct common mode choke is essential for achieving optimal noise suppression in power systems. The selection process involves evaluating several key parameters to ensure compatibility with the application. Engineers should begin by determining the required noise attenuation level. This step establishes the impedance needed to filter out unwanted signals effectively. Next, identifying the frequency range of the interference signal is crucial. This helps define the choke's operating bandwidth and ensures it targets the specific noise frequencies present in the system.

Other important considerations include the choke's current-handling capacity and its inductance value. The current-handling capacity must align with the system's differential mode current to avoid overloading the component. Similarly, the inductance value should match the common mode current of the circuit to maximize noise suppression. Engineers should also verify that the saturation current exceeds the maximum common mode current to prevent performance degradation under high loads.

Additional factors, such as insertion loss, DC resistance (DCR), and package size, play a role in the selection process. A choke with higher insertion loss provides better attenuation, while a lower DCR is ideal for power-sensitive applications. The package size must fit the board design, and the temperature range should align with the operating environment. For high-interference environments, shielding may be necessary to enhance performance. Finally, compliance with industry standards ensures the choke meets safety and reliability requirements.

Installation Tips and Best Practices

Proper installation of a common mode choke is critical for achieving its full noise suppression potential. Placement on the circuit board should minimize the distance between the choke and the noise source. This reduces the likelihood of noise coupling into other parts of the system. Engineers should also ensure that the choke's windings are oriented correctly to block common mode noise while allowing differential mode signals to pass.

Securing the choke firmly to the board prevents mechanical vibrations that could affect performance. Using high-quality solder joints ensures reliable electrical connections and minimizes resistance. For applications involving high-frequency noise, maintaining short and direct traces between the choke and the circuit components is essential. This reduces parasitic inductance and capacitance, which can compromise the choke's effectiveness.

Another best practice involves testing the installed choke under real-world operating conditions. This step verifies that the component performs as expected and meets the system's noise suppression requirements. Engineers should also document the installation process and any adjustments made to facilitate future maintenance or upgrades.

Key Considerations for High-Voltage Applications

High-voltage applications present unique challenges for common mode chokes. These systems often require components with higher insulation ratings to withstand elevated voltages. Engineers must ensure that the choke's insulation can handle the maximum voltage present in the system without breaking down. Additionally, the choke should provide adequate isolation between windings to prevent electrical arcing.

Thermal management is another critical factor in high-voltage environments. Common mode chokes in these applications may experience higher power dissipation, leading to increased heat generation. Selecting a choke with a suitable temperature range and implementing effective cooling measures can mitigate this issue. Engineers should also consider the choke's core material, as some materials perform better under high-voltage conditions.

Finally, compliance with high-voltage safety standards is essential. These standards ensure that the choke operates reliably and safely in demanding environments. Engineers should verify that the selected choke meets all relevant certifications and guidelines before integrating it into the system.

Benefits of Common Mode Chokes in Power Systems

Improved Efficiency and Performance

Common mode chokes enhance the efficiency of power systems by reducing unwanted noise that can disrupt operations. By suppressing high-frequency noise, these components ensure that power delivery remains stable and uninterrupted. This stability minimizes energy losses caused by interference, leading to improved overall performance. For instance, in renewable energy systems, common mode chokes help maintain the integrity of power inverters, ensuring consistent energy conversion and delivery.

The ability of common mode chokes to allow differential mode signals to pass unattenuated further contributes to system efficiency. This characteristic ensures that desired signals remain intact, improving the performance of sensitive electronic equipment. Additionally, their compact designs and advanced materials enable integration into space-constrained applications without compromising functionality.

Reduced Electromagnetic Interference (EMI)

Electromagnetic interference poses a significant challenge in modern power systems. Common mode chokes play a vital role in mitigating this issue by providing high impedance to common mode signals and low impedance to differential signals. This dual functionality increases the common mode rejection ratio (CMRR), ensuring signal integrity and system reliability.

Effective design and selection of common mode chokes are crucial for minimizing electromagnetic interference. Engineers must consider factors such as noise frequency range, impedance characteristics, and current handling capabilities. These components are indispensable in various applications, from industrial machinery to telecommunications, where they attenuate noise and protect signal quality. Their ability to suppress common mode noise while preserving differential signals makes them essential for maintaining stable and reliable operations.

Enhanced Reliability and Safety

By reducing electromagnetic interference, common mode chokes improve the reliability of power systems. They prevent noise from interfering with critical components, reducing the risk of malfunctions and downtime. This reliability is particularly important in high-stakes environments, such as medical equipment and aerospace systems, where consistent performance is non-negotiable.

Safety also benefits from the use of common mode chokes. These components provide electrical isolation between windings, protecting sensitive equipment and personnel from potential hazards. In high-voltage applications, their robust insulation and thermal management capabilities ensure safe operation under demanding conditions. Compliance with industry safety standards further underscores their role in creating secure and dependable power systems.

Common mode chokes play a crucial role in reducing noise and enhancing the performance of power systems. These components ensure stable operation by suppressing unwanted interference while preserving signal integrity.

Understanding their functionality and selecting the right choke for specific applications unlocks significant benefits, including improved efficiency, reduced EMI, and enhanced safety.

Implementing these devices represents a practical step toward achieving reliable and efficient power systems. By following best practices for installation and design, engineers can optimize their systems for long-term success.

What is the primary function of a common mode choke in a power supply?

A common mode choke suppresses electromagnetic interference (EMI) and radiofrequency interference (RFI) in a power supply. It blocks unwanted high-frequency noise while allowing desired electrical signals to pass through, ensuring stable and efficient system performance.

How do engineers select the right common mode choke?

Engineers evaluate parameters like noise attenuation level, frequency range, current-handling capacity, and inductance value. They also consider factors such as insertion loss, DC resistance, and compliance with industry standards to ensure compatibility with the application.

Can common mode chokes handle high-voltage applications?

Yes, common mode chokes designed for high-voltage applications feature robust insulation and thermal management capabilities. These components provide adequate isolation between windings and comply with safety standards to ensure reliable operation under demanding conditions.

Are common mode chokes suitable for compact designs?

Common mode chokes are available in low-profile configurations, making them ideal for space-constrained applications. Advanced materials and designs optimize their performance without compromising functionality, even in compact systems.

What types of noise do common mode chokes address?

Common mode chokes target common mode noise, electromagnetic interference (EMI), and differential mode noise. These components effectively filter high-frequency signals, ensuring reliable operation in sensitive electronic systems.
