CR1632 Battery Insights Applications and How It Compares to CR2032

The CR1632 battery belongs to the family of coin cell batteries. It is a compact and durable power source designed for small electronic devices. Its diameter measures 16mm, while the CR2032 battery is slightly larger at 20mm. CR1632 weighs 1.8g, making it lighter compared to the 2.9g weight of the CR2032. CR1632 offers a nominal capacity of 140 mAh, whereas CR2032 delivers 225 mAh, allowing for longer runtime in compatible devices. These differences make CR1632 ideal for applications requiring lightweight and space-saving batteries.

Key Takeaways

• The CR1632 battery is small. It is 16mm wide and 3.2mm thick. This makes it great for tiny gadgets like key fobs and fitness trackers.

• It has 130mAh power, which works well for low-energy devices. The CR2032 has 225mAh, so it suits devices needing more power.

• Always check if the battery fits your device before replacing it. Using the wrong size can harm your gadget or make it work poorly.

• The CR1632 can last up to 10 years when stored. This makes it a good choice for backup power in devices.

• Think about how much energy your device needs. Pick CR1632 or CR2032 based on what works best for your gadget.

CR1632 Battery Specifications

Dimensions and Size of CR1632 Battery

The CR1632 battery is a compact coin cell battery with a diameter of 16 millimeters and a thickness of 3.2 millimeters. These dimensions make it smaller and thinner than many other coin cell batteries, such as the CR2032. Its lightweight design, weighing only 1.8 grams, allows it to fit seamlessly into devices where space is limited. This makes the CR1632 ideal for applications like key fobs, fitness trackers, and small medical devices.

Tip: When selecting a battery, always verify the device's compatibility with the specific dimensions of the CR1632 to ensure proper fit and performance.

Voltage and Capacity of CR1632

The CR1632 battery operates at a nominal voltage of 3 volts, which is the standard for lithium coin cell batteries. It offers a capacity of approximately 130 milliampere-hours (mAh), placing it within the industry benchmark range of 100 to 150 mAh. This capacity ensures reliable performance for devices requiring low to moderate power consumption.

The combination of consistent voltage and sufficient capacity makes the CR1632 a dependable choice for powering small electronic devices over extended periods.

Chemistry and Shelf Life of CR1632 Battery

The CR1632 battery uses lithium manganese dioxide (LiMnO₂) as its chemical composition. This chemistry provides several advantages, including high energy density, stable discharge rates, and excellent temperature tolerance. Additionally, the battery has a shelf life of up to 10 years when stored under optimal conditions.

The long shelf life ensures that the CR1632 remains ready for use even after extended storage, making it a reliable backup power source for devices like CMOS memory or emergency medical equipment.

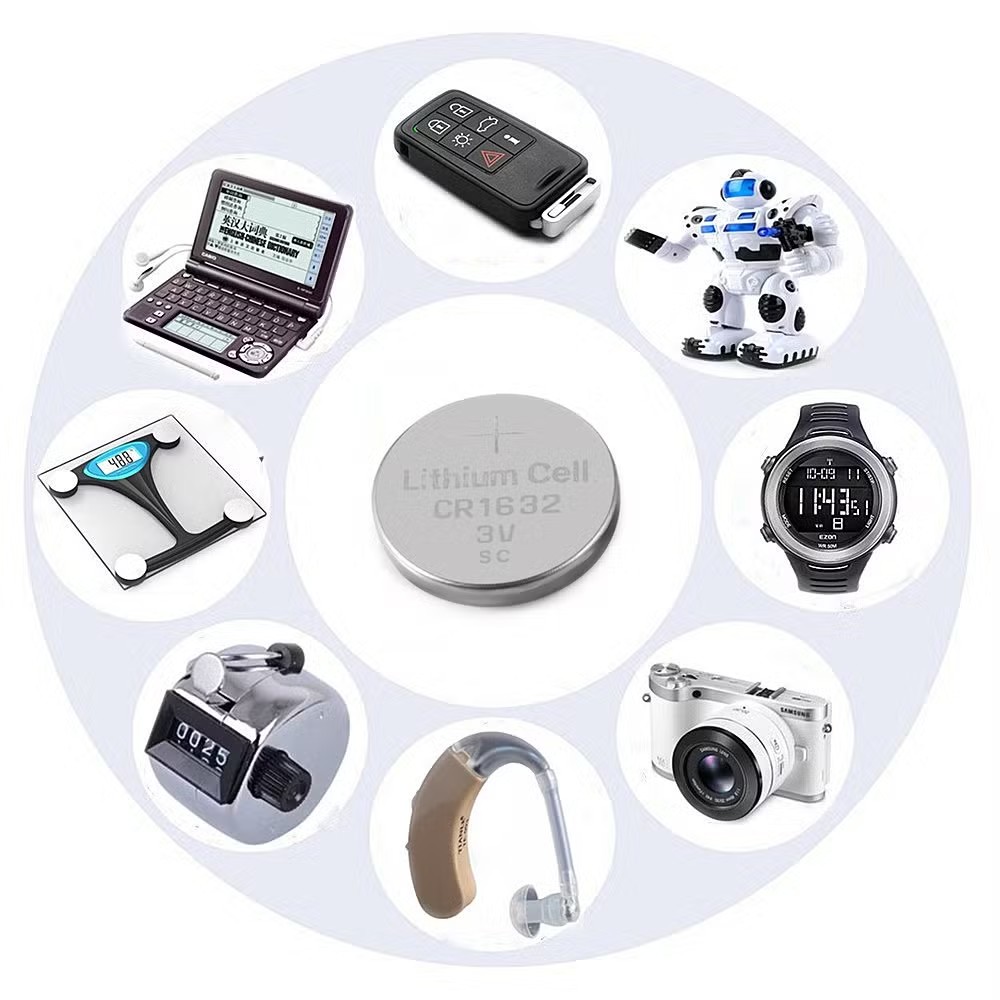

Applications of CR1632 Battery

Common Devices That Use CR1632

The CR1632 battery powers a wide range of compact electronic devices. Its small size and reliable performance make it ideal for devices requiring lightweight and long-lasting energy sources. Common devices include wristwatches, key fobs for automobiles, and monitors for physical activity. Remote controls for televisions and intelligent sensors also rely on CR1632 batteries. Additionally, hearing implants, digital instruments, and blood glucose monitors benefit from its stable voltage and extended runtime.

Note: CR1632 batteries are particularly suited for low-drain devices, ensuring consistent operation over extended periods.

Everyday Use Cases for CR1632 Battery

The applications of CR1632 batteries extend to various everyday scenarios. In the automotive sector, key fobs use CR1632 batteries to enable seamless remote locking and unlocking. Fitness enthusiasts depend on activity monitors powered by CR1632 to track their progress. Wristwatches, both digital and analog, rely on these batteries for precise timekeeping.

Medical devices such as blood glucose monitors and hearing implants use CR1632 batteries to deliver reliable performance in critical situations. Remote controls for televisions and intelligent sensors enhance convenience in home automation systems. Digital instruments like calculators and thermometers also benefit from the compact design and dependable energy of CR1632 batteries.

These versatile applications and usage scenarios highlight the importance of CR1632 batteries in powering both low-drain devices and high-drain devices across various industries.

Comparison Between CR1632 and CR2032 Batteries

Size and Dimensions Comparison

The CR1632 and CR2032 batteries differ significantly in size and weight, which impacts their applications. The CR1632 measures 16 millimeters in diameter and 3.2 millimeters in thickness, while the CR2032 has a larger diameter of 20 millimeters but retains the same thickness of 3.2 millimeters. This difference in size makes the CR1632 more suitable for compact devices where space is limited.

The CR1632 is also lighter, weighing only 1.8 grams compared to the 3 grams of the CR2032. This lightweight design enhances portability, making the CR1632 ideal for wearable devices like fitness trackers and smart wristbands.

Note: Both batteries share the same thickness, ensuring compatibility with devices that prioritize uniformity in battery slots.

Capacity and Runtime Differences

The capacity differences between the CR1632 and CR2032 batteries play a crucial role in their performance. The CR1632 offers a capacity of approximately 130 milliampere-hours (mAh), while the CR2032 provides a higher capacity of around 225 mAh. This increased capacity allows the CR2032 to deliver a longer runtime, making it better suited for devices with higher power demands.

Devices requiring extended operation, such as medical equipment or computer accessories, benefit from the CR2032's higher capacity. However, the CR1632 remains a reliable choice for low-drain devices like key fobs and wristwatches, where compactness and lightweight design are more critical than runtime.

Tip: When selecting a battery, consider the device's power consumption and runtime requirements to determine whether the CR1632 or CR2032 is the better fit.

Performance in Various Devices

The performance characteristics of the CR1632 and CR2032 batteries vary depending on the device. Both batteries operate at a nominal voltage of 3 volts and function within a temperature range of -30°C to +60°C, ensuring reliable performance in diverse environments. However, their differing capacities and sizes influence their suitability for specific applications.

The CR1632 excels in compact devices like fitness trackers, glucose monitors, and RFID tags, where space and weight are critical factors. On the other hand, the CR2032 performs better in devices with higher energy demands, such as CMOS memory backups, LED accessories, and some medical instruments.

Callout: While both batteries share similar safety features, including protection against overcharging and overheating, their performance varies based on the device's energy requirements.

The comparison between CR1632 and CR2032 highlights their unique strengths. The CR1632 battery is ideal for lightweight, space-saving applications, while the CR2032 battery offers extended runtime for devices with higher power needs.

Interchangeability: Can You Swap CR1632 and CR2032?

The question of whether CR1632 and CR2032 batteries can be swapped often arises due to their similar coin cell design. While both batteries share the same nominal voltage of 3 volts and use lithium manganese dioxide chemistry, their differences in size and capacity significantly impact their interchangeability.

Key Factors Affecting Interchangeability

1. Size and Dimensions
   The CR1632 measures 16 millimeters in diameter and 3.2 millimeters in thickness. In contrast, the CR2032 has a larger diameter of 20 millimeters but retains the same thickness of 3.2 millimeters. This size difference means that a CR1632 cannot fit securely in a battery slot designed for a CR2032. Similarly, a CR2032 will not fit into a device built for a CR1632 due to its larger diameter.

   Tip: Always check the battery compartment's size specifications before attempting to replace a battery. Using the wrong size can damage the device or result in poor performance.

2. Capacity and Runtime
   The CR2032 offers a higher capacity of approximately 225 milliampere-hours (mAh), compared to the CR1632's 130 mAh. Devices requiring higher energy consumption, such as LED accessories or CMOS memory backups, rely on the CR2032 for extended runtime. Swapping a CR1632 into such devices may lead to shorter operational periods and frequent replacements. Conversely, using a CR2032 in a low-drain device designed for a CR1632 could result in wasted capacity.

   Feature	CR1632	CR2032
   Diameter (mm)	16	20
   Thickness (mm)	3.2	3.2
   Capacity (mAh)	130	225
   Nominal Voltage (V)	3	3

3. Device Compatibility
   Devices are engineered to accommodate specific battery sizes and capacities. A CR1632 battery works best in compact, low-drain devices like key fobs, fitness trackers, and small medical instruments. On the other hand, the CR2032 battery is better suited for devices with higher power demands, such as computer accessories and LED lights. Attempting to swap these batteries may result in improper contact, reduced performance, or even device malfunction.

Practical Advice on Interchangeability

Swapping a CR1632 with a CR2032 or vice versa is generally not recommended. The size mismatch prevents proper fitting, and the capacity differences can affect device performance. Manufacturers design devices with specific battery requirements to ensure optimal functionality. Adhering to these specifications guarantees reliable operation and prevents potential damage.

Callout: For users unsure about the correct battery type, consulting the device manual or checking the existing battery's label can provide clarity.

Advantages and Limitations of CR1632 Battery

Benefits of Using CR1632 Battery

The CR1632 battery offers several advantages that make it a reliable choice for powering compact electronic devices. Its lightweight design, weighing only 1.8 grams, ensures portability and suitability for specific applications like fitness trackers and key fobs. The lithium manganese dioxide chemistry provides a stable voltage of 3V, which supports consistent performance in both low-drain and high-drain devices.

One of the standout features of the CR1632 is its long shelf life, which can extend up to 10 years under optimal storage conditions. This longevity makes it an economical option for devices that require infrequent battery replacements. Additionally, the battery's high energy density allows it to deliver reliable power in a compact form factor.

The CR1632 also excels in extreme environments, operating effectively in temperatures ranging from -30°C to 60°C. This feature enhances its versatility across various applications, including medical devices and automotive key fobs. Its mercury-free composition further reduces environmental impact, making it a safer choice compared to some alternatives.

Tip: The CR1632 battery's combination of lightweight design, long shelf life, and stable voltage makes it ideal for both low-drain and high-drain devices.

Drawbacks and Limitations of CR1632

Despite its many advantages, the CR1632 battery has some limitations. Its capacity of 130mAh, while sufficient for low-drain devices, may not meet the demands of high-drain applications requiring extended runtime. Devices like LED accessories or CMOS memory backups often benefit more from higher-capacity batteries like the CR2032.

Another consideration is cost. Lithium-based batteries, including the CR1632, tend to be more expensive than alkaline alternatives. However, the higher initial cost is often offset by their longer lifespan and superior performance.

The CR1632's small size, while advantageous for compact devices, limits its use in larger electronics. Devices requiring higher energy output or longer runtime may find the CR1632 less suitable. Users should evaluate the battery's suitability for specific applications to ensure optimal performance.

Callout: While the CR1632 excels in compact, low-drain devices, users should consider alternatives for high-drain applications requiring extended runtime.

Equivalent Alternatives to CR1632 Battery

Compatible Battery Models for CR1632

Several battery models serve as reliable alternatives to the CR1632. These models share similar dimensions, voltage, and performance characteristics, ensuring compatibility with devices designed for the CR1632. Below is a comparison of some common options:

The ECR1632 and DL1632 are excellent substitutes for the CR1632. Both offer the same physical dimensions and voltage output, ensuring seamless compatibility with devices. The DL1632, known for its superior quality control, may appeal to users seeking enhanced reliability. However, it is often priced higher than other alternatives.

Tip: When selecting a CR1632 battery equivalent, always verify the device's specifications to ensure proper fit and performance.

Factors to Consider When Choosing Alternatives to CR1632

Choosing the right alternative to the CR1632 requires careful evaluation of several factors. These considerations ensure the selected battery meets the device's requirements and delivers optimal performance.

Physical dimensions and voltage output are critical for compatibility and interchangeability. A battery with mismatched dimensions may not fit securely, while an incorrect voltage could damage the device. Chemical composition also plays a role in determining stability and shelf life. For instance, lithium-based batteries like the CR1632 perform well in extreme temperatures, making them ideal for automotive or medical applications.

Users should also consider manufacturing quality. Batteries with higher quality control, such as the DL1632, often provide better performance and longer lifespans. Budget constraints may influence the choice, but investing in a high-quality battery can reduce the frequency of replacements.

Callout: Always prioritize the specific requirements of your device when evaluating alternatives. This ensures reliable operation and prevents potential damage.

The CR1632 battery stands out for its compact size, reliable performance, and versatility. Key specifications include a 3V nominal voltage, 130-140mAh capacity, and dimensions of 16mm in diameter and 3.2mm in thickness. Its consistent voltage delivery and high discharge efficiency make it ideal for devices like digital thermometers, heart rate monitors, and electronic toys.

When comparing CR1632 to CR2032, the latter offers a higher capacity (225mAh) and larger diameter (20mm), making it better suited for high-drain devices like memory backups and UPS systems. In contrast, CR1632 excels in lightweight, space-saving applications such as smart keys and medical instruments.

To choose between these batteries, consider the device's size requirements and energy demands. Compact devices with low power needs benefit from CR1632, while high-drain applications favor CR2032. Always verify compatibility to ensure optimal performance.

What does "CR1632" mean in a battery?

The "CR" stands for lithium manganese dioxide chemistry, while "16" refers to the 16mm diameter, and "32" indicates the 3.2mm thickness. These specifications help identify the battery's size and type.

Can CR1632 batteries be recharged?

No, CR1632 batteries are non-rechargeable. Attempting to recharge them may cause leakage or damage. Always use them as single-use batteries and replace them when depleted.

How long does a CR1632 battery last?

The lifespan depends on the device and usage. In low-drain devices like key fobs or watches, a CR1632 battery can last up to 2-3 years. Proper storage extends shelf life to 10 years.

Are CR1632 batteries safe for the environment?

CR1632 batteries are mercury-free, making them safer for the environment compared to older battery types. Dispose of them responsibly at designated recycling centers to minimize environmental impact.

What happens if I use the wrong battery size?

Using the wrong battery size can cause improper contact, reduced performance, or device damage. Always check the device manual or existing battery label to ensure compatibility.

Tip: For best results, always use the exact battery type recommended by the device manufacturer.
