3 Ways DAC081S101CIMK/NOPB Simplifies Waveform Synthesis

The DAC081S101CIMK/NOPB revolutionizes waveform synthesis by delivering exceptional precision and energy efficiency. Its low integral non-linearity ensures accurate digital-to-analog conversion, maintaining signal fidelity across the entire output range. This makes it ideal for applications requiring precise waveform generation, such as audio systems and measurement equipment.

Feature	Description
Low Integral Non-Linearity	Ensures accurate conversion of digital codes to analog voltages across the entire output range.
Low Power Consumption	Enables energy-efficient operation suitable for battery-powered and portable devices.
Improved Signal Accuracy	Ensures accurate generation of analog signals, enhancing overall system performance and fidelity.
Energy Efficiency	Contributes to energy-efficient system operation, prolonging battery life in portable devices.

Its 8-bit resolution has proven effective in diverse applications:

In audio systems, it converts digital audio signals into high-fidelity analog outputs, ensuring clear sound reproduction.
In instrumentation and measurement equipment, it generates precise analog signals for sensor calibration and waveform generation.

The DAC081S101CIMK/NOPB stands out as a versatile solution for engineers and developers seeking reliable performance in compact designs.

Key Takeaways

The DAC081S101CIMK/NOPB has low errors, giving accurate digital-to-analog signals.
It uses only 175 µA at 3.6V, saving battery power for longer use.
Its small TSOT-23-6 size fits easily in tight spaces like wearables.
It works well with Arduino and STM32, making it easy to use and test.
The voltage range of +2.7V to 5.5V allows flexible power options.

Precision and Resolution for Accurate Signal Generation

High Resolution for Smooth Waveforms

8-bit resolution for precise voltage control

The DAC081S101CIMK/NOPB offers an 8-bit resolution, enabling precise control over voltage levels. This high resolution ensures that even the smallest changes in digital input translate into accurate analog outputs. Engineers can rely on this feature to generate smooth and detailed waveforms, which are essential in applications like audio systems and signal processing.

Specification	Value
Number of Bits	8
INL (LSB)	+0.16/-0.12
DNL (LSB)	+0.04/-0.02
Settling Time	5μs
Architecture	String DAC

Enables fine-tuned waveform generation

The DAC081S101CIMK/NOPB's ability to produce fine-tuned waveforms makes it ideal for applications requiring high precision. Its low differential non-linearity (DNL) ensures smooth transitions between voltage levels, which is critical for generating high-quality analog signals.

Low Noise and High Linearity

Maintains signal integrity in critical applications

The DAC081S101CIMK/NOPB maintains low noise and high linearity, ensuring signal integrity in demanding applications. Its low integral non-linearity (INL) guarantees accurate digital-to-analog conversion, preserving the fidelity of the output signal.

Low Integral Non-Linearity (INL): Ensures accurate conversion of digital codes to analog voltages across the entire output range.
Dynamic Range Optimization: Enhances the system's dynamic range, allowing precise control and measurement of analog signals.

Reduces distortion in audio and communication systems

The DAC081S101CIMK/NOPB minimizes distortion, making it suitable for audio and communication systems. Its optimized dynamic range and high linearity contribute to clear and accurate signal reproduction.

Metric	Description
Low Integral Non-Linearity	Maintains low INL, ensuring accurate conversion of digital codes to analog voltages.
Improved Signal Accuracy	Ensures accurate generation of analog signals, enhancing overall system performance.
Dynamic Range Optimization	Optimizes the dynamic range of the system for precise control and measurement of analog signals.

Wide Output Voltage Range

Rail-to-rail output for full voltage range

The DAC081S101CIMK/NOPB features a rail-to-rail output voltage swing, allowing it to utilize the full voltage range. This capability ensures precise control over the analog output signal, making it versatile for various applications.

Feature	Description
Rail-to-Rail Output Voltage Swing	Allows for precise control over the analog output signal.

Supports diverse signal requirements

The wide operating voltage range of the DAC081S101CIMK/NOPB provides flexibility in system design. It supports compatibility with various power supply configurations, enabling its use in a broad range of applications.

Feature	Description
Wide Operating Voltage Range	Supports a wide operating voltage range, allowing flexibility in system design and compatibility with various power supply configurations.

Seamless Integration into Systems

Compact and Space-Saving Design

Small footprint for embedded and portable devices

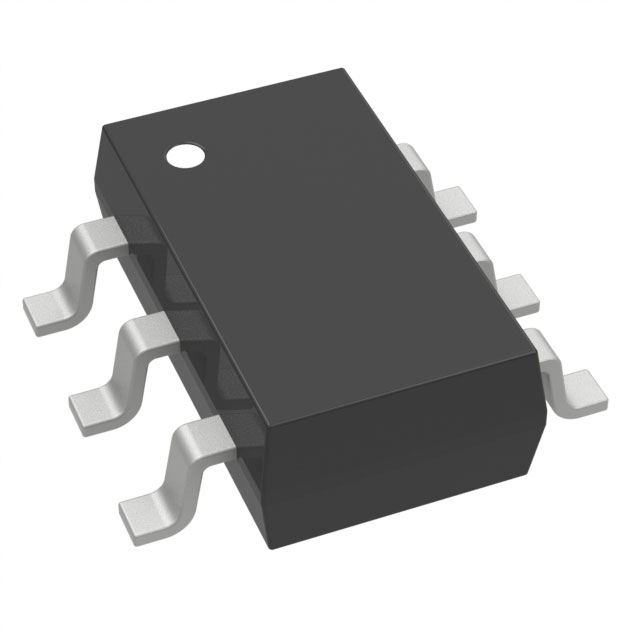

The DAC081S101CIMK/NOPB features a TSOT-23-6 package, making it one of the most compact DACs available. Its small footprint allows seamless integration into embedded systems and portable devices without compromising performance. This compact design is particularly advantageous for applications where space is at a premium, such as wearable technology and handheld instruments.

DAC Model	Package Type	Dimensions (mm)	Compactness Comparison
DAC081S101CIMK/NOPB	TSOT-23-6	Smaller	More compact than DAC081C085CIMMX/NOPB
DAC081C085CIMMX/NOPB	8-VSSOP	Larger	Less compact

Ideal for space-constrained applications

The DAC081S101CIMK/NOPB's compact design, low power consumption (175 µA at 3.6V), and wide operating voltage range (+2.7V to 5.5V) make it ideal for space-constrained applications. These features ensure efficient operation in battery-powered devices, such as portable medical equipment and IoT devices.

SPI Interface for Easy Communication

Compatible with standard protocols like SPI and QSPI

The DAC081S101CIMK/NOPB supports standard communication protocols, including SPI, QSPI, MICROWIRE, and DSP interfaces. This compatibility ensures seamless communication with a wide range of microcontrollers and processors. Its ability to operate at clock rates up to 30 MHz further enhances its versatility in high-speed applications.

Feature	Description
Compatibility	Compatible with standard SPI, QSPI, MICROWIRE, and DSP interfaces.
Clock Rate	Operates at clock rates up to 30MHz.
Voltage Supply Range	Operates from a single 2.7 to 5.5V supply.
Power Consumption	Consumes just 175µA of current at 3.6V.
Output Swing	Rail-to-rail output swing due to on-chip output amplifier.

Simplifies integration with microcontrollers and processors

The SPI interface simplifies integration by providing a straightforward communication channel between the DAC081S101CIMK/NOPB and microcontrollers. Features like power-on reset and a power-down mode reduce complexity during system design. These capabilities make it an excellent choice for developers working on embedded systems.

Compatibility with Popular Platforms

Works with Arduino, STM32, and other microcontrollers

The DAC081S101CIMK/NOPB is compatible with popular development platforms like Arduino and STM32. This compatibility enables engineers and hobbyists to integrate the DAC into their projects with minimal effort. Its rail-to-rail output swing and low power consumption further enhance its usability in diverse applications.

Facilitates rapid prototyping and development

The DAC081S101CIMK/NOPB supports rapid prototyping by offering features like a wide dynamic range and compatibility with standard interfaces. Developers can quickly test and implement their designs, reducing time-to-market for new products.

Feature	Description
Power Supply	Operates from a single 2.7 to 5.5V supply
Current Consumption	Consumes just 175µA at 3.6V
Output Swing	Rail-to-rail output swing due to on-chip output amplifier
Interface	Compatible with SPI, QSPI, MICROWIRE, and DSP interfaces
Clock Rate	Operates at clock rates up to 30MHz
Power-Down Feature	Reduces power consumption to less than 1µW
Power-On Reset	Ensures DAC output powers up to zero volts until a valid write occurs
Dynamic Range	Supply voltage serves as voltage reference for the widest output dynamic range

Energy Efficiency and Reliable Performance

Low Power Consumption

Optimized for battery-powered and portable devices

The DAC081S101CIMK/NOPB is designed for energy efficiency, making it ideal for battery-powered and portable devices. Its low power consumption of just 175 µA at 3.6V ensures minimal energy usage, which is critical for extending battery life. The compact form factor further enhances its suitability for portable applications, allowing seamless integration into space-constrained designs.

Feature	Description
Low Power Consumption	Operates at low power levels, enabling energy-efficient operation.
Small Form Factor	Compact size allows integration into portable devices.
Wide Operating Voltage Range	Supports flexibility in system design with a range of +2.7V to 5.5V.

Extends operational time in energy-sensitive applications

The DAC081S101CIMK/NOPB's energy-efficient design extends operational time in devices like portable medical equipment and IoT devices. Its low power consumption reduces the overall energy demand, ensuring longer usage periods without frequent recharging.

Use Case	Benefit of Low Power Consumption
Battery-Powered Devices	Prolongs battery life.
Portable Equipment	Extends operational time.
Fixed Installations	Enhances energy efficiency.

Stable and Reliable Operation

Consistent performance across varying temperatures

The DAC081S101CIMK/NOPB delivers stable performance even in challenging environments. Its low integral non-linearity (INL) ensures accurate signal conversion, while its wide operating voltage range supports consistent functionality across varying temperatures.

Characteristic	Description
Low Integral Non-Linearity (INL)	Ensures accurate conversion of digital codes to analog voltages.
Wide Operating Voltage Range	Provides flexibility in system design for stable performance.
Thermal Management Considerations	Prevents overheating, ensuring reliable operation in high-temperature environments.

Suitable for industrial and automotive environments

The DAC081S101CIMK/NOPB operates reliably in industrial and automotive settings. Its extended temperature range of −40°C to +105°C and robust design make it suitable for demanding applications. Features like a power-on reset circuit and power-down mode enhance its reliability in these environments.

Feature	Description
Operating Temperature Range	-40˚C to +105˚C
Power Consumption	175 µA at 3.6V; power-down feature reduces consumption to < 1 µW.
Power-on Reset Feature	Ensures output powers up to zero volts until a valid write occurs.

Long-Term Cost Efficiency

Reduces energy costs in large-scale deployments

The DAC081S101CIMK/NOPB's low power consumption reduces energy costs in large-scale deployments. Its energy-efficient operation minimizes electricity usage, making it a cost-effective choice for industrial and commercial applications.

Durable components minimize maintenance needs

The DAC081S101CIMK/NOPB features durable components that reduce maintenance requirements. Its guaranteed monotonicity ensures reliable performance, while its extended temperature range and power-down feature enhance longevity.

Operates over an extended industrial temperature range of −40°C to +105°C.
Includes a power-on reset circuit to prevent unexpected behavior.
Features a power-down mode that reduces power consumption to less than 1 µW.

Feature	Benefit in Minimizing Maintenance Needs
Guaranteed monotonicity	Reduces the need for recalibration or adjustments.
Low power operation	Decreases heat generation, extending component life.
Power-on reset to 0V output	Prevents unexpected behavior at startup.

The DAC081S101CIMK/NOPB transforms waveform synthesis with its precision, seamless integration, and energy-efficient performance. Its low integral non-linearity ensures accurate digital-to-analog conversion, while the compact design supports easy integration into space-constrained systems.

Key highlights include:
- Low power consumption, enabling energy-efficient operation in portable devices.
- A wide operating voltage range, offering flexibility in system design.

Advantage	Description
Low Power Consumption	Operates at low power levels, ideal for battery-powered devices.
Energy Efficiency	Prolongs battery life and reduces power consumption in fixed installations.

Engineers and hobbyists can rely on this DAC for reliable performance and long-term cost efficiency. The DAC081S101CIMK/NOPB opens new possibilities in signal generation and waveform synthesis, making it a valuable tool for diverse applications.

What is the primary function of the DAC081S101CIMK/NOPB?

The DAC081S101CIMK/NOPB converts digital signals into precise analog outputs. This functionality makes it essential for applications like waveform synthesis, audio systems, and control systems requiring accurate signal generation.

How does the DAC081S101CIMK/NOPB ensure energy efficiency?

Its low power consumption, operating at just 175 µA at 3.6V, optimizes energy usage. This feature extends battery life in portable devices and reduces energy costs in large-scale deployments.

Can the DAC081S101CIMK/NOPB integrate with popular microcontrollers?

Yes, it supports platforms like Arduino and STM32. Its SPI interface ensures seamless communication, simplifying integration into embedded systems and enabling rapid prototyping.

What makes the DAC081S101CIMK/NOPB suitable for industrial environments?

The DAC operates reliably across a wide temperature range (-40°C to +105°C). Its robust design and features like power-on reset enhance performance in demanding industrial and automotive applications.

Does the DAC081S101CIMK/NOPB support space-constrained designs?

Yes, its compact TSOT-23-6 package allows integration into small devices. This design makes it ideal for portable equipment, wearable technology, and other space-limited applications.
