How DAC121C085CIMMX/NOPB Simplifies Data Acquisition

The DAC121C085CIMMX/NOPB revolutionizes data acquisition by combining precision, low power consumption, and seamless integration. Its 12-bit resolution ensures high accuracy, making it ideal for systems requiring precise analog outputs. The device’s power-down feature reduces energy usage to less than a microWatt, supporting efficient operation in portable and battery-powered devices.

By converting digital signals to analog outputs, the DAC121C085CIMM enhances monitoring and control capabilities. Noise shaping and delta-sigma modulation improve signal quality, reduce noise, and simplify filter design. These features enable reliable performance in applications like industrial automation, medical devices, and test equipment. Its compact design further supports integration into diverse systems, making the DAC121C085CIMM/NOPB a versatile choice for various applications.

Key Takeaways

The DAC121C085CIMMX/NOPB has 12-bit resolution for accurate signal conversion.
It uses very little power, only 0.38 mW when working.
In power-down mode, it uses less than 1 µW of energy.
This makes it great for portable or battery-powered gadgets.
Its I2C interface works easily with microcontrollers, saving time.
Engineers find it simpler to use and less complicated.
Its small size fits well in tight spaces for many uses.
It works well in extreme temperatures from -40°C to 125°C.
This ensures it performs reliably in tough conditions.

Overview of DAC121C085CIMMX/NOPB

Purpose and Functionality

The DAC121C085CIMMX/NOPB serves as a high-performance digital-to-analog converter (DAC) designed to transform digital signals into precise analog outputs. This functionality is essential in systems that require accurate control and monitoring of analog signals. By offering a 12-bit resolution, it ensures fine granularity in signal conversion, making it suitable for applications where precision is critical. Its I2C-compatible interface simplifies communication with microcontrollers, enabling seamless integration into various systems.

This DAC is particularly effective in scenarios where energy efficiency is a priority. Its low power consumption and power-down feature make it ideal for portable and battery-operated devices. Additionally, the device supports a wide operating temperature range, ensuring reliable performance in diverse environments.

Key Specifications

The DAC121C085CIMMX/NOPB boasts technical specifications that enhance its suitability for data acquisition systems. The table below highlights its key specifications:

Specification	Value
Number of Bits	12
Output Type	Voltage - Buffered
Settling Time	8.5µs
Operating Temperature	-40°C ~ 125°C
Voltage - Supply, Analog	2.7V ~ 5.5V
Voltage - Supply, Digital	2.7V ~ 5.5V
Low Power Operation	156-µA Maximum at 3.3 V
Rail-to-Rail Voltage Output	Yes
I2C-Compatible Interface	Yes
Extended Power Supply Range	2.7 V to 5.5 V
INL/DNL (LSB)	+2.2/-1.5, +0.18/-0.12
Supply Power Normal	380 µW (3 V) / 730 µW (5 V)
Power Down	0.5 µW (3 V) / 0.9 µW (5 V)

These specifications highlight the device's ability to deliver high precision, low power consumption, and robust performance across a wide range of conditions.

Why It’s Ideal for Data Acquisition Systems

The DAC121C085CIMMX/NOPB stands out as an ideal choice for data acquisition systems due to its combination of precision, efficiency, and versatility. Its 12-bit resolution ensures accurate signal conversion, which is crucial for applications like industrial automation and medical devices. The I2C-compatible interface allows for straightforward integration with existing hardware, reducing development time and complexity.

The device's low power consumption and power-down feature make it particularly suitable for portable and battery-powered systems. Its compact design further enhances its adaptability, enabling integration into space-constrained environments. Additionally, the wide operating temperature range ensures reliable performance in demanding conditions, making it a dependable solution for various industries.

Integration into Data Acquisition Systems

Hardware Integration

Integrating the DAC121C085CIMMX/NOPB into a data acquisition system begins with understanding its hardware requirements. The device operates within a supply voltage range of 2.7V to 5.5V, making it compatible with most modern systems. Designers can connect its I2C-compatible interface directly to microcontrollers or processors, simplifying communication. The DAC’s compact design allows it to fit into space-constrained environments, such as portable devices or embedded systems.

To ensure optimal performance, proper connections to the power supply and ground are essential. Decoupling capacitors should be placed near the device to minimize noise and stabilize the power supply. The buffered voltage output of the DAC ensures reliable signal delivery to downstream components, such as actuators or sensors. Additionally, its rail-to-rail output capability maximizes the dynamic range of the analog signal.

Software Integration

Software integration involves configuring the DAC121C085CIMMX/NOPB through its I2C interface. Developers can use standard I2C libraries available for most microcontrollers to send commands and data to the DAC. The 12-bit resolution of the device requires careful handling of digital input values to achieve precise analog outputs.

Initialization routines should include setting the desired output voltage range and enabling the power-down mode when the DAC is idle. This approach reduces power consumption, especially in battery-powered systems. Periodic calibration routines can also be implemented in the software to maintain accuracy over time and varying environmental conditions.

Best Practices for Seamless Integration

For seamless integration, designers should follow a few best practices. First, they should review the DAC’s datasheet to understand its electrical and timing characteristics. This step ensures compatibility with the system’s hardware and software. Second, testing the DAC in a prototype environment helps identify potential issues early in the design process.

Shielding and grounding techniques can minimize electromagnetic interference, which may affect signal quality. Using high-quality components, such as resistors and capacitors, further enhances reliability. Finally, documenting the integration process ensures that future updates or modifications can be implemented efficiently.

Key Features and Benefits of DAC121C085CIMMX/NOPB

High Precision and Resolution

The DAC121C085CIMMX/NOPB delivers exceptional precision and resolution, making it a reliable choice for applications requiring accurate signal conversion. Its 12-bit resolution ensures fine granularity, allowing for smooth and precise analog outputs. The device's low integral nonlinearity (INL) and differential nonlinearity (DNL) values further enhance its accuracy, ensuring minimal deviation from ideal performance.

Feature	Specification
Resolution	12 bits
INL	±8 LSB (Maximum)
DNL	0.6 / –0.5 LSB (Maximum)
Settling Time	8.5 µs (Maximum)
Zero Code Error	10 mV (Maximum)
Full-Scale Error	−0.7%FS (Maximum)

The DAC's fast settling time of 8.5 µs ensures rapid response to input changes, making it suitable for dynamic systems. These features collectively enable the DAC121C085CIMMX/NOPB to provide high-quality performance in data acquisition systems.

Low Power Consumption

The DAC121C085CIMMX/NOPB stands out for its energy efficiency, consuming only 0.38 mW during typical operation. This low power consumption makes it an excellent choice for portable and battery-powered devices. Compared to similar components, such as the DAC121S101 MDR, which consumes 0.52 mW, the DAC121C085CIMMX/NOPB offers superior energy savings.

Component	Power Consumption (typ) (mW)
DAC121C085CIMMX/NOPB	0.38
DAC121S101 MDR	0.52

The device also includes a power-down mode, reducing power usage to less than 1 µW when idle. This feature extends battery life in portable systems, ensuring efficient operation without compromising performance.

Compact Design and Ease of Use

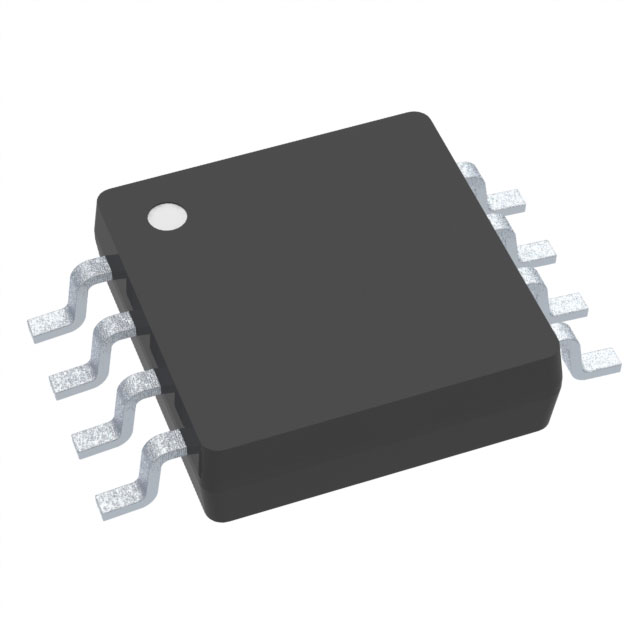

The compact design of the DAC121C085CIMMX/NOPB simplifies its integration into space-constrained systems. Its small package size makes it ideal for portable applications, while its low power consumption enhances its suitability for energy-efficient designs.

The small package size enhances its compactness.
The I2C-compatible serial interface allows for high-speed communication.
The interface simplifies integration into existing systems.

These features make the DAC121C085CIMMX/NOPB easy to use, even in complex systems. Its design ensures seamless operation, enabling developers to focus on optimizing their applications.

Reliability and Durability

The DAC121C085CIMMX/NOPB demonstrates exceptional reliability and durability, making it a dependable choice for critical applications. Its robust design ensures consistent performance even in challenging environments. Engineers can rely on this device to deliver accurate analog outputs across a wide range of operating conditions.

The device operates within a temperature range of -40°C to 125°C. This capability allows it to function reliably in extreme industrial or outdoor settings. Its rail-to-rail output ensures stable signal delivery, even when subjected to fluctuating power supply conditions. These features make it suitable for applications requiring long-term stability and precision.

The DAC121C085CIMMX/NOPB also exhibits excellent resistance to wear and tear. Its compact package design minimizes the risk of physical damage during installation or operation. The device's low power consumption reduces thermal stress, which can extend its operational lifespan. These characteristics contribute to its durability in both portable and stationary systems.

Manufacturers have designed the DAC121C085CIMMX/NOPB to meet stringent quality standards. Each unit undergoes rigorous testing to ensure it meets performance specifications. This process guarantees that the device maintains its accuracy and reliability over time. Its high-quality construction makes it a trusted component in medical devices, industrial automation, and other demanding fields.

Practical Applications of DAC121C085CIMMX/NOPB

Industrial Automation

The DAC121C085CIMMX/NOPB plays a vital role in industrial automation by enabling precise control and monitoring of processes. Its high accuracy ensures reliable performance in controlling motor speeds, valve positions, and temperature setpoints. The device’s low power consumption reduces energy costs, making it an efficient choice for modern automation systems. Its small form factor allows seamless integration into compact devices, meeting the demands of space-constrained environments.

Benefit	Description
High Accuracy	Ensures precise control of valve position, motor speed, or temperature setpoints.
Low Power Consumption	Reduces energy costs and enhances efficiency in industrial applications.
Small Form Factor	Facilitates integration into compact devices and systems, ideal for modern automation needs.
Advanced Control Capabilities	Enables sophisticated monitoring and control in IoT devices and smart sensors.

These features make the DAC121C085CIMMX/NOPB a dependable component in industrial automation, where precision and efficiency are critical.

Medical Devices

The DAC121C085CIMMX/NOPB enhances the performance of medical devices by providing precise control of analog signals. This precision is crucial for accurate diagnosis and treatment in medical instruments such as patient monitoring systems and infusion pumps. The device’s ability to deliver high-resolution analog outputs ensures that medical professionals can rely on it for consistent and accurate results. Its low power consumption also supports portable medical devices, extending battery life and improving usability.

Consumer Electronics

The DAC121C085CIMMX/NOPB contributes significantly to the functionality of various consumer electronics. Its ability to generate high-quality analog signals makes it a valuable component in audio equipment, wireless communication devices, and more.

Consumer Electronics Category	Description
Consumer Audio	Enhances audio equipment like digital-to-analog converters and preamplifiers for high-fidelity output with minimal distortion.
Wireless Communication	Utilized in wireless transceivers for frequency synthesis and modulation, ensuring reliable communication.

The device’s compact design and energy efficiency further enhance its suitability for portable consumer electronics, ensuring optimal performance in a wide range of applications.

Test and Measurement Systems

Test and measurement systems demand precision and reliability. The DAC121C085CIMMX/NOPB excels in these applications by delivering accurate analog outputs essential for calibration and signal generation. Engineers often rely on this device to create reference signals for testing equipment. Its 12-bit resolution ensures fine control over output voltages, enabling precise measurements in laboratory and industrial environments.

The device's low power consumption enhances its suitability for portable test equipment. It minimizes energy usage without compromising performance, making it ideal for handheld instruments. The fast settling time of 8.5 µs allows the DAC121C085CIMMX/NOPB to respond quickly to input changes, ensuring real-time accuracy during dynamic testing scenarios.

In addition, the DAC's rail-to-rail output maximizes the dynamic range of generated signals. This feature proves valuable in applications requiring high-quality analog waveforms, such as oscilloscopes or signal analyzers. Its compact design simplifies integration into space-constrained test systems, while the wide operating temperature range ensures consistent performance in diverse conditions.

Tip: To achieve optimal results, engineers should pair the DAC with high-quality components and follow best practices for shielding and grounding. These steps help reduce noise and maintain signal integrity.

Portable and Battery-Powered Devices

Portable and battery-powered devices benefit significantly from the DAC121C085CIMMX/NOPB. Its low power consumption extends battery life, making it a preferred choice for energy-efficient designs. Devices like handheld medical instruments, portable sensors, and wireless communication systems often incorporate this DAC to achieve precise analog outputs.

The power-down mode further enhances energy efficiency by reducing power usage to less than 1 µW when idle. This feature proves invaluable in applications where conserving battery life is critical. The DAC's compact size allows it to fit seamlessly into small devices, ensuring functionality without adding bulk.

The 12-bit resolution of the DAC121C085CIMMX/NOPB ensures smooth and accurate signal generation. This capability supports applications like portable audio systems, where high-quality analog signals are essential. Its robust design and wide operating temperature range make it reliable for outdoor or rugged environments.

Note: Developers should leverage the DAC's I2C-compatible interface for seamless communication with microcontrollers. This approach simplifies integration and reduces development time.

The DAC121C085CIMMX/NOPB simplifies data acquisition by combining precision, efficiency, and seamless integration. Its 12-bit resolution and I2C interface ensure accurate and reliable signal conversion. The device’s low power consumption and compact design make it ideal for portable systems.

Key features include superior integral and differential non-linearity, low output glitch energy, and high-fidelity analog output. These attributes enhance performance in applications like medical devices, consumer audio, and wireless communication. Its versatility and reliability make it a valuable component for diverse industries.

Tip: The DAC121C085CIMMX/NOPB’s precision and efficiency ensure consistent performance in demanding environments.

What is the primary function of the DAC121C085CIMMX/NOPB?

The DAC121C085CIMMX/NOPB converts digital signals into precise analog outputs. This function is essential for systems requiring accurate control and monitoring of analog signals, such as industrial automation, medical devices, and portable electronics.

How does the DAC121C085CIMMX/NOPB support low power consumption?

The DAC121C085CIMMX/NOPB consumes only 0.38 mW during typical operation. Its power-down mode reduces energy usage to less than 1 µW when idle. These features make it ideal for portable and battery-powered devices.

What makes the DAC121C085CIMMX/NOPB suitable for portable devices?

Its compact design, low power consumption, and power-down mode make it perfect for portable devices. The device ensures precise analog outputs while conserving battery life, making it ideal for handheld instruments and sensors.

Can the DAC121C085CIMMX/NOPB operate in extreme environments?

Yes, the DAC121C085CIMMX/NOPB operates reliably within a temperature range of -40°C to 125°C. This capability ensures consistent performance in industrial, outdoor, and other demanding environments.

How does the I2C interface simplify integration?

The I2C-compatible interface allows seamless communication with microcontrollers. Developers can use standard I2C libraries to configure the DAC, reducing development time and simplifying integration into existing systems.

Tip: Refer to the datasheet for detailed electrical and timing characteristics to ensure compatibility during integration.
