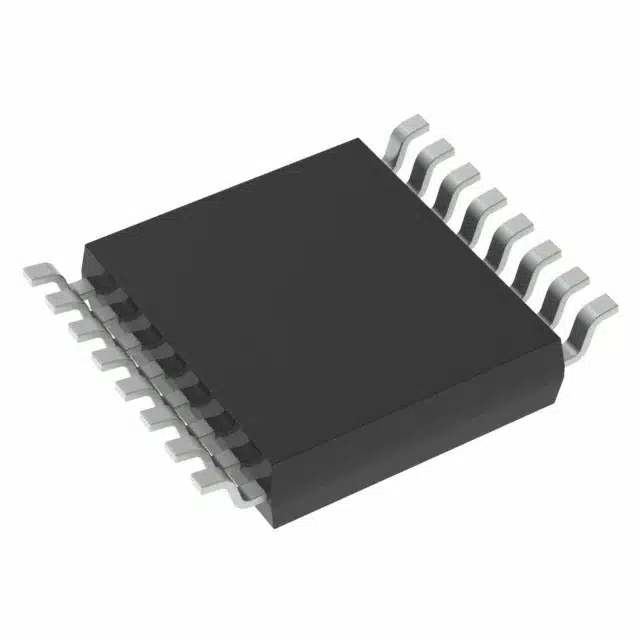

5 Reasons DSLVDS1047PWR Powers Video Transmission

The DSLVDS1047PWR revolutionizes video transmission by delivering high-speed, low-power data communication with exceptional reliability. Its advanced design supports diverse applications, including video networking, industrial automation, and telecom systems. This transmitter ensures seamless performance in critical signal environments, making it ideal for high-speed equipment and video distribution systems.

By excelling in these areas, the DSLVDS1047PWR has become a cornerstone for modern video and data systems.

Key Takeaways

• The DSLVDS1047PWR allows fast video streaming up to 400 Mbps. It ensures smooth and clear playback for tough tasks.

• It uses only 13 mW of power at 3.3-V static. This saves energy, making it great for portable devices and longer battery life.

• The device keeps signals strong with low skew and quick delay. It sends data reliably, even in noisy places.

• Its small TSSOP-16 design fits easily into tight spaces. This supports the needs of modern electronic gadgets.

• The DSLVDS1047PWR works with 5-V LVDS receivers already in use. This makes it useful for many video and industrial tasks.

High-Speed Data Transmission with DSLVDS1047PWR

Seamless Video Streaming

The DSLVDS1047PWR ensures smooth video streaming by delivering high-speed data transmission with minimal interference. Its signaling rates reach up to 400 Mbps, making it suitable for high-definition video systems. This capability allows the device to handle demanding video applications, such as digital video cameras and LCD displays, without compromising quality. The low differential skew of 300 ps (typical) ensures synchronized signal transmission, which is critical for maintaining seamless video playback. Additionally, the device's compliance with TIA/EIA-644 standards guarantees reliable performance across various video systems.

Efficient Handling of Large Data Volumes

Modern video systems often require the transfer of large amounts of data. The DSLVDS1047PWR excels in this area by offering robust performance metrics. Its propagation delay of 1.7 ns (maximum) ensures rapid data transfer, while the differential signaling of ±350 mV enhances noise immunity. These features make it ideal for applications like industrial control systems and telecommunications, where large data volumes must be transmitted quickly and accurately. The device's interoperability with 5 V LVDS receivers further enhances its versatility, enabling it to integrate seamlessly into complex systems.

Reduced Latency in Video Systems

Latency can significantly impact video system performance, especially in real-time applications. The DSLVDS1047PWR addresses this challenge with its low differential skew and fast propagation delay. These features reduce signal delays, ensuring that video data reaches its destination promptly. The device's ability to operate at high signaling rates further minimizes latency, making it a reliable choice for applications like automotive ADAS and medical imaging systems. By reducing delays, the DSLVDS1047PWR enhances the responsiveness and efficiency of video systems.

• Key latency-reducing features:

  • Low differential skew (300 ps typical)

  • Fast propagation delay (1.7 ns maximum)

  • High signaling rates (up to 400 Mbps)

The DSLVDS1047PWR combines speed, reliability, and efficiency, making it a cornerstone for high-speed video transmission in modern systems.

Energy Efficiency of DSLVDS1047PWR

Low Power Consumption for Modern Devices

The DSLVDS1047PWR stands out for its low power consumption, making it ideal for modern devices. It consumes only 13 mW at 3.3-V static, which is significantly lower than many similar devices. This efficiency allows it to maintain high-speed data transmission without excessive energy use. The device also features an ultra-low idle power state, further enhancing its suitability for power-critical applications. By reducing energy demands, the DSLVDS1047PWR supports the development of more sustainable and efficient electronic systems.

• Key power consumption highlights:

  • 13 mW at 3.3-V static

  • Ultra-low idle power state

  • High-speed data transmission with reduced energy use

Extended Battery Life in Portable Systems

Portable systems benefit greatly from the energy efficiency of the DSLVDS1047PWR. Its low power requirements help extend battery life, ensuring devices can operate longer without frequent recharging. The TRI-STATE function plays a crucial role in this by enabling effective power management. This feature minimizes unnecessary energy use when the device is idle, making it an excellent choice for portable applications like digital cameras and handheld medical devices. By optimizing power usage, the DSLVDS1047PWR enhances the user experience in battery-powered systems.

Minimal Heat Generation for Enhanced Performance

Efficient thermal performance is another advantage of the DSLVDS1047PWR. Its low power dissipation of 13 mW at 3.3-V static ensures minimal heat generation during operation. This characteristic helps maintain stable performance, even in demanding environments. The device operates within a wide temperature range of -40°C to +85°C, making it reliable for applications in automotive and industrial systems. The combination of low power consumption and excellent thermal management ensures the DSLVDS1047PWR delivers consistent performance without overheating.

The energy efficiency of the DSLVDS1047PWR not only reduces power consumption but also enhances overall system performance. Its ability to minimize heat generation and extend battery life makes it a valuable component in modern electronic systems.

Signal Integrity in DSLVDS1047PWR

Preserving Data Quality During Transmission

The DSLVDS1047PWR ensures exceptional signal integrity by maintaining data quality throughout transmission. Its low differential skew and fast propagation delay minimize timing errors, which are critical for high-speed applications. The device's compliance with the TIA/EIA-644 standard further guarantees reliable performance. These features make it suitable for environments where noise immunity and precision are essential, such as industrial control systems and telecommunications.

The combination of these specifications ensures that the DSLVDS1047PWR delivers consistent and accurate data transmission, even in challenging conditions.

High-Quality Video Output with Minimal Distortion

The DSLVDS1047PWR provides high-quality video output by minimizing distortion during signal transmission. Its advanced design supports signaling rates up to 400 Mbps, ensuring smooth and clear video playback. The device's low differential skew and fast propagation delay enhance synchronization, reducing artifacts in video output. Key features contributing to minimal distortion include:

• Signaling rates up to 400 Mbps

• Low differential skew (300 ps typical, 400 ps maximum)

• Fast propagation delay (1.7 ns maximum)

• ±350 mV differential signaling

• Compliance with TIA/EIA-644 LVDS standard

These attributes make the DSLVDS1047PWR an excellent choice for applications requiring high-definition video, such as medical imaging systems and automotive displays.

Reliable Long-Distance Signal Transmission

The DSLVDS1047PWR excels in transmitting signals over long distances without compromising quality. Its robust design ensures consistent performance across extended ranges, making it ideal for automotive and industrial systems. The device's ability to operate within a wide temperature range (-40°C to +85°C) enhances its reliability in diverse environments.

These features enable the DSLVDS1047PWR to maintain signal integrity over long distances, ensuring dependable performance in critical applications.

Compact Design of DSLVDS1047PWR

Space-Saving for Modern Devices

The DSLVDS1047PWR features a compact design that optimizes space in modern electronic devices. Its TSSOP-16 package offers a small footprint, making it ideal for applications where space is limited. This design allows engineers to incorporate the device into systems with dense circuit layouts, such as LCD displays and portable medical devices. The compact size also reduces the overall weight of the system, which is essential for portable and handheld devices. By minimizing the physical space required, the DSLVDS1047PWR supports the development of sleeker and more efficient electronic products.

Simplified Integration into Complex Systems

The DSLVDS1047PWR simplifies integration into complex systems through its versatile design. Its compatibility with 5-V LVDS receivers ensures seamless operation with a wide range of components. The device's low differential skew and fast propagation delay enhance synchronization, which is critical for high-speed data communication. These features make it easier for engineers to incorporate the device into systems like automotive ADAS and industrial control networks. The TSSOP-16 package further streamlines the integration process by providing a standardized form factor that fits easily into existing designs.

Lightweight Solutions for Portable Applications

The lightweight design of the DSLVDS1047PWR makes it an excellent choice for portable applications. Its low power dissipation of 13 mW at 3.3-V static reduces energy consumption, which is crucial for battery-powered devices. The compact TSSOP-16 package contributes to the device's lightweight nature, enhancing portability. Additionally, its low differential skew and fast propagation delay ensure reliable performance without adding unnecessary bulk. These features make the DSLVDS1047PWR a valuable component for portable systems like digital cameras and handheld medical devices.

The combination of a compact package, low power dissipation, and lightweight design ensures the DSLVDS1047PWR meets the demands of modern portable devices.

Versatility of DSLVDS1047PWR in Video Standards

Compatibility with Industry Protocols

The DSLVDS1047PWR demonstrates exceptional compatibility with industry protocols, particularly the Low-Voltage Differential Signaling (LVDS) standard. This compatibility allows seamless interoperability with existing 5V LVDS receivers, making it a versatile choice for various applications. Industries such as video distribution, high-speed networking, and industrial automation benefit from this feature. By adhering to the LVDS protocol, the device ensures reliable data transmission with minimal noise interference. This capability enhances its adaptability across diverse systems, ensuring consistent performance in demanding environments.

Adaptability Across Various Applications

The DSLVDS1047PWR adapts effortlessly to a wide range of applications, showcasing its flexibility. Its robust design supports high-speed data transmission, making it ideal for networking equipment and video distribution systems. In industrial automation, the device ensures efficient communication between control systems and sensors. The following table highlights some key application areas where the DSLVDS1047PWR excels:

This adaptability ensures the device meets the needs of both current and emerging technologies.

Future-Proofing for Emerging Technologies

The DSLVDS1047PWR incorporates features that make it future-proof for evolving video transmission technologies. Its signaling rates of up to 400 Mbps and compliance with the TIA/EIA-644 LVDS standard ensure compatibility with modern systems. The device's low power dissipation of 13 mW at 3.3-V static and wide operating temperature range (-40°C to +85°C) enhance its reliability. The table below outlines the features that contribute to its future-proof design:

These features ensure the DSLVDS1047PWR remains a reliable solution for emerging applications in video transmission and beyond.

The DSLVDS1047PWR delivers exceptional performance in video transmission, making it indispensable for modern systems. Its advanced features ensure high-speed data transfer, energy efficiency, and robust signal integrity. The compact design and versatility further enhance its appeal across diverse applications.

• Key highlights of the DSLVDS1047PWR include:

  • Quad-channel design for high-speed data transmission.

  • Reliable operation with a 3.3V power supply.

  • Low power consumption and low skew for superior signal integrity.

  • Compatibility with 5V LVDS receivers for seamless integration.

The DSLVDS1047PWR stands as a cornerstone for reliable, high-quality video performance in consumer electronics, industrial systems, and beyond.

What is the primary function of the DSLVDS1047PWR?

The DSLVDS1047PWR serves as a low-voltage differential signaling (LVDS) transmitter. It enables high-speed, low-power data communication, making it ideal for video transmission, industrial automation, and automotive systems.

How does the DSLVDS1047PWR ensure signal integrity?

The device minimizes timing errors with low differential skew and fast propagation delay. Its compliance with the TIA/EIA-644 standard ensures reliable performance, even in environments with significant noise interference.

Can the DSLVDS1047PWR operate in extreme temperatures?

Yes, the DSLVDS1047PWR functions reliably within a temperature range of -40°C to +85°C. This capability makes it suitable for automotive and industrial applications requiring robust performance.

What makes the DSLVDS1047PWR energy efficient?

The device consumes only 13 mW at 3.3-V static. Its ultra-low idle power state and efficient thermal management reduce energy use, extending battery life in portable systems.

Is the DSLVDS1047PWR compatible with existing systems?

The DSLVDS1047PWR integrates seamlessly with 5-V LVDS receivers. Its compact TSSOP-16 package and adherence to industry standards simplify its use in diverse applications.

💡 Tip: For optimal performance, ensure the DSLVDS1047PWR is used in systems designed for high-speed data transmission and low power consumption.
