FQD13N10TM Explained: A Beginner-Friendly Guide

sales@keepboomingtech.com

·November 30, 2024

·18 min read

FQD13N10TM Explained: A Beginner-Friendly Guide

The FQD13N10TM is an advanced N-channel MOSFET, specifically the FQD13N10TM,DPAK on,Fairchild,MOSFET,N-Channel, designed for high-performance applications. Known for its efficiency and reliability, this component excels in switching and amplification tasks, making it a cornerstone in modern electronics. Its low on-resistance and fast switching speed ensure optimal power handling, which is crucial for devices like power supplies and motor controllers. For beginners, understanding the FQD13N10TM offers a gateway to mastering MOSFET technology, a fundamental element in consumer electronics, industrial systems, and beyond.

Key Takeaways

The FQD13N10TM is a versatile N-channel MOSFET, ideal for high-performance applications in electronics, including power supplies and motor control systems.
Understanding MOSFETs, particularly the FQD13N10TM, provides a solid foundation for beginners looking to master electronic components and their applications.
With a low on-resistance of 0.18 Ohms, the FQD13N10TM minimizes power losses, enhancing efficiency in various circuits.
Its fast switching speed (16 nC gate charge) makes the FQD13N10TM suitable for high-frequency applications, improving overall system performance.
The FQD13N10TM supports a wide range of applications, from consumer electronics to renewable energy systems, showcasing its adaptability and importance in modern technology.
This MOSFET's robust specifications, including a maximum drain-source voltage of 100 V and a continuous drain current of 10 A, ensure reliable performance in demanding environments.
Experimenting with the FQD13N10TM can deepen your understanding of electronics, making it an excellent choice for hobbyists and engineers alike.

What Are MOSFETs? A Quick Overview

The Basics of MOSFETs

What is a MOSFET?

A MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) is a type of transistor widely used in electronic circuits. It acts as a switch or amplifier, controlling the flow of electrical current between two terminals, known as the source and drain. The third terminal, called the gate, regulates this flow by applying a voltage. Unlike traditional transistors, MOSFETs offer high efficiency and faster switching speeds, making them essential in modern electronics.

MOSFETs belong to the family of field-effect transistors (FETs). They operate based on the electric field created by the gate voltage, which determines whether the device conducts current. This unique mechanism allows MOSFETs to handle high power levels while maintaining low energy consumption.

Types of MOSFETs: N-channel vs. P-channel

MOSFETs come in two primary types: N-channel and P-channel. These classifications depend on the type of charge carriers that flow through the device.

N-channel MOSFETs:
- Use electrons as the majority charge carriers.
- Feature an N-channel region between the source and drain terminals.
- Require a positive voltage at the gate to activate.
- Known for their high efficiency and faster operation, they are ideal for low-side switching applications.
P-channel MOSFETs:
- Use holes as the majority charge carriers.
- Require a negative voltage at the gate to activate.
- Suitable for high-side switching applications, where the load connects to the source terminal.

Key Insight: N-channel MOSFETs are generally preferred in most applications due to their lower resistance and higher current-handling capabilities compared to P-channel MOSFETs.

Why Are MOSFETs Important in Electronics?

Role in Switching and Amplification

MOSFETs play a critical role in both switching and amplification tasks. In switching applications, they act as electronic on/off switches, enabling or disabling the flow of current in a circuit. This functionality is vital in devices like power supplies, motor controllers, and lighting systems.

In amplification, MOSFETs enhance weak electrical signals, making them stronger and more usable. This capability is essential in audio systems, communication devices, and signal processing equipment.

Advantages Over Other Transistors

MOSFETs offer several advantages over traditional bipolar junction transistors (BJTs):

Higher Efficiency: MOSFETs consume less power during operation, making them ideal for energy-sensitive applications.
Faster Switching Speeds: Their ability to switch on and off rapidly improves performance in high-frequency circuits.
Lower Heat Generation: Reduced power loss minimizes heat production, enhancing reliability and longevity.
Compact Design: MOSFETs are smaller and lighter, allowing for more compact and portable electronic devices.

These features make MOSFETs indispensable in modern electronics, from consumer gadgets to industrial machinery. Their versatility and efficiency continue to drive innovation across various industries.

Key Specifications of the FQD13N10TM

The FQD13N10TM stands out as a high-performance N-channel MOSFET, designed to meet the demands of modern electronic applications. Its specifications highlight its efficiency, reliability, and versatility, making it a preferred choice for engineers and hobbyists alike.

Electrical Specifications

Voltage ratings (Vds: 100 V, Vgs)

The FQD13N10TM offers a maximum drain-source voltage (Vds) of 100 V, ensuring compatibility with high-voltage circuits. This rating allows the MOSFET to handle significant power levels without compromising performance. The gate-source voltage (Vgs) ranges from -25 V to 25 V, providing flexibility in controlling the device. These voltage ratings make it suitable for applications like power supplies and motor drivers, where stable operation under varying conditions is essential.

Current ratings (Id: 10 A)

With a continuous drain current (Id) of up to 10 A, the FQD13N10TM can manage substantial current loads. This capability ensures reliable performance in circuits requiring high current flow, such as LED lighting systems and industrial machinery. Its robust current-handling capacity enhances its suitability for demanding applications.

Physical and Thermal Characteristics

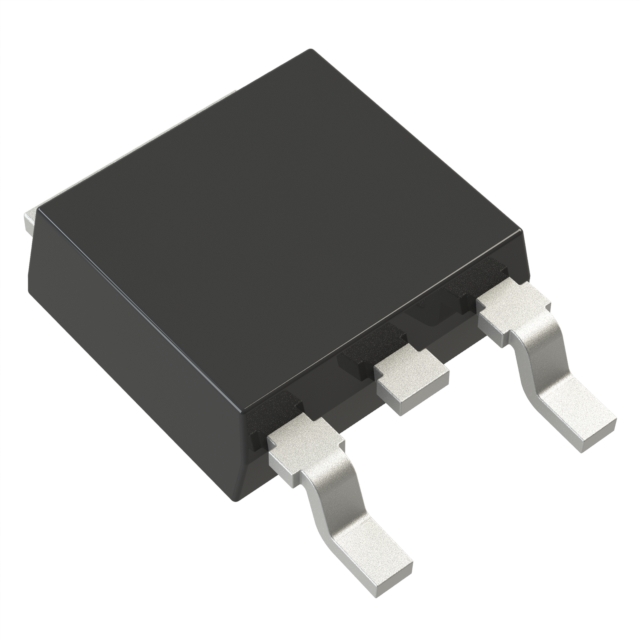

Package type (TO-252-3) and size

The FQD13N10TM comes in a compact TO-252-3 package, also known as DPAK-3. This surface-mount design simplifies integration into circuit boards while saving space. The package's small footprint makes it ideal for applications requiring high-density power management. Additionally, the TO-252-3 package facilitates efficient heat dissipation, ensuring stable operation even under heavy loads.

Thermal resistance and power dissipation

Thermal resistance plays a critical role in maintaining the performance of the FQD13N10TM. This MOSFET features a low thermal resistance, which helps dissipate heat effectively. It supports a maximum power dissipation of 40 W, enabling it to handle significant energy throughput without overheating. These thermal characteristics ensure reliability in applications like motor control and renewable energy systems.

Performance Features

Low on-resistance (Rds(on): 0.18 Ohms)

The FQD13N10TM boasts a low drain-source on-resistance (Rds(on)) of just 0.18 Ohms. This feature minimizes power losses during operation, improving overall efficiency. Low on-resistance is particularly beneficial in switching applications, where reduced energy loss translates to better performance and lower heat generation.

Switching speed and efficiency (Gate charge: 16 nC)

Fast switching speed is another standout feature of the FQD13N10TM. With a gate charge of 16 nC, this MOSFET ensures quick transitions between on and off states. This efficiency makes it ideal for high-frequency circuits, such as DC-DC converters and communication equipment. The combination of low gate charge and fast switching enhances the device's performance in energy-sensitive applications.

Key Takeaway: The FQD13N10TM combines robust electrical specifications, efficient thermal management, and superior performance features. These attributes make it a versatile and reliable choice for a wide range of electronic applications.

How Does the FQD13N10TM Work?

Understanding the N-channel Design

How current flows through the N-channel

The FQD13N10TM operates as an N-channel enhancement-mode MOSFET. In this design, the channel forms only when a positive voltage is applied to the gate terminal. Without this voltage, the device remains in an "off" state, preventing current flow between the source and drain terminals. When a positive voltage is applied to the gate, it creates an electric field that attracts electrons to the region beneath the gate oxide layer. This process forms a conductive channel between the source and drain.

Once the channel forms, applying a voltage between the drain and source terminals allows current to flow freely. The gate voltage controls the density of electrons in the channel, which directly influences the amount of current flowing through the circuit. This precise control makes the FQD13N10TM highly efficient for switching and amplification tasks.

Role of the gate, source, and drain terminals

The FQD13N10TM features three key terminals: the gate, source, and drain. Each terminal plays a specific role in the operation of the MOSFET:

Gate: Acts as the control terminal. Applying a voltage here determines whether the MOSFET turns on or off. A positive voltage creates the electric field necessary to form the N-channel.
Source: Serves as the terminal where current enters the MOSFET. It connects to the negative side of the circuit in most configurations.
Drain: Functions as the terminal where current exits the MOSFET. It connects to the load or the positive side of the circuit.

The interaction between these terminals enables the FQD13N10TM to act as a precise electronic switch, making it indispensable in various circuits.

Operating Principles

Turning the MOSFET on and off

The FQD13N10TM operates as a voltage-controlled device. To turn it on, a positive voltage is applied to the gate terminal relative to the source. This voltage creates an electric field that attracts electrons, forming the conductive N-channel. Once the channel forms, current flows from the drain to the source, completing the circuit.

To turn the MOSFET off, the gate voltage is reduced to zero or made negative. This action eliminates the electric field, causing the channel to disappear. Without the channel, current cannot flow between the drain and source, effectively breaking the circuit. This rapid switching capability makes the FQD13N10TM ideal for high-speed applications.

Voltage thresholds and control

The FQD13N10TM relies on a specific voltage threshold, known as the gate-source threshold voltage (Vgs(th)), to operate. This threshold represents the minimum voltage required at the gate to form the N-channel and allow current flow. For the FQD13N10TM, the Vgs(th) typically ranges between 2 V and 4 V.

Precise control of the gate voltage allows users to regulate the current flowing through the circuit. Increasing the gate voltage enhances the channel's conductivity, enabling higher current flow. Conversely, reducing the gate voltage decreases conductivity, limiting the current. This level of control makes the FQD13N10TM a versatile component in circuits requiring efficient power management.

Key Insight: The FQD13N10TM combines its N-channel design with voltage-controlled operation to deliver reliable performance in switching and amplification tasks. Its ability to handle high currents and voltages while maintaining precise control makes it a valuable asset in modern electronics.

Applications of the FQD13N10TM

The FQD13N10TM excels in various applications due to its high power handling, efficiency, and fast switching capabilities. Its versatility makes it a valuable component across multiple industries, including consumer electronics, industrial systems, and automotive technology.

Consumer Electronics

Power supplies and battery management

The FQD13N10TM plays a critical role in modern power supplies. It ensures efficient energy conversion in switch-mode power supplies (SMPS), which are widely used in household devices. By minimizing power losses, it enhances the overall performance of these systems. In battery management, this MOSFET regulates charging and discharging processes, ensuring the longevity and safety of batteries in portable electronics like smartphones and tablets.

Fun Fact: Efficient battery management systems rely on components like the FQD13N10TM to prevent overheating and overcharging, which can damage batteries.

DC-DC converters in laptops and gaming consoles

DC-DC converters depend on the FQD13N10TM for stable voltage regulation. This MOSFET ensures smooth operation in devices like laptops and gaming consoles, where consistent power delivery is essential. Its low on-resistance reduces energy loss, improving the efficiency of these converters. As a result, users experience better device performance and extended battery life.

Industrial Applications

Motor control and lighting systems

In industrial environments, motor control systems require precise and reliable components. The FQD13N10TM enables efficient motor operation by managing the flow of power with minimal energy loss. This capability is crucial in automation systems and robotics, where motors must operate smoothly under varying loads.

For lighting systems, the FQD13N10TM drives high-power LEDs, ensuring consistent brightness and energy efficiency. Industrial and commercial lighting solutions benefit from its ability to handle high currents without overheating, making it a preferred choice for LED drivers.

Power distribution in industrial machinery

Industrial machinery relies on robust power distribution systems to function effectively. The FQD13N10TM manages power flow in these systems, ensuring stability and reliability. Its high current-handling capacity makes it suitable for heavy-duty applications, such as controlling large motors and managing energy in complex machinery.

Automotive Applications

Electric vehicles and motor drivers

Electric vehicles (EVs) demand components that can handle high power levels while maintaining efficiency. The FQD13N10TM supports power management circuits in EVs, ensuring optimal performance of onboard chargers and battery systems. Additionally, it drives motors in various automotive systems, such as window regulators and seat adjusters, providing smooth and reliable operation.

Did You Know? The FQD13N10TM contributes to the growing adoption of EVs by enabling efficient power management, which helps extend battery range.

LED lighting systems

Automotive LED lighting systems, including headlamps and tail-lights, benefit from the FQD13N10TM's capabilities. Its low on-resistance and efficient thermal management ensure consistent performance in these applications. By reducing energy consumption, it supports the development of energy-efficient lighting solutions for modern vehicles.

Key Takeaway: The FQD13N10TM demonstrates its versatility by excelling in diverse applications, from powering consumer electronics to driving industrial machinery and enhancing automotive systems. Its efficiency and reliability make it an indispensable component in today's technology-driven world.

Renewable Energy

Solar inverters and energy storage systems

The FQD13N10TM plays a vital role in renewable energy systems, particularly in solar inverters and energy storage units. Solar inverters rely on this MOSFET to convert direct current (DC) from solar panels into alternating current (AC) for household or industrial use. Its high power-handling capability ensures efficient energy conversion, reducing losses during operation. This efficiency is critical for maximizing the output of solar energy systems.

In energy storage systems, the FQD13N10TM manages the charging and discharging processes of batteries. It regulates the flow of power between the storage unit and connected devices, ensuring stability and safety. By minimizing heat generation and maintaining consistent performance, this MOSFET enhances the reliability of energy storage solutions, making it an essential component in modern renewable energy setups.

Key Insight: The FQD13N10TM supports the transition to cleaner energy by enabling efficient power management in solar and battery systems.

Wind turbine controllers

Wind turbine controllers depend on the FQD13N10TM for regulating voltage and managing power flow. This MOSFET ensures smooth operation by handling high currents and switching rapidly between states. Its low on-resistance minimizes energy loss, which is crucial for optimizing the performance of wind turbines. By maintaining stable power output, the FQD13N10TM contributes to the reliability of wind energy systems.

The ability to operate under varying environmental conditions makes this MOSFET suitable for the demanding requirements of wind turbine controllers. Its robust design ensures long-term durability, even in harsh weather, supporting the consistent generation of renewable energy.

Communication Equipment

Base stations and networking devices

The FQD13N10TM enhances the performance of communication equipment, including base stations and networking devices. Base stations require efficient power regulation to maintain uninterrupted connectivity. This MOSFET ensures stable power delivery, reducing energy loss and improving overall system efficiency. Its fast switching speed supports high-frequency operations, which are essential for modern telecommunications.

Networking devices, such as routers and switches, also benefit from the FQD13N10TM's capabilities. It manages power distribution within these devices, ensuring reliable performance and minimal downtime. By optimizing energy usage, this MOSFET helps reduce operational costs while maintaining the functionality of critical communication infrastructure.

Fun Fact: The FQD13N10TM's efficiency in power management contributes to the seamless operation of the internet and mobile networks.

Medical Equipment

Portable medical devices

Portable medical devices, such as diagnostic monitors and infusion pumps, rely on the FQD13N10TM for efficient power management. This MOSFET ensures stable operation by regulating the flow of power within these devices. Its compact size and low heat generation make it ideal for portable applications, where space and energy efficiency are critical.

The FQD13N10TM's ability to handle high currents without compromising performance enhances the reliability of medical devices. This reliability is essential for ensuring patient safety and the accurate functioning of life-saving equipment.

Imaging systems like X-rays and ultrasounds

Imaging systems, including X-ray machines and ultrasound devices, depend on the FQD13N10TM for precise power control. These systems require high power levels to operate effectively, and this MOSFET ensures consistent energy delivery. Its low on-resistance reduces energy loss, improving the efficiency of imaging equipment.

The FQD13N10TM's fast switching capability supports the rapid adjustments needed in imaging systems. This responsiveness enhances the clarity and accuracy of diagnostic images, making it a valuable component in modern medical technology.

Key Takeaway: The FQD13N10TM's role in medical equipment highlights its importance in critical applications, where efficiency and reliability directly impact human lives.

The FQD13N10TM stands out as a reliable and versatile N-channel MOSFET, offering exceptional performance across various applications. Its key specifications, such as a 100 V drain-source voltage, 10 A current rating, and low on-resistance, make it ideal for power supplies, motor control systems, and LED drivers. This component simplifies power management while ensuring efficiency and fast switching speeds.

For beginners, the FQD13N10TM provides an excellent introduction to MOSFET technology. Its user-friendly design encourages experimentation in projects. By exploring its capabilities, readers can deepen their understanding of electronics and unlock new possibilities in their designs.

FAQ

What is the FQD13N10TM, and why is it important?

The FQD13N10TM is an N-channel MOSFET designed for high-performance applications. It efficiently manages power in electronic circuits, making it essential for tasks like switching and amplification. Its ability to handle high voltage (100 V) and current (10 A) ensures reliable performance in demanding environments. Beginners benefit from its user-friendly design and versatility, which make it an excellent starting point for learning about MOSFET technology.

How does the FQD13N10TM differ from other MOSFETs?

The FQD13N10TM stands out due to its low on-resistance (0.18 Ohms) and fast switching speed (16 nC gate charge). These features reduce power losses and improve efficiency, especially in high-frequency circuits. Its compact TO-252-3 package also allows for better thermal management and space-saving designs. These characteristics make it a preferred choice for applications requiring robust and efficient power handling.

Can beginners use the FQD13N10TM in their projects?

Yes, the FQD13N10TM is beginner-friendly. Its straightforward operation and clear specifications make it easy to integrate into various projects. Beginners can use it in applications like power supplies, motor drivers, and LED lighting systems. By experimenting with this MOSFET, they can gain a deeper understanding of how electronic components work in real-world scenarios.

What are the primary applications of the FQD13N10TM?

The FQD13N10TM is versatile and supports a wide range of applications, including:

Consumer Electronics: Power supplies, battery management, and DC-DC converters.
Industrial Systems: Motor control, LED lighting, and power distribution.
Automotive Technology: Electric vehicles, motor drivers, and LED headlamps.
Renewable Energy: Solar inverters, energy storage systems, and wind turbine controllers.
Medical Equipment: Portable devices and imaging systems.

Its adaptability makes it a valuable component across multiple industries.

How does the FQD13N10TM manage heat during operation?

The FQD13N10TM features a TO-252-3 package, which enhances thermal dissipation. Its low thermal resistance ensures that heat generated during operation is efficiently managed. This capability allows the MOSFET to handle high power loads without overheating, ensuring stable and reliable performance in demanding applications.

What makes the FQD13N10TM suitable for high-power applications?

The FQD13N10TM's high voltage (100 V) and current (10 A) ratings enable it to handle significant power loads. Its low on-resistance minimizes energy loss, while its fast switching speed ensures efficient operation in high-frequency circuits. These features make it ideal for applications like motor control, power supplies, and renewable energy systems.

How does the FQD13N10TM contribute to energy efficiency?

The FQD13N10TM reduces power losses through its low on-resistance and efficient switching capabilities. These features improve energy conversion in devices like solar inverters and DC-DC converters. By minimizing heat generation and energy waste, it supports the development of energy-efficient systems in various industries.

What are the key advantages of using the FQD13N10TM in renewable energy systems?

The FQD13N10TM excels in renewable energy applications due to its ability to handle high power levels and operate efficiently. In solar inverters, it converts DC power from solar panels into AC power with minimal energy loss. In energy storage systems, it regulates charging and discharging processes, ensuring stability and safety. Its robust design and efficiency make it a critical component in advancing clean energy technologies.

Is the FQD13N10TM reliable for long-term use?

Yes, the FQD13N10TM is highly reliable. Its robust construction and efficient thermal management ensure durability under high-energy conditions. It performs consistently in demanding applications, such as industrial machinery and automotive systems. This reliability makes it a trusted choice for engineers and hobbyists alike.

Where can I purchase the FQD13N10TM?

The FQD13N10TM is widely available through online electronic component retailers and distributors. Popular platforms like Digi-Key, Mouser Electronics, and Newark carry this MOSFET. Ensure compatibility with your project by reviewing its specifications before purchasing.
