HD3SS3212RKSRQ1 Review: A Reliable USB Switch IC

sales@keepboomingtech.com

·November 13, 2024

·6 min read

HD3SS3212RKSRQ1 Review: A Reliable USB Switch IC

Image Source: https://keepbooming-ic.com

The HD3SS3212RKSRQ1, a USB Switch IC from TI, is renowned for its reliability in automotive media interfaces. This component is integral to the USB Type-C ecosystem, providing high-speed data transfer capabilities of up to 10 Gbps. Its design incorporates 28V over-voltage protection, ensuring safety and durability in automotive environments. The HD3SS3212RKSRQ1 meets the AEC-Q100 qualification, highlighting its suitability for automotive applications. As a professional electronic component supplier, TI guarantees that this IC delivers consistent performance, making it a preferred choice for modern automotive systems.

Key Features and Specifications

Technical Specifications

Signal Switching Capabilities

The HD3SS3212RKSRQ1 excels in signal switching capabilities, making it a standout choice for automotive applications. This USB switch IC supports a 2 MUX/DEMUX configuration, allowing seamless data routing between different channels. It handles data rates of up to 10 Gbps, ensuring high-speed data transfer essential for modern automotive media interfaces. The device's precision voltage regulation and overcurrent protection further enhance its reliability, safeguarding against potential electrical issues.

Power Consumption and Efficiency

Efficiency is a critical factor in automotive electronics, and the HD3SS3212RKSRQ1 delivers on this front. With low power consumption, it is well-suited for battery-powered devices, minimizing energy usage without compromising performance. The IC operates efficiently across a wide temperature range, from -40°C to 105°C, ensuring consistent functionality even in extreme conditions. This efficiency makes it an attractive option for automotive manufacturers seeking to optimize energy use in their systems.

Unique Attributes

Compatibility with Automotive Standards

The HD3SS3212RKSRQ1 meets stringent automotive standards, including the AEC-Q100 qualification, which underscores its suitability for use in vehicles. It complies with the IEC61000-4-2 standard, providing advanced ESD protection up to ±15 kV. This level of protection is crucial for maintaining the integrity of automotive systems exposed to various environmental stresses. As a professional electronic component supplier, Texas Instruments ensures that this IC aligns with industry standards, offering peace of mind to automotive engineers.

Design and Build Quality

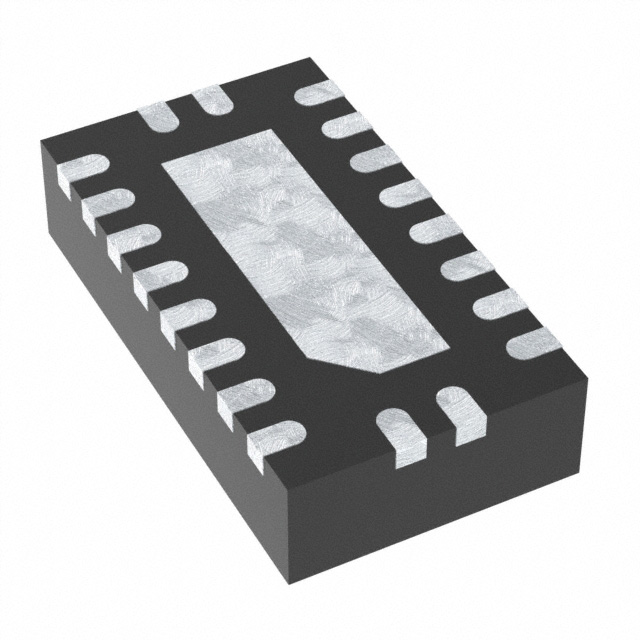

Design and build quality are paramount in automotive applications, and the HD3SS3212RKSRQ1 does not disappoint. Its compact QFN package, measuring 4.5 x 2.5 mm, is ideal for space-constrained designs, allowing for easy integration into automotive systems. The device's rugged construction enables it to withstand mechanical stresses, humidity, and temperature extremes, adhering to the IPC-A-620 standard. This robust design ensures long-term reliability, making it a preferred choice for automotive manufacturers.

Performance in Automotive Media Interfaces

Testing and Benchmarks

Real-world Performance Metrics

The HD3SS3212RKSRQ1, a USB Switch IC from TI, demonstrates impressive performance in real-world automotive media interfaces. Engineers have tested this component extensively, focusing on its ability to handle high-speed data transfer. The IC consistently achieves data rates of up to 10 Gbps, which is crucial for modern automotive systems that require rapid data processing. Its over-voltage protection feature ensures that the device remains reliable even under challenging conditions, such as voltage spikes commonly encountered in automotive environments.

Comparison with Competitors

When compared to other USB switch ICs, the HD3SS3212RKSRQ1 stands out due to its robust design and high-speed capabilities. For instance, the FSUSB30UMX FSUSB30 SMD QFN-10, another USB switch IC, is available at a lower price range of $0.20-$3.60. However, it does not match the HD3SS3212RKSRQ1's performance in terms of data rate and automotive-grade reliability. The HD3SS3212RKSRQ1's compliance with automotive standards and its compact design make it a preferred choice for automotive manufacturers seeking high-quality components.

User Experience

Ease of Integration

Automotive engineers find the HD3SS3212RKSRQ1 easy to integrate into existing systems. Its compact QFN package allows for seamless incorporation into space-constrained designs. The IC's compatibility with the USB Type-C ecosystem further simplifies the integration process, as it aligns with the latest connectivity standards in the automotive industry. This ease of integration reduces development time and costs, making it an attractive option for manufacturers.

Feedback from Automotive Engineers

Feedback from automotive engineers highlights the HD3SS3212RKSRQ1's reliability and performance. Many engineers appreciate its ability to maintain consistent functionality across a wide temperature range, from -40°C to 105°C. This temperature resilience ensures that the IC performs well in various environmental conditions, which is essential for automotive applications. Engineers also commend the IC's robust design, which withstands mechanical stresses and enhances long-term reliability.

Advantages and Potential Drawbacks

Benefits

Enhanced Media Interface Functionality

The HD3SS3212RKSRQ1 significantly enhances media interface functionality in automotive systems. It supports high-speed data transfer, reaching up to 10 Gbps, which is essential for modern vehicles that require rapid data processing. This capability ensures seamless connectivity and efficient communication between various automotive components. As a result, the HD3SS3212RKSRQ1 contributes to an improved user experience by enabling faster and more reliable media interactions.

Long-term Reliability

Long-term reliability stands as a hallmark of the HD3SS3212RKSRQ1. Texas Instruments, a professional electronic component supplier, has designed this USB switch IC to withstand harsh automotive environments. Its robust construction and compliance with automotive standards ensure consistent performance over time. The device's ability to operate across a wide temperature range, from -40°C to 105°C, further underscores its durability. Automotive manufacturers can rely on this IC to maintain functionality and safety throughout the vehicle's lifespan.

Drawbacks

Cost Considerations

While the HD3SS3212RKSRQ1 offers numerous benefits, cost considerations may pose a challenge for some manufacturers. This USB switch IC, with its advanced features and automotive-grade reliability, may come at a higher price point compared to other options. Manufacturers must weigh the benefits of enhanced performance and reliability against the potential impact on production costs. For budget-conscious projects, exploring alternative solutions might be necessary.

Limitations in Specific Applications

Despite its strengths, the HD3SS3212RKSRQ1 may face limitations in specific applications. Its design primarily targets automotive media interfaces, which means it might not suit all electronic systems. Engineers should carefully evaluate the IC's specifications and compatibility with their intended use cases. In scenarios where different configurations or lower data rates are required, alternative components might offer a better fit.

The HD3SS3212RKSRQ1 from TI stands out as a reliable USB Switch IC. Its performance in automotive media interfaces proves exceptional. This component handles high-speed data transfer efficiently, ensuring seamless connectivity. Its robust design and compliance with automotive standards make it suitable for demanding environments. Potential users seeking a dependable solution for automotive applications will find this IC advantageous. The HD3SS3212RKSRQ1 offers enhanced functionality and long-term reliability, making it a valuable addition to modern automotive systems.
