HMC789ST89E: Boosting WLAN and Fixed Wireless

The HMC789ST89E revolutionizes WLAN and fixed wireless communication by significantly enhancing performance, range, and signal stability. This high linearity GaAs InGaP HBT gain block MMIC operates from 0.7 to 2.8 GHz, making it ideal for modern communication networks. With a high output IP3 of +42 dBm and a gain of 18 dB, it ensures robust signal strength and quality. Its integration into wireless systems marks a pivotal advancement in communication technology, offering reliable solutions for applications like Cellular/4G, CATV, and more. Explore its detailed specifications at https://www.alldatasheet.com/datasheet-pdf/pdf/103.

Overview of HMC789ST89E

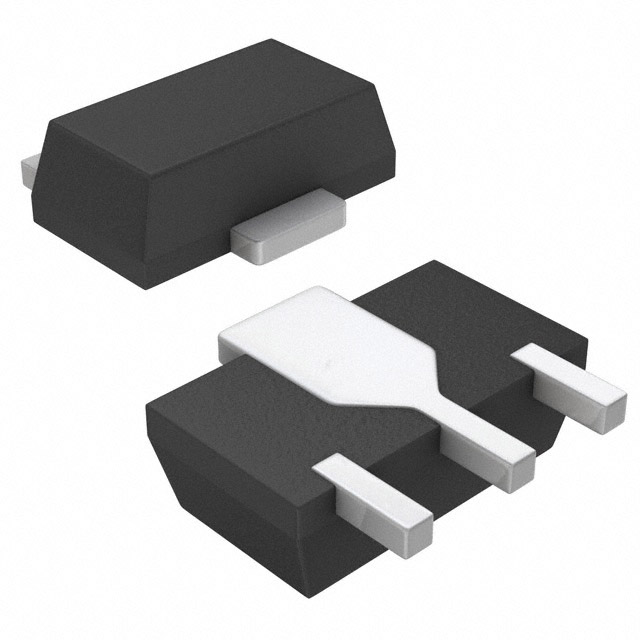

The HMC789ST89E stands out as a high linearity GaAs InGaP HBT gain block MMIC. It operates efficiently within the frequency range of 0.7 to 2.8 GHz. This makes it an excellent choice for modern communication systems. Its design incorporates an industry-standard SOT89 package, ensuring compatibility and ease of integration into various applications.

Key Features

High Output IP3: The HMC789ST89E boasts an impressive output IP3 of +42 dBm. This feature enhances signal clarity and reduces distortion, making it ideal for high-performance applications.
High Gain: With a gain of 18 dB, this device amplifies signals effectively, ensuring robust performance in demanding environments.
Single Supply Operation: It operates on a single +5V supply, simplifying power management and reducing the need for additional components.
Versatile Applications: The HMC789ST89E is suitable for a wide range of applications, including Cellular/4G, Fixed Wireless, WLAN, CATV, and more.

Technical Specifications

Frequency Range: 0.7 to 2.8 GHz
Output P1dB: +25 dBm, providing strong signal output for various applications.
Power Added Efficiency (PAE): 45% at +25 dBm Pout, ensuring energy-efficient operation.
Temperature Range: Operates reliably from -40°C to 85°C, making it suitable for diverse environmental conditions.

The HMC789ST89E combines high performance with versatility, making it a valuable component in modern wireless communication systems. Its technical specifications and key features highlight its capability to enhance signal quality and system efficiency.

Applications in WLAN

Performance Enhancement

The integration of the HMC789ST89E into WLAN systems significantly boosts performance. This RF amplifier, with its high output IP3 of +42 dBm, ensures superior signal clarity. Users experience fewer distortions, which enhances overall communication quality. The device's high gain of 18 dB amplifies signals effectively, making it ideal for demanding environments. This amplification results in stronger and more reliable connections, even in areas with high interference.

Range and Coverage

The HMC789ST89E extends the range and coverage of WLAN networks. Its robust output P1dB of +25 dBm provides strong signal output, which is crucial for covering larger areas. This feature allows users to maintain stable connections over greater distances. The amplifier's efficiency ensures that energy consumption remains low, even while extending coverage. This balance of power and efficiency makes it a valuable component for expanding network reach without compromising performance.

Applications in Fixed Wireless

Signal Stability

Fixed wireless systems benefit significantly from the integration of the HMC789ST89E. This RF amplifier enhances signal stability, which is crucial for maintaining consistent communication. The device's high output IP3 of +42 dBm ensures that signals remain clear and free from distortion. This clarity reduces the need for retransmissions, leading to more reliable connections. In environments with high interference, the HMC789ST89E provides a robust solution, ensuring that users experience fewer dropped connections and interruptions.

Data Throughput

The HMC789ST89E also plays a vital role in improving data throughput in fixed wireless applications. Its high gain of 18 dB amplifies signals effectively, allowing for faster data transmission rates. This amplification results in increased bandwidth, enabling users to enjoy smoother streaming and quicker downloads. The device's efficiency ensures that these improvements do not come at the cost of increased energy consumption. By enhancing both signal stability and data throughput, the HMC789ST89E proves to be an ideal choice for modern communication networks, offering a reliable solution for improving signal strength and transmission quality.

Benefits and Impact

Industry Advancements

The HMC789ST89E has driven significant advancements in the wireless communication industry. Its high linearity and gain characteristics have set new standards for performance. Many companies have adopted this technology to enhance their communication systems. The device's ability to operate across a wide frequency range makes it versatile for various applications. Industries such as Cellular/4G, CATV, and fixed wireless have seen improvements in efficiency and reliability. The HMC789ST89E has become a cornerstone in developing next-generation communication networks.

User Experience

Users experience noticeable improvements in their wireless communication with the HMC789ST89E. The device enhances signal clarity, reducing distortions and interruptions. Users enjoy more stable connections, even in areas with high interference. The increased data throughput allows for faster downloads and smoother streaming. This amplifier ensures that users benefit from reliable and efficient communication. The HMC789ST89E contributes to a superior user experience by providing consistent and high-quality signal performance.

The HMC789ST89E plays a pivotal role in advancing WLAN and fixed wireless technologies. It combines high linearity with efficient power consumption, setting a new standard for RF amplification in today's demanding applications. This gain block MMIC offers a reliable solution for improving signal strength and transmission quality. Its integration into wireless systems not only enhances performance but also significantly impacts the industry by providing enhanced user experiences. As a key component in modern wireless communication, the HMC789ST89E paves the way for future developments in the field.
