How Active Components Work in Electronic Circuits

Active components form the backbone of modern electronic circuits, enabling them to perform complex tasks like signal amplification and power regulation. These active components rely on external power sources to operate and actively control the flow of electrical signals. Their significance continues to grow, with the global active electronic components market projected to reach USD 338.87 billion by 2024. Consumer electronics dominate this space, holding a 31.7% market share in 2024, while automotive applications are expanding rapidly, driven by advancements like connected cars. The widespread use of the active components list underlines their critical role in shaping technological progress.

Key Takeaways

• Active parts, like transistors and diodes, need power to work. They help boost and control electrical signals in circuits.

• Transistors are very important in electronics. They make signals stronger and switch them in gadgets like phones and computers.

• Diodes let electricity flow in only one way. This helps keep power steady in electronic devices.

• Integrated circuits put many parts into one chip. They help make cool gadgets and better car systems.

• Active parts are important in IoT devices. They help with wireless communication and connecting sensors for smarter tech.

What Are Active Components?

Definition and Characteristics

Active components are essential elements in electronic circuits. They manipulate electrical signals by amplifying, switching, or controlling them. Unlike passive components, they require an external power source to function. Their ability to actively influence the flow of current makes them indispensable in modern electronics.

Historically, the development of active components revolutionized electronics. Devices like vacuum tubes, transistors, and diodes laid the foundation for advancements in telecommunications and computing. These components exhibit nonlinear behavior, which allows them to amplify weak signals effectively. For example, transistors act as both switches and amplifiers, playing a critical role in audio systems and modern computing devices.

Energy Amplification and Signal Control

Active components excel at amplifying energy and controlling signals. They take a small input signal and produce a larger output signal, making them vital in applications like audio amplification and radio transmission. This amplification process ensures that weak signals can travel long distances or drive larger loads.

In addition to amplification, active components regulate and shape electrical signals. For instance, diodes control the direction of current flow, enabling rectification in power supplies. Similarly, transistors manage signal switching in digital circuits, ensuring precise operation in computing systems. These capabilities highlight their importance in both analog and digital electronics.

Dependence on External Power Sources

Active components rely on external power sources to operate. This dependency distinguishes them from passive components, which function without additional energy. The external power enables active components to amplify signals and perform complex tasks.

For example, a transistor requires a small voltage at its base terminal to control a larger current between its collector and emitter terminals. This external power input allows the transistor to function as an amplifier or switch. Similarly, integrated circuits depend on external power to execute multiple functions, such as processing data or controlling devices. Without this external energy, active components would lose their ability to influence electrical signals.

Types of Active Components

Transistors: The Building Blocks of Modern Electronics

Transistors serve as the foundation of modern electronics. These small yet powerful devices act as electronic switches, controlling the flow of electricity in circuits. Since their invention in 1947, approximately 13 sextillion transistors have been manufactured, highlighting their widespread use. They are essential in devices ranging from smartphones to supercomputers.

Transistors amplify electrical signals, making them vital in audio systems and communication devices. They also enable digital logic operations in microprocessors, forming the core of computing technology. Their versatility and efficiency have made them indispensable in the semiconductor industry, which accounted for 57.5% of the global active electronic components market revenue in 2022. This segment is expected to grow at a CAGR of over 7.0% through 2028, driven by the increasing demand for transistors in consumer and industrial applications.

Diodes: Rectification and Signal Processing

Diodes play a critical role in rectification and signal processing. These components allow current to flow in one direction while blocking it in the opposite direction, making them essential in power supplies and signal modulation. Their ability to convert alternating current (AC) to direct current (DC) ensures stable power delivery in electronic devices.

The performance of diodes depends on several parameters:

These characteristics make diodes indispensable in applications like radio frequency (RF) systems, power converters, and signal demodulation.

Integrated Circuits: Multifunctional Components

Integrated circuits (ICs) combine multiple electronic components into a single chip, enabling multifunctional capabilities. They are widely used in consumer electronics, telecommunications, and automotive systems. The IC market was valued at USD 439.8 billion in 2023 and is projected to reach USD 875.6 billion by 2032, growing at a CAGR of 8%.

ICs drive innovation in miniaturization and component integration. For example, they power 5G networks by enabling faster data transmission and improved network efficiency. The automotive sector also relies on ICs for electric and autonomous vehicles, where they manage tasks like motor control and sensor integration. Their versatility and compact design make them a cornerstone of modern electronics.

Vacuum Tubes: Legacy Active Components

Vacuum tubes, also known as thermionic valves, represent one of the earliest forms of active components in electronics. These devices played a pivotal role in the development of early electronic systems, including radios, televisions, and computers. Although largely replaced by modern components like transistors, vacuum tubes remain a fascinating chapter in the history of electronics.

How Vacuum Tubes Work

A vacuum tube operates by controlling the flow of electrons in a vacuum-sealed glass or metal enclosure. It typically consists of three main elements:

1. Cathode: Emits electrons when heated.

2. Anode (or Plate): Collects the electrons, allowing current to flow.

3. Control Grid: Regulates the electron flow between the cathode and anode.

When a small voltage is applied to the control grid, it modulates the current passing through the tube. This ability to amplify signals made vacuum tubes essential in early communication and audio systems.

Did You Know?
The first general-purpose computer, ENIAC, used over 17,000 vacuum tubes and consumed 150 kilowatts of power!

Applications and Legacy

Vacuum tubes excelled in high-power and high-frequency applications. They were widely used in:

• Radio Broadcasting: Amplifying audio signals for long-distance transmission.

• Television Sets: Enabling image and sound processing.

• Early Computers: Performing calculations and data processing.

Despite their bulkiness and high energy consumption, vacuum tubes offered reliability and performance unmatched by early alternatives. Today, they are still used in niche applications like high-end audio amplifiers and microwave ovens, where their unique characteristics are valued.

Vacuum tubes may no longer dominate electronics, but their contributions laid the groundwork for modern active components. Their invention marked the beginning of the electronic age, paving the way for the innovations we rely on today.

How Active Components Function in Electronic Circuits

Amplification of Electrical Signals

Active components play a pivotal role in amplifying electrical signals, a process essential for applications like audio systems, communication devices, and instrumentation. Amplification involves increasing the amplitude of a weak input signal to produce a stronger output signal without altering its original characteristics. This capability allows devices to process and transmit signals over long distances or drive larger loads effectively.

Operational amplifiers (op-amps) are a prime example of active components used for signal amplification. Their performance can be evaluated using specific measurements and characteristics:

These characteristics ensure that active components like op-amps deliver precise and reliable amplification. For instance, in audio systems, they enhance sound clarity by boosting weak microphone signals. Similarly, in medical devices, they amplify bio-signals for accurate diagnostics.

Oscillation and Signal Generation

Active components also enable oscillation and signal generation, which are fundamental to creating periodic waveforms used in communication systems, clocks, and signal processing. Oscillators, built using active components like transistors or op-amps, generate continuous waveforms such as sine, square, or triangular waves. These waveforms serve as carriers for transmitting information or as timing signals in digital circuits.

The mechanism behind oscillation involves a delicate balance between positive feedback and energy supplied by an external power source. Oscillatory inputs facilitate signal propagation by acting as a "clock," ensuring synchronous pulse transmission. In neural circuits, for example, this synchronization relies on a balance between excitatory and inhibitory inputs. The timing and frequency of oscillatory signals are critical for effective signal generation, especially in systems requiring precise synchronization.

Active components excel in generating stable and accurate signals. For instance, crystal oscillators, commonly used in watches and communication devices, rely on active components to maintain consistent frequencies. This precision ensures reliable operation in applications ranging from telecommunications to industrial automation.

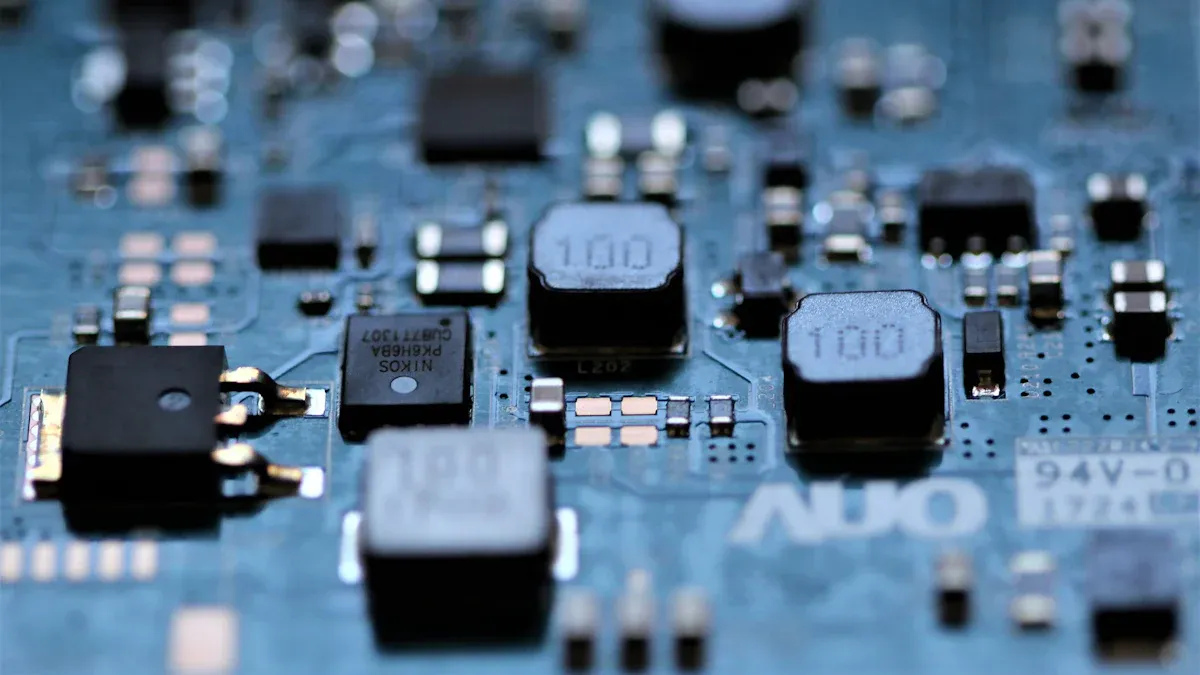

Power Regulation and Conversion

Active components are indispensable in power regulation and conversion, ensuring that electronic devices receive stable and efficient power. They manage tasks such as voltage regulation, current control, and energy conversion between different forms. Devices like transistors, MOSFETs, and IGBTs are commonly used in power electronics to achieve these functions.

The effectiveness of active components in power regulation and conversion can be demonstrated through the following technical specifications:

Active components ensure efficient power conversion by minimizing energy losses during switching. For example, MOSFETs operate at high speeds, reducing energy dissipation and improving overall efficiency. In renewable energy systems, they convert DC power from solar panels into AC power for household use. Their ability to regulate voltage and current also protects sensitive electronic components from damage, ensuring reliable operation across various applications.

Tip: Proper heat management is crucial for maintaining the performance and longevity of active components in power regulation systems.

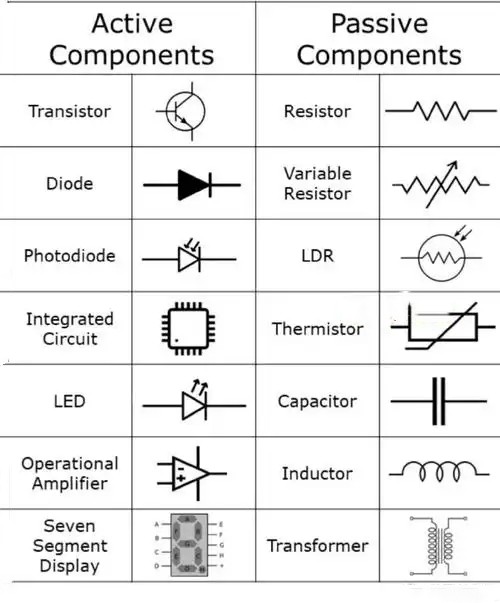

Active Components vs. Passive Components

Key Differences in Functionality

Active and passive components differ significantly in their roles and characteristics within electronic circuits. Active components, such as transistors and diodes, actively control electrical signals and require an external power source to function. In contrast, passive components, like resistors and capacitors, do not need external power and primarily store or dissipate energy. The table below highlights their key differences:

These distinctions underline the complementary roles of active and passive components in electronic circuits.

Examples of Passive Components

Passive components play a crucial role in supporting active components by managing energy within circuits. Common examples include:

• Resistors: Limit current flow and divide voltage.

• Capacitors: Store electrical energy temporarily and filter signals.

• Inductors: Store energy in a magnetic field and filter high-frequency noise.

Testing methods ensure these components meet performance criteria. For instance, value measurements verify the resistance, capacitance, or inductance of passive components, ensuring they function as intended in a circuit.

How Active and Passive Components Work Together

Active and passive components work in harmony to achieve complex electronic functions. Active components, such as transistors, amplify or switch electrical signals, while passive components regulate and stabilize these signals. For example, in an amplifier circuit, a transistor boosts the signal, while resistors and capacitors shape and filter it for clarity.

This collaboration extends to power regulation. Active components like voltage regulators provide stable output, while capacitors smooth fluctuations. Together, they ensure reliable operation in devices ranging from smartphones to industrial machinery. The synergy between these components forms the foundation of modern electronics, enabling efficient and precise circuit performance.

Applications of Active Components in Modern Electronics

Consumer Electronics: Smartphones, Laptops, and More

Active components are integral to consumer electronics, powering devices like smartphones, laptops, and gaming consoles. Microcontrollers, power management ICs (PMICs), and display drivers are some of the key components that enable these devices to function efficiently. For instance, microcontrollers manage tasks such as touch input processing and battery optimization in smartphones. PMICs ensure stable power delivery, enhancing device performance and longevity.

The consumer electronics segment holds a significant share of the active components market. In 2024, it is projected to account for 31.9% of the market, with a valuation of $339.2 billion. This growth reflects the increasing demand for advanced features like high-resolution displays, faster processors, and extended battery life. Additionally, the integration of active components in wearable devices and smart home systems highlights their versatility in modern technology.

Fun Fact: The average smartphone contains over 100 active components, including transistors, diodes, and integrated circuits, working together seamlessly.

Industrial Automation: Motor Control and Signal Processing

Industrial automation relies heavily on active components to optimize operations and improve efficiency. These components play a crucial role in motor control, signal processing, and system monitoring. For example, motor control ICs regulate the speed and torque of industrial motors, ensuring precise operation. Signal conditioning ICs process data from sensors, enabling accurate decision-making in automated systems.

Control systems integrate active components to streamline operations across enterprises. They combine sensors, controllers, and actuators to monitor and manage physical processes. Sensors collect data, controllers analyze it, and actuators execute commands, creating a cohesive automation system. Smart devices further enhance these systems by offering advanced functionalities like real-time monitoring and predictive maintenance.

The adoption of active components in industrial automation continues to grow, driven by advancements in IoT and AI technologies. These innovations enable factories to achieve higher productivity and lower operational costs.

Telecommunications: RF Transceivers and Data Converters

Telecommunications systems depend on active components to transmit and process signals effectively. RF transceivers, for instance, handle the transmission and reception of radio frequency signals, enabling wireless communication. Data converters, such as analog-to-digital converters (ADCs), transform analog signals into digital data for processing and storage.

The telecommunications sector has experienced significant growth due to the increasing demand for high-speed internet and 5G networks. Active components like optical ICs and filters ensure reliable data transmission and minimal signal loss. These components also support advanced features like beamforming and network optimization, which are essential for modern communication systems.

The integration of active components in telecommunications has revolutionized connectivity, enabling faster and more efficient communication across the globe.

IoT and Smart Devices: Wireless Connectivity and Sensors

Active components play a pivotal role in enabling wireless connectivity and sensor integration in IoT and smart devices. These components, such as wireless system-on-chips (SoCs) and low-power microcontrollers (MCUs), facilitate seamless communication between devices and their environments. By leveraging advanced wireless technologies like Wi-Fi, Bluetooth, and Zigbee, active components ensure reliable data transmission and efficient operation.

Sensors form the backbone of IoT systems, collecting data from the physical world and transmitting it for processing. Various types of sensors, including temperature, pressure, and motion sensors, enhance the functionality of smart devices. For instance:

• Temperature Sensors: Improve energy efficiency and extend operational lifespan.

• Humidity Sensors: Enable easy integration with Wi-Fi-enabled devices.

• Motion Sensors: Find widespread use in consumer appliances and medical devices.

These sensors rely on active components to process and transmit data, ensuring accurate and timely responses.

Did You Know?
The number of connected devices is projected to reach 18.8 billion by 2024 and 40 billion by 2030, driven by advancements in wireless technologies.

The following table highlights the impact of sensors on wireless connectivity in IoT applications:

The IoT market continues to grow significantly, fueled by the increasing adoption of connected devices. Active components ensure that these devices operate efficiently, enabling real-time monitoring, automation, and data-driven decision-making. Their integration into IoT systems has revolutionized industries, from smart homes to healthcare, by providing innovative solutions for everyday challenges.

Tip: Choosing the right combination of sensors and wireless technologies can optimize the performance of IoT devices while minimizing energy consumption.

Active components play a vital role in modern electronics by enabling signal amplification, power regulation, and oscillation. Their ability to deliver and absorb electric power makes them indispensable in various applications. These components amplify signals, enhancing the performance of audio systems and communication devices. They also regulate power supplies, ensuring stable operation in electronic circuits. By relying on external power sources, active components demonstrate their critical importance in shaping technological advancements. From consumer electronics to industrial automation, their contributions continue to drive innovation across industries.

What is the main difference between active and passive components?

Active components require an external power source to function, while passive components do not. Active components amplify or control electrical signals, whereas passive components store or dissipate energy. Examples of active components include transistors and diodes, while resistors and capacitors are passive components.

Why are transistors called the "building blocks" of modern electronics?

Transistors perform two critical functions: amplification and switching. These capabilities make them essential in devices like computers, smartphones, and audio systems. Their small size and efficiency allow engineers to integrate billions of transistors into microchips, enabling advanced technologies.

How do active components amplify signals?

Active components, such as transistors, increase the amplitude of weak input signals. They use external power to boost the signal strength without altering its original characteristics. This process is vital in applications like audio systems, where clear and strong sound output is required.

Can active components work without external power?

No, active components cannot function without external power. They rely on this energy to amplify, switch, or control electrical signals. For example, a transistor needs a small voltage at its base terminal to regulate current flow between its other terminals.

What role do active components play in IoT devices?

Active components enable wireless communication and data processing in IoT devices. Components like microcontrollers and wireless SoCs manage tasks such as sensor data collection and transmission. These functions ensure seamless connectivity and efficient operation in smart devices.

Tip: Understanding the roles of active components helps in designing efficient and reliable electronic systems.
