IC CH340 là gì and What Are Its Main Functions in Modern Electronics

ic ch340 là gì? This chip acts as a usb-to-serial converter, making it easy for computers to communicate with microcontrollers and other devices. Many engineers and students in Vietnam use the Cheap USB to TTL IC to program Arduino boards and connect IoT devices. The following table highlights some key specifications that help define its performance:

This chip uses a 12MHz crystal oscillator for accurate USB timing and supports automated resets through the DTR pin, making it a popular choice in modern electronics.

Key Takeaways

• The CH340 chip converts USB signals to serial data, enabling easy communication between computers and microcontrollers.

• It supports both 3.3V and 5V systems, making it flexible for many electronics projects and devices.

• The chip works with Windows, macOS, and Linux, offering broad compatibility for users and developers.

• CH340 is widely used in Arduino clones, IoT devices, and DIY projects due to its low cost and reliable performance.

• Its features like modem control signals and power-saving modes enhance programming, debugging, and device management.

ic ch340 là gì

Overview

Many people in Vietnam ask, "ic ch340 là gì?" The answer is simple. The CH340 is a small integrated circuit that acts as a bridge between USB and serial communication. This chip allows computers to connect with devices that use serial protocols, such as microcontrollers and development boards. The ch340 chip is popular because it supports both 3.3V and 5V systems, making it flexible for many projects.

The main job of the ch340 is bridging usb and uart communication. It converts signals from a USB port into serial data that microcontrollers can understand. This process is called usb to uart conversion. The chip supports USB 2.0 full-speed and can handle baud rates from 50 bps up to 2 Mbps. Many Arduino clones, ESP8266 boards, and 3D printers use the ch340 chip for programming and data transfer.

Note: The ch340 usb to serial converter is often found in student projects, DIY kits, and IoT devices across Vietnam. Its low cost and reliable performance make it a favorite in the maker community.

The following table summarizes the technical definition and primary functions of the ic ch340 là gì:

How ch340 usb to serial converter Works

The ch340 usb to serial converter operates by translating data between a computer’s USB port and a device’s serial interface. Inside the chip, several hardware blocks work together to achieve this. The USB transceiver handles the physical USB signals. The Serial Interface Engine manages USB data encoding and decoding. Internal memory stores configuration data, while the oscillator clock generator ensures accurate timing using a 12MHz crystal.

The chip’s UART controller manages the flow of serial data. It connects to the microcontroller’s TX and RX pins, allowing full duplex communication. The ch340 chip also supports modem control signals like RTS, CTS, DTR, and DSR. These features help with device programming and automatic resets, especially when uploading code to Arduino boards.

A typical setup involves connecting the ch340’s USB pins to a computer and its TX/RX pins to a microcontroller. The chip uses decoupling capacitors for power stability and can switch to power-saving mode when idle. Drivers installed on the computer create a virtual COM port, making the usb to uart interface seamless for users.

The ch340 usb to serial converter makes usb to uart interface possible for many modern electronics. It enables usb to uart conversion for devices that lack native USB support. This function is essential for programming, debugging, and upgrading embedded systems.

Main Functions of ch340

USB-to-Serial Converter

The ch340 stands out as a reliable usb-to-serial converter in modern electronics. This chip bridges the gap between computers and devices that use serial communication. Many engineers and students use the ch340 usb to serial converter to connect microcontrollers, sensors, and development boards to a computer’s USB port. The chip translates data from USB signals to serial signals and vice versa. This process allows devices without native USB support to communicate easily with modern computers.

The ch340 converter simplifies programming tasks. Developers can upload code to microcontrollers quickly. The chip also helps with debugging by providing a stable connection for data transfer. Many Arduino clones, ESP8266 boards, and 3D printers rely on the ch340 for usb to serial communication. The chip supports both 3.3V and 5V power options, making it adaptable for different hardware setups.

Tip: The ch340 converter works with Windows, macOS, and Linux. This compatibility makes it a popular choice for educational kits and DIY projects.

The main functions of the ch340 as a usb to serial converter include:

• Bridging USB and UART communication for microcontrollers and legacy systems.

• Revitalizing older devices by adding USB functionality.

• Streamlining code uploads and development cycles.

• Enhancing prototyping and testing with reliable performance.

• Supporting multiple operating systems and voltage levels.

• Ensuring stable operation with features like a crystal oscillator and decoupling capacitors.

• Providing a cost-effective solution for a wide range of electronics projects.

Other Supported Modes

The ch340 offers more than just basic usb to serial conversion. This chip supports several additional modes that increase its versatility in electronics projects. For example, the ch340 converter can handle serial to usb conversion, making it possible to connect older serial devices to modern computers. Many users employ the ch340 converter in RS232/TTL converter circuits, which are common in industrial meters and legacy equipment.

The chip also supports modem control signals such as RTS, CTS, DTR, and DSR. These signals help automate device resets and manage data flow during programming. The ch340 converter can operate in both synchronous and asynchronous serial modes, which adds flexibility for different communication protocols.

Some variants of the ch340 support infrared communication and printer port emulation. These features allow the chip to work in specialized applications, such as remote controls or legacy printer connections. The usb to serial converter ic design ensures that the chip remains stable and efficient in all supported modes.

A summary of the ch340’s versatility:

• Supports serial to usb and usb to serial communication.

• Handles modem control signals for advanced device management.

• Operates in both synchronous and asynchronous modes.

• Enables serial to usb conversion for legacy equipment.

• Offers variants with infrared and printer port support.

The ch340 converter’s broad range of functions makes it a valuable component in educational, industrial, and commercial electronics. Its adaptability and budget-friendly design encourage widespread use in Vietnam and around the world.

Key Features of usb to serial converter ic

Technical Specs

The usb to serial converter ic stands out for its reliable performance and broad compatibility. The ch340 chip supports USB 2.0 full-speed communication, which allows for stable data transfer between computers and electronic devices. It operates at both 3.3V and 5V, making it suitable for a wide range of microcontrollers and embedded systems. The integrated 12 MHz crystal oscillator reduces the need for external components, simplifying circuit design.

Many users appreciate the low power consumption of the usb to serial converter ic, especially in battery-powered projects. The chip works with Windows, Linux, and macOS, ensuring that students and engineers can use it across different platforms. The ch340 pinout includes dedicated lines for USB data, serial TX/RX, and modem control signals, which helps with easy integration into various projects.

Note: The ch340 features direct USB data line connections and uses capacitors for reset line stability, which enhances reliability in demanding environments.

The following table summarizes the main features and specifications:

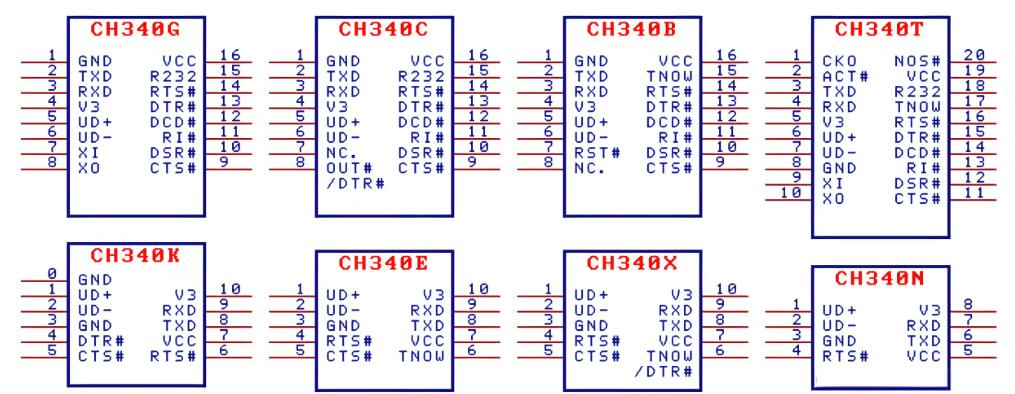

Variants

The ch340 series offers several variants to meet different project needs. Each variant provides unique ch340 features that support a variety of applications. The most common version, the ch340G, comes in a compact SOP-16 package and is widely used in Arduino clones and development boards. Other variants, such as the ch340C and ch340T, offer different pinouts and integrated features to suit specific requirements.

• ch340G: Popular for Arduino and DIY electronics, includes internal oscillator.

• ch340C: Similar to ch340G but does not require an external crystal, making it even easier to use.

• ch340T: Designed for serial to usb conversion in industrial and legacy equipment.

• ch340E: Ultra-compact version for space-constrained designs.

These variants allow engineers to select the best usb to serial converter ic for their application, whether for microcontroller programming, data transfer, or upgrading legacy devices. The ch340 features broad compatibility and flexible integration, making it a top choice in modern electronics.

Applications in Electronics and IoT

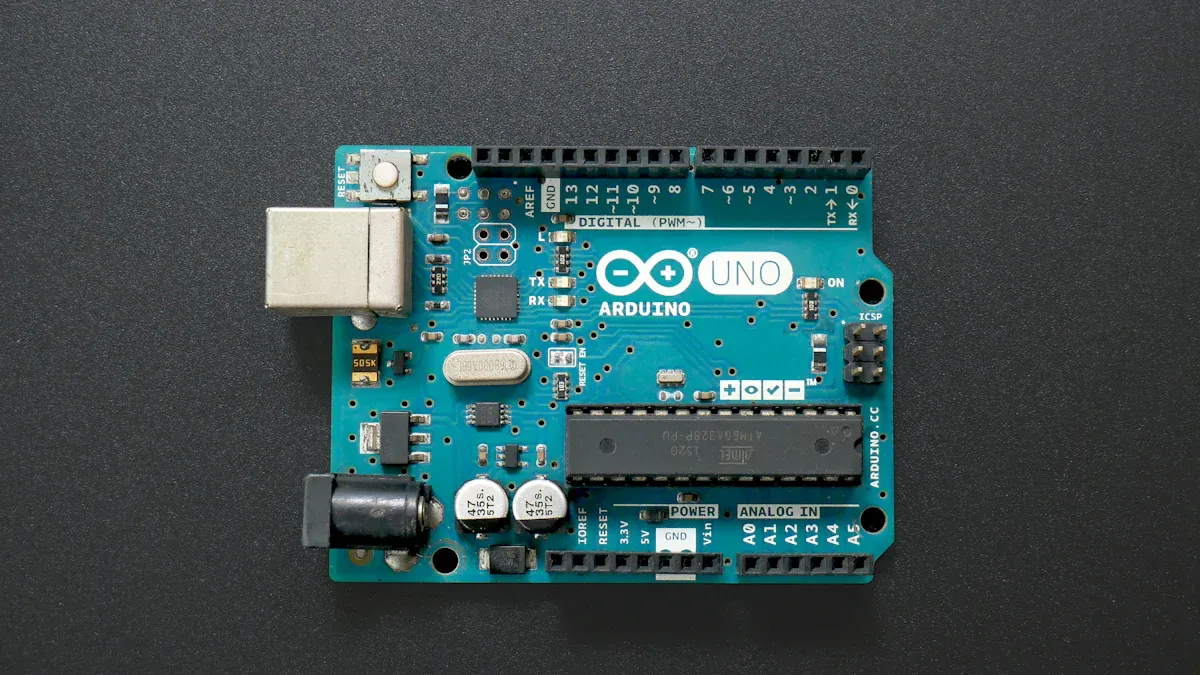

Arduino and Development Boards

Many engineers and students rely on Arduino and similar development boards for learning and prototyping. These boards often use a usb to serial interface to connect with computers. The CH340 chip plays a key role in this process. For example, generic Arduino Nano boards use the CH340 to enable usb connectivity. This feature allows users to upload code and transfer data using the Arduino IDE. An academic study on portable ECG devices highlights the CH340 as essential for communication between the Arduino and a computer. The study also points out that users may need to install drivers so the Arduino IDE can recognize the board. The CH340, together with the ATmega328 microcontroller, forms the backbone of many affordable and accessible development platforms.

Student and DIY Projects

Students and hobbyists in Vietnam often choose boards with the CH340 for their projects. These boards provide a simple way to connect microcontrollers to computers using a usb cable. Many DIY kits, robotics modules, and automation projects use this chip. The CH340 makes it easy to upload code, debug programs, and collect data. For those learning how to use ch340 usb to serial converter ic, the process usually involves connecting the board to a computer, installing the necessary driver, and selecting the correct port in the programming software. This straightforward approach helps beginners and encourages experimentation.

Vietnam Market Use Cases

The Vietnamese electronics market shows strong demand for devices with usb connectivity. The CH340 appears in a wide range of products, from Arduino clones to ESP8266 and ESP32 development boards. Makers use these boards to build smart switches, air quality sensors, and other IoT devices. Many 3D printers and CNC machines in Vietnam also use the CH340 to link their controllers to host computers. In education, universities and training centers use boards with the CH340 to teach programming and embedded systems. This widespread adoption supports innovation and hands-on learning across the country.

ch340 vs Other USB-to-Serial Converters

FT232

Engineers often compare the FT232 series from FTDI with the ch340 when selecting a usb-to-serial converter. The FT232 stands out for its robust driver support and advanced features. Many users choose FT232 chips for professional applications that require high reliability. The FT232 supports a wide range of baud rates and offers strong compatibility with different operating systems. It also provides extra features like EEPROM configuration and customizable serial numbers.

The FT232 usually costs more than the ch340. This higher price reflects its advanced features and brand reputation. Many original Arduino boards use the FT232 for their usb interface. Users who need strong technical support and long-term availability often select FT232 chips. However, for most educational and DIY projects, the ch340 provides a cost-effective alternative.

Note: Both chips support usb-to-serial conversion, but the FT232 offers more advanced configuration options.

CP2102 and PL2303

The CP2102 from Silicon Labs and the PL2303 from Prolific are two other popular usb-to-serial converter chips. The CP2102 offers simple integration and works well with many operating systems. Many development boards and IoT devices use the CP2102 for reliable usb communication. The chip features a compact design and supports automatic baud rate detection.

The PL2303 also provides a stable usb-to-serial connection. Many legacy devices and industrial systems use the PL2303 for data transfer. The chip supports a wide range of baud rates and works with Windows, macOS, and Linux. Some users prefer the PL2303 for its compatibility with older hardware.

When comparing these chips, engineers consider factors like price, driver support, and ease of use. The ch340 remains a popular choice for educational kits and affordable development boards. The CP2102 and PL2303 offer strong alternatives for users who need specific features or compatibility.

Tip: Always check driver availability and operating system support before choosing a usb-to-serial converter for your project.

The IC CH340 stands out as a practical solution for connecting computers to microcontrollers and other devices. Many engineers and students choose this chip for its affordability and versatility. Users often select it in these situations:

• Projects with tight budgets or large production runs

• Applications needing both 5V and 3.3V support

• Standard serial communication tasks in education or DIY electronics

This chip helps drive innovation in Vietnam and worldwide. Exploring its uses can open new possibilities in electronics and IoT.

What operating systems support the CH340 chip?

The CH340 chip works with Windows, macOS, and Linux. Users may need to install drivers for proper operation. Most Arduino IDE setups include these drivers. Many development boards with CH340 offer easy plug-and-play support.

How does someone install the CH340 driver?

Users can download the official CH340 driver from the WCH website. After downloading, they should run the installer and follow the on-screen instructions. Most operating systems recognize the chip after installation.

Why does a computer not detect the CH340 device?

A missing or outdated driver often causes this issue. Users should check the USB cable and port. Trying a different USB port or reinstalling the driver usually solves the problem.

Which devices commonly use the CH340 chip?

Many students and engineers in Vietnam use these devices for learning and prototyping.
