The Impact of LSM6DSOXTR on Industrial IoT and Smart Sensors

The LSM6DSOXTR is revolutionizing industrial IoT and smart sensors with its advanced features. This high-performance sensor integrates a 6-axis IMU and an embedded machine learning core, enabling exceptional precision and accuracy. Its ultra-low power consumption extends battery life, making it ideal for wearable and portable devices. Industries increasingly adopt the LSM6DSOXTR for gesture recognition, predictive maintenance, and motion tracking. In automotive applications, it supports contactless interfaces, enhancing safety and convenience. Compact design and innovative functionalities position the LSM6DSOXTR as a leader in efficiency and innovation compared to similar technologies, including the LSM6DSOwTR.

Key Takeaways

The LSM6DSOXTR has a 6-axis IMU and machine learning core. It improves accuracy and processes data quickly in real-time.
Its low power use helps batteries last longer. This makes it great for wearable and portable devices in industrial IoT.
The sensor's smart features find unusual machine patterns. This helps fix problems early, saving time and money.
It works easily with IoT systems, making it simple to use in many setups and improving how things work.
The LSM6DSOXTR is small and very accurate. It is useful in robots, smart farming, and checking the environment.

Key Features and Capabilities of the LSM6DSOXTR

Integrated 6-Axis IMU

The LSM6DSOXTR features a high-performance 6-axis IMU, combining a 3-axis accelerometer and a 3-axis gyroscope. This integration allows the sensor to deliver precise motion tracking and orientation detection. The accelerometer supports a full-scale range of ±2/±4/±8/±16 g, while the gyroscope offers angular rate ranges of ±125/±250/±500/±1000/±2000 dps. These specifications make it suitable for applications requiring high accuracy, such as industrial robotics and wearable devices. The IMU operates at just 0.55 mA in high-performance mode, ensuring energy efficiency. Additionally, it supports I²C and I3C interfaces, enhancing compatibility with various systems. By leveraging MEMS technology, the LSM6DSOXTR achieves compactness and reliability, making it a preferred choice for modern inertial measurement units.

Embedded Machine Learning Core

The embedded machine learning core in the LSM6DSOXTR enables on-device data processing, reducing the need for external computation. This feature enhances efficiency and responsiveness in industrial IoT applications. For instance, in manufacturing, the machine learning core helps identify defects invisible to the human eye, improving quality control. In the energy sector, it facilitates real-time monitoring of devices, enabling predictive maintenance and ensuring optimal machine health. By automating manual tasks, the machine learning core boosts productivity and reduces downtime. This capability positions the LSM6DSOXTR as a versatile sensor for advanced industrial applications.

Ultra-Low Power Consumption

The LSM6DSOXTR excels in energy efficiency, consuming only 0.55 mA in high-performance mode. This low power consumption extends the lifespan of battery-operated devices, such as wearables and portable sensors. It strikes a balance between performance and energy savings, ensuring reliable operation over extended periods. This feature is particularly beneficial for applications like motion tracking and environmental monitoring, where long-term deployment is essential. The sensor's energy efficiency enhances user experience and reduces maintenance costs, making it a valuable asset in the industrial IoT and smart sensor markets.

High Precision and Reliability

The LSM6DSOXTR stands out for its exceptional precision and reliability, making it a trusted choice for industrial IoT and smart sensor applications. Its advanced design ensures accurate motion tracking and orientation detection, even in challenging environments. This level of precision is critical for applications like robotics, where even minor inaccuracies can disrupt operations.

The sensor integrates a high-performance accelerometer and gyroscope, both of which deliver outstanding accuracy. The accelerometer measures acceleration across three axes with selectable ranges of ±2g, ±4g, ±8g, and ±16g. The gyroscope complements this by measuring angular velocity across three axes, offering ranges from ±125°/s to ±2000°/s. These features enable the LSM6DSOXTR to capture detailed motion data, ensuring reliable performance in dynamic scenarios.

The table below highlights the key features that contribute to the sensor's precision and reliability:

Feature	Description
Accelerometer	Measures acceleration in three axes (±2g, ±4g, ±8g, ±16g) for accurate sensing.
Gyroscope	Measures angular velocity in three axes (±125°/s to ±2000°/s) for precise measurements.
High Performance	Low noise and high accuracy suitable for precise motion tracking.
Built-In Processing	Includes sensor fusion algorithms for improved motion detection.
Low Power Consumption	Configurable power modes for energy efficiency in battery-powered devices.
Embedded Functions	Supports pedometer, tilt detection, enhancing functionality in applications.

The built-in sensor fusion algorithms further enhance accuracy by combining data from the accelerometer and gyroscope. This capability ensures smooth and reliable motion detection, even in complex environments. Additionally, the sensor's low noise levels and configurable power modes make it suitable for applications requiring consistent performance over extended periods.

Compatibility with IoT Protocols

The LSM6DSOXTR offers seamless compatibility with a wide range of IoT protocols, ensuring easy integration into modern IoT ecosystems. It supports standard communication interfaces like I²C and I3C, which simplify connectivity with various devices and platforms. This flexibility allows developers to incorporate the sensor into diverse applications without extensive modifications.

The sensor's compatibility extends to popular IoT platforms, enabling real-time data transmission and analysis. For example, in industrial IoT systems, the LSM6DSOXTR can transmit motion and vibration data to cloud-based platforms for predictive maintenance. This capability helps industries optimize operations and reduce downtime.

The sensor also supports advanced features like event detection and interrupt generation, which enhance its functionality in IoT applications. These features allow the sensor to trigger specific actions based on predefined conditions, such as detecting unusual vibrations in machinery. This proactive approach improves system responsiveness and reliability.

By offering robust compatibility with IoT protocols, the LSM6DSOXTR empowers developers to create innovative solutions for industrial automation, smart infrastructure, and wearable technology. Its ability to integrate seamlessly into IoT ecosystems ensures that it remains a valuable asset in the rapidly evolving world of connected devices.

Applications of the LSM6DSOXTR in Industrial IoT

Real-Time Monitoring and Predictive Maintenance

The LSM6DSOXTR plays a vital role in real-time monitoring and predictive maintenance. Its high-precision accelerometer and gyroscope enable accurate detection of vibrations and movements in industrial machinery. By continuously collecting sensor data, it identifies irregular patterns that may indicate potential failures. This capability allows industries to address issues before they escalate, reducing downtime and maintenance costs. The sensor’s ultra-low power consumption ensures reliable operation in battery-operated IoT applications, making it ideal for long-term deployment. Additionally, its temperature stability ensures consistent performance in varying environmental conditions, further enhancing its reliability in industrial settings.

Enhancing Robotics and Automation

The LSM6DSOXTR significantly advances robotics and industrial automation. Its precise motion tracking ensures accurate movement and positioning, which are essential for robotic applications. The sensor’s gesture recognition capabilities improve human-robot interaction, creating more intuitive and user-friendly systems. For example, it enables robots to respond to specific gestures, enhancing their functionality in automated environments. Furthermore, the sensor integrates seamlessly into smart devices, supporting the development of automated systems in smart homes and factories. These features make the LSM6DSOXTR a cornerstone for innovation in robotics and automation.

Key contributions of the LSM6DSOXTR to robotics and automation include:
- Precise motion tracking for accurate positioning.
- Gesture recognition for intuitive human-robot interaction.
- Integration into smart devices for seamless control of automated systems.

Vibration Analysis and Motion Tracking

The LSM6DSOXTR excels in vibration analysis and motion tracking, offering unparalleled accuracy and reliability. Its 16-bit data output and low noise levels ensure precise motion detection, even in complex motions. The sensor’s configurable accelerometer and gyroscope ranges provide optimal performance across various applications. For instance, it tracks motion along three axes, enabling detailed 3D motion tracking. The sensor’s low power consumption supports extended use in portable devices, while its temperature stability ensures consistent performance in challenging environments.

Feature	Description
High Precision	Offers 16-bit data output and low noise levels for accurate motion detection.
Wide Range of Sensitivity	Configurable accelerometer and gyroscope ranges for optimal performance in various applications.
Low Power Consumption	Ultra-low power mode ensures long battery life, crucial for portable devices.
Multi-Axis Motion Detection	Tracks motion along three axes for precise 3D motion tracking.

The LSM6DSOXTR’s ability to perform real-time data logging enhances its utility in industrial IoT systems. By providing detailed sensor data, it supports advanced data analysis, enabling industries to optimize operations and improve efficiency.

Seamless Integration with IoT Platforms

The LSM6DSOXTR ensures seamless integration with modern IoT platforms by offering advanced features and flexible connectivity options. Its compatibility with standard communication interfaces, such as SPI, I²C, and MIPI I3C, simplifies integration into diverse systems. These interfaces enable developers to connect the sensor to various IoT devices without extensive modifications, ensuring efficient data transmission and processing.

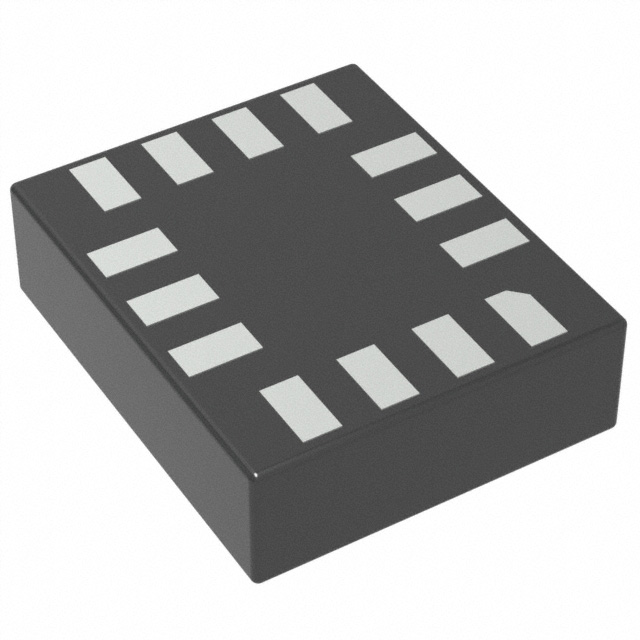

The sensor’s compact design, measuring only 2.5 mm x 3 mm x 0.83 mm, supports miniaturization in IoT devices. This feature makes it ideal for applications requiring small, lightweight components, such as wearable devices and portable sensors. Additionally, the LSM6DSOXTR operates within a voltage supply range of 1.71 V to 3.6 V, ensuring compatibility with different power configurations.

The table below highlights the technical features that facilitate seamless integration:

Feature	Description
Communication Interfaces	SPI, I²C, and MIPI I3C for flexible integration with various IoT platforms.
Auxiliary SPI	Supports Optical Image Stabilization data output for enhanced camera performance.
Embedded Functionalities	Includes pedometer, step detector, and significant motion detection for fitness applications.
Standard Interrupts	Features like free-fall and wakeup enhance interactivity and safety.
Programmable State Machines	Allows for adaptive processing and on-device analytics.
Voltage Supply Range	Operates between 1.71 V to 3.6 V, ensuring compatibility with different power configurations.
Compact Design	Dimensions of 2.5 mm x 3 mm x 0.83 mm support miniaturization in IoT devices.

The LSM6DSOXTR also includes programmable state machines, enabling adaptive processing and on-device analytics. This feature enhances the sensor’s ability to perform real-time data analysis, reducing reliance on external computation. Standard interrupts, such as free-fall and wakeup detection, improve interactivity and safety in IoT systems. These capabilities make the LSM6DSOXTR a versatile solution for IoT applications, empowering developers to create innovative and efficient devices.

Applications of the LSM6DSOXTR in Smart Sensors

Wearable Devices for Safety and Health Monitoring

The LSM6DSOXTR enhances wearable connected devices by providing advanced motion tracking and data analysis capabilities. Its integrated accelerometer and gyroscope enable precise activity tracking, making it ideal for fitness applications. The sensor supports fall detection, which is crucial for elderly care and workplace safety. By continuously monitoring motion and orientation, it ensures accurate detection of unusual movements. This feature improves response times in emergencies.

The sensor’s ultra-low power consumption extends battery life, ensuring reliable operation in wearable devices. Its compact MEMS design allows integration into small, lightweight systems. This makes it suitable for applications like health monitoring and fitness tracking. Additionally, the sensor’s temperature stability ensures consistent performance, even in varying environmental conditions. These features make the LSM6DSOXTR a valuable component in modern wearable technology.

Smart Agriculture and Environmental Monitoring

The LSM6DSOXTR plays a vital role in smart agriculture by enabling precise monitoring of environmental conditions. Its high-precision accelerometer and gyroscope provide accurate data on equipment motion and positioning. This capability helps farmers optimize machinery usage and reduce fuel consumption. The sensor also supports temperature monitoring, which is essential for maintaining optimal conditions in greenhouses and storage facilities.

In environmental monitoring, the sensor’s ability to detect vibrations and motion enhances the accuracy of data collection. For example, it can monitor seismic activity or track the movement of wildlife. Its MEMS technology ensures durability and reliability in outdoor environments. The sensor’s low power consumption makes it suitable for long-term deployment in remote locations. These features contribute to the development of sustainable and efficient agricultural systems.

Industrial Robotics and Automation

The LSM6DSOXTR improves industrial robotics and automation by delivering precise motion tracking and gesture recognition. Its advanced sensors enable accurate control of robotic systems, enhancing operational efficiency. Gesture recognition allows users to interact with machinery without physical buttons, improving usability in industrial settings. The sensor’s ability to operate in varying temperatures ensures consistent performance in challenging environments.

The table below highlights the benefits of the LSM6DSOXTR in industrial robotics and automation:

Application Area	Benefit
Gesture Recognition	Enhances user interaction with machinery, allowing for control without physical buttons.
Motion Tracking	Improves operational efficiency by enabling precise control in industrial settings.
Industrial Automation	Reduces the need for touchscreens in environments where gloves are worn.

The sensor’s compact MEMS design and low power consumption make it ideal for integration into robotic systems. Its ability to provide real-time data ensures accurate motion detection and control. These features position the LSM6DSOXTR as a key enabler of innovation in industrial automation.

Smart Infrastructure and Building Management

The LSM6DSOXTR plays a crucial role in advancing smart infrastructure and building management. Its high-precision sensors enable accurate monitoring of structural health and environmental conditions. This capability ensures the safety and efficiency of modern buildings.

The sensor’s motion detection features support applications like elevator monitoring and energy-efficient lighting systems. For instance, it detects movement in elevators to optimize their operation, reducing energy consumption. In lighting systems, it identifies occupancy patterns to adjust brightness levels automatically. These features help conserve energy and lower operational costs.

The LSM6DSOXTR also enhances building security. Its ability to detect vibrations and unusual movements makes it ideal for intrusion detection systems. By integrating with IoT platforms, the sensor provides real-time alerts, enabling quick responses to potential threats. This functionality improves the safety of residential and commercial spaces.

In addition, the sensor supports wearable technology for building management personnel. Maintenance staff can use wearable devices equipped with the LSM6DSOXTR to monitor equipment performance remotely. This approach streamlines maintenance tasks and reduces downtime.

The table below highlights key benefits of the LSM6DSOXTR in smart infrastructure:

Feature	Benefit
Motion Detection	Optimizes elevator operation and lighting systems for energy efficiency.
Vibration Monitoring	Enhances security by detecting unusual movements.
IoT Integration	Enables real-time alerts for improved safety and responsiveness.
Wearable Device Support	Assists maintenance staff in monitoring equipment remotely.

The LSM6DSOXTR’s compact design and low power consumption make it suitable for long-term deployment in smart buildings. Its advanced features empower developers to create innovative solutions that enhance the functionality and sustainability of modern infrastructure.

Technical Breakdown of the LSM6DSOXTR

Machine Learning Core for On-Device Processing

The LSM6DSOXTR features a machine learning core that enhances on-device data processing. This core supports up to eight decision trees simultaneously, enabling the classification and detection of specific motion patterns. By using a decision tree structure, the sensor reduces code complexity and power requirements, making it ideal for motion-based applications. For example, it can recognize fitness activities or detect motion intensity with high efficiency.

Programmable state machines further improve the sensor's adaptability. These state machines allow the sensor to perform intelligent processing directly on the device. This capability eliminates the need for external computation, which enhances the efficiency of data analysis. By moving certain algorithms from the application processor to the sensor, the LSM6DSOXTR achieves lower power consumption. This feature is particularly useful in applications like gesture recognition and fitness tracking, where real-time data processing is essential.

Low Power Consumption for Long-Term Deployment

The LSM6DSOXTR operates in ultra-low power mode, consuming as little as 0.3 µA in low-power settings. This efficiency significantly extends the battery life of devices, making it suitable for long-term deployment in IoT systems. Battery-operated devices, such as wearables and portable sensors, benefit from this feature by minimizing the need for frequent recharging.

The sensor’s low power consumption also enhances device longevity. It ensures reliable operation over extended periods, even in applications requiring continuous data logging. This capability makes the LSM6DSOXTR a valuable component in systems where energy efficiency is critical, such as environmental monitoring and industrial IoT.

Sensor Fusion for Enhanced Data Accuracy

The LSM6DSOXTR combines data from its accelerometer and gyroscope to achieve high precision in motion detection. This sensor fusion capability enhances data accuracy by providing detailed measurements of acceleration and angular velocity. These dual measurements enable precise tracking of motion and orientation changes, which is crucial for applications requiring real-time feedback.

The sensor’s versatile sensing capabilities make it effective in analyzing complex motions. For instance, it can track 3D motion patterns in robotics or detect subtle vibrations in industrial machinery. Its low power consumption ensures consistent performance during extended use. These features collectively improve the accuracy and reliability of data analysis in industrial IoT and smart sensor applications.

Advanced Motion Detection Algorithms

The LSM6DSOXTR incorporates advanced motion detection algorithms that elevate its capabilities in industrial IoT and smart sensor applications. These algorithms analyze data from the integrated accelerometer and gyroscope to detect and interpret complex motion patterns. By leveraging these features, the sensor delivers precise and reliable performance across various use cases.

One of the key strengths of these algorithms lies in their ability to process data in real time. This capability enables the sensor to identify specific motion events, such as free-fall, tilt, or step detection. For example, in wearable devices, the algorithms track user activity and provide accurate fitness metrics. In industrial settings, they monitor machinery vibrations to detect anomalies, ensuring timely maintenance.

The algorithms also support programmable state machines, which allow developers to customize motion detection for specific applications. These state machines enable the sensor to recognize unique motion patterns without relying on external processors. This feature reduces latency and power consumption, making the LSM6DSOXTR ideal for battery-operated devices.

Feature	Benefit
Real-Time Processing	Enables immediate detection of motion events for faster responses.
Programmable State Machines	Allows customization for application-specific motion patterns.
Multi-Axis Analysis	Combines accelerometer and gyroscope data for enhanced accuracy.

The sensor’s advanced motion detection algorithms also enhance data accuracy through sensor fusion. By combining data from multiple axes, the algorithms provide a comprehensive understanding of motion dynamics. This capability proves essential in applications like robotics, where precise motion tracking is critical for smooth operation.

Tip: Developers can optimize the sensor’s performance by fine-tuning the algorithms to suit specific environmental conditions or application requirements.

The LSM6DSOXTR’s motion detection algorithms empower industries to achieve greater efficiency and reliability. Their ability to process data on-device ensures faster responses and reduced energy consumption, making them a cornerstone of modern IoT and smart sensor technologies.

The LSM6DSOXTR represents a pivotal advancement in industrial IoT and smart sensor technologies. Its machine learning core enables adaptive processing directly on the sensor, ensuring real-time data analysis and gesture recognition. This capability positions it as a leader in emerging technology fields. The sensor’s ultra-low power consumption supports long-term deployment, while its MEMS design ensures compactness and reliability. Advanced features like precise motion tracking and temperature stability enhance its accuracy across diverse applications. By revolutionizing systems in industries such as automation and environmental monitoring, the LSM6DSOXTR continues to drive innovation and efficiency.

What is the LSM6DSOXTR, and what makes it unique?

The LSM6DSOXTR is a high-performance inertial measurement unit (IMU) with a 6-axis accelerometer and gyroscope. Its embedded machine learning core enables on-device data processing, reducing external computation. Ultra-low power consumption and compatibility with IoT protocols make it ideal for industrial IoT and smart sensor applications.

How does the LSM6DSOXTR improve predictive maintenance?

The LSM6DSOXTR monitors vibrations and motion in real time. It detects irregular patterns that indicate potential equipment failures. This capability allows industries to address issues early, reducing downtime and maintenance costs. Its precision and reliability ensure consistent performance in challenging environments.

Can the LSM6DSOXTR be used in wearable devices?

Yes, the LSM6DSOXTR is ideal for wearable devices. Its compact design, low power consumption, and precise motion tracking make it suitable for fitness tracking, fall detection, and health monitoring. It ensures long battery life and reliable performance, even in portable and lightweight systems.

What IoT protocols does the LSM6DSOXTR support?

The LSM6DSOXTR supports standard communication interfaces like I²C, SPI, and MIPI I3C. These interfaces simplify integration into IoT platforms, enabling real-time data transmission and analysis. Its compatibility ensures seamless connectivity with diverse IoT ecosystems.

How does the machine learning core benefit industrial applications?

The machine learning core processes data directly on the sensor, reducing latency and power consumption. It supports decision trees and programmable state machines, enabling adaptive processing. This feature enhances efficiency in applications like gesture recognition, defect detection, and predictive maintenance.
