Implementing Bluetooth Control in Robots with STM32F103C8T6

Bluetooth control in robotics opens up a world of possibilities. It can be utilized in education, healthcare, industries, and home automation. Imagine robots performing precise tasks or assisting in surgeries. The STM32F103C8T6 microcontroller, often referred to as the Blue Pill, plays a crucial role in these applications. Its affordability and versatility make it a favorite among hobbyists and professionals. With its 32-bit ARM Cortex-M3 core, it offers significant performance advantages. You can explore its features and specifications at STM32F103C8T6 for robotics, Microcontrollers. Follow Droid Hangar to discover more about this technology.

Hardware Components and Design

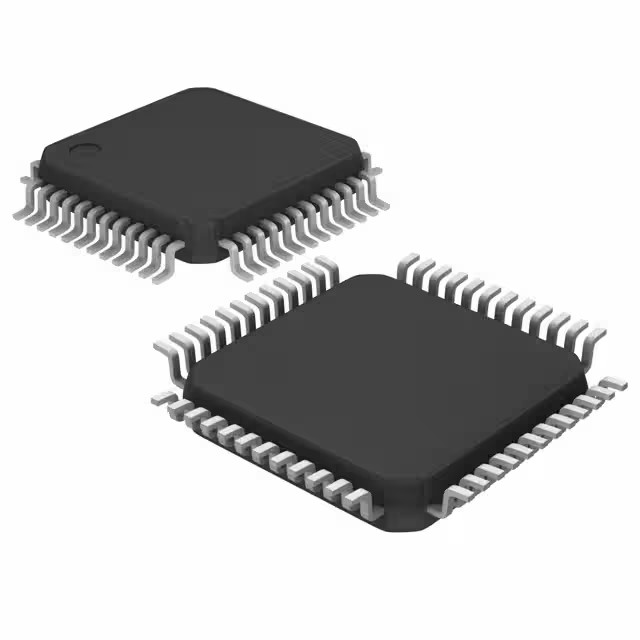

Overview of STM32F103C8T6 for Robotics

Features and specifications

The STM32F103C8T6, often called the Blue Pill, stands out in the world of robotics. It features a high-performance ARM Cortex-M3 32-bit RISC core operating at a 72 MHz frequency. This microcontroller includes high-speed embedded memories, with Flash memory up to 128 Kbytes and SRAM up to 20 Kbytes. It also offers an extensive range of enhanced I/Os and peripherals connected to two APB buses. You will find two 12-bit ADCs, three general-purpose 16-bit timers, and one PWM timer. The standard and advanced communication interfaces include up to two I2Cs and SPIs, three USARTs, USB, and CAN. These features make it suitable for applications like motor drives, medical equipment, and industrial applications.

Advantages in robotic applications

In robotics, the STM32F103C8T6 provides significant advantages. Its 32-bit architecture allows for complex computations, essential for tasks like balancing robots or controlling robotic arms. The microcontroller's versatility supports various communication protocols, making it ideal for interfacing with sensors and actuators. You can use it in projects like a Line-following robotic car or a MAZE SOLVER. Its affordability and community support make it accessible for both hobbyists and professionals.

Bluetooth Module Selection and Integration

Criteria for choosing a Bluetooth module

When selecting a Bluetooth module for your robot, consider several factors. First, ensure compatibility with the STM32F103C8T6. Check the module's range and data rate to match your project's requirements. Power consumption is crucial, especially for battery-operated robots. Look for modules with easy integration and good documentation.

Recommended modules for STM32F103C8T6

For the STM32F103C8T6, popular Bluetooth modules include the HC-05 and HC-06. These modules offer reliable performance and are easy to integrate. They support UART communication, which aligns well with the microcontroller's capabilities. You can find numerous tutorials online to help with the integration process.

Additional Components and Design Considerations

Power supply considerations

Power supply is a critical aspect of your robot's design. Ensure that the power source can handle the STM32F103C8T6 and all connected components. Consider using a voltage regulator to maintain stable power levels. Battery life is important for mobile robots, so choose a power-efficient design.

Sensors and actuators integration

Integrating sensors and actuators requires careful planning. The STM32F103C8T6 supports various communication protocols, allowing you to connect different sensors like an auto-calibrating line sensor for a Line-following robotic car. Actuators, such as motors, can be controlled using PWM signals. Ensure that your design accommodates the necessary connections and power requirements.

Control Mechanisms and Implementation

Bluetooth Communication Protocols

Overview of common protocols

Bluetooth communication plays a vital role in robotics. You will encounter several protocols, each with unique features. The most common ones include Bluetooth Classic and Bluetooth Low Energy (BLE). Bluetooth Classic offers higher data rates, making it suitable for applications requiring continuous data streaming. BLE, on the other hand, focuses on low power consumption, ideal for battery-operated devices. Understanding these protocols helps you choose the right one for your project.

Protocol selection for STM32F103C8T6

Selecting the appropriate protocol for the STM32F103C8T6 involves considering your project's specific needs. If your robot requires constant data exchange, Bluetooth Classic might be the better choice. For projects prioritizing energy efficiency, BLE stands out. The STM32F103C8T6, an ARM-based microcontroller, supports both protocols, providing flexibility in your design. You can find detailed discussions on protocol selection in Hackaday Archives and Hackaday.io Categories.

Software Development and Implementation

Programming environment setup

Setting up the programming environment is crucial for successful Implementation. You can use various development environments, such as the Arduino IDE or STM32CubeIDE. These platforms simplify the Coding process, especially for those familiar with Arduino. Ensure you have the necessary libraries and drivers installed. This setup allows you to start coding and testing your robot's functionalities efficiently.

Code structure and implementation

Organizing your code structure enhances readability and maintenance. Begin by defining the main functions and modules. Implement the Bluetooth communication module, ensuring it aligns with the chosen protocol. Use clear and concise comments to explain each section. This approach aids in debugging and future modifications. Hackaday.io Contributor Adel provides valuable insights into effective code structuring.

Testing and Debugging

Common issues and solutions

During Implementation, you may encounter common issues like connectivity problems or unexpected behavior. Ensure all connections are secure and check for any loose wires. Verify that the Bluetooth module is correctly paired with the STM32F103C8T6. If issues persist, consult Hackaday.io Member forums for solutions. These platforms offer a wealth of knowledge from experienced contributors.

Tools for effective debugging

Effective debugging tools streamline the troubleshooting process. Utilize serial monitors to track data flow and identify errors. Logic analyzers provide insights into signal integrity, crucial for diagnosing communication issues. These tools, combined with community support from Hackaday and Hackaday Prize participants, enhance your debugging capabilities. Remember, patience and persistence are key to successful Implementation.

Project Updates and Demonstrations

Progress Updates

Milestones achieved

As you progress in building a Bluetooth-controlled robot, you will reach several key milestones. First, you will successfully integrate the STM32F103C8T6 microcontroller with the Bluetooth module. This step ensures that your robot can communicate wirelessly. Next, you will implement basic movement controls, allowing your robot to navigate its environment. Finally, you will achieve a stable balancing mechanism, crucial for projects like a balancing robot. Each milestone brings you closer to a fully functional robot.

Challenges encountered

Building a robot involves overcoming various challenges. You may face issues with Bluetooth connectivity, requiring you to troubleshoot and ensure proper pairing. Balancing the robot can be tricky, especially when dealing with uneven surfaces. You might need to adjust the sensor calibration to maintain stability. Power management is another challenge, as you must ensure that the robot operates efficiently without draining the battery quickly. Addressing these challenges enhances your problem-solving skills and deepens your understanding of robotics.

Practical Demonstrations

Real-world applications

Bluetooth-controlled robots have numerous real-world applications. In education, they serve as valuable teaching tools, helping students learn about electronics and programming. In healthcare, robots assist in surgeries, providing precision and reducing human error. Industrial applications include automated assembly lines, where robots perform repetitive tasks with high accuracy. Home automation also benefits from Bluetooth-controlled robots, as they can manage household chores and improve convenience. The versatility of these robots makes them indispensable in various fields.

Performance evaluation

Evaluating the performance of your robot is essential to ensure its effectiveness. You will assess its ability to maintain balance, especially in a balancing robot. The balancing robot PCB update plays a crucial role in enhancing stability and control. You will also evaluate the robot's responsiveness to Bluetooth commands, ensuring seamless communication. Reviews from peers and experts provide valuable insights into areas for improvement. By conducting thorough performance evaluations, you can refine your robot's design and functionality.

In this blog, you explored the implementation of Bluetooth control in robots using the STM32F103C8T6 microcontroller. You learned about the hardware components, including the selection of Bluetooth modules and the integration of sensors and actuators. The control mechanisms, such as Bluetooth communication protocols and software development, were discussed to enhance your understanding of robot functionality. Testing and debugging tools were highlighted to ensure effective implementation.

Looking ahead, the future of Bluetooth-controlled robots is promising. You can expect advancements in balancing techniques, leading to more stable and efficient balancing robot designs. The integration of artificial intelligence could further enhance robot capabilities, allowing for more complex tasks and applications. Continuous innovation will drive improvements in power efficiency and communication reliability, making robots even more versatile in various fields.
