How to Use the IRFZ44N MOSFET for Automotive Electronics

The IRFZ44N is crucial in car electronics as an N-channel MOSFET. It effectively manages high currents and has low resistance, making it ideal for handling power in vehicles. With a capacity of up to 49A and a low resistance of 17.5 mΩ, it significantly reduces power loss during operation. These features make it excellent for controlling motors and lights in cars. The IRFZ44N is commonly found in applications such as electric steering and LED lights. It integrates seamlessly with 12V and 24V systems, making it a valuable component in various car circuits. Additionally, it plays a key role in the driver circuit for efficient power management in automotive electronics supply.

Key Takeaways

• The IRFZ44N MOSFET works well in cars. It handles high currents and has low resistance, making it good for motors and lights.

• Always add a pull-down resistor. This keeps the IRFZ44N off when no signal is sent. It stops accidental switching and protects the circuit.

• Check the IRFZ44N's temperature while it works. Use heat sinks and thermal pads to control heat and keep it working well.

• Make sure the Gate voltage is about 10V for best switching. A gate driver circuit can help keep this voltage steady in car systems.

• Add a flyback diode in motor circuits. It stops voltage spikes from harming the IRFZ44N and helps the circuit last longer.

Understanding the IRFZ44N N-Channel MOSFET

Key Technical Specifications

Voltage and current ratings

The IRFZ44N is a strong n-channel MOSFET for high-current uses. It can handle up to 55 volts between Drain and Source (Vds). It also supports a continuous current (Id) of 49 amps. This makes it great for 12V or 24V car systems like motors and lights. Its Gate-to-Source voltage (Vgs) ranges from -20V to +20V. This allows it to work with different control signals.

RDS(on) and efficiency

The IRFZ44N has a very low on-resistance (RDS(on)) of 17 milliohms. This helps reduce power loss, making it more efficient in high-current tasks. Its total gate charge (Qg) is 44 nanocoulombs, allowing quick switching. This is important for tasks like PWM motor control.

Maximum operating temperature

The IRFZ44N works well in hot conditions. It can handle temperatures up to 175°C. This makes it perfect for cars where heat is a problem. Using heat sinks can help it perform even better.

Pin Configuration and Functionality

Gate, Drain, and Source pins

The IRFZ44N has three pins: Gate, Drain, and Source. The Gate controls when the MOSFET turns on or off. When voltage is applied to the Gate, current flows between the Drain and Source. The Drain is where the current enters, and the Source is where it exits.

How the pins interact in automotive circuits

In car circuits, the Gate connects to a control signal, like a microcontroller. The Drain connects to the load, such as a motor or LED lights. The Source connects to the ground. For example, in motor control, the IRFZ44N acts as a switch to control power to the motor. A pull-down resistor keeps the MOSFET off when no signal is sent to the Gate.

Tip: Always check the Gate voltage to ensure proper operation and protect the MOSFET.

How to Use MOSFETs in Automotive Circuits

Setting Up the IRFZ44N

Picking the right gate resistor

Choosing a gate resistor is very important for the IRFZ44N. It controls the current going into the Gate, keeping the MOSFET and circuit safe. Usually, values between 100Ω and 1kΩ are used. For cars, a 220Ω resistor works well. This value allows smooth switching without overheating or delays.

Connecting the MOSFET to a load

To use the IRFZ44N with a load, connect the Drain pin to the load's positive terminal, like a motor or LED. The Source pin should go to the ground. The Gate pin connects to a control signal, often from a microcontroller. Add a pull-down resistor (e.g., 10kΩ) between the Gate and Source to keep the MOSFET off when no signal is present. Use a flyback diode across motors to stop voltage spikes from damaging the MOSFET.

Example Applications in Vehicles

Motor control circuits

The IRFZ44N is great for controlling motors. It helps adjust speed and direction using PWM signals. In an H-bridge setup, it works as a switch to manage motor power. This is common in RC cars, electric windows, and robots.

LED lighting systems

The IRFZ44N is perfect for car LED lights. It supports PWM dimming, which adjusts brightness while saving energy. This is useful for headlights, interior lights, and decorative LED strips.

Power Supply and Voltage Considerations

Ensuring proper gate-source voltage

The IRFZ44N needs about 10V between Gate and Source to work well. If the voltage is too low, it may not switch fully, causing heat and wasting energy. A gate driver circuit can help keep the voltage steady.

Protecting the circuit with diodes

Diodes are important for protecting the circuit. A flyback diode stops voltage spikes when motors turn off. A Zener diode between Gate and Source can shield the MOSFET from sudden voltage increases.

IRFZ44N Circuit Example: DC Motor Control Using PWM

The IRFZ44N is often used for motor control. Below is a simple circuit to control motor speed using an Arduino.

📌 Parts Needed:
✔ IRFZ44N MOSFET (N-channel)
✔ 12V DC Motor

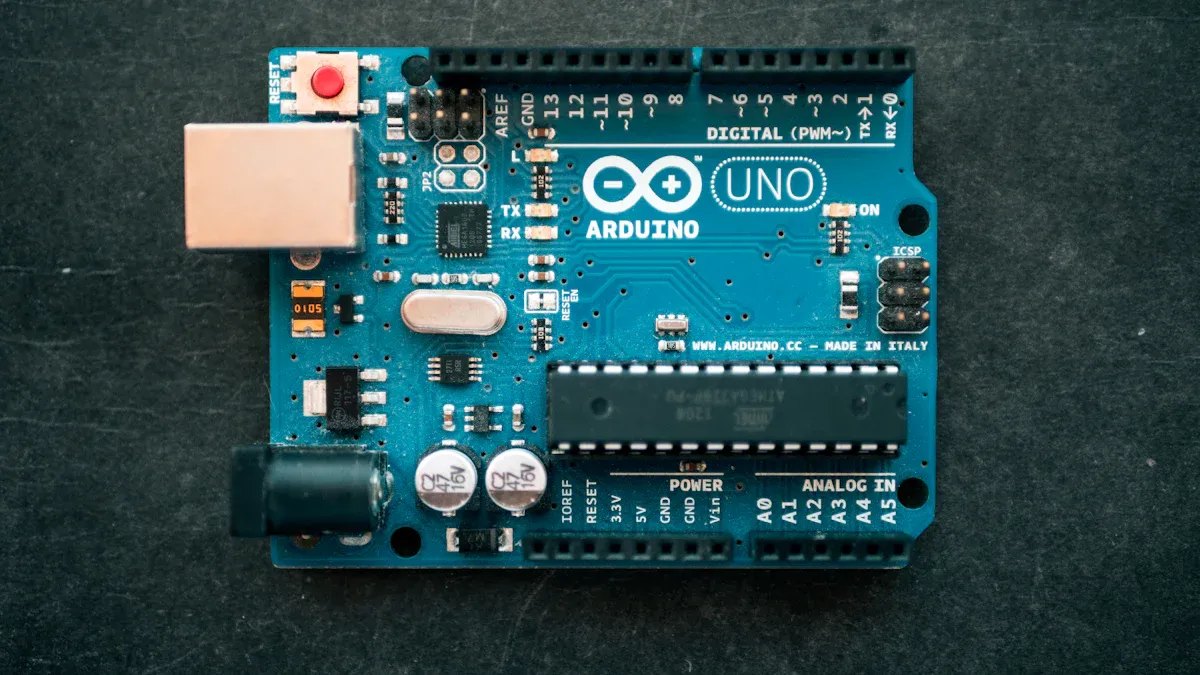

✔ Arduino (or any microcontroller with PWM)
✔ 10kΩ Resistor (pull-down)
✔ 1N4007 Diode (flyback diode)
✔ 12V Power Supply

📜 Circuit Diagram:

          +12V
            │
            │
           (M) DC Motor
            │
            │
           Drain (D)
             │
             ├── Source (S) ─── GND
             │
           IRFZ44N
             │
             ├── 10kΩ Pulldown
             │
           Gate (G) ─── Arduino PWM (D9)

📝 Arduino Code:

int motorPin = 9; // PWM pin for MOSFET Gate

void setup() {
  pinMode(motorPin, OUTPUT);
}

void loop() {
  analogWrite(motorPin, 128); // 50% speed (PWM = 128 out of 255)
  delay(5000);
  analogWrite(motorPin, 255); // Full speed
  delay(5000);
}

✅ How It Works:
The IRFZ44N MOSFET acts like a switch to control motor power. The Arduino sends PWM signals to adjust motor speed. The flyback diode (1N4007) stops voltage spikes when the motor turns off. The 10kΩ resistor keeps the MOSFET off if no signal is sent.

🚀 Where Can This Be Used?
✔ RC cars and robots
✔ Fan speed controllers
✔ Smart home devices (e.g., automatic curtains)

Best Practices for Using the IRFZ44N

Heat Management Techniques

Adding heat sinks and thermal pads

The IRFZ44N gets hot when handling high currents. To cool it, attach a heat sink. Heat sinks help remove extra heat and stop overheating. Use thermal pads or paste between the MOSFET and heat sink. This improves heat transfer and keeps the IRFZ44N working longer in car circuits.

Checking temperature during use

Keep an eye on the IRFZ44N's temperature while it works. Tools like temperature sensors or thermal cameras can spot overheating early. Check the temperature often to ensure it stays below 175°C. If it gets too hot, reduce the load or improve cooling to avoid damage.

Gate Drive Requirements

Need for correct gate voltage

The IRFZ44N needs a specific voltage to work well. About 10V between Gate and Source is best. If the voltage is too low, it won't switch fully, causing heat and wasting energy. A steady power supply helps keep the voltage stable in car systems.

Using a gate driver circuit

A gate driver circuit helps control the IRFZ44N's gate voltage. It gives the right voltage and current for quick switching. You can use driver ICs or transistor circuits for this. Good gate control reduces energy loss and helps the IRFZ44N work better in fast tasks like motor control.

Avoiding Common Mistakes

Not overloading the MOSFET

Don't exceed the IRFZ44N's limits of 49A and 55V. Overloading can break it. Use a multimeter to check current and voltage during use. Add a fuse or circuit breaker to protect it from sudden surges.

Wiring pins correctly

Connect the Gate, Drain, and Source pins properly. Wrong wiring can damage the IRFZ44N. Always check the datasheet for the correct pin layout. Secure all wires and test connections with a multimeter before turning on the circuit. This prevents errors and ensures smooth operation.

Tip: Check your circuit often for loose wires or broken parts to keep it running well.

Troubleshooting the IRFZ44N in Automotive Applications

Common Switching Issues

Checking gate voltage levels

Switching problems happen if the gate voltage is wrong. The IRFZ44N needs about 10V between Gate and Source to work well. Use a multimeter to check this voltage. If it’s too low, the MOSFET won’t fully turn on. This can cause heat and waste energy. A gate driver circuit can keep the voltage steady, even with changing power in cars.

Verifying connections

Loose or wrong wires can stop the IRFZ44N from working. Make sure all wires are tight and in the right place. The Drain connects to the load, and the Source goes to the ground. Use a multimeter to check for broken wires or bad connections. Fix any issues to avoid problems.

Overheating Problems

Ensuring adequate heat dissipation

Too much heat can harm the IRFZ44N, especially with high currents. Attach a heat sink to cool it down. Add thermal paste between the heat sink and MOSFET for better cooling. A small fan near the MOSFET can also help. Check the temperature often to catch overheating early.

Reducing load current

High current can make the IRFZ44N overheat. Keep the load below its 49A limit. If the load is too big, use more MOSFETs together to share the current. This lowers stress on each part and keeps the circuit stable.

Circuit Instability

Adding decoupling capacitors

Voltage changes or noise can make the circuit unstable. Add decoupling capacitors near the IRFZ44N to smooth the voltage. These capacitors block noise and keep the voltage steady. Use capacitors that match the car’s system voltage, like 12V or 24V.

Checking for noise in the circuit

Noise can mess up the IRFZ44N’s performance. Use an oscilloscope to find noise in the circuit. Add ferrite beads or inductors to reduce it. Shield wires and use twisted-pair cables to cut down interference.

Tip: Check your circuit often for damage or wear to keep it working well.

The IRFZ44N MOSFET is a useful part for car electronics. It handles high currents, switches quickly, and works efficiently. This makes it great for motor control, LED dimming, and power circuits. Setting it up right, like choosing a good gate resistor and keeping it cool, helps it last longer. Fixing issues, like checking gate voltage and controlling heat, keeps it working well even in tough situations.

Tip: Try using the IRFZ44N for projects like motor speed control or LED lights. It is strong and meets industry rules, making it a reliable choice for car systems.

What does the pull-down resistor do in an IRFZ44N circuit?

The pull-down resistor keeps the MOSFET off when no signal is sent. It stops accidental switching by holding the Gate voltage at zero. This prevents unwanted current from flowing in the circuit.

Can the IRFZ44N work with 24V car systems?

Yes, the IRFZ44N can handle up to 55V safely. This makes it good for both 12V and 24V car systems. It works well with high-current devices like motors and lights.

Why is a flyback diode important in motor circuits?

A flyback diode stops voltage spikes when the motor turns off. These spikes can harm the MOSFET. The diode gives the current a safe path, protecting the circuit and making it last longer.

How do you pick the right gate resistor for the IRFZ44N?

Choose a resistor between 100Ω and 1kΩ to control Gate current. For cars, a 220Ω resistor is often used. It helps balance switching speed and heat control.

What if the IRFZ44N gets too hot?

Too much heat can damage the MOSFET or make it less efficient. Use heat sinks, fans, or thermal pads to cool it down. Check the temperature and lower the load if needed to keep it safe.
