The S9S08DZ60F2MLH microcontroller is a standout 8-bit integrated circuit designed for embedded applications across various industries, including automotive, industrial automation, and consumer electronics. Engineered for high performance and low power consumption, it is an excellent choice for energy-efficient systems. With versatile connectivity options like SPI, I²C, and UART, it ensures smooth integration into a wide range of devices. The advantageous supply of NXP Semiconductors products adds to its reliability, providing a cost-effective and dependable solution for today’s technological needs.

Key Takeaways

The S9S08DZ60F2MLH microcontroller operates at a high clock speed of 40 MHz, ensuring efficient processing for time-sensitive applications.
With 60 KB of Flash memory and 4 KB of RAM, it provides ample storage for programs and data, enhancing system performance.
Its versatile connectivity options, including SPI, I²C, and UART, simplify integration into various embedded systems.
Designed for low power consumption, it features multiple low-power modes that extend battery life in portable devices.
The microcontroller's wide operating voltage range (2.7V to 5.5V) allows it to adapt to different power supply configurations.
Robust design and automotive-grade qualifications make it reliable for use in harsh environments, such as automotive and industrial applications.
NXP Semiconductors' commitment to quality ensures that the S9S08DZ60F2MLH meets stringent industry standards, making it a trusted choice for developers.

Overview of the S9S08DZ60F2MLH Microcontroller

What is the S9S08DZ60F2MLH?

The S9S08DZ60F2MLH is an 8-bit microcontroller designed to meet the demands of modern embedded systems. It combines a powerful processing core with integrated memory and peripherals, making it a versatile choice for various applications. This microcontroller operates at a clock speed of up to 40 MHz, ensuring efficient performance for tasks requiring precision and reliability.

Engineered by NXP Semiconductors, the S9S08DZ60F2MLH supports a wide range of operating voltages, from 2.7V to 5.5V. This flexibility allows it to adapt to different power supply configurations. Its robust design ensures reliable operation in challenging environments, with an extended temperature range of -40°C to +125°C. These features make it suitable for automotive systems, industrial automation, and consumer electronics.

The microcontroller integrates essential components like 60 KB of Flash memory for program storage and 4 KB of RAM for data handling. It also includes multiple communication interfaces such as SPI, I²C, UART, and CAN, enabling seamless connectivity with other devices. Its low-power design further enhances its appeal for energy-efficient applications.

Key Features and Benefits

The S9S08DZ60F2MLH offers a range of features that cater to diverse application needs. Below are some of its key highlights:

High Performance: The microcontroller operates at a maximum clock speed of 40 MHz, ensuring quick and efficient processing for time-sensitive tasks.
Integrated Memory: With 60 KB of Flash memory and 4 KB of RAM, it provides ample space for program storage and data management.
Versatile Connectivity: It supports multiple communication protocols, including SPI, I²C, UART, CAN, and LIN. This versatility simplifies integration into complex systems.
Low Power Consumption: Designed for energy efficiency, it includes low-power modes that extend battery life in portable and embedded devices.
Wide Operating Voltage Range: The ability to function between 2.7V and 5.5V makes it adaptable to various power supply setups.
Robust Design: Its automotive-grade qualification and extended temperature range ensure reliability in harsh environments.
Integrated Peripherals: Features like ADC, PWM, and WDT enhance its functionality for applications requiring precise control and monitoring.

These features translate into several benefits for developers and end-users:

Scalability: The microcontroller's compatibility with other devices in its family allows developers to scale their designs easily.
Flexibility: Its wide range of peripherals and communication options supports diverse use cases, from robotics to medical devices.
Cost-Effectiveness: By integrating multiple functions into a single chip, it reduces the need for additional components, lowering overall system costs.
Reliability: Its robust design ensures consistent performance in demanding applications, such as automotive and industrial systems.

The S9S08DZ60F2MLH stands out as a reliable and efficient solution for embedded systems. Its combination of performance, connectivity, and energy efficiency makes it a preferred choice for developers seeking to create innovative and dependable products.

Core Processor and Architecture of S9S08DZ60F2MLH

8-bit HCS08 Core

The S9S08DZ60F2MLH microcontroller is built around the HCS08 core, a high-performance 8-bit central processing unit (CPU). This core is part of the S08 family, which is known for its scalability and flexibility. The HCS08 architecture enables efficient execution of instructions, making it suitable for applications requiring precise control and quick response times. Operating at a maximum clock speed of 40 MHz, the core ensures reliable performance for embedded systems.

The HCS08 core supports a CISC (Complex Instruction Set Computing) architecture, which simplifies programming and enhances code efficiency. This design allows developers to optimize their applications without compromising functionality. Additionally, the microcontroller's compatibility with other devices in the S08 family ensures seamless migration and scalability for future projects. This feature benefits developers by reducing design complexity and development time.

Low-Power Design and Integrated Peripherals

The S9S08DZ60F2MLH microcontroller incorporates a low-power design, making it ideal for energy-efficient applications. It includes multiple low-power modes, such as wait and stop modes, which help conserve energy during periods of inactivity. These modes extend battery life in portable devices and reduce overall power consumption in embedded systems.

Integrated peripherals enhance the functionality of this microcontroller. Features like the Analog-to-Digital Converter (ADC) enable precise data acquisition from sensors, while the Pulse Width Modulation (PWM) module supports motor control and other timing-sensitive tasks. The inclusion of a Watchdog Timer (WDT) ensures system reliability by monitoring and resetting the microcontroller in case of software malfunctions.

The microcontroller also supports a wide range of communication interfaces, including SPI, I²C, UART, CAN, and LIN. These interfaces simplify connectivity with external devices, making the microcontroller versatile for various applications. The combination of low-power design and integrated peripherals makes the S9S08DZ60F2MLH a robust solution for developers seeking to create efficient and reliable systems.

Memory and Storage in S9S08DZ60F2MLH

Flash Memory Specifications

The S9S08DZ60F2MLH microcontroller features 60 KB of Flash memory, providing ample space for program storage. Flash memory serves as non-volatile storage, retaining data even when the power supply is disconnected. This characteristic ensures that critical programs and instructions remain intact, making it ideal for embedded systems requiring reliability.

Flash memory in this microcontroller supports in-system programming. Developers can update or modify the stored programs without removing the microcontroller from the circuit. This capability simplifies the development process and allows for seamless firmware updates. The memory's endurance ensures consistent performance, even after numerous write and erase cycles.

The Flash memory also enhances system efficiency by enabling faster access to stored instructions. This feature proves essential for applications demanding quick response times, such as automotive systems and industrial automation. Its robust design ensures stability in harsh environments, further solidifying its suitability for critical applications.

RAM and EEPROM Capabilities

The S9S08DZ60F2MLH includes 4 KB of RAM, which serves as volatile memory for temporary data storage during operation. RAM plays a crucial role in managing real-time data, enabling the microcontroller to execute tasks efficiently. The 4 KB capacity provides sufficient space for handling variables, buffers, and other runtime data, ensuring smooth operation in complex applications.

Although this microcontroller does not feature dedicated EEPROM, its Flash memory can emulate EEPROM functionality. This approach allows developers to store non-volatile data, such as configuration settings or calibration parameters, without requiring additional components. The emulated EEPROM functionality offers flexibility while maintaining cost-effectiveness.

The combination of RAM and Flash memory ensures a balanced architecture for both temporary and permanent data storage. This design supports a wide range of applications, from robotics to medical devices, where efficient memory management is critical. The memory capabilities of the S9S08DZ60F2MLH make it a reliable choice for developers seeking performance and adaptability.

Voltage and Power Requirements of S9S08DZ60F2MLH

Operating Voltage Range

The S9S08DZ60F2MLH microcontroller operates within a flexible voltage range, making it adaptable to various power supply configurations. Its supply voltage spans from 2.7V to 5.5V, accommodating both low-voltage and standard-voltage systems. This wide range ensures compatibility with diverse applications, including battery-powered devices and systems with regulated power supplies.

The ability to function at lower voltages enhances its suitability for energy-efficient designs. Developers can leverage this feature to create systems that consume less power while maintaining reliable performance. At the same time, the upper limit of 5.5V allows the microcontroller to integrate seamlessly into environments requiring higher voltage levels. This versatility makes it an excellent choice for embedded systems in automotive, industrial, and consumer electronics sectors.

Power Efficiency and Low-Power Modes

Power efficiency stands as a core strength of the S9S08DZ60F2MLH. Its design incorporates multiple low-power modes, enabling developers to optimize energy consumption based on application requirements. These modes include:

Wait Mode: Reduces power usage by halting the CPU while keeping peripherals active. This mode suits scenarios where peripheral operations must continue without active processing.
Stop Mode: Minimizes power consumption by halting both the CPU and peripherals. This mode is ideal for applications requiring extended periods of inactivity.

These low-power modes extend the operational life of battery-powered devices, making the microcontroller a reliable choice for portable and energy-sensitive applications. Additionally, the microcontroller's efficient power management ensures minimal heat generation, which contributes to system stability and longevity.

By combining a wide operating voltage range with advanced power-saving features, the S9S08DZ60F2MLH delivers exceptional performance in energy-efficient designs. Its adaptability and efficiency make it a valuable asset for developers aiming to create sustainable and reliable embedded systems.

Physical Packaging and Pin Configuration of S9S08DZ60F2MLH

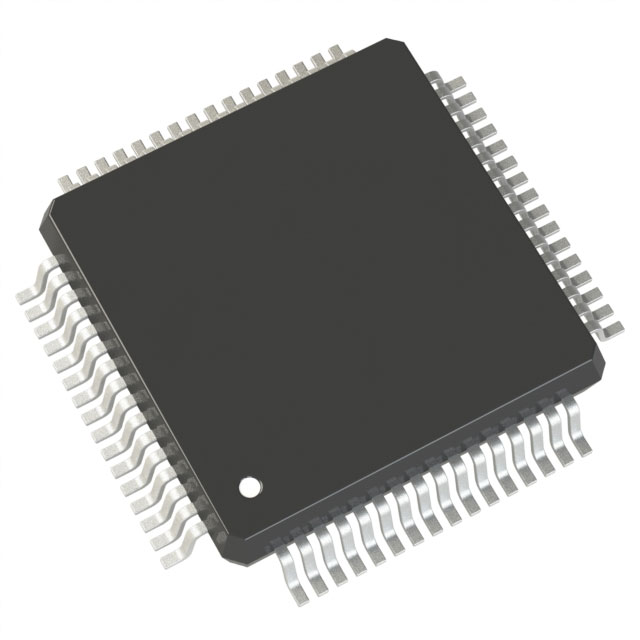

LQFP Package Details

The S9S08DZ60F2MLH microcontroller comes in a 64-pin Low-Profile Quad Flat Package (LQFP). This packaging type measures 10 x 10 mm, making it compact and suitable for space-constrained designs. The LQFP format ensures ease of handling during assembly and provides excellent thermal performance, which is essential for applications operating in demanding environments.

The 64-pin configuration offers a balanced combination of functionality and size. Each pin is clearly labeled, simplifying the integration process for developers. The flat leads extend outward from all four sides of the package, ensuring reliable soldering and electrical connections. This design minimizes the risk of mechanical stress, enhancing the durability of the microcontroller in long-term applications.

The LQFP package also supports automated assembly processes, making it ideal for high-volume production. Its low-profile design reduces the overall height of the device, which is advantageous for applications requiring slim and compact form factors. These features make the S9S08DZ60F2MLH a practical choice for modern embedded systems.

Pinout and Communication Interfaces

The S9S08DZ60F2MLH microcontroller features a well-organized pinout that supports a wide range of functionalities. The 64 pins are strategically assigned to accommodate power supply, communication interfaces, and peripheral connections. This arrangement ensures efficient utilization of the microcontroller's capabilities.

Key communication interfaces include:

SPI (Serial Peripheral Interface): Facilitates high-speed communication between the microcontroller and external devices like sensors and memory modules.
I²C (Inter-Integrated Circuit): Enables multi-device communication using a simple two-wire protocol, ideal for connecting peripherals such as displays and EEPROMs.
UART (Universal Asynchronous Receiver-Transmitter): Supports serial communication for data exchange with other devices, including PCs and embedded modules.
CAN (Controller Area Network): Provides robust communication for automotive and industrial applications, ensuring reliable data transfer in noisy environments.
LIN (Local Interconnect Network): Simplifies communication in automotive systems, particularly for body electronics and sensor networks.

The microcontroller also includes pins dedicated to power supply and ground connections, ensuring stable operation across its voltage range of 2.7V to 5.5V. Additional pins support features like analog-to-digital conversion (ADC), pulse width modulation (PWM), and external interrupts, enhancing its versatility for diverse applications.

The clear labeling and logical arrangement of pins simplify the design process for developers. By offering multiple communication options and peripheral support, the S9S08DZ60F2MLH ensures seamless integration into complex systems. This flexibility makes it a reliable and efficient solution for a variety of embedded applications.

Applications and Use Cases of S9S08DZ60F2MLH

Automotive Systems

The S9S08DZ60F2MLH microcontroller plays a pivotal role in modern automotive systems. Its robust design and wide operating temperature range make it ideal for critical applications such as body control modules, lighting systems, and advanced driver assistance systems (ADAS). Automotive manufacturers rely on this microcontroller to enhance vehicle safety and efficiency. Features like Controller Area Network (CAN) support ensure reliable communication between electronic control units (ECUs), which is essential for systems like antilock braking systems (ABS) and electronic stability control.

The growing demand for hybrid and electric vehicles has further increased the need for efficient microcontrollers. The S9S08DZ60F2MLH meets these demands with its low-power modes and versatile connectivity options. It supports the integration of infotainment systems, climate control, and sensor networks, contributing to the development of smarter and more sustainable vehicles. As the automotive industry continues to innovate, this microcontroller remains a reliable choice for manufacturers aiming to meet evolving technological standards.

Industrial Automation

In industrial automation, the S9S08DZ60F2MLH excels in managing complex processes and ensuring precision. Its integrated peripherals, such as the Analog-to-Digital Converter (ADC) and Pulse Width Modulation (PWM) module, enable accurate motor control and sensor interfacing. These features make it suitable for applications like conveyor systems, robotic arms, and automated assembly lines.

The microcontroller's ability to operate across a wide voltage range enhances its adaptability in diverse industrial environments. It supports communication protocols like SPI and I²C, which simplify the integration of sensors, actuators, and other components. This versatility allows engineers to design systems that are both efficient and scalable. By leveraging the S9S08DZ60F2MLH, industries can achieve higher productivity and reliability in their automation processes.

Consumer Electronics and IoT Devices

The S9S08DZ60F2MLH also finds extensive use in consumer electronics and Internet of Things (IoT) devices. Its compact LQFP package and low-power design make it ideal for space-constrained and battery-operated devices. Smart home appliances, wearable technology, and IoT sensors benefit from its energy efficiency and seamless connectivity.

This microcontroller supports multiple communication interfaces, enabling it to connect with other devices in a network. For instance, it can facilitate data exchange between smart thermostats, security cameras, and cloud platforms. Its Flash memory and emulated EEPROM functionality allow developers to store configuration settings and firmware updates, ensuring long-term device performance.

As IoT adoption grows, the S9S08DZ60F2MLH provides a reliable foundation for creating innovative and user-friendly products. Its combination of performance, flexibility, and cost-effectiveness makes it a preferred choice for developers in the consumer electronics sector.

Manufacturer and Quality Assurance of S9S08DZ60F2MLH

NXP Semiconductors and Their Expertise

NXP Semiconductors, a global leader in the semiconductor industry, manufactures the S9S08DZ60F2MLH microcontroller. Headquartered in Eindhoven, Netherlands, NXP has been at the forefront of innovation since its establishment in 1953 as part of Philips Electronics. With over 60 years of experience, the company has built a reputation for delivering reliable and high-performance solutions for embedded applications.

NXP employs more than 45,000 professionals across 35 countries, showcasing its global reach and expertise. The company focuses on secure connectivity solutions, driving advancements in areas such as connected vehicles, smart devices, and end-to-end security. By integrating Freescale Semiconductor into its operations, NXP has further strengthened its portfolio of microcontrollers, including the S9S08DZ60F2MLH.

The company’s commitment to innovation ensures that its products meet the evolving demands of modern technology. NXP’s microcontrollers, including the S9S08DZ60F2MLH, reflect this dedication by offering robust performance, energy efficiency, and versatile connectivity. These qualities make NXP a trusted partner for developers seeking reliable solutions for automotive, industrial, and consumer electronics applications.

Compliance Standards and Certifications

NXP Semiconductors ensures that the S9S08DZ60F2MLH microcontroller adheres to stringent quality and safety standards. The company prioritizes compliance with global certifications to guarantee the reliability and performance of its products. This microcontroller meets automotive-grade qualifications, making it suitable for critical applications in vehicles and other demanding environments.

The S9S08DZ60F2MLH operates within an extended temperature range of -40°C to +125°C, ensuring consistent performance under harsh conditions. Its compliance with industry standards, such as ISO/TS 16949 for automotive quality management, highlights its suitability for high-stakes applications. These certifications demonstrate NXP’s commitment to delivering products that meet rigorous quality benchmarks.

NXP also emphasizes environmental responsibility by ensuring that its products comply with regulations like RoHS (Restriction of Hazardous Substances). This compliance minimizes the environmental impact of its microcontrollers, aligning with global sustainability goals. Developers can rely on the S9S08DZ60F2MLH for projects that require both performance and adherence to environmental standards.

By combining technical expertise with strict quality assurance practices, NXP Semiconductors delivers microcontrollers that developers can trust. The S9S08DZ60F2MLH exemplifies this commitment, offering a reliable and certified solution for a wide range of embedded applications.

The S9S08DZ60F2MLH microcontroller stands out as a reliable and efficient solution for embedded systems. Its key specifications, including the 8-bit HCS08 core, 60 KB of Flash memory, and versatile communication interfaces, ensure exceptional performance and energy efficiency. This microcontroller adapts seamlessly to various applications, from automotive systems to IoT devices, showcasing its versatility and reliability.

Its cost-effective design reduces system complexity while maintaining high functionality. Developers can rely on its robust features to create innovative and dependable products. Exploring the potential of the S9S08DZ60F2MLH can unlock new possibilities for modern electronic systems.
