Master LM393 for Stable and Efficient Electronics

The LM393 is essential in electronic circuits, providing accurate voltage comparisons for stable and efficient system performance. Engineers depend on the LM393 comparator to create reliable designs across various applications. Its capability to compare two input voltages and deliver a digital output signal makes it a key component in areas like battery monitoring and level detection. Effective use requires understanding its features and choosing appropriate pull-up resistors. From oscillators to smart home sensors, the LM393 demonstrates exceptional versatility in both basic and advanced designs. LM393 new original sales are steadily increasing, reflecting its reliability and adaptability.

Key Takeaways

• The LM393 chip helps compare voltages in circuits accurately. It works well for tasks like checking batteries and detecting levels.

• Always add a pull-up resistor to the LM393 output. This helps it work better and respond faster.

• Use decoupling capacitors to steady the power and reduce noise. This improves how the LM393 works in many uses.

• Set up the power supply and input signals correctly. This stops problems and keeps the circuit working well.

• Trying the LM393 in projects helps you see its full use. It can help make better and smarter electronics.

Understanding the LM393 Comparator

Key Functions of the LM393

The LM393 comparator performs critical voltage comparison tasks in electronic circuits. It compares two input voltages and determines which one is higher. This comparison generates a digital output signal, which can control other components in the circuit. The LM393's open-collector output design allows it to interface seamlessly with various digital logic families, including TTL, DTL, MOS, and CMOS.

The LM393 excels in precision voltage comparison, making it suitable for applications requiring accurate threshold detection. For instance, it can detect when a battery's voltage drops below a safe level or when an AC waveform crosses zero volts. Its ability to operate with low power consumption and a wide supply voltage range enhances its versatility in diverse designs.

Tip: Always use a pull-up resistor with the LM393's open-collector output to ensure proper functionality in your circuit.

Features and Specifications

The LM393 comparator offers a range of features that make it a reliable choice for electronic designs. Its dual-voltage comparator configuration includes two independent comparators within a single IC package. This design enables simultaneous voltage comparison tasks, reducing the need for multiple components.

The following table highlights the technical specifications of the LM393:

Additional technical parameters of the LM393 include a supply current of 0.45mA, a propagation delay of 1.3μs, and a maximum power dissipation of 710mW. These specifications ensure the LM393 operates efficiently in various conditions.

The LM393 also supports industrial controls and consumer electronics, offering flexible integration into multiple designs. Its low offset voltage and fast response time contribute to its precision and reliability in critical applications.

Applications of LM393 Comparator in Electronics

The LM393 comparator finds use in a wide range of applications due to its versatility and precision. Some notable applications of the LM393 comparator include:

• Battery Monitoring and Undervoltage Detection: The LM393 monitors battery voltage levels and triggers alerts or shutoffs when the voltage drops below a predefined threshold.

• Zero-Crossing Detection: It detects when an AC waveform crosses zero volts, which is essential for phase control in power electronics.

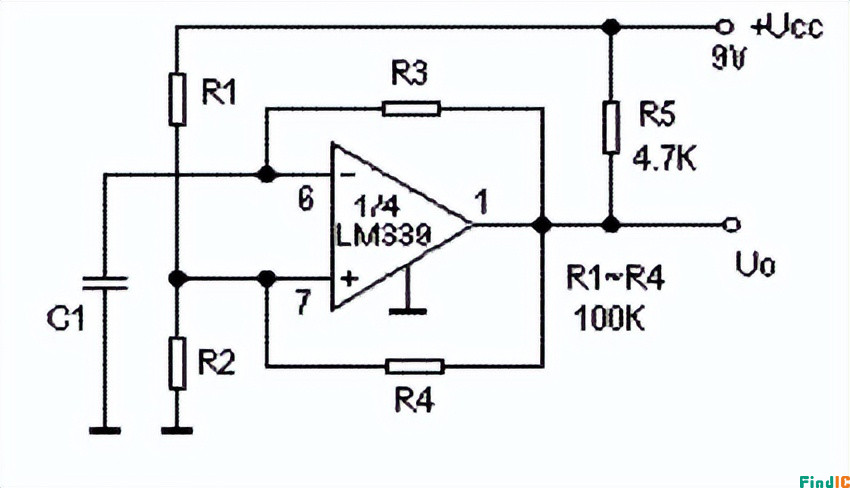

• Oscillators and Pulse Generators: Paired with resistors and capacitors, the LM393 can generate square waves or timing pulses for various circuits.

• Temperature Sensing: When combined with thermistors, the LM393 creates temperature threshold alarms for safety and control systems.

• Power-On Reset Circuits: It ensures microcontrollers start only when the supply voltage is within safe limits.

• Window Comparator: Configured with two comparators, the LM393 detects if a signal falls within a specific voltage range.

In advanced projects, such as speed and distance measurement for mobile robots, the LM393 plays a crucial role. For example, it converts infrared sensor triggers into voltage signals, enabling precise navigation and positioning. This adaptability makes the LM393 a valuable component in both simple and complex designs.

Note: Refer to the LM393 datasheet for detailed technical specifications and design guidelines to optimize its performance in your circuits.

Best Practices for Using the LM393

Proper Power Supply Configuration

A stable power supply is essential for ensuring the LM393 operates efficiently. Proper configuration of the power supply prevents erratic behavior and protects other components in the circuit. The LM393 supports a wide voltage range, from 2V to 36V, making it suitable for various applications. However, maintaining the correct voltage level is crucial for optimal performance.

Key considerations for power supply configuration include:

• Monitoring the supply voltage to ensure it remains within the acceptable range.

• Using decoupling capacitors near the IC to filter out noise and stabilize the voltage.

• Designing circuits to shut down or alert users when the supply voltage exceeds or drops below predefined thresholds.

For example, the LM393 can monitor a +5V VCC supply line and indicate when the voltage exceeds a safe level. This feature helps prevent damage to microcontrollers by shutting down the circuit if the power supply becomes unstable. These practices highlight the importance of proper power supply support for the LM393.

Input Signal Conditioning Techniques

The LM393 comparator relies on precise input signals to deliver accurate output. Conditioning the input signal ensures the comparator functions as intended, especially in noisy environments. Signal conditioning involves preparing the input voltage to match the LM393's requirements, improving the reliability of the circuit.

Effective techniques for input signal conditioning include:

• Adding resistors to limit current and protect the IC from voltage spikes.

• Using capacitors to filter high-frequency noise from the input signal.

• Ensuring the input voltage stays within the LM393's common-mode range, which includes ground.

For instance, in a temperature sensing application, a thermistor's output signal may fluctuate due to environmental noise. Adding a capacitor across the input terminals can smooth the signal, allowing the LM393 to detect temperature thresholds with greater precision. Proper signal conditioning enhances the LM393's ability to provide precision control in critical applications.

Selecting the Right Pull-Up Resistors

The LM393's open-collector output requires a pull-up resistor to function correctly. Choosing the appropriate resistor value impacts the comparator's performance, including its response time and noise immunity. Designers must balance these factors to achieve the desired circuit behavior.

Key points to consider when selecting pull-up resistors:

• Smaller resistor values improve response time and noise immunity but increase current consumption.

• Larger resistor values reduce power consumption but may slow down the comparator's response.

• Recommended resistor values for the LM393 range from 1kΩ to 10kΩ, depending on the application.

The output of a comparator can be easily modified using a pull-up resistor connected to the positive supply voltage. This feature allows designers to interface the comparator with a variety of logic families. The propagation delay can be improved by using a smaller pull-up resistor. A smaller pull-up resistor also improves noise immunity, but it also increases current and power consumption.

For example, in a battery monitoring circuit, a 4.7kΩ pull-up resistor provides a good balance between speed and power efficiency. Selecting the right pull-up resistor ensures the LM393 comparator operates reliably across different configurations.

Importance of Decoupling Capacitors

Decoupling capacitors play a vital role in ensuring the stable operation of the LM393 comparator. These capacitors, often referred to as bypass capacitors, help filter out unwanted noise and stabilize the power supply voltage. By doing so, they protect the LM393 from voltage fluctuations that could disrupt its performance.

Why Decoupling Capacitors Are Essential

Electronic circuits often experience noise or voltage spikes due to switching components or external interference. This noise can affect the LM393's ability to compare input voltages accurately. Decoupling capacitors act as a buffer, absorbing these fluctuations and providing a steady voltage to the IC.

Key benefits of using decoupling capacitors include:

• Noise Reduction: They filter high-frequency noise from the power supply, ensuring clean operation.

• Voltage Stabilization: They maintain a consistent voltage level, preventing erratic behavior in the LM393.

• Improved Reliability: They enhance the overall stability and reliability of the circuit.

Tip: Place decoupling capacitors as close as possible to the LM393's power supply pins for maximum effectiveness.

Choosing the Right Decoupling Capacitor

Selecting the appropriate decoupling capacitor is crucial for optimal performance. The capacitor's value and type determine its effectiveness in filtering noise and stabilizing voltage.

Consider the following guidelines when choosing a decoupling capacitor:

1. Capacitor Value: Use a 0.1µF ceramic capacitor for high-frequency noise filtering. For low-frequency noise, add a larger capacitor, such as 10µF or 47µF.

2. Capacitor Type: Ceramic capacitors are preferred due to their low equivalent series resistance (ESR) and high-frequency performance.

3. Voltage Rating: Ensure the capacitor's voltage rating exceeds the circuit's supply voltage for safe operation.

For example, in a 5V power supply circuit, a 0.1µF ceramic capacitor placed near the LM393 ensures smooth operation by filtering out high-frequency noise.

Best Practices for Using Decoupling Capacitors

Proper placement and usage of decoupling capacitors maximize their effectiveness. Follow these best practices to achieve stable and efficient circuit performance:

• Placement: Position the capacitor as close as possible to the LM393's VCC and GND pins. This minimizes the inductance of the connecting traces.

• Multiple Capacitors: Use a combination of small and large capacitors to filter noise across a wide frequency range.

• PCB Design: Keep the traces connecting the capacitor short and wide to reduce resistance and inductance.

Note: Always verify the capacitor's polarity when using electrolytic capacitors to avoid damage.

Decoupling capacitors are indispensable in LM393 circuits. They ensure stable operation by filtering noise and maintaining a steady voltage. Proper selection and placement of these capacitors enhance the LM393's performance, making them a critical component in reliable electronic designs.

Avoiding Common Mistakes with the LM393

Preventing Incorrect Pin Connections

Incorrect pin connections can lead to circuit malfunctions or even damage the LM393 IC. Understanding the pin configuration of LM393 is essential for proper integration into electronic designs. The IC features eight pins, including two input pairs, two outputs, and power supply connections.

To avoid errors, designers should:

• Refer to the datasheet for the correct pin configuration of LM393.

• Double-check connections before powering the circuit.

• Use clear labeling on printed circuit boards (PCBs) to identify pin functions.

For instance, connecting the output pin directly to a power source without a pull-up resistor can cause the comparator to malfunction. Proper attention to pin connections ensures the LM393 operates reliably in various applications.

Managing Voltage Range Limitations

Voltage range limitations can affect the performance of LM393 circuits. The IC supports a wide supply voltage range of 2V to 36V, but designers must consider specific constraints.

• Saturation Voltage Constraints: The output transistor's saturation voltage, influenced by a resistance of approximately 60 ohms, can impact circuit efficiency. This is particularly relevant in low-power applications.

• Differential Input Voltage Tolerance: The LM393 can handle differential input voltages up to the supply voltage. This flexibility ensures reliable operation in environments with power fluctuations.

Designers should monitor the supply voltage to ensure it remains within the IC's acceptable range. Adding voltage regulators or zener diodes can help maintain stability. Proper voltage management enhances the LM393's performance in critical applications.

Addressing Noise and Interference Issues

Noise and interference can disrupt the LM393's ability to compare input voltages accurately. Effective noise reduction techniques improve circuit reliability.

The biggest improvement came from placing C11 directly on the 24V LED supply line and as close to the MOSFET as possible. The waveforms below show the ripple and noise on both the 5V and 24V rails measured at the 7805 regulator. Without C1 and C11, the 24V rail has almost 2 Vpp of ripple! With the caps, this drops to less than 70 mVpp.

To address noise issues:

• Place decoupling capacitors near the IC's power supply pins.

• Use shielded cables for input signals to minimize external interference.

• Add RC snubbers to suppress ringing in high-frequency circuits.

For example, in a temperature sensing application, adding capacitors to filter noise ensures the comparator detects accurate thresholds. These measures protect the LM393 from interference, ensuring stable operation in diverse applications.

Troubleshooting LM393 Circuits

Identifying Common Issues

Troubleshooting an LM393 circuit begins with recognizing common problems. Incorrect pin connections often cause malfunctions. Designers should verify the IC's pinout and ensure proper placement of input and output connections. Missing or incorrectly valued pull-up resistors can also lead to improper output behavior.

Voltage instability is another frequent issue. Noise or fluctuations in the power supply can disrupt the comparator's performance. Decoupling capacitors placed near the IC help stabilize the voltage. Additionally, exceeding the LM393's input voltage range can damage the IC or produce unreliable results.

Tip: Always consult the LM393 datasheet for pin configurations and voltage limits to avoid these common pitfalls.

Testing Input and Output Signals

Testing the input and output signals is crucial for diagnosing LM393 circuit issues. Start by measuring the input voltages using a multimeter. Ensure the input signals fall within the IC's common-mode voltage range, which includes ground. If the input signals are noisy, add capacitors to filter out high-frequency interference.

Next, check the output signal. The LM393's open-collector output requires a pull-up resistor to function correctly. Without it, the output may remain undefined. Use an oscilloscope to observe the output waveform. A stable high or low signal indicates proper operation, while erratic behavior suggests noise or incorrect resistor values.

Note: For accurate testing, ensure the power supply voltage remains within the LM393's specified range.

Debugging Unstable Circuit Behavior

Unstable circuit behavior often stems from noise, incorrect component values, or poor layout design. To debug, first inspect the circuit for loose connections or damaged components. Replace any faulty parts.

Next, address noise issues. Place decoupling capacitors close to the LM393's power pins to filter out voltage spikes. Shield input signal lines to reduce external interference. If the circuit still behaves unpredictably, review the pull-up resistor value. A smaller resistor improves response time but increases current consumption.

Finally, analyze the circuit layout. Long traces can introduce inductance, affecting signal integrity. Shorten critical paths and use a ground plane to minimize noise. These steps ensure the LM393 comparator operates reliably in various applications.

Advanced Tips for Optimizing LM393 Performance

Using the LM393 in Low-Power Applications

The LM393 comparator is highly efficient in low-power applications due to its design and features. It consumes minimal power during operation, making it ideal for battery-powered devices and energy-sensitive systems. Its low quiescent current ensures that the circuit remains energy-efficient even when inactive. Additionally, the LM393 operates across a wide voltage range, from 2V to 36V, allowing it to adapt to various power supply conditions.

The following table highlights the LM393's low-power consumption features:

These features make the LM393 a reliable choice for applications like portable medical devices, remote sensors, and energy-efficient monitoring systems.

Enhancing Response Time with Component Selection

The LM393 comparator's response time plays a critical role in ensuring accurate and timely voltage detection. Designers can optimize the response time by carefully selecting components such as pull-up resistors and capacitors. For instance, using a smaller pull-up resistor reduces the propagation delay, allowing the circuit to respond faster to input changes.

Key performance data supports the LM393's effectiveness in enhancing response time:

• The LM393N comparator has a response time of 1300 ns, which is crucial for improving circuit performance.

In high-speed applications, such as oscillators or pulse generators, this fast response time ensures precise timing and control. Designers should also consider the trade-off between speed and power consumption when selecting components. Smaller resistors improve speed but increase current usage, while larger resistors conserve power at the cost of slower response times.

Integrating the LM393 with Other ICs for Complex Designs

The LM393's versatility allows it to integrate seamlessly with other ICs, enabling the creation of complex electronic designs. Its open-collector output can interface with various logic families, including TTL and CMOS, making it suitable for mixed-signal circuits.

For example, in a smart home application, the LM393 can work alongside microcontrollers to monitor sensor inputs and trigger specific actions. It can also serve as a window comparator in conjunction with other ICs to detect signals within a defined voltage range. This capability is particularly useful in advanced systems like motor controllers or power management units.

To ensure successful integration, designers should:

• Match the LM393's output voltage levels with the input requirements of other ICs.

• Use pull-up resistors to enable proper communication between the LM393 and digital logic circuits.

• Incorporate decoupling capacitors to stabilize the power supply and reduce noise.

By following these guidelines, the LM393 can enhance the functionality and efficiency of complex electronic systems.

Mastering the LM393 comparator ensures stable and efficient circuit designs. Key practices include proper power supply configuration, input signal conditioning, and selecting suitable pull-up resistors. Decoupling capacitors also play a vital role in maintaining circuit stability. Applying these techniques enhances the performance of the LM393 in various applications. Experimentation and hands-on learning allow designers to unlock its full potential. By integrating the LM393 into projects, engineers can create reliable and precise circuits for diverse electronic systems.

What is the primary function of the LM393 comparator?

The LM393 compares two input voltages and outputs a digital signal indicating which input is higher. This function makes it ideal for applications like voltage monitoring, zero-crossing detection, and level sensing.

Can the LM393 operate with a single power supply?

Yes, the LM393 supports single-supply operation. It works with a voltage range of 2V to 36V, making it versatile for various designs.

Why does the LM393 require a pull-up resistor?

The LM393 has an open-collector output, which needs a pull-up resistor to function correctly. This resistor ensures the output transitions between high and low states effectively.

How can noise affect the LM393's performance?

Noise can disrupt the LM393's ability to compare voltages accurately. Adding decoupling capacitors near the IC and shielding input signals minimizes interference, ensuring stable operation.

What are common applications of the LM393?

The LM393 is used in battery monitoring, temperature sensing, oscillators, and power-on reset circuits. Its precision and low power consumption make it suitable for both simple and advanced designs.
