Beginner's Guide to LT1713IMS8#PBF in Low-Power Systems

The LT1713IMS8#PBF, designed by a leading manufacturer, offers exceptional performance for low-power systems. Its low power consumption, wide supply voltage range, and compact 8-lead MSOP package make it ideal for modern electronic circuits. Compared to similar components, the LT1713IMS8#TRPBF delivers faster response times and supports rail-to-rail inputs, ensuring high efficiency and precision. The table below highlights its advantages:

The LT1713IMS8#PBF also supports TTL/CMOS logic levels, making it versatile for various applications. Its advanced design ensures reliability in low-power and high-speed systems.

Key Takeaways

• The LT1713IMS8#PBF uses only 5mA per comparator. This makes it great for devices that run on batteries.

• It reacts very quickly, with a response time of 7ns. This helps it work well in tasks like signal processing.

• The device can handle signals near the supply voltage. This makes it flexible for different uses.

• Its small 8-lead MSOP package fits in tight spaces. This is useful for wearable gadgets and portable tools.

• The LT1713IMS8#PBF has a low input offset voltage of 4mV. This gives it high accuracy, making it good for medical tools and precise instruments.

Key Specifications of the LT1713IMS8#PBF

Supply Voltage Range and Rail-to-Rail Inputs

The LT1713IMS8#PBF offers a versatile supply voltage range, operating from 2.7V to ±5V. This flexibility makes it suitable for both single-supply and dual-supply systems. Compared to other analog comparators like the LM833 or AD8496, it provides a comparable voltage range, ensuring compatibility with a wide variety of applications. The device also supports rail-to-rail inputs, allowing it to handle signals that extend to the supply voltage limits. This feature is particularly beneficial in low-voltage systems, where maximizing the input range is critical for efficient performance.

Propagation Delay and High-Speed Performance

The LT1713IMS8#PBF excels as a high-speed comparator, delivering rapid response times essential for time-sensitive applications. Its propagation delay varies based on operating conditions, with a typical value of 7ns at 20mV overdrive. Even under lower overdrive conditions, such as 5mV, the delay remains minimal at 8.5ns. This high-speed performance ensures reliable operation in systems requiring quick decision-making, such as oscillators or signal processing circuits.

Input Offset Voltage and Precision

Precision amplifiers like the LT1713IMS8#PBF rely on low input offset voltage to maintain accuracy. This device features a maximum offset voltage of 4mV at 5V, which minimizes errors during signal processing. Such precision is vital in applications like medical instrumentation or data acquisition systems, where even minor inaccuracies can impact performance. By reducing offset-related errors, the LT1713IMS8#PBF ensures that the output signal closely matches the actual input, making it a reliable choice for precision applications.

Tip: The low input offset voltage also enhances the device's performance in low-power systems, where maintaining accuracy with minimal energy consumption is crucial.

Power Consumption and Energy Efficiency

The LT1713IMS8#PBF stands out for its exceptional energy efficiency, making it a preferred choice for low-power systems. This device consumes only 5mA per comparator, a feature that significantly reduces power usage. Such low power consumption is particularly advantageous in portable and battery-operated devices, where energy conservation is critical. Devices like remote sensors, medical instruments, and handheld gadgets benefit greatly from this efficiency, as it extends battery life and ensures reliable operation over extended periods.

Energy efficiency also plays a vital role in minimizing heat generation. By consuming minimal current, the LT1713IMS8#PBF reduces thermal stress on components, enhancing the overall durability of the system. This characteristic makes it suitable for applications requiring consistent performance under varying conditions. Furthermore, its ability to operate efficiently at low supply voltages, such as 2.7V, ensures compatibility with modern low-voltage systems. This feature aligns with the growing demand for energy-conscious designs in today's electronics industry.

The LT1713IMS8#PBF's energy-efficient design does not compromise its performance. It maintains high precision and fast response times, even in low-power setups. This balance between power consumption and performance makes it a versatile component for applications ranging from general purpose amplifiers to precision amplifiers in critical systems.

Package and Pin Configuration

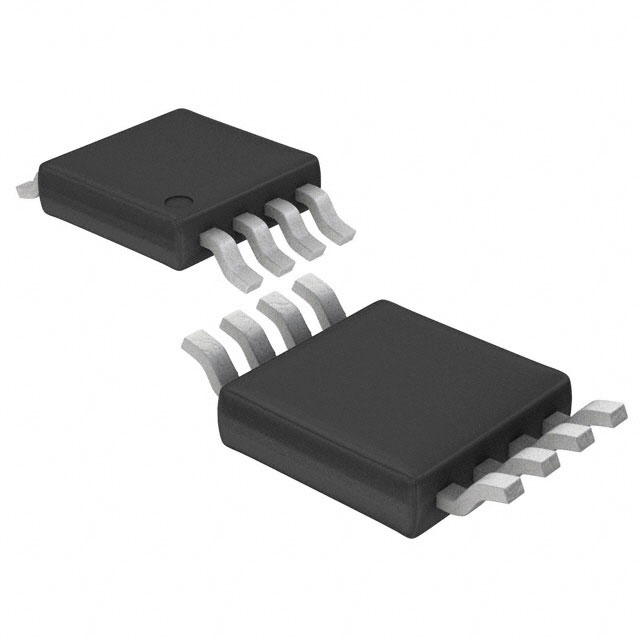

The LT1713IMS8#PBF comes in a compact 8-lead MSOP package, which is ideal for space-constrained designs. Its small size allows engineers to integrate it into systems where board space is limited, such as wearable devices or compact instrumentation. Despite its compact form, the package provides all the necessary pins for versatile functionality.

The pin configuration ensures ease of integration into various circuit designs. For instance, the IN+ and IN- pins allow differential input signals, while the OUT+ and OUT- pins provide complementary outputs. The LATCH pin adds flexibility by enabling output control, which is useful in applications requiring stable output states. This thoughtful design enhances the LT1713IMS8#PBF's usability in a wide range of systems.

Note: The compact MSOP package and well-organized pin configuration make the LT1713IMS8#PBF a practical choice for engineers designing efficient and precise electronic systems.

Features of the LT1713IMS8

Ultra-Fast Response Time

The LT1713IMS8 delivers an ultra-fast response time, making it ideal for high-speed applications. It achieves a typical propagation delay of 7ns at 20mV overdrive and 8.5ns at 5mV overdrive. This rapid response ensures precise performance in time-sensitive tasks such as voltage monitoring, level detection, and relay driving. Engineers can rely on its speed to maintain accuracy in critical systems.

The device's compatibility with TTL and CMOS logic levels enhances its versatility. It operates efficiently across a supply voltage range of 2.7V to ±5V, making it suitable for both single and dual power supply configurations. The table below highlights its key specifications:

Low Power Consumption

The LT1713IMS8 stands out for its low power consumption, which is critical for energy-efficient designs. It consumes only 5mA per comparator, ensuring minimal energy usage. This efficiency extends battery life in portable devices and reduces heat generation in compact systems. The device operates effectively at supply voltages of 2.7V, 5V, and ±5V, making it adaptable to various power configurations.

Key mechanisms contribute to its low power consumption:

• Efficient voltage operation across a wide range.

• Ultrafast comparator performance with minimal energy usage.

• Optimized design for reduced current draw.

These features make the LT1713IMS8 a reliable choice for battery-powered devices, medical instruments, and other low-power systems.

Latch Function for Output Control

The LT1713IMS8 includes a latch function that enhances output control. This feature maintains a stable output voltage even when input conditions fluctuate. It proves essential in applications requiring accurate voltage comparisons, such as signal processing and precision instrumentation.

The latch function also supports both single and dual power supply configurations, increasing its adaptability. It ensures reliable performance across various voltage levels, making it suitable for demanding electronic systems. Engineers can use this feature to secure stable output states, improving the reliability of their designs.

Tip: The latch function is particularly useful in circuits where maintaining a stable output voltage is critical for system performance.

Wide Operating Temperature Range

The LT1713IMS8#PBF operates reliably across a wide temperature range, making it suitable for diverse environments. Its operating temperature spans from -40°C to 85°C, ensuring consistent performance in both extreme cold and heat. This capability allows the device to function effectively in applications such as industrial automation, outdoor instrumentation, and portable devices exposed to varying climates.

• Operating Temperature Range:

  • Minimum: -40°C

  • Maximum: 85°C

This broad temperature range ensures that the LT1713IMS8#PBF remains stable under challenging conditions. Engineers can depend on its performance in systems requiring high reliability, even in harsh environments. For instance, outdoor sensors and medical devices often face fluctuating temperatures. The LT1713IMS8#PBF's design ensures that these systems maintain accuracy and efficiency without compromising functionality.

Note: The ability to withstand extreme temperatures enhances the durability of the LT1713IMS8#PBF, making it a dependable choice for critical applications.

Compatibility with CMOS and TTL Logic Levels

The LT1713IMS8#PBF integrates seamlessly with both CMOS and TTL logic levels, offering exceptional versatility. Its rail-to-rail inputs and complementary outputs enable direct interfacing with these logic families. This compatibility simplifies circuit design, as engineers can use the device in systems with mixed logic levels without additional components.

This feature proves especially useful in applications requiring precise signal processing. For example, data acquisition systems and signal conditioning circuits often involve CMOS or TTL logic. The LT1713IMS8#PBF ensures smooth communication between components, enhancing overall system performance.

Tip: The LT1713IMS8#PBF's compatibility with CMOS and TTL logic levels reduces design complexity, saving time and resources during development.

Benefits of Using LT1713IMS8#PBF in Low-Power Systems

Energy Efficiency for Battery-Powered Devices

The LT1713IMS8#PBF offers exceptional energy efficiency, making it a top choice for battery-powered devices. Its low power consumption of just 5mA per comparator ensures minimal energy usage, which is critical for extending battery life. The device operates efficiently across a supply voltage range of 2.7V to ±5V, providing versatility for various portable applications. Its compact 8-lead MSOP package further enhances its suitability for space-limited designs, such as handheld instruments and wearable devices.

Key Advantages of Energy Efficiency:

• Prolonged battery life in portable systems.

• Reduced heat generation, ensuring system reliability.

• Compatibility with low-voltage power supplies, such as 3.3V or 5V systems.

These features make the LT1713IMS8#PBF an ideal component for energy-conscious designs in modern electronics.

Enhanced Performance in Precision Applications

The LT1713IMS8 excels in precision applications due to its advanced features. Its rail-to-rail inputs enable operation across a wide voltage range, ensuring accurate signal processing. Complementary outputs provide flexibility in output configurations, while the output latch maintains stable output states for added security. The device's compatibility with single and dual supply systems enhances its adaptability for various voltage levels.

These characteristics make the LT1713IMS8 a reliable choice for applications requiring high accuracy, such as medical instrumentation and data acquisition systems.

Compact Design for Space-Constrained Systems

The LT1713IMS8#PBF's compact design addresses the challenges of space-constrained systems. Its 8-lead MSOP package allows engineers to integrate it into devices with limited board space. Despite its small size, the device delivers robust performance, making it suitable for applications like wearable technology, portable medical devices, and compact industrial equipment.

Tip: The compact design of the LT1713IMS8#PBF not only saves space but also simplifies circuit layout, reducing development time and cost.

This combination of size and functionality ensures that the LT1713IMS8#PBF meets the demands of modern, space-efficient electronic systems.

Reliability in Critical and High-Speed Applications

The LT1713IMS8#PBF demonstrates exceptional reliability in critical and high-speed applications. Its design ensures consistent performance in demanding environments, making it a trusted choice for engineers.

Several features contribute to its reliability:

• Ultrafast Response Time: The LT1713IMS8#PBF achieves a response time of just 7ns at 20mV overdrive. This speed allows it to handle time-sensitive tasks with precision, such as signal processing and voltage monitoring.

• Low Power Consumption: Consuming only 5mA per comparator, the device minimizes energy usage. This efficiency reduces heat generation, ensuring stable operation in critical systems.

• Rail-to-Rail Inputs and Outputs: The device supports rail-to-rail inputs and complementary outputs, which are compatible with TTL and CMOS logic levels. This versatility simplifies integration into various circuit designs.

• Input Handling Beyond Supply Voltage: The LT1713IMS8#PBF can process input signals exceeding the supply voltage without phase reversal. This capability enhances its reliability in systems with fluctuating input conditions.

These features make the LT1713IMS8#PBF suitable for applications requiring high-speed decision-making and consistent accuracy. For instance, in industrial automation, the device ensures precise control of machinery. In medical instrumentation, it delivers reliable performance for critical measurements.

Note: The LT1713IMS8#PBF's ability to maintain stability under challenging conditions makes it a dependable component for high-speed and critical systems.

By combining speed, efficiency, and versatility, the LT1713IMS8#PBF meets the demands of modern electronic systems. Its robust design ensures reliability, even in the most demanding applications.

Practical Guide to Integrating LT1713IMS8#PBF into Circuits

Understanding the Pinout and Package

The LT1713IMS8#PBF features an 8-lead MSOP package, which is compact and ideal for space-constrained designs. Each pin serves a specific purpose, ensuring the device's versatility in various applications. For example, the IN+ and IN- pins accept differential input signals, while the OUT+ and OUT- pins provide complementary outputs. The VCC pin connects to the positive supply voltage, and the GND pin serves as the ground reference. The LATCH pin enables output control, allowing engineers to stabilize the output state when needed.

This thoughtful pin configuration simplifies integration into circuits. Engineers can use the rail-to-rail inputs to handle signals that extend to the supply voltage limits. The complementary outputs ensure compatibility with both TTL and CMOS logic levels. These features make the LT1713IMS8#PBF a practical choice for designing efficient and precise systems.

Designing the Circuit with LT1713IMS8#PBF

When designing a circuit with the LT1713IMS8#PBF, engineers should consider its ultrafast response time of 7ns at 20mV overdrive. This speed makes it suitable for time-sensitive applications like voltage monitoring and signal processing. The device operates efficiently across a supply range of 2.7V to ±5V, offering flexibility for single or dual power supply configurations.

Key design considerations include:

• Utilizing rail-to-rail inputs and complementary outputs for seamless integration.

• Leveraging the output latch to maintain stable output states.

• Ensuring input signals do not exceed supply voltages, as the device includes protection against phase reversal.

The LT1713IMS8#PBF's low power consumption of 5mA per comparator further enhances its suitability for energy-efficient designs. Its compact package allows for easy placement in space-limited systems, such as portable devices or precision instruments.

Power Supply and Voltage Level Considerations

The LT1713IMS8#PBF supports a wide supply voltage range, operating from 2.7V to ±5V. This flexibility ensures compatibility with both low-voltage and high-voltage systems. Engineers should select a power supply that matches the application's requirements while maintaining stability. For instance, a 3.3V or 5V supply works well for low-power systems, while ±5V is ideal for dual-supply configurations.

Proper decoupling capacitors should be placed near the VCC pin to minimize noise and ensure stable operation. The device's ability to handle input signals beyond the supply voltage without phase reversal adds reliability to the design. This feature proves valuable in systems with fluctuating input conditions, such as analog comparators used in signal processing.

By following these guidelines, engineers can maximize the LT1713IMS8#PBF's performance in their circuits. Its robust design and versatile features make it a reliable component for modern electronic systems.

Example Circuit Applications

Voltage Level Detection

The LT1713IMS8#PBF excels in voltage level detection circuits. Engineers often use it to monitor voltage thresholds in systems requiring precise control. For example, in battery-powered devices, it can detect when the voltage drops below a critical level. This functionality helps prevent damage to sensitive components. The device's rail-to-rail input capability ensures accurate detection, even in low-voltage systems. By connecting the input pins to a reference voltage and the monitored signal, the comparator generates an output signal when the threshold is crossed. This output can trigger alarms or control circuits, ensuring system reliability.

Signal Conditioning and Amplification

Signal conditioning and amplification are essential in many electronic systems. The LT1713IMS8#PBF plays a vital role in these applications by processing weak or noisy signals. For instance, in medical instrumentation, it amplifies signals from sensors to make them suitable for further processing. Its low input offset voltage ensures high precision, while its fast response time maintains signal integrity. Engineers can design circuits where the device filters and amplifies signals simultaneously, improving overall system performance. This capability makes it a preferred choice for applications requiring accurate signal processing.

Comparator in Oscillator Circuits

The LT1713IMS8#PBF serves as a reliable component in oscillator circuits. Oscillators generate periodic signals, which are crucial in applications like clock generation and waveform synthesis. The device's high-speed performance ensures stable oscillation at desired frequencies. By configuring the comparator with feedback resistors and capacitors, engineers can create oscillators with precise frequency control. This setup is particularly useful in communication systems and signal generators. The LT1713IMS8#PBF's ability to operate efficiently in low-power systems further enhances its suitability for these applications.

Common Mistakes to Avoid During Integration

1. Incorrect Power Supply Configuration: Using an incompatible power supply voltage can damage the device. Always ensure the supply voltage falls within the specified range of 2.7V to ±5V.

2. Improper Decoupling: Neglecting to place decoupling capacitors near the VCC pin can lead to noise issues. Use capacitors to stabilize the power supply and improve performance.

3. Mismatched Input Signals: Applying input signals beyond the specified limits may cause errors. Verify that input voltages remain within the device's operating range.

4. Overlooking Latch Function: Failing to utilize the latch pin in applications requiring stable outputs can result in unreliable performance. Use the latch function to maintain consistent output states.

5. Inadequate Thermal Management: Although the device consumes minimal power, poor thermal management can affect its reliability. Ensure proper heat dissipation in high-temperature environments.

Tip: Carefully review the datasheet and application notes before integrating the LT1713IMS8#PBF into a circuit. Proper planning minimizes errors and ensures optimal performance.

Applications of LT1713IMS8#PBF

Battery-Powered and Portable Devices

The LT1713IMS8#PBF is an excellent choice for battery-powered and portable devices due to its energy-efficient design. Its low power consumption of just 5mA per comparator minimizes energy usage, making it ideal for devices that rely on limited power sources. The compact 8-lead MSOP package allows engineers to integrate it into space-constrained systems, such as wearable technology and handheld instruments.

This device operates efficiently across a supply voltage range of 2.7V to ±5V, ensuring compatibility with various power configurations. Its ultrafast response time of 7ns at 20mV overdrive enhances performance in time-sensitive applications like voltage monitoring and level detection. These features make it a reliable component for portable devices and battery-operated equipment.

Medical and Precision Instrumentation

The LT1713IMS8#PBF plays a vital role in medical and precision instrumentation. Its advanced features ensure accurate signal processing, which is critical in applications like medical sensors and diagnostic equipment. The device's low power consumption and wide supply voltage range contribute to its efficiency in these systems.

The LT1713IMS8#PBF's precision and reliability make it indispensable in environments where accuracy is paramount.

Industrial Automation and Control Systems

In industrial automation and control systems, the LT1713IMS8#PBF ensures consistent performance in demanding environments. Engineers use it for voltage monitoring, level detection, and window comparators. Its ability to handle input signals beyond the supply voltage without phase reversal enhances its reliability in fluctuating conditions.

The device's low power consumption and compact design make it suitable for systems requiring energy efficiency and space optimization. Its ultrafast response time supports high-speed decision-making, which is essential in relay drivers and other control applications. These features make the LT1713IMS8#PBF a trusted component in industrial systems.

Tip: The LT1713IMS8#PBF's versatility and robust design ensure its effectiveness in diverse applications, from portable devices to industrial automation.

Consumer Electronics and Signal Processing

The LT1713IMS8#PBF proves to be a valuable component in consumer electronics and signal processing applications. Its advanced features enhance the performance and reliability of devices that demand precision and efficiency. Engineers often choose this device for its ability to handle high-speed operations and low-power requirements, making it ideal for modern electronic systems.

The device's ultrafast response time of 7ns at 20mV overdrive ensures accurate signal processing in time-sensitive applications. This speed allows it to excel in tasks such as audio signal conditioning, video processing, and real-time data acquisition. Its rail-to-rail input compatibility further expands its usability by enabling seamless integration with low-voltage systems. This feature ensures that signals close to the supply voltage limits are processed without distortion.

The LT1713IMS8#PBF's low power consumption of 5mA per comparator makes it suitable for energy-efficient consumer devices. Portable gadgets, such as smartphones and wearable technology, benefit from its ability to conserve battery life while maintaining high performance. Additionally, its compact 8-lead MSOP package allows engineers to design smaller, more space-efficient products without compromising functionality.

The table below highlights the key features that make the LT1713IMS8#PBF an excellent choice for consumer electronics and signal processing:

The LT1713IMS8#PBF also includes an output latch, which stabilizes output signals in fluctuating conditions. This feature is particularly useful in audio amplifiers and signal converters, where consistent output is critical. Its input protection against phase reversal ensures reliable operation even when input signals exceed supply voltage limits. These capabilities make the LT1713IMS8#PBF a trusted choice for engineers designing cutting-edge consumer electronics.

Tip: The LT1713IMS8#PBF's combination of speed, efficiency, and precision makes it a versatile solution for signal processing tasks in modern devices.

The LT1713IMS8#PBF offers exceptional performance for low-power and precision systems. Its low power consumption, ultrafast response time, and rail-to-rail input capability make it a versatile choice for engineers. The compact design and wide operating temperature range enhance its usability in diverse applications.

Engineers should explore the LT1713IMS8#PBF for projects requiring energy efficiency and accuracy. Its advanced features ensure reliable performance in modern electronic systems.

This component stands out as a valuable solution for creating efficient, high-speed, and space-saving designs.

What makes the LT1713IMS8#PBF suitable for low-power systems?

The LT1713IMS8#PBF consumes only 5mA per comparator, making it highly energy-efficient. Its ability to operate at low supply voltages (as low as 2.7V) ensures compatibility with battery-powered devices. These features make it ideal for low-power applications.

Can the LT1713IMS8#PBF handle high-speed applications?

Yes, the LT1713IMS8#PBF offers an ultra-fast response time of 7ns at 20mV overdrive. This speed makes it suitable for time-sensitive tasks like signal processing, voltage monitoring, and oscillator circuits. Its high-speed performance ensures reliable operation in critical systems.

How does the LT1713IMS8#PBF ensure precision in signal processing?

The LT1713IMS8#PBF features a low input offset voltage of 4mV, which minimizes errors during signal processing. Its rail-to-rail input capability allows accurate handling of signals close to supply voltage limits. These characteristics ensure high precision in applications like medical instrumentation and data acquisition.

What is the purpose of the latch function in the LT1713IMS8#PBF?

The latch function stabilizes the output state, even when input conditions fluctuate. This feature proves essential in applications requiring consistent voltage comparisons, such as signal processing and precision instrumentation. It enhances reliability by maintaining stable outputs.

Is the LT1713IMS8#PBF compatible with CMOS and TTL logic levels?

Yes, the LT1713IMS8#PBF integrates seamlessly with CMOS and TTL logic levels. Its complementary outputs and rail-to-rail input capability simplify interfacing with these logic families. This compatibility reduces design complexity and ensures smooth communication between components.

Tip: Always refer to the datasheet for detailed specifications and application guidelines.
