LT1964ES5-BYP Voltage Regulator for Modern Applications

The LT1964ES5-BYP is a micropower, low-noise, low-dropout negative voltage regulator designed to deliver stable and efficient voltage regulation. It ensures precise performance for sensitive electronic circuits by maintaining a consistent output even under varying conditions. Its compact TSOT-23 package and low power consumption make it an ideal choice for modern electronics. This regulator supports applications requiring high reliability and minimal noise, offering a versatile solution for advanced designs. With its adjustable output voltage and thermal protection, it addresses the demands of today’s innovative technologies.

Key Takeaways

The LT1964ES5-BYP is a low-noise, low-dropout negative voltage regulator, ideal for sensitive electronic circuits requiring stable performance.
With an adjustable output voltage range from -1.22V to -20V, this regulator offers flexibility for various applications, including industrial and consumer electronics.
Its low quiescent current of 30µA during operation and 3µA in shutdown mode makes it perfect for battery-powered devices, extending battery life significantly.
The BYP pin allows for external capacitor connection, effectively reducing output noise, which is crucial for noise-sensitive applications like medical devices and telecommunications.
Robust thermal protection and current limiting features enhance the reliability of the LT1964ES5-BYP, ensuring safe operation even under fault conditions.
The compact TSOT-23-5 package simplifies integration into space-constrained designs, making it a preferred choice for modern electronic applications.
Engineers can leverage the LT1964ES5-BYP's efficiency and versatility to improve performance and functionality across a wide range of electronic systems.

What is the LT1964ES5-BYP Voltage Regulator?

The LT1964ES5-BYP is a cutting-edge negative voltage regulator designed to meet the demands of modern electronic systems. It combines low noise, low dropout voltage, and high efficiency to deliver reliable performance. This device operates as a micropower regulator, capable of sourcing up to 200mA of output current. Its compact TSOT-23-5 package ensures easy integration into space-constrained designs, making it a preferred choice for engineers working on advanced applications.

Overview of the LT1964ES5-BYP

The LT1964ES5-BYP stands out due to its ability to regulate negative voltages with precision. It supports an adjustable output voltage range from -1.22V to -20V, offering flexibility for various applications. The device operates efficiently across a wide temperature range of -40°C to 125°C, ensuring stability in diverse environments. Its low dropout voltage, with a nominal value of 0.34V and a maximum of 0.49V, minimizes power loss, making it suitable for low-voltage input systems.

This regulator features a low quiescent current of 30µA during operation and only 3µA in shutdown mode. These characteristics make it ideal for battery-powered devices, where energy efficiency is critical. Additionally, the device incorporates thermal protection and current limiting, enhancing its reliability under fault conditions.

Primary Purpose and Functionality

The primary purpose of the LT1964ES5-BYP is to provide stable and efficient negative voltage regulation. It ensures consistent output voltage, even when input voltage or load conditions fluctuate. This capability is essential for sensitive electronic circuits, such as analog signal processing and noise-sensitive instrumentation, where precision and low noise are paramount.

The regulator’s low noise performance is achieved through the BYP pin, which allows the connection of an external capacitor to reduce output noise. This feature makes it suitable for applications requiring clean power supplies, such as medical devices and telecommunications equipment. Furthermore, its adjustable output voltage and robust design enable it to cater to a wide range of industrial and consumer electronics.

Key Features of the LT1964ES5-BYP

Low Noise Performance

The LT1964ES5-BYP excels in delivering low noise output, a critical feature for noise-sensitive applications. Its BYP pin allows users to connect an external capacitor, significantly reducing output noise. This design ensures clean and stable power, making it ideal for precision instruments, medical devices, and telecommunications equipment. The regulator achieves a power supply rejection ratio (PSRR) of 54dB at 120Hz, maintaining consistent performance even when input voltage fluctuates. This capability enhances the accuracy and reliability of circuits that demand minimal interference.

"Low noise performance is essential for applications where even minor power fluctuations can compromise functionality."

By prioritizing noise reduction, this regulator supports advanced designs requiring high signal integrity and precision.

Low Dropout Voltage

The LT1964ES5-BYP features a low dropout voltage, ensuring efficient operation in systems with limited input voltage. At a load current of 200mA, the dropout voltage remains as low as 0.34V nominally and does not exceed 0.49V. This efficiency minimizes power loss, making the regulator suitable for battery-powered devices and energy-conscious designs. The low dropout voltage also enables the device to maintain stable output voltage, even when the input voltage approaches the desired output level.

This feature proves especially valuable in portable electronics, where conserving battery life is a priority. By reducing unnecessary power dissipation, the regulator extends the operational lifespan of devices while maintaining optimal performance.

Adjustable Output Voltage

The LT1964ES5-BYP offers an adjustable output voltage range from -1.22V to -20V, providing flexibility for diverse applications. Engineers can fine-tune the output voltage to meet specific circuit requirements, making the regulator versatile across various industries. This adjustability supports use cases such as generating negative supply voltages for operational amplifiers, powering analog circuits, and stabilizing industrial control systems.

The wide output voltage range ensures compatibility with both low-power and high-power designs. This adaptability simplifies integration into complex systems, reducing the need for multiple regulator types in a single project.

Low Quiescent Current

The LT1964ES5-BYP demonstrates exceptional energy efficiency through its low quiescent current. During operation, it consumes only 30µA, while in shutdown mode, it requires just 3µA. This feature makes it an excellent choice for battery-powered applications, where conserving energy is critical. Devices relying on limited power sources, such as portable electronics and remote sensors, benefit significantly from this characteristic.

Low quiescent current reduces unnecessary power consumption, extending the operational lifespan of batteries. Engineers designing energy-conscious systems can rely on this regulator to maintain functionality without compromising efficiency. By minimizing power draw, the LT1964ES5-BYP supports sustainable and long-lasting device performance.

"Low quiescent current ensures that devices operate efficiently, even in power-sensitive environments."

This capability positions the regulator as a reliable solution for modern electronics requiring optimal energy management.

Thermal Protection and Reliability

The LT1964ES5-BYP incorporates robust thermal protection features to ensure safe and reliable operation. It includes an internal thermal shutdown mechanism that activates when the device exceeds safe temperature limits. This safeguard prevents damage caused by overheating, enhancing the regulator's durability and longevity. Additionally, the device features current limiting, which protects against excessive current draw during fault conditions.

These protective measures make the regulator suitable for demanding environments, such as industrial control systems and telecommunications equipment. By maintaining stable performance under challenging conditions, it ensures consistent output voltage and system reliability. Engineers can trust the LT1964ES5-BYP to deliver dependable results, even in high-stress applications.

Thermal protection not only safeguards the regulator but also protects connected components from potential damage. This reliability makes it a preferred choice for critical systems requiring uninterrupted operation.

Applications of the LT1964ES5-BYP in Modern Electronics

Battery-Powered Systems

The LT1964ES5-BYP proves to be an excellent choice for battery-powered systems. Its low quiescent current, consuming only 30µA during operation and 3µA in shutdown mode, ensures minimal power consumption. This efficiency extends the lifespan of batteries, making it ideal for portable devices and remote sensors. The regulator’s low dropout voltage further enhances its suitability for energy-conscious designs by reducing unnecessary power loss.

Devices such as wireless communication modules and handheld electronics benefit significantly from this regulator. Its ability to maintain stable output voltage under varying conditions ensures reliable performance in applications where power sources are limited. Engineers designing energy-efficient systems often rely on the LT1964ES5-BYP to achieve optimal functionality without compromising battery life.

"Low power consumption is critical for portable devices, where every microamp counts toward extending operational time."

Noise-Sensitive Instrumentation

Noise-sensitive instrumentation demands clean and stable power supplies to ensure accurate performance. The LT1964ES5-BYP addresses this need with its low noise output, achieved through the BYP pin. By connecting an external capacitor, users can significantly reduce output noise, making the regulator suitable for precision instruments and analog signal processing.

Applications such as medical devices, audio equipment, and scientific measurement tools benefit from this feature. These systems require high signal integrity, where even minor fluctuations in power can compromise functionality. The regulator’s power supply rejection ratio (PSRR) of 54dB at 120Hz ensures consistent performance, even when input voltage varies.

The LT1964ES5-BYP supports engineers in creating designs that prioritize accuracy and reliability. Its ability to minimize interference makes it a preferred choice for sensitive circuits requiring precise voltage regulation.

Negative Voltage Supply Generation

Generating negative supply voltages is essential for many analog and mixed-signal circuits. The LT1964ES5-BYP excels in this role by providing an adjustable output voltage range from -1.22V to -20V. This flexibility allows engineers to tailor the regulator to meet specific circuit requirements, making it versatile across various industries.

Operational amplifiers, data converters, and industrial control systems often rely on negative voltage supplies for proper operation. The LT1964ES5-BYP ensures stable and efficient voltage regulation, even in demanding environments. Its robust thermal protection and current limiting features enhance reliability, making it suitable for critical applications.

By supporting negative voltage supply generation, the LT1964ES5-BYP enables engineers to design advanced systems with confidence. Its adaptability simplifies integration into complex circuits, reducing the need for multiple regulator types.

Industrial Control Systems

The LT1964ES5-BYP plays a vital role in industrial control systems by delivering stable and efficient negative voltage regulation. These systems often require precise power supplies to ensure accurate operation of sensors, actuators, and controllers. The regulator’s low noise performance and adjustable output voltage make it an excellent choice for maintaining signal integrity in such environments.

Industrial applications demand reliability under challenging conditions. The LT1964ES5-BYP meets these demands with its robust thermal protection and current limiting features. These safeguards prevent damage caused by overheating or excessive current draw, ensuring uninterrupted operation. Its low dropout voltage further enhances efficiency, reducing power loss in energy-sensitive systems.

"Stable power supply and noise reduction are critical for precise control systems in industrial environments."

Engineers designing industrial control systems benefit from the regulator’s compact TSOT-23-5 package, which simplifies integration into space-constrained designs. Its ability to operate across a wide temperature range ensures consistent performance in harsh environments, making it a dependable solution for modern industrial applications.

Telecommunications Equipment

Telecommunications equipment relies on clean and stable power supplies to maintain high performance and reliability. The LT1964ES5-BYP addresses this need with its low noise output and adjustable voltage range. These features make it suitable for powering components like line drivers, receivers, and other communication modules that require negative voltage supplies.

The regulator’s low quiescent current and low dropout voltage enhance energy efficiency, which is essential in telecom systems where power consumption must be minimized. Its power supply rejection ratio (PSRR) of 54dB at 120Hz ensures stable output voltage, even when input voltage fluctuates. This capability supports consistent signal transmission and reduces the risk of interference.

Telecom systems often operate in demanding environments. The LT1964ES5-BYP’s thermal protection and current limiting features provide added reliability, safeguarding both the regulator and connected components. Its compact design allows for easy integration into densely packed circuit boards, making it a preferred choice for modern telecommunications equipment.

Medical Devices

Medical devices demand precise and reliable power supplies to ensure accurate operation and patient safety. The LT1964ES5-BYP excels in this domain by providing low noise performance and stable negative voltage regulation. Its BYP pin allows users to connect an external capacitor, significantly reducing output noise. This feature is critical for powering sensitive analog circuits in medical instrumentation.

Applications such as imaging systems, diagnostic tools, and monitoring devices benefit from the regulator’s adjustable output voltage and low quiescent current. These characteristics enable engineers to design energy-efficient systems that prioritize accuracy and longevity. The regulator’s ability to operate with minimal power consumption extends battery life in portable medical devices, enhancing their usability.

"Clean and stable power supplies are essential for medical devices to deliver accurate and reliable results."

The LT1964ES5-BYP’s thermal protection and current limiting features ensure safe operation, even under fault conditions. Its compact package simplifies integration into space-constrained designs, making it an ideal choice for advanced medical technologies.

Advantages of Using the LT1964ES5-BYP

Improved Performance and Efficiency

The LT1964ES5-BYP delivers exceptional performance by combining low noise output, low dropout voltage, and adjustable output capabilities. Its ability to maintain a stable output voltage, even under fluctuating input conditions, ensures consistent operation in sensitive electronic systems. The regulator’s low quiescent current, consuming only 30µA during operation, minimizes energy waste, making it an efficient choice for battery-powered devices.

This regulator’s design prioritizes efficiency. The nominal dropout voltage of 0.34V reduces power loss, which is critical for systems with limited input voltage. Engineers can rely on this feature to enhance the overall energy efficiency of their designs. By reducing unnecessary power dissipation, the LT1964ES5-BYP supports longer operational lifespans for portable devices and energy-conscious systems.

"Efficiency is not just about saving energy; it’s about enabling devices to perform better and last longer."

Enhanced Reliability and Longevity

Reliability defines the LT1964ES5-BYP. Its robust thermal protection and current limiting features safeguard the device and connected components from potential damage. These mechanisms activate during fault conditions, such as overheating or excessive current draw, ensuring uninterrupted operation. This level of protection enhances the regulator’s durability, making it suitable for demanding environments.

The regulator’s ability to operate across a wide temperature range, from -40°C to 125°C, further underscores its reliability. This capability allows it to function consistently in harsh industrial and environmental conditions. Engineers designing critical systems, such as medical devices and telecommunications equipment, can trust the LT1964ES5-BYP to deliver dependable results over extended periods.

The compact TSOT-23-5 package also contributes to its longevity. By simplifying integration into space-constrained designs, it reduces the risk of mechanical stress or damage during assembly. This thoughtful design ensures that the regulator remains a reliable component in advanced electronic systems.

Versatility Across Applications

The LT1964ES5-BYP stands out for its versatility. Its adjustable output voltage range, spanning from -1.22V to -20V, allows engineers to tailor the regulator to meet specific circuit requirements. This flexibility makes it suitable for a wide array of applications, including industrial control systems, noise-sensitive instrumentation, and negative voltage supply generation.

Its low noise performance, achieved through the BYP pin, supports precision instruments and analog circuits where signal integrity is paramount. The regulator’s low quiescent current and low dropout voltage make it an excellent choice for portable electronics and battery-powered systems. These features enable engineers to use the same regulator across multiple projects, simplifying design processes and reducing costs.

"Versatility in design means fewer compromises and more opportunities for innovation."

The LT1964ES5-BYP’s adaptability ensures that it meets the needs of modern electronics, from consumer devices to industrial applications. Its ability to address diverse requirements makes it a valuable asset for engineers seeking reliable and efficient voltage regulation solutions.

Technical Specifications of the LT1964ES5-BYP

Electrical Characteristics

The LT1964ES5-BYP delivers reliable performance through its well-defined electrical characteristics. It supports an adjustable output voltage range from -1.22V to -20V, making it suitable for diverse applications. The device can supply up to 200mA of output current while maintaining a low dropout voltage. At a load current of 200mA, the dropout voltage remains nominally at 0.34V and does not exceed 0.49V. This efficiency ensures minimal power loss, even in low-voltage input systems.

The regulator operates with a low quiescent current of 30µA during active use and only 3µA in shutdown mode. This feature enhances energy efficiency, particularly in battery-powered devices. Additionally, the device achieves a power supply rejection ratio (PSRR) of 54dB at 120Hz, ensuring stable output voltage despite fluctuations in input voltage. These characteristics make the LT1964ES5-BYP a dependable choice for sensitive electronic circuits requiring precision and stability.

Package and Pin Configuration

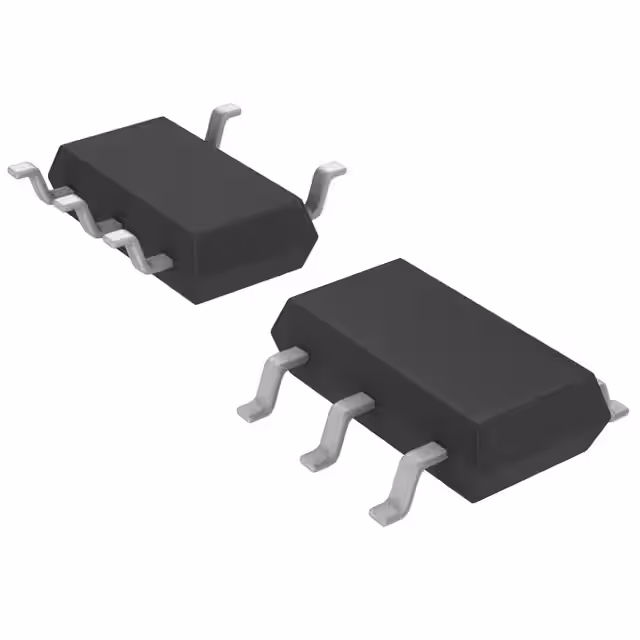

The LT1964ES5-BYP comes in a compact TSOT-23-5 package, which simplifies integration into space-constrained designs. This small form factor allows engineers to incorporate the regulator into densely packed circuit boards without compromising performance. The package includes five pins, each serving a specific function to ensure efficient operation.

Input Pin (VIN): Accepts the input voltage required for regulation.
Output Pin (VOUT): Delivers the regulated negative output voltage.
Ground Pin (GND): Acts as the reference point for the input and output voltages.
BYP Pin: Allows the connection of an external capacitor to reduce output noise.
Shutdown Pin (SHDN): Enables or disables the regulator, providing control over power consumption.

This straightforward pin configuration ensures ease of use and facilitates quick integration into various electronic designs. The compact package and user-friendly layout make the LT1964ES5-BYP an excellent choice for modern applications.

Noise Reduction via the BYP Pin

The LT1964ES5-BYP excels in minimizing output noise, a critical requirement for noise-sensitive applications. The BYP pin plays a pivotal role in achieving this low-noise performance. By connecting an external capacitor to the BYP pin, users can significantly reduce output noise levels. This feature ensures clean and stable power delivery, which is essential for precision instruments, medical devices, and telecommunications equipment.

The BYP pin design allows engineers to customize noise reduction based on specific application needs. For instance, increasing the capacitance value further lowers noise levels, enhancing the regulator’s suitability for sensitive analog circuits. This flexibility makes the LT1964ES5-BYP a preferred choice for designs requiring high signal integrity and minimal interference.

"Noise reduction is not just a feature; it is a necessity for applications where precision and reliability are paramount."

By leveraging the BYP pin, the LT1964ES5-BYP supports advanced designs that demand clean and consistent power supplies.

Comparison with Other Voltage Regulators

Key Differences in Features

Voltage regulators vary widely in their design and capabilities, but the LT1964ES5-BYP distinguishes itself through its unique combination of features. Unlike many standard regulators, this device offers a low-dropout design specifically for negative voltage regulation. It achieves a nominal dropout voltage of 0.34V and a maximum of 0.49V at 200mA, which ensures efficient operation even in low-voltage input systems. This efficiency minimizes power loss, making it ideal for energy-conscious applications.

Another standout feature is its adjustable output voltage range, spanning from -1.22V to -20V. Many competing regulators lack this level of flexibility, often restricting engineers to fixed output voltages. The wide range provided by the LT1964ES5-BYP allows it to cater to diverse applications, from powering analog circuits to generating negative supply voltages for operational amplifiers.

Noise performance also sets this regulator apart. The inclusion of a BYP pin enables users to connect an external capacitor, significantly reducing output noise. This feature makes it a preferred choice for noise-sensitive applications, such as medical devices and precision instrumentation. In contrast, many other regulators either lack noise reduction capabilities or require additional external components to achieve similar results.

The LT1964ES5-BYP also excels in energy efficiency. Its low quiescent current of 30µA during operation and 3µA in shutdown mode ensures minimal power consumption. Competing regulators often consume higher quiescent currents, which can drain batteries faster in portable devices. This efficiency positions the LT1964ES5-BYP as a superior option for battery-powered systems.

Why the LT1964ES5-BYP Stands Out

The LT1964ES5-BYP stands out due to its ability to combine high performance with reliability and versatility. Analog Devices Inc., the manufacturer, has a reputation for producing robust linear regulator ICs, and this product exemplifies their commitment to quality. Its compact TSOT-23-5 package simplifies integration into space-constrained designs, a feature not always available in competing products.

Reliability is another key factor. The LT1964ES5-BYP includes thermal protection and current limiting, ensuring safe operation under fault conditions. These features enhance its durability, making it suitable for demanding environments like industrial control systems and telecommunications equipment. Many other regulators lack such comprehensive protection, which can lead to failures in critical applications.

The regulator’s adaptability further elevates its appeal. Engineers can use it across a wide range of industries, from consumer electronics to medical devices. Its adjustable output voltage, low noise performance, and energy efficiency make it a versatile solution for modern electronic designs. Few regulators offer this combination of features, which is why the LT1964ES5-BYP remains a preferred choice for advanced applications.

"The LT1964ES5-BYP redefines what engineers can expect from a negative voltage regulator by delivering unmatched efficiency, reliability, and flexibility."

By addressing the needs of both energy-conscious and precision-focused applications, the LT1964ES5-BYP proves itself as a standout option in the competitive landscape of voltage regulators.

The LT1964ES5-BYP combines low noise, low dropout voltage, and adjustable output voltage to deliver exceptional performance. Its compact design and energy efficiency make it indispensable for modern applications, including portable devices, industrial systems, and telecommunications equipment. By enhancing reliability and optimizing power usage, this regulator supports advanced electronic designs with precision and stability. Engineers can rely on its versatility to meet the demands of innovative technologies, ensuring consistent results across diverse industries. The LT1964ES5-BYP stands as a vital component for improving efficiency and functionality in today’s electronic systems.

What is the LT1964ES5-BYP used for?

The LT1964ES5-BYP serves as a negative voltage regulator designed for applications requiring stable and efficient voltage regulation. It is commonly used in noise-sensitive instrumentation, battery-powered systems, industrial control systems, and telecommunications equipment. Its ability to deliver low noise and adjustable output voltage makes it suitable for precision circuits and advanced electronic designs.

How does the BYP pin reduce noise?

The BYP pin allows users to connect an external capacitor to the regulator. This connection significantly reduces output noise by filtering unwanted fluctuations in the voltage. The feature ensures clean and stable power delivery, which is essential for sensitive applications like medical devices and analog signal processing.

What is the maximum output current of the LT1964ES5-BYP?

The LT1964ES5-BYP can supply a maximum output current of 200mA. This capability ensures reliable performance for a wide range of applications, including portable electronics and industrial systems.

What is the adjustable output voltage range of the LT1964ES5-BYP?

The LT1964ES5-BYP offers an adjustable output voltage range from -1.22V to -20V. This flexibility allows engineers to customize the regulator for specific circuit requirements, making it versatile for various industries and applications.

Why is low dropout voltage important in voltage regulators?

Low dropout voltage minimizes power loss, especially in systems with limited input voltage. The LT1964ES5-BYP features a nominal dropout voltage of 0.34V, ensuring efficient operation and extended battery life in portable devices. This characteristic also helps maintain stable output voltage when the input voltage approaches the desired output level.

Can the LT1964ES5-BYP operate in extreme temperatures?

Yes, the LT1964ES5-BYP operates across a wide temperature range of -40°C to 125°C. This capability ensures consistent performance in harsh environments, making it suitable for industrial and outdoor applications.

What makes the LT1964ES5-BYP energy efficient?

The LT1964ES5-BYP consumes only 30µA of quiescent current during operation and 3µA in shutdown mode. This low power consumption extends battery life in portable devices and reduces energy waste in energy-conscious systems.

How does the LT1964ES5-BYP ensure reliability?

The LT1964ES5-BYP includes thermal protection and current limiting features. These mechanisms prevent damage caused by overheating or excessive current draw. This design enhances the regulator’s durability and ensures safe operation under fault conditions.

What type of package does the LT1964ES5-BYP use?

The LT1964ES5-BYP comes in a compact TSOT-23-5 package. This small form factor simplifies integration into space-constrained designs, making it ideal for densely packed circuit boards in modern electronics.

Is the LT1964ES5-BYP suitable for medical devices?

Yes, the LT1964ES5-BYP is well-suited for medical devices. Its low noise performance, achieved through the BYP pin, ensures clean power delivery for sensitive analog circuits. Additionally, its low quiescent current and adjustable output voltage make it ideal for portable medical instruments requiring precise and reliable power supplies.
