Understanding the LTM4628EV DC/DC Converter Specifications

The LTM4628EV, developed by AD, LINEAR, is a prominent figure in the field of DC DC Converters. Its technical specifications highlight its performance and adaptability for diverse applications. These specifications encompass input and output voltage ranges, efficiency, and thermal performance. Grasping these parameters is essential, particularly for Telecom and Networking Equipment, as they guarantee the converter fulfills the requirements of high-efficiency power conversion, compact design, and dependable operation. The LTM4628EV's attributes make it an excellent option for engineers in search of robust solutions in power management.

Key Technical Specifications of the LTM4628EV

Input and Output Voltage Ranges

The LTM4628EV stands out in the realm of DC DC Converters with its versatile input and output voltage ranges. It operates efficiently within an input voltage range of 4.5V to 26.5V. This flexibility allows it to adapt to various power sources, making it suitable for Telecom and Networking Equipment. The output voltage range spans from 0.6V to 5.5V, providing precise voltage regulation for sensitive electronic components. Engineers can configure the output voltage using a single external resistor, which simplifies the design process and enhances adaptability.

Efficiency and Power Density

Efficiency plays a crucial role in the performance of the LTM4628EV. High efficiency minimizes energy loss, which is vital for applications requiring reliable power conversion. The module delivers up to 8A continuous current per output, ensuring robust performance. Its design incorporates advanced power FETs and inductors, contributing to its high efficiency. Power density, another significant aspect, refers to the amount of power the converter can deliver relative to its size. The compact design of the LTM4628EV ensures that it provides substantial power output without occupying excessive space, a critical factor for Telecom and Networking Equipment where space is often limited.

Thermal Performance and Protection Features

Thermal management is essential for maintaining the reliability of the LTM4628EV. Effective thermal performance ensures that the module operates within safe temperature limits, preventing overheating and extending its lifespan. The LTM4628EV incorporates several protection features, including overcurrent, overvoltage, and undervoltage protection. These features safeguard the converter and connected devices from potential damage due to electrical faults. Such protection mechanisms are indispensable in environments where consistent and reliable power delivery is paramount, such as in Telecom and Networking Equipment.

Unique Features of the LTM4628EV

The LTM4628EV, developed by AD, LINEAR, stands out in the realm of DC DC Converters due to its unique features. These attributes make it an ideal choice for Telecom and Networking Equipment, where efficiency and reliability are paramount.

Compact Design and Packaging

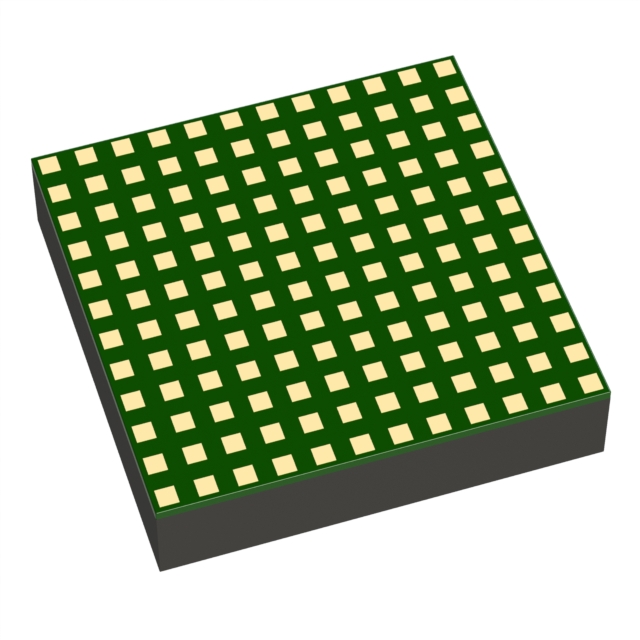

The compact design of the LTM4628EV is a significant advantage. It utilizes a 144-pin LGA (Land Grid Array) format, which offers several benefits:

Space Efficiency: The LGA format allows for a smaller footprint on circuit boards. This compactness is crucial for Telecom and Networking Equipment, where space is often at a premium.
Enhanced Thermal Performance: The LGA package facilitates better heat dissipation. This feature ensures that the converter maintains optimal performance even under high load conditions.
Ease of Assembly: The surface-mount technology (SMT) compatibility of the LGA format simplifies the assembly process. This ease of integration reduces manufacturing time and costs.

Advanced Protection Mechanisms

The LTM4628EV incorporates advanced protection mechanisms, which are vital for its application in Telecom and Networking Equipment:

Overcurrent Protection (OCP): This feature prevents damage from excessive current flow. It ensures the safety and longevity of both the converter and the connected devices.
Overvoltage Protection (OVP): OVP safeguards the system from voltage spikes. This protection is essential in maintaining the stability of sensitive electronic components.
Undervoltage Lockout (UVLO): UVLO prevents the converter from operating under insufficient voltage conditions. This mechanism ensures reliable power delivery, which is critical for continuous operation in Telecom and Networking Equipment.

These protection features enhance the reliability of the LTM4628EV, making it a robust solution for power management in various applications. Engineers can rely on these mechanisms to ensure consistent performance and safeguard their systems from potential electrical faults.

Applications and Suitability for Telecom and Networking Equipment

Suitable Applications

The LTM4628EV, developed by AD, LINEAR, excels in various applications due to its robust design and efficient performance. In communications systems, it powers critical components like FPGA and ASIC, ensuring stable operation in base stations and telecommunication infrastructure. Its compact design and high efficiency make it an ideal choice for data centers. Here, it supports server motherboards, switches, and routers, enhancing system performance while minimizing energy consumption. Industrial automation also benefits from the LTM4628EV's precision power conversion. It provides reliable power to PLCs, robotics, and sensors, maintaining continuous operation in demanding environments.

Performance Impact

The specifications of the LTM4628EV significantly influence its application suitability. Its wide input voltage range allows it to adapt to various power sources, making it versatile for different environments. The high efficiency of the LTM4628EV reduces energy loss, which is crucial for applications requiring reliable power conversion. Its compact design ensures substantial power output without occupying excessive space, a critical factor for telecom and networking equipment where space is limited. The advanced protection mechanisms, including overcurrent and overvoltage protection, enhance its reliability, safeguarding systems from potential electrical faults. These features make the LTM4628EV a robust solution for power management in diverse applications.

The LTM4628EV DC/DC converter stands out with its key specifications, including versatile voltage ranges, high efficiency, and advanced protection features. These attributes ensure reliable performance and adaptability across various applications. Its compact design and robust protection mechanisms make it particularly suitable for telecom and networking equipment, where space and reliability are crucial. When selecting a DC/DC converter, engineers should consider these specifications to ensure optimal performance and compatibility with future DC grids, where converters will play a significant role in power management and connectivity.
