What is Marvell Transceiver 88E1510-A0-NNB2C000 and Why It Matters

The Marvell 88E1510-A0-NNB2C000 is a fast Ethernet chip that helps devices share data smoothly and without problems. This chip supports Gigabit Ethernet, which makes networks faster and stronger. It uses smart features to save power and improve performance. Its small size fits well in modern gadgets needing less space. Companies supply new original chips like the 88E1510-A0-NNB2C000 for industries, phones, and home electronics.

Key Takeaways

• The Marvell 88E1510-A0-NNB2C000 chip works with different Ethernet speeds.

• It saves energy by using less power when data use is low.

• Its small size fits well in tiny devices like IoT gadgets.

• The chip has tools like Precision Time Protocol for exact timing.

• This chip improves networks and supports future tech needs.

Key Features of the 88E1510-A0-NNB2C000

Multi-Rate Support and Performance Specifications

The 88E1510-A0-NNB2C000 works with different Ethernet speeds like 10BASE-T, 100BASE-TX, and 1000BASE-T. This makes it flexible for many network setups. It helps devices send data smoothly, whether at home or in factories. Its fast speed is great for jobs needing quick and steady connections.

The chip is designed to work with low delays, which is important for tasks needing exact timing. This is useful for industries like telecom and automation. Handling different data speeds well makes this chip a smart pick for modern networks.

Compatibility with IEEE Standards and Protocols

The 88E1510-A0-NNB2C000 follows IEEE 802.3 rules, so it works with many Ethernet devices. It supports special protocols like Precision Time Protocol (PTP) and Synchronous Ethernet (SyncE). These help with accurate timing, which is needed for things like base stations and factory systems.

It also connects easily with interfaces like RGMII and SGMII. These make linking to MAC or switch ports simple, even in tricky setups. By following global rules, this chip works well in many different places.

Energy Efficiency and Power Management

Saving energy is a key feature of the 88E1510-A0-NNB2C000. It uses IEEE 802.3az Energy Efficient Ethernet (EEE) to lower power use when data activity is low. This helps save money and supports green practices.

The chip has a built-in voltage regulator. It runs on a single 3.3V supply but can also handle 1.8V and 2.5V. This makes power management easier and reduces the need for extra parts. Its energy-saving design is perfect for devices needing low power use.

Advanced Mixed-Signal Processing Capabilities

The 88E1510-A0-NNB2C000 is special because it handles both analog and digital signals well. This lets the chip send and receive data smoothly, even in tricky networks. It keeps signals clear and reduces noise that can mess up communication.

One cool feature is its Time Domain Reflectometry (TDR) support. Using Marvell's Virtual Cable Tester® (VCT™), it finds cable problems from far away. This helps fix issues faster, saving time and keeping systems running better.

The chip also has precise timing tools like IEEE 1588v2 Precision Time Protocol (PTP) and Synchronous Ethernet (SyncE). These tools help devices stay in sync, which is super important for things like telecom and factory machines. Its strong processing power keeps it working well, even when tasks are tough.

Compact Design and Integration Benefits

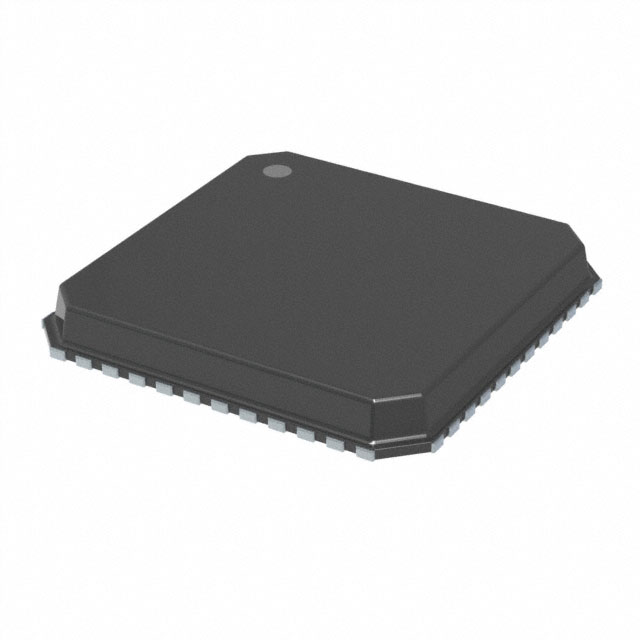

The 88E1510-A0-NNB2C000 is small, so it fits in tight spaces. It measures just 7x7 mm and comes in a 48-pin QFN package. This makes it easy to add to different systems without taking up much room.

It works with flexible interfaces like RGMII and SGMII. These make it simple to connect to MAC or switch ports. This saves time and makes designing systems easier. Engineers can use it in many devices, from home gadgets to factory tools, without trouble.

Another great thing is its built-in voltage regulator. It runs on 3.3V but also works with 1.8V and 2.5V. This means fewer extra parts are needed, saving space and money. Its small and smart design makes it perfect for modern tech while still performing great.

Applications of the 88E1510-A0-NNB2C000

Networking Equipment and Infrastructure

The 88E1510-A0-NNB2C000 helps networking devices work fast and reliably. Routers, switches, and NICs use it for Gigabit Ethernet connections. It follows IEEE 802.3 rules, making it fit into many networks easily. This makes it great for both small and big network setups.

It supports RGMII and SGMII interfaces, which simplify connections. Engineers can design better and more flexible networks with it. The chip also uses Energy Efficient Ethernet (EEE) to save power when data use is low. This makes it a greener choice for modern networks.

Role in Industrial Automation Systems

Factories need exact timing to run smoothly. The 88E1510-A0-NNB2C000 helps with this using IEEE 1588v2 PTP and SyncE. These features keep devices in sync, which is key for factory tasks.

Its strong design works well in tough factory settings. The small 7x7 mm size fits in tight spaces. Its built-in voltage regulator makes power use simple. With energy-saving and timing tools, it improves factory systems' performance and reliability.

Use in Telecommunications and Base Stations

Telecom systems need fast data and exact timing. The 88E1510-A0-NNB2C000 supports SyncE and IEEE 1588v2 PTP for this. These features keep telecom networks running smoothly and on time.

It works with different Ethernet speeds like 10BASE-T and 1000BASE-T. This makes it useful for many telecom tasks. Its energy-saving design cuts costs, and its small size fits in tight base station spaces. The chip combines speed, efficiency, and flexibility for modern telecom needs.

Embedded Systems and Space-Saving Designs

Embedded systems need parts that work well and save space. The Marvell 88E1510-A0-NNB2C000 is great for this. It provides advanced Ethernet in a small 7x7 mm size. Engineers can use it in tight spaces without losing features. This makes it perfect for IoT devices, medical tools, and car systems.

The chip saves energy with IEEE 802.3az Energy Efficient Ethernet (EEE). It uses less power when not busy, which is important for saving energy. Its built-in voltage regulator works with a single 3.3V supply. This removes the need for extra parts, saving space and money.

It supports RGMII and SGMII interfaces, making connections easy. Its Virtual Cable Tester® (VCT™) finds cable problems from far away. This improves reliability and helps fix issues quickly. These features make it a strong choice for small, high-performing systems.

Tip: Use the chip’s small size and energy-saving tools to build better devices.

Consumer Electronics and Smart Devices

Modern gadgets need fast and steady Ethernet for quick data sharing. The Marvell 88E1510-A0-NNB2C000 provides Gigabit Ethernet for this purpose. Devices like smart TVs, gaming consoles, and set-top boxes benefit from its speed and low delay.

Its small design fits well in slim and light devices. The chip’s mixed-signal processing keeps signals clear, even with interference. This ensures smooth streaming, gaming, and other activities without interruptions.

The chip also saves energy with IEEE 802.3az, using less power when idle. This is great for devices that stay connected for long periods. Its built-in voltage regulator makes it easier to design devices by reducing extra parts.

It supports timing protocols like IEEE 1588v2 PTP and SyncE. These are important for smart devices needing synchronized operations, like home automation systems. By combining speed, efficiency, and a small size, the chip helps improve modern electronics.

Note: Adding the chip to smart devices ensures fast Ethernet and energy savings, boosting performance.

Why the 88E1510-A0-NNB2C000 Matters

Improving Network Speed and Stability

The 88E1510-A0-NNB2C000 helps networks work faster and better. It supports different Ethernet speeds, making data sharing smooth. By following IEEE rules, it works with many devices. This makes it useful for both small and big networks.

The chip keeps signals clear and reduces interference. This ensures steady and strong connections. Tools like Precision Time Protocol (PTP) and Synchronous Ethernet (SyncE) improve timing. These features are important for industries needing exact synchronization, like telecom and factories.

Saving Energy and Cutting Costs

The chip is great at saving energy. It uses IEEE 802.3az Energy Efficient Ethernet (EEE) to lower power use when data is slow. This saves money and helps the environment.

Its built-in voltage regulator makes power management simple. It runs on 3.3V but also works with 1.8V and 2.5V. This means fewer extra parts are needed, saving space and money. Its small size makes it easy to fit into systems.

Helping New Technology Grow

The 88E1510-A0-NNB2C000 supports advanced networking ideas. It handles fast Ethernet and exact timing, making it useful for modern tech. It works in telecom, factories, and home gadgets, showing its flexibility.

Its tiny size and energy-saving tools match new tech needs. It helps build small, efficient devices without losing performance. By supporting future-ready designs, it helps create better networks and devices.

Enabling Scalable and Future-Proof Solutions

The Marvell 88E1510-A0-NNB2C000 helps create systems that grow and adapt. Its smart design works well with new technologies and bigger networks. Engineers can use its features to build solutions that stay efficient as needs increase.

Scalability for Expanding Networks

This chip works with different Ethernet speeds like 10BASE-T, 100BASE-TX, and 1000BASE-T. It allows devices to handle more data without slowing down. This makes it great for both small home setups and big industrial networks.

Tip: Use the chip’s speed options to design networks that grow with data needs.

Future-Proofing with Advanced Standards

The 88E1510-A0-NNB2C000 follows IEEE rules like 802.3, 802.3az, and 1588v2. These ensure it works with current and future technologies. Features like Precision Time Protocol (PTP) and Synchronous Ethernet (SyncE) prepare systems for better timing and synchronization.

Compact Design for Versatile Integration

The chip is small, measuring just 7x7 mm, and uses a 48-pin QFN package. Its built-in voltage regulator removes the need for extra parts, saving space and money. This tiny design helps create smaller, smarter devices for the future.

The Marvell 88E1510-A0-NNB2C000 helps engineers build systems ready for change. Its ability to scale, follow standards, and fit into compact designs makes it perfect for future-ready networking solutions.

The Marvell 88E1510-A0-NNB2C000 is special because it supports different Ethernet speeds, saves energy, and is very small. It works with IEEE rules and uses advanced timing tools, making it useful for networks, factories, telecom systems, and home gadgets.

Why it matters: This chip helps make networks faster and more reliable while using less power. Its design can grow with new technology needs. By using this chip, engineers can build smarter and better systems for the future of connectivity.

What is the Marvell 88E1510-A0-NNB2C000 used for?

The Marvell 88E1510-A0-NNB2C000 is used in devices like routers, factory machines, telecom systems, small gadgets, and home electronics. It offers fast Gigabit Ethernet and includes features like saving energy and accurate timing.

How does the chip save energy?

The chip uses IEEE 802.3az Energy Efficient Ethernet (EEE) to lower power when data use is low. Its built-in voltage regulator makes managing power easier, making it great for saving energy in devices.

Is the chip compatible with all Ethernet devices?

Yes, the chip follows IEEE 802.3 rules. It works with different Ethernet speeds and interfaces like RGMII and SGMII, making it fit with many devices and systems.

Can the chip detect cable issues?

The chip has Marvell's Virtual Cable Tester® (VCT™). It uses Time Domain Reflectometry (TDR) to find cable problems from far away, helping fix issues faster.

Why is the chip’s compact design important?

Its tiny 7x7 mm size and 48-pin QFN package fit into small devices. This small design works well for modern gadgets and systems without losing performance.

Tip: Use the chip’s small size to build smart, space-saving devices.
