What is MAX17502FATB+ IC Regulator and How It Powers Industrial Equipment

sales@keepboomingtech.com

·January 28, 2025

·15 min read

What is MAX17502FATB+ IC Regulator and How It Powers Industrial Equipment

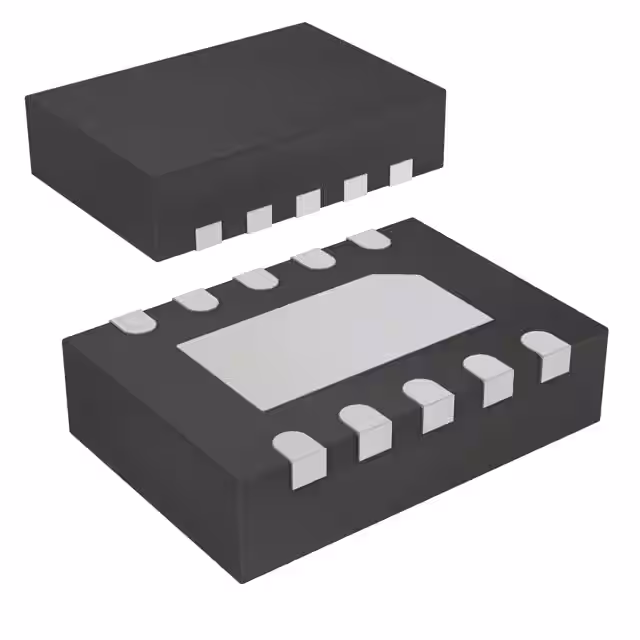

The MAX17502FATB+ IC regulator is a high-efficiency, high-voltage synchronous step-down DC-DC converter designed for industrial applications. It ensures precise voltage regulation, making it essential for powering advanced industrial equipment. This regulator operates with an input voltage range of 4.5V to 60V, offering flexibility for diverse designs. Its efficiency can reach up to 96% at light loads, minimizing power loss and heat generation. Features like programmable soft-start and integrated protection mechanisms enhance its reliability. By delivering stable output voltage under varying conditions, the MAX17502FATB+ supports critical systems such as factory automation, robotics, and telecommunications.

Key Takeaways

The MAX17502FATB+ IC regulator works well with input voltages from 4.5V to 60V. This makes it useful for many industrial tasks.
It is very efficient, up to 96%, so it wastes less power and stays cooler. This helps save energy.
Built-in safety features like overcurrent and thermal shutdown make it reliable. These features keep it safe in tough conditions.
Its small size, with built-in MOSFETs, saves space on circuit boards. This makes it great for small systems and portable gadgets.
The regulator keeps output voltage steady, even when conditions change. This is important for powering delicate parts in factories and telecom equipment.

Key Features and Specifications of MAX17502FATB+

Main Features of the MAX17502FATB+

Synchronous step-down control for high efficiency

The MAX17502FATB+ employs a synchronous step-down controller to achieve high efficiency in voltage regulation. It operates with a fixed switching frequency, ensuring stable performance across its wide input voltage range of 4.5V to 60V. This design enhances efficiency by reducing power loss during the conversion process. The synchronous rectification feature further improves efficiency and simplifies the design, making it ideal for various power management applications.

Wide input voltage range (4.5V to 60V)

The wide input voltage range of the MAX17502FATB+ ensures compatibility with diverse power sources. This feature is crucial for industrial equipment that operates under varying voltage conditions.

It supports input voltages from 4.5V to 60V, providing a stable output voltage.
This capability enhances reliability in industrial environments where voltage fluctuations are common.
The flexibility of this range makes it suitable for systems with different power supply requirements.

Programmable soft-start for controlled power-up

The programmable soft-start function in the MAX17502FATB+ minimizes input inrush current during startup. This feature protects sensitive components and ensures a smooth power-up process. In industrial applications, it reduces mechanical shock during motor startup and extends the service life of internal components. Additionally, it lowers current requirements at startup, reducing stress on electrical systems.

Integrated MOSFETs for compact design

The MAX17502FATB+ integrates low-resistance MOSFETs, which enhance efficiency at full load. This integration streamlines the overall layout and minimizes the need for additional external components. The compact design makes it suitable for space-constrained applications, such as embedded systems and portable devices.

Overcurrent and thermal protection for reliability

The MAX17502FATB+ includes built-in overcurrent protection to prevent damage from excessive current draw. It also features thermal shutdown functionality, which disables the device if it exceeds a critical temperature. These protection mechanisms ensure reliable operation in harsh industrial environments.

Technical Specifications of the MAX17502FATB+

Input Voltage Range: 4.5V to 60V

The MAX17502FATB+ supports a wide input voltage range, making it compatible with various power sources and industrial systems.

Output Voltage Range: 0.9V to 90% of input voltage

The regulator provides an adjustable output voltage range, ensuring flexibility for different applications.

Maximum Output Current: 1A

The device delivers a maximum output current of 1A, suitable for powering low to medium-power industrial equipment.

Efficiency: Up to 95%

The MAX17502FATB+ achieves an efficiency rating of up to 95%. This high efficiency reduces power loss and heat generation, which is essential for systems requiring effective thermal management.

Operating Temperature Range: -40°C to +125°C

The regulator operates reliably in extreme temperatures, making it suitable for industrial and automotive environments.

How the MAX17502FATB+ Voltage Regulator Works

Buck Converter Topology in the MAX17502FATB+

Explanation of voltage step-down process

The MAX17502FATB+ operates as a switching regulator using a buck converter topology. This design steps down a higher input voltage to a lower output voltage, making it suitable for industrial applications. The regulator achieves this by rapidly switching the input voltage on and off through integrated MOSFETs. The switching action creates a pulsed voltage waveform, which is then smoothed into a stable DC output using an inductor and capacitor. This process ensures efficient energy conversion while minimizing power loss.

Role of switching elements and inductors in regulation

Switching elements, such as MOSFETs, play a critical role in the MAX17502FATB+ regulator. They control the flow of current and determine the output voltage. The inductor stores energy during the on-state of the switch and releases it during the off-state, maintaining a continuous current flow. This combination of switching and energy storage ensures the regulator delivers a stable and efficient output. The compact design of the MAX17502FATB+ integrates these components, reducing the need for external parts and simplifying the overall circuit layout.

Precision Voltage Regulation in the MAX17502FATB+

Maintaining stable output voltage under varying conditions

The MAX17502FATB+ ensures precise voltage regulation even under fluctuating input or load conditions. It uses peak-current-mode control with pulse-width modulation (PWM) to adjust the duty cycle of the switching regulator. This mechanism allows the regulator to respond quickly to changes in input voltage or load demand. Additional features, such as a programmable soft-start and output voltage monitoring, enhance its ability to maintain stability. The undervoltage lockout pin further protects the system by preventing operation when the input voltage drops below a safe threshold.

Importance of feedback control for accuracy

Feedback control is essential for the accuracy of the MAX17502FATB+ voltage regulator. The feedback loop continuously monitors the output voltage and compares it to a reference value. If any deviation occurs, the regulator adjusts the PWM duty cycle to correct the output. Keeping the feedback trace short and direct minimizes signal interference, ensuring stable and precise voltage regulation. This design approach enhances the reliability of the regulator in industrial environments where accuracy is critical.

Applications of MAX17502FATB+ in Industrial Equipment

Power Management Systems

Managing power distribution in industrial machinery

The MAX17502FATB+ plays a vital role in power management systems by ensuring efficient power distribution in industrial machinery. Its peak-current-mode control with pulse-width modulation (PWM) allows it to operate with a fixed switching frequency, ensuring high efficiency even at full load. This capability simplifies layout design and enhances the overall performance of power management applications. The regulator's wide input voltage range and precise voltage regulation make it suitable for managing the diverse power supply needs of industrial equipment.

Ensuring stable operation of sensitive components

Sensitive components in industrial control systems require stable voltage levels to function reliably. The MAX17502FATB+ ensures this stability through design considerations such as short feedback trace routing and proper placement of decoupling capacitors. These features minimize signal interference and maintain voltage stability. The regulator also incorporates thermal management techniques, including thermal vias and adequate copper areas, to dissipate heat effectively. These measures enhance the reliability of sensitive components in demanding industrial environments.

Design Consideration	Description
Ground plane	Use a continuous ground plane to reduce noise and improve signal integrity.
Inductor and capacitor placement	Place the input and output capacitors as close as possible to the IC to minimize parasitic inductance and resistance.
Feedback trace routing	Keep the feedback trace as short and direct as possible to avoid signal interference and instability.
Thermal management	Ensure adequate copper area for heat dissipation and use thermal vias under the IC to improve heat flow.
Decoupling capacitors	Place decoupling capacitors close to the power input and output pins to maintain voltage stability.

Embedded Systems

Powering microcontrollers and sensors in automation

The MAX17502FATB+ is ideal for powering microcontrollers and sensors in industrial automation. Its high efficiency and precise voltage regulation ensure reliable operation of these components. The regulator's synchronous step-down design and low-resistance MOSFETs contribute to its ability to deliver stable power. These features make it a preferred choice for embedded systems in automation, where consistent performance is critical.

Peak-current-mode control with PWM ensures efficient operation.
Operates with a fixed switching frequency at any load.
Integrated MOSFETs reduce power loss and improve efficiency.
Wide input voltage range supports diverse system requirements.

Contribution to compact and efficient system design

The compact design of the MAX17502FATB+ makes it suitable for space-constrained embedded systems. Integrated MOSFETs and a wide input voltage range simplify the layout and reduce the need for external components. The regulator's ability to deliver up to 1A of current and maintain accurate output voltage over a wide temperature range further enhances its suitability for embedded applications.

Feature	Description
Input Voltage Range	Operates over a 4.5V to 60V input voltage range.
Output Voltage	Available in fixed 3.3V, 5V, or adjustable output (0.9V to 92% VIN).
Temperature Range	Accurate output voltage over -40°C to +125°C.
Efficiency	High efficiency and precise voltage regulation.
Integrated Components	Integrated MOSFETs simplify layout and reduce space requirements.

Telecommunications Equipment

Application in base stations and network infrastructure

The MAX17502FATB+ finds extensive use in telecommunications equipment, including base stations and network infrastructure. Its high efficiency and precise voltage regulation ensure reliable operation of these systems. The regulator's ability to handle a wide input voltage range and deliver stable output makes it suitable for various telecom applications.

Application Type
Base Station
VOIP
Telecom
Battery-Powered Equipment
General-Purpose Point-of-Load
Home Theater
HVAC and Building Control
Industrial Process Control

Importance in maintaining reliable communication systems

Reliable communication systems depend on stable voltage levels and protection against electrical faults. The MAX17502FATB+ enhances system reliability through features like overcurrent protection, thermal shutdown, and undervoltage lockout. These features prevent damage from excessive current, overheating, or low voltage conditions. The regulator's soft-start functionality reduces inrush current, minimizing stress on components during power-up.

High efficiency minimizes energy loss, improving system reliability.
Precise voltage regulation maintains stable voltage levels.
Overcurrent and thermal protection ensure device longevity.
Soft-start reduces stress on components during startup.

Other Industrial Applications

Use in human-machine interfaces (HMIs) and machine vision systems

The MAX17502FATB+ regulator supports advanced technologies like human-machine interfaces (HMIs) and machine vision systems. These systems require precise and stable power to function effectively. The regulator’s ability to deliver consistent voltage ensures that HMIs operate without interruptions. This stability is crucial for touchscreens, control panels, and other interactive devices used in factories and automation systems.

Machine vision systems also benefit from the regulator’s high efficiency and compact design. These systems rely on cameras and sensors to inspect and monitor production lines. The MAX17502FATB+ provides the necessary power for these components, ensuring accurate image processing and data analysis. Its wide input voltage range allows it to adapt to various power sources, making it suitable for diverse applications in manufacturing and quality control.

Role in current/voltage transducers and PLC control solutions

The MAX17502FATB+ plays a vital role in powering current and voltage transducers. These devices measure electrical parameters and convert them into signals for monitoring and control. The regulator’s precision voltage regulation ensures accurate readings, which are essential for maintaining the efficiency of electrical systems. Its robust performance under extreme temperatures makes it reliable for use in harsh environments.

Programmable logic controllers (PLCs) also depend on the MAX17502FATB+ for stable power. PLCs control machinery and processes in industrial settings. The regulator’s compact design and integrated protection features make it ideal for PLC control solutions. It ensures uninterrupted operation, even in demanding applications, enhancing the reliability of automation systems.

The MAX17502FATB+ demonstrates its versatility by supporting a wide range of applications. Its efficiency and reliability make it a valuable component in modern industrial systems.

Advantages of Using the MAX17502FATB+ Voltage Regulator

Energy Efficiency of the MAX17502FATB+

Reducing power loss and heat generation

The MAX17502FATB+ achieves exceptional efficiency, reducing power loss and minimizing heat generation. Its synchronous step-down design ensures energy is conserved during the voltage conversion process. The regulator operates with efficiency levels that reach up to 96% under light loads and maintain a range of 85-92% at heavier loads. This high efficiency reduces the need for extensive cooling systems, making it ideal for industrial environments where thermal management is critical.

Load Condition	Efficiency Range
Light Loads	Up to 96%
Heavier Loads	85-92%

Benefits for energy-conscious industrial operations

Energy-conscious industries benefit significantly from the regulator's high efficiency. By reducing energy waste, the MAX17502FATB+ supports sustainable operations and lowers operational costs. Its ability to maintain efficiency above 90% across various conditions ensures reliable performance while conserving energy. This makes it a preferred choice for industries aiming to optimize power usage without compromising system reliability.

Compact Design of the MAX17502FATB+

Integrated MOSFETs minimize board space requirements

The MAX17502FATB+ integrates low-resistance MOSFETs directly onto the chip. This eliminates the need for external components, reducing the overall size of the circuit. The compact design simplifies the layout and lowers production costs. This feature is particularly beneficial for applications where board space is limited, such as embedded systems and portable devices.

Ideal for space-constrained applications

The regulator's compact layout supports the use of all-ceramic capacitors, enabling ultra-compact PCB designs. It operates efficiently in a wide temperature range, ensuring reliable performance even in harsh environments.

Advantage	Description
Eliminates External Components	Reduces total cost and complexity by integrating functions internally.
High Efficiency	Peak efficiency greater than 90%, optimized for low thermal dissipation.
Compact Layout	Designed for all-ceramic capacitors, enabling ultra-compact PCB layouts.
Reliable Operation	Operates in a wide temperature range (-40°C to +125°C), suitable for harsh environments.

Robust Performance of the MAX17502FATB+

Reliable operation under extreme temperatures and harsh conditions

The MAX17502FATB+ delivers consistent performance across a wide operating temperature range of -40°C to +125°C. Its output voltage accuracy remains within ±1.7% over this range, ensuring stable operation in extreme conditions. Features like peak-current-mode control and integrated MOSFETs enhance its efficiency and reliability, making it suitable for demanding industrial applications.

Operating temperature range: -40°C to +125°C.
Output voltage accuracy: ±1.7% across the entire temperature range.
High efficiency maintained through low-resistance MOSFETs and advanced control mechanisms.

Protection features enhance durability and safety

The regulator includes multiple protection features that ensure durability and safety in industrial environments. Overcurrent protection prevents damage from excessive current draw, while thermal shutdown safeguards the device from overheating. Output overvoltage protection shields connected components from voltage spikes. The undervoltage lockout feature ensures the regulator operates only when the input voltage is above a safe threshold. Additionally, the soft-start function reduces inrush current during power-up, protecting both the regulator and external components.

Overcurrent protection prevents damage from excessive current.
Thermal shutdown ensures safe operation by preventing overheating.
Output overvoltage protection safeguards sensitive components.
Undervoltage lockout ensures reliable operation under safe input conditions.
Soft-start minimizes stress during power-up.

The MAX17502FATB+ combines energy efficiency, compact design, and robust performance, making it a versatile solution for industrial applications. Its advanced features and reliable operation ensure it meets the demands of modern industrial systems.

The MAX17502FATB+ IC regulator plays a pivotal role in powering industrial equipment by delivering efficient and reliable voltage regulation. Its synchronous step-down design, wide input voltage range, and integrated MOSFETs ensure high performance across diverse applications. Features like peak-current-mode control and robust protection mechanisms enhance its reliability in demanding environments.

This regulator contributes significantly to modern industrial systems by optimizing energy efficiency and minimizing power losses. Its compact design supports space-constrained applications, while its ability to maintain stable output under varying conditions ensures consistent performance. These qualities make it indispensable for advanced industrial applications, from automation to telecommunications.

The MAX17502FATB+ stands out for its versatility, supporting a broad range of sectors with its high efficiency and robust protection features. Its ability to adapt to different power requirements and environments highlights its importance in enabling innovation and enhancing system performance across industries.

The MAX17502FATB+ exemplifies the ideal balance of efficiency, reliability, and compactness, making it a cornerstone of modern industrial technology.

What makes the MAX17502FATB+ suitable for industrial applications?

The MAX17502FATB+ offers high efficiency, a wide input voltage range, and robust protection features. These qualities ensure reliable performance in demanding environments, making it ideal for industrial automation, telecommunications, and embedded systems.

Can the MAX17502FATB+ handle extreme temperatures?

Yes, the MAX17502FATB+ operates reliably between -40°C and +125°C. This wide temperature range ensures consistent performance in harsh industrial and automotive environments.

How does the MAX17502FATB+ improve energy efficiency?

The regulator uses a synchronous step-down design and integrated MOSFETs to minimize power loss. It achieves up to 96% efficiency at light loads, reducing heat generation and energy waste.

What protection features does the MAX17502FATB+ include?

The MAX17502FATB+ provides overcurrent protection, thermal shutdown, and undervoltage lockout. These features safeguard the device and connected components from electrical faults and overheating.

Is the MAX17502FATB+ suitable for space-constrained designs?

Yes, the compact design of the MAX17502FATB+ integrates MOSFETs and supports all-ceramic capacitors. This minimizes board space requirements, making it ideal for embedded systems and portable devices.
