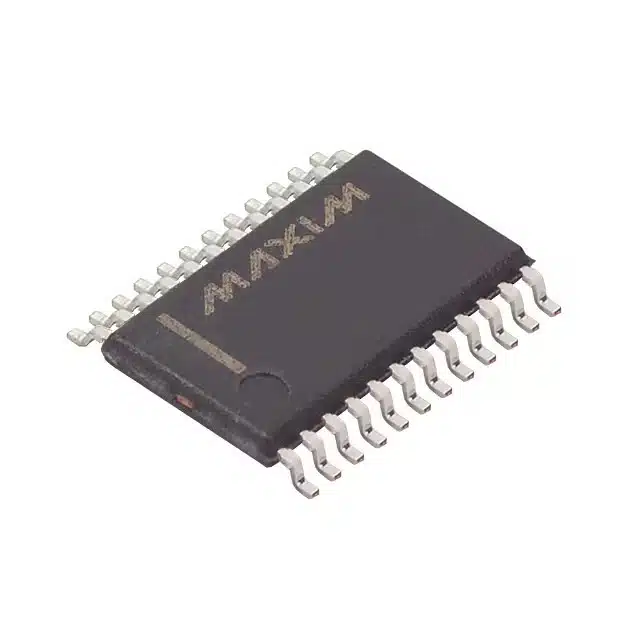

Discover the Powerful MAX7311AUG+T I/O Expander
The MAX7311AUG+T is a 16-bit I/O expander designed to enhance the GPIO capabilities of microcontrollers. It uses an I²C interface, enabling efficient communication with minimal wiring. This device simplifies electronic designs by reducing the need for additional microcontrollers or complex circuitry.
GPIO expanders like the MAX7311AUG+T are increasingly vital in modern electronics. The market for these devices is projected to grow from $1.38 billion in 2024 to $3.21 billion by 2034, driven by advancements in IoT, industrial automation, and smart city technologies. Its flexibility and interrupt capabilities make it a preferred choice for engineers seeking streamlined designs.
Key Takeaways
The MAX7311AUG+T adds 16 I/O ports to expand GPIO use. It allows flexible input and output for many projects.
Its I²C interface works fast with speeds up to 400 kHz. This makes it great for projects needing quick communication.
The small 24-pin TSSOP package saves space on circuit boards. It is ideal for wearable devices and small systems.
The interrupt feature helps real-time tasks respond faster. It reduces constant checking and makes things work better.
It works with voltages from 2V to 5.5V, making it useful in many places like factories and cars.
Overview of the MAX7311AUG+T
Key Features of the MAX7311AUG+T
16 GPIO pins for input/output expansion
The MAX7311AUG+T offers 16 GPIO ports, making it an excellent choice for expanding the input/output capabilities of microcontrollers. Each port can be configured as either an input or an output, providing flexibility for various applications. Upon power-on, all ports default to input mode, ensuring safe initialization. Additionally, the device supports hot insertion, maintaining high impedance during power-down states.
Key highlights include:
16-bit parallel I/O port expansion for I²C and SMBus applications.
Input and output port registers for flexible configuration.
Polarity inversion and bus timeout registers for enhanced control.
I2C interface for efficient communication
The MAX7311AUG+T uses an I²C interface, enabling seamless communication with microcontrollers. This interface supports clock speeds up to 400 kHz, ensuring fast and reliable data transfer. With three address selection pins, the device allows up to 64 unique slave addresses, making it suitable for systems requiring multiple expanders.

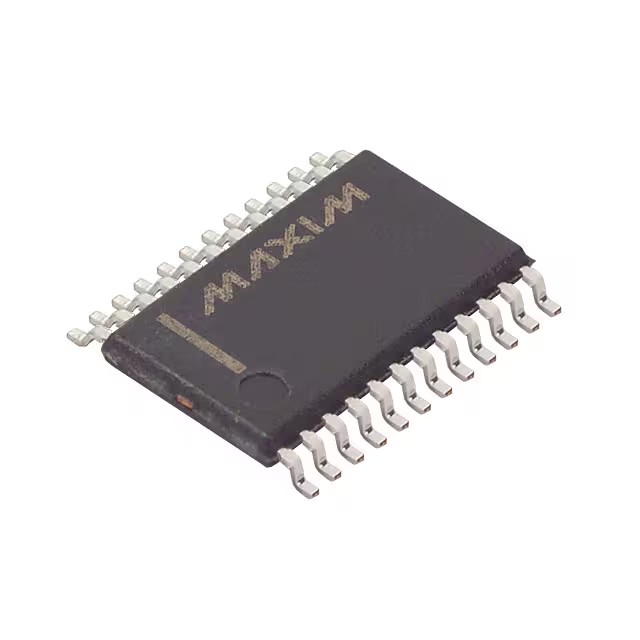

Compact 24-pin TSSOP package
The device comes in a compact 24-pin TSSOP package, which saves space on printed circuit boards (PCBs). Its small footprint makes it ideal for applications where space is limited, such as wearable devices and embedded systems.
Technical Specifications
Operating voltage range and current requirements
The MAX7311AUG+T operates within a voltage range of 2 V to 5.5 V, making it compatible with a wide variety of systems. It can source up to 43 mA and sink up to 31 mA, ensuring robust performance in demanding applications.
Specification | Value |
|---|---|
Voltage - Supply | 2 V ~ 5.5 V |
Current - Output Source/Sink | 31 mA, 43 mA |
Maximum I2C clock speed of 400 kHz
The device supports a maximum I²C clock speed of 400 kHz, enabling efficient communication in time-sensitive applications. This feature ensures smooth operation in systems requiring high-speed data transfer.
Interrupt capabilities for event-driven applications
The MAX7311AUG+T includes interrupt functionality, which enhances responsiveness in event-driven applications. Interrupts allow the device to notify the microcontroller of changes in input states, reducing the need for constant polling.
Feature | Description |
|---|---|
GPIO Ports | Up to 16 I/O ports available for event-driven applications. |
Interrupt Capability | Designed with interrupt features to enhance responsiveness in applications. |
Configuration Registers | Includes registers for input/output configuration, ensuring reliable operation. |
Compatibility and Integration
Compatible with various microcontrollers and processors
The MAX7311AUG+T integrates seamlessly with a wide range of microcontrollers and processors. Its I²C interface ensures compatibility with popular platforms, including Arduino, Raspberry Pi, and STM32.
Seamless integration with sensors, LEDs, and other peripherals
The device supports easy integration with peripherals like sensors, LEDs, and switches. Its flexibility makes it suitable for applications such as LED control, sensor monitoring, and user interface design.
Feature | Description |
|---|---|
I/O Ports | Provides up to 16 I/O ports for GPIO expansion. |
Interface | Controlled through an I²C interface for easy integration. |
Configuration | Ports can be configured as inputs or outputs, offering flexibility. |
Power-on Reset | Initializes all I/O lines as inputs upon power-on. |
Address Selection | Three slave ID address select pins allow for 64 unique addresses. |
How the MAX7311AUG+T Works
I2C Communication Protocol
Addressing and data transfer process
The MAX7311AUG+T operates as a slave device on the I²C bus, communicating with a master device through two lines: SDA (data) and SCL (clock). The addressing and data transfer process involves several steps:
Step | Description |
|---|---|
1 | Upon power-on, all I/O lines are set as inputs. |
2 | Three slave ID address select pins (AD0, AD1, AD2) choose one of 64 addresses. |
3 | The MAX7311 communicates via the 2-wire I²C interface (SDA and SCL). |
4 | A master device initiates all data transfers and generates the SCL clock. |
5 | The master configures any of the 16 I/O ports as inputs or outputs. |
6 | A power-on reset initializes the 16 I/Os as inputs. |
This structured process ensures reliable communication and efficient data handling in complex systems.
Configuring the MAX7311AUG+T via I2C commands
The MAX7311AUG+T features multiple registers for configuration, including input port, output port, and polarity inversion registers. Key configuration methods include:
Initializing I/Os as inputs after power-on.
Writing to the polarity inversion register to invert input data.
Enabling or disabling the bus timeout feature through the bus timeout register.
These capabilities allow precise control over the device's behavior, making it adaptable to various applications.
GPIO Functionality
Configuring pins as input or output
The MAX7311AUG+T provides 16 I/O ports, each configurable as an input or output. The system master can write to the configuration register to set the desired mode for each pin. This flexibility enables the device to handle diverse tasks, such as reading sensor data or controlling LEDs.
Reading input states and controlling output levels
The device allows seamless monitoring of input states and control of output levels. Input port registers store the current state of input pins, while output port registers determine the output levels. This dual functionality ensures efficient operation in systems requiring both input monitoring and output control.
Interrupt System
How the interrupt system operates
The MAX7311AUG+T includes an interrupt output pin that signals the microcontroller when input states change. This eliminates the need for constant polling, as the device actively notifies the system of events. The interrupt system enhances efficiency by reducing processor workload.
Benefits of interrupts in real-time applications
The interrupt system significantly improves responsiveness in real-time applications. It enables the system to react promptly to input changes, ensuring smooth operation in time-sensitive environments. This feature is particularly valuable in industrial automation and embedded systems, where quick responses are critical.
Applications of the MAX7311AUG+T
Industrial Automation
Controlling sensors and actuators
The MAX7311AUG+T plays a vital role in industrial automation systems. It ensures dependable data transmission and efficient power usage, making it ideal for controlling sensors and actuators. Engineers can use its 16 GPIO ports to monitor sensor inputs or control actuators like motors and relays. This capability simplifies the design of automation systems, especially in environments requiring precise and reliable operation.
Expanding I/O in PLC systems
Programmable Logic Controllers (PLCs) often require additional I/O ports to handle complex tasks. The MAX7311AUG+T provides a robust solution for I/O expansion in PLC systems. Its features enhance system flexibility and reliability, as shown below:
Feature/Advantage | Description |
|---|---|
16-bit parallel I/O port expansion | Provides extensive I/O capabilities for various applications, enhancing system flexibility. |
Programmable I/O configuration | Each of the 16 I/O ports can be set as input or output, allowing for tailored system design. |
Power-on reset (POR) | Ensures reliable startup by initializing I/Os as inputs, crucial for system stability. |
Hot insertion support | Facilitates easy addition of devices without system interruption, enhancing usability. |
Wide operating temperature range | Operates effectively in extreme conditions (-40°C to +125°C), suitable for diverse PLC environments. |
Consumer Electronics
Enhancing smart home devices
The MAX7311AUG+T enhances smart home devices by providing additional I/O ports for controlling appliances, lighting, and security systems. Its I²C interface allows seamless integration with microcontrollers, enabling efficient communication with sensors and actuators. This device supports the development of advanced home automation systems, offering flexibility and scalability for modern smart homes.
Supporting wearable technology
Wearable devices demand compact, low-power components to ensure long battery life and reliable performance. The MAX7311AUG+T meets these requirements with its advanced features:
Feature | Description |
|---|---|
I2C and SMBus interfaces | Enables easy communication in wearable devices. |
16 general-purpose I/O pins | Allows flexible configuration for various applications. |
Low power consumption | Extends battery life, crucial for wearable technology. |
Wide operating temperature range | Ensures reliable performance in diverse environments. |
Automotive Systems
Managing dashboard controls
The MAX7311AUG+T simplifies the management of dashboard controls in automotive systems. Its 16 GPIO ports allow engineers to connect multiple switches, indicators, and sensors to a single microcontroller. This reduces wiring complexity and enhances the overall efficiency of the system.
Expanding I/O in infotainment systems
Automotive infotainment systems require extensive I/O capabilities to manage displays, buttons, and audio controls. The MAX7311AUG+T offers several benefits for these applications:
Provides 16-bit parallel input/output (I/O) port expansion.
Allows configurability of I/O ports as either inputs or outputs.
Supports hot insertion, enabling dynamic connection without system interruption.
These features make the MAX7311AUG+T a reliable choice for expanding I/O in modern infotainment systems.
Embedded Systems and IoT
Adding inputs/outputs for buttons, switches, and sensors
The MAX7311AUG+T serves as a practical solution for embedded systems requiring additional inputs and outputs. Many embedded applications, such as home automation or industrial control, involve multiple buttons, switches, and sensors. These components often exceed the available GPIO pins on microcontrollers. The MAX7311AUG+T addresses this limitation by providing 16 configurable GPIO ports.
Each GPIO pin can function as an input to read the state of buttons or switches. For example, engineers can connect tactile switches to monitor user inputs in control panels. Similarly, the device can interface with sensors like temperature or motion detectors, enabling real-time data collection.
The output functionality of the MAX7311AUG+T allows it to control LEDs, relays, or other actuators. This dual capability makes it a versatile choice for systems requiring both input monitoring and output control. Its I²C interface ensures efficient communication with the main processor, even in systems with limited wiring.
Tip: Use the MAX7311AUG+T to simplify designs by consolidating multiple input and output devices into a single I²C-controlled module.
Prototyping and development boards
The MAX7311AUG+T is an excellent addition to prototyping and development boards. Engineers and hobbyists often use these boards to test and refine their designs. Limited GPIO availability can hinder the development process, especially in projects involving numerous peripherals.
By integrating the MAX7311AUG+T, developers can expand the GPIO capacity of their boards. This expansion enables them to connect additional components, such as sensors, displays, or actuators, without modifying the main microcontroller. The device’s compact 24-pin TSSOP package ensures it fits seamlessly into space-constrained designs.
Prototyping becomes more efficient with the MAX7311AUG+T. Developers can quickly configure its GPIO pins using I²C commands, allowing them to focus on refining their applications. Its interrupt capabilities further enhance the prototyping experience by enabling event-driven designs.
Note: The MAX7311AUG+T is compatible with popular platforms like Arduino and Raspberry Pi, making it a valuable tool for both beginners and professionals.
Benefits of Using the MAX7311AUG+T
Simplified Design
Reducing the need for additional microcontrollers
The MAX7311AUG+T simplifies electronic designs by reducing the dependency on multiple microcontrollers. Its 16 GPIO ports allow engineers to expand I/O capabilities without adding extra processors. This feature minimizes system complexity and enhances efficiency. The device’s ability to configure each port as input or output further streamlines the design process.
Key features that contribute to design simplification include:
16-bit parallel I/O port expansion for I²C and SMBus applications.
Configurable input/output ports with polarity inversion capability.
High impedance state during power-down, ensuring device safety.
Hot insertion support, which allows seamless integration into existing systems.
Streamlining PCB layouts
The compact 24-pin TSSOP package of the MAX7311AUG+T saves valuable PCB space. Its small footprint makes it ideal for applications with limited board area, such as wearable devices or embedded systems. Additionally, the device’s I²C interface reduces the number of required communication lines, further simplifying PCB layouts.
Feature | Description |
|---|---|
I/O Ports | |
Input/Output Registers | Contains input port registers, output port registers, and polarity inversion registers. |
Configuration Registers | Allows configuration of each I/O port as input or output. |
Slave ID Addressing | Supports 64 slave ID addresses through three address select pins. |
Power-On Reset (POR) | Initializes all I/O lines as inputs upon power-on. |
Hot Insertion Support | Allows for the insertion of the device without powering down the system. |
Cost-Effectiveness
Lowering overall system costs
The MAX7311AUG+T offers a cost-effective solution for I/O expansion. By consolidating multiple input and output functions into a single device, it eliminates the need for additional components. This reduces material costs and simplifies assembly processes. Its efficient I²C communication also minimizes wiring, further lowering expenses.
Minimizing power consumption
The device’s low power consumption makes it an economical choice for energy-sensitive applications. It operates efficiently within a voltage range of 2 V to 5.5 V, ensuring compatibility with various systems while conserving energy. This feature is particularly beneficial for battery-powered devices, such as wearables and IoT sensors.
Versatility
Adapting to various applications and industries
The MAX7311AUG+T demonstrates exceptional versatility across multiple industries. Its ability to handle diverse tasks makes it suitable for:
Medical devices
Aerospace and defense systems
Automotive systems
Building automation systems
This adaptability ensures that the device meets the needs of both specialized and general-purpose applications.
Supporting both small-scale and large-scale projects
The MAX7311AUG+T supports projects of all sizes with its robust features. Its 16-bit I²C/SMBus I/O expander enables extensive I/O expansion, while its interrupt output ensures efficient monitoring in complex systems. Programmable pull-up/pull-down resistors and push-pull output drivers enhance flexibility and performance.
Key Features | Description |
|---|---|
16-bit I2C/SMBus I/O expander | Allows for extensive I/O expansion, suitable for various project sizes. |
Interrupt output | Enables efficient monitoring and response in both small and large systems. |
Programmable pull-up/pull-down resistors | Customizes input/output behavior, enhancing flexibility. |
Power-on-reset (POR) circuit | Ensures reliable startup, crucial for all project scales. |
Push-pull output drivers | Supports robust performance in diverse applications. |
400 kHz clock frequency | Facilitates fast communication, beneficial for complex systems. |
31 mA/43 mA output source/sink current | Provides adequate power for various devices, from small to large projects. |
The MAX7311AUG+T’s versatility and cost-effectiveness make it an indispensable tool for engineers and developers across industries.
The MAX7311AUG+T stands out as a versatile and efficient solution for GPIO expansion. Its 16 configurable I/O ports, support for I2C and SMBus protocols, and interrupt output feature make it ideal for diverse applications. The device operates within a wide voltage range of 2V to 5.5V and handles temperatures from -40°C to 125°C, ensuring reliability in demanding environments.
Feature/Benefit | Description |
|---|---|
I/O Configuration | 16 individually configurable I/Os |
Protocol Support | Supports I2C and SMBus protocols |
Interrupt Feature | Includes an interrupt output feature |
Voltage Range | Operates from 2V to 5.5V |
Temperature Range | Extended range from -40°C to +125°C |
Output Type | Push-pull output type for direct load driving |
Power-on Reset | Ensures reliable initialization |
Current Drive Capability | 31mA sink, 43mA source |
Clock Frequency | Supports up to 400 kHz for fast data communication |
This device simplifies designs by reducing the need for additional microcontrollers and streamlining PCB layouts. Its adaptability across industries, from industrial automation to consumer electronics, makes it a valuable tool for engineers and developers. Explore the MAX7311AUG+T to enhance your next project with its powerful features and cost-effective design.
What is the primary function of the MAX7311AUG+T?
The MAX7311AUG+T expands the GPIO capabilities of microcontrollers. It provides 16 configurable I/O ports and uses an I²C interface for communication. This device simplifies designs by reducing the need for additional microcontrollers and supports various applications, including industrial automation and consumer electronics.
How does the MAX7311AUG+T handle input and output configuration?
Each of the 16 GPIO ports can be configured as either an input or output. Users can set the configuration through I²C commands. Input port registers store the current state of inputs, while output port registers control output levels, ensuring flexibility for diverse applications.
Is the MAX7311AUG+T compatible with popular development platforms?
Yes, the MAX7311AUG+T integrates seamlessly with platforms like Arduino, Raspberry Pi, and STM32. Its I²C interface ensures compatibility with a wide range of microcontrollers and processors, making it suitable for prototyping and development projects.
What are the key benefits of using the MAX7311AUG+T in embedded systems?
The MAX7311AUG+T adds extra GPIO ports for buttons, switches, and sensors. It reduces wiring complexity and supports event-driven designs with its interrupt feature. Its compact size and low power consumption make it ideal for space-constrained and battery-powered embedded systems.
Can the MAX7311AUG+T operate in extreme environments?
The MAX7311AUG+T operates reliably in temperatures ranging from -40°C to +125°C. This wide temperature range ensures dependable performance in demanding environments, including industrial automation, automotive systems, and outdoor applications.
Tip: Use the MAX7311AUG+T for projects requiring robust performance and efficient GPIO expansion in challenging conditions.
