How MIC5504-1.8YM5 Revolutionizes Voltage Regulation

Voltage regulation plays a critical role in modern electronics, ensuring devices operate efficiently and reliably. The MIC5504-1.8YM5 sets a new standard in this field with its advanced features and robust performance. Its low dropout voltage of 200mV enhances efficiency, especially in battery-powered devices. A quiescent current of just 45µA minimizes power consumption, making it ideal for portable applications.

Engineers value its ability to maintain a stable 1.8V output under varying input and load conditions. The built-in thermal shutdown protection ensures safety by preventing overheating. These capabilities make the MIC5504-1.8YM5 a versatile solution for consumer electronics, industrial systems, and medical devices.

Specification	Value
Input Voltage Range	2.7V to 5.5V
Output Voltage	1.8V
Output Current	Up to 150mA
Dropout Voltage	200mV (typical)
Quiescent Current	45µA (typical)
Line Regulation	±0.2% (typical)
Load Regulation	±0.3% (typical)
Operating Temperature Range	-40°C to +85°C

The MIC5504-1.8YM5 combines efficiency, reliability, and compact design, addressing key challenges in voltage regulation with precision.

Key Takeaways

The MIC5504-1.8YM5 features a low dropout voltage of just 200mV, enhancing efficiency in battery-powered devices and extending battery life.
With a quiescent current of only 45µA, this voltage regulator minimizes power consumption, making it ideal for portable applications like wearables and smartphones.
Its compact SOT-23-5 package allows for space-saving designs, enabling engineers to create smaller and more portable electronic devices.
Built-in thermal shutdown and current limit protection ensure the MIC5504-1.8YM5 operates safely, preventing damage from overheating and excessive current.
The high Power Supply Rejection Ratio (PSRR) of the MIC5504-1.8YM5 guarantees stable output even in noisy environments, making it suitable for sensitive applications like communication devices.

Overview of MIC5504-1.8YM5

Key Features and Specifications

Low dropout voltage for efficient operation

The MIC5504-1.8YM5 achieves a low dropout voltage of just 200mV. This feature ensures efficient operation, especially in scenarios where the input voltage is close to the output voltage. Devices like mobile phones and portable media players benefit from this efficiency, as it reduces energy loss and extends battery life.

Compact SOT-23-5 package for space-constrained designs

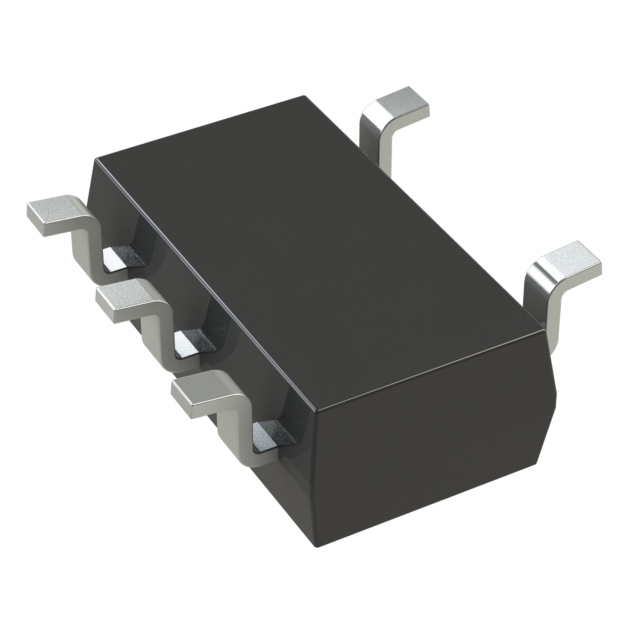

The MIC5504-1.8YM5 comes in a small SOT-23-5 package, making it ideal for compact electronic devices. This design allows engineers to save valuable PCB space, enabling the creation of smaller and more portable products.

Low quiescent current for battery-powered applications

With a typical quiescent current of only 45µA, the MIC5504-1.8YM5 minimizes power consumption during operation. This feature makes it a perfect choice for battery-powered devices, such as wearable electronics and digital cameras, where energy efficiency is critical.

High PSRR for noise rejection

The MIC5504-1.8YM5 offers a high Power Supply Rejection Ratio (PSRR), ensuring stable output even when input voltage fluctuates. This capability is essential for sensitive devices like wireless communication modules, which require consistent voltage levels to function reliably.

Built-in thermal shutdown and current limit protection

Safety features like thermal shutdown and current limit protection safeguard the MIC5504-1.8YM5 and connected circuits. These mechanisms prevent damage caused by overheating or excessive current, enhancing the device's reliability in demanding applications.

Feature	Description
Small package size	Allows for space-saving designs
Low power consumption	Helps to extend battery life
High efficiency	Reduces power dissipation
Low dropout voltage	Ensures stable voltage output
Thermal shutdown protection	Protects against overheating
Short-circuit current limiting	Prevents damage during short-circuit conditions

How MIC5504-1.8YM5 Differs from Other Voltage Regulators

Comparison with traditional LDO regulators

The MIC5504-1.8YM5 outperforms traditional Low Dropout (LDO) regulators by offering superior efficiency and reliability. Its low dropout voltage of 200mV ensures stable operation even in low-voltage scenarios, a feature not always present in older LDO designs.

Superior thermal performance and reliability

The MIC5504-1.8YM5 excels in thermal performance. Its built-in thermal shutdown feature protects the device from overheating, ensuring stable operation across a wide temperature range of -40°C to +125°C. This reliability makes it suitable for industrial and medical applications.

Enhanced noise performance for sensitive devices

High PSRR and low noise output set the MIC5504-1.8YM5 apart from competitors. These features make it an excellent choice for sensitive devices like hearing aids and communication equipment, where stable and noise-free voltage is essential.

Specification	Value
Input Voltage Range	2.5V to 16V
Output Voltage	1.8V
Output Current	Up to 150mA
Dropout Voltage	200mV (typical)
Line Regulation	±0.05% (typical)
Load Regulation	±0.1% (typical)
Quiescent Current	45µA (typical)
Operating Temperature Range	-40°C to +125°C

The MIC5504-1.8YM5 combines efficiency, compactness, and advanced safety features, making it a standout choice in voltage regulation technology.

Applications of MIC5504-1.8YM5

Consumer Electronics

Smartphones and tablets

The MIC5504-1.8YM5 enhances the performance of smartphones and tablets by delivering stable voltage output. Its low power consumption extends battery life, which is critical for portable devices. The compact SOT-23-5 package allows engineers to design slimmer and more lightweight devices. These features make it a preferred choice for mobile phones, portable media players, and wireless communication devices.

Wearable devices

Wearable electronics, such as fitness trackers and smartwatches, benefit significantly from the MIC5504-1.8YM5. Its low quiescent current ensures minimal power usage, while the small package size supports compact designs. The high efficiency of this regulator reduces power dissipation, ensuring reliable operation for extended periods.

Portable gaming consoles

Portable gaming consoles require consistent voltage levels for uninterrupted performance. The MIC5504-1.8YM5 provides the stable and regulated output necessary for these devices. Its low dropout voltage and high PSRR ensure smooth operation, even under varying load conditions. These attributes enhance user experience by improving device reliability and battery life.

Industrial Applications

IoT devices and smart sensors

The MIC5504-1.8YM5 plays a vital role in IoT devices and smart sensors. Its low power consumption and high efficiency extend battery life, while the stable voltage output ensures consistent performance. The compact design allows for space-saving implementations in embedded systems and industrial sensors.

Feature	Description
Low power consumption	Helps to extend battery life
High efficiency	Reduces power dissipation
Stable voltage output	Ensures consistent performance under varying loads
Small package size	Allows for space-saving designs

Automation systems

Automation systems demand reliable voltage regulation for optimal performance. The MIC5504-1.8YM5 meets these requirements with its excellent line and load regulation. Its thermal shutdown protection ensures safe operation in high-temperature environments, making it suitable for industrial control systems.

Low-power industrial equipment

Low-power industrial equipment benefits from the MIC5504-1.8YM5's ability to maintain stable output under varying conditions. Its robust design and safety features, such as current limit protection, enhance durability and reliability in demanding applications.

Medical Devices and Other Niche Uses

Portable medical monitoring devices

The MIC5504-1.8YM5 ensures precise voltage regulation in portable medical monitoring devices. Its low power consumption and small package size make it ideal for compact, battery-powered medical instruments. These features improve device efficiency and usability.

Advantage	Description
Stable voltage output	Provides stable and regulated voltage output
Small package size	Allows for space-saving designs
Low power consumption	Helps to extend battery life
High efficiency	Reduces power dissipation

Hearing aids and assistive technologies

Hearing aids and assistive devices require noise-free voltage regulation for optimal performance. The MIC5504-1.8YM5 delivers high PSRR and low noise output, ensuring clear and reliable operation. Its compact design supports discreet and lightweight device construction.

Communication equipment and networking devices

The MIC5504-1.8YM5 enhances communication equipment by providing stable voltage output and high efficiency. Its low power consumption makes it suitable for wireless communication devices and networking modules. These features ensure consistent performance and energy savings in modern communication systems.

Advantages of MIC5504-1.8YM5 in Voltage Regulation

Efficiency and Power Savings

Reduced power consumption for battery-powered devices

The MIC5504-1.8YM5 delivers exceptional efficiency, making it a top choice for battery-powered devices. Its low quiescent current of just 45µA minimizes energy usage during standby mode. This feature extends battery life in portable electronics like wearables and medical devices. By reducing power dissipation, the regulator ensures optimal energy utilization, which is critical for devices requiring long operational hours.

Optimized performance under varying load conditions

The MIC5504-1.8YM5 maintains stable voltage output even under fluctuating input or load conditions. This capability ensures consistent device performance, regardless of operating scenarios. The table below highlights the features that contribute to its optimized performance:

Feature	Description
Voltage regulation	Ensures a stable output voltage of 1.8V regardless of input or load changes.
Low dropout voltage	Operates efficiently with a dropout voltage of only 200mV.
Low quiescent current	Consumes only 45µA in standby mode, minimizing power consumption.
Thermal shutdown protection	Prevents damage from excessive heat with built-in thermal shutdown.
Excellent line and load regulation	Ensures stable performance under varying operating conditions.

Compact Design and Space Optimization

Ideal for space-constrained applications

The compact SOT-23-5 package of the MIC5504-1.8YM5 allows engineers to integrate it seamlessly into space-constrained designs. This small size is particularly advantageous for modern electronics, where saving PCB space is a priority.

Compact size allows for easy integration into space-constrained designs.
Enables the creation of smaller, more portable devices.

Simplifies PCB layout and design

The MIC5504-1.8YM5 simplifies PCB design by combining a small package size with high efficiency. Engineers benefit from reduced complexity during layout planning. The following table outlines its design-friendly features:

Feature	Description
Small package size	Allows for space-saving designs
Low power consumption	Helps to extend battery life
High efficiency	Reduces power dissipation

Reliability and Thermal Performance

Stable operation in high-temperature environments

The MIC5504-1.8YM5 operates reliably across a wide temperature range. Models like the MIC5504-1.8YM5-T5 function effectively from -40°C to +125°C, making them suitable for industrial and medical applications. The table below demonstrates its thermal capabilities:

Model	Operating Temperature Range
MIC5504-1.8YM5-TR	-40°C to +85°C
MIC5504-1.8YM5-T5	-40°C to +125°C

Enhanced durability for long-term use

The MIC5504-1.8YM5 incorporates thermal shutdown and current limit protection, ensuring durability in demanding environments. These features prevent damage from overheating or excessive current, enhancing the device's lifespan. Its robust design makes it a reliable choice for applications requiring consistent performance over time.

Practical Considerations for Implementing MIC5504-1.8YM5

Design Tips for Engineers

Selecting the right capacitors for optimal performance

Capacitor selection plays a crucial role in ensuring the MIC5504-1.8YM5 operates efficiently. Engineers should use low Equivalent Series Resistance (ESR) ceramic capacitors for both input and output. A 1µF capacitor is typically recommended for the output to maintain stability and reduce noise. For the input, a similar capacitor helps filter voltage fluctuations. Proper capacitor placement near the regulator minimizes parasitic inductance, which can affect performance.

PCB layout recommendations for noise reduction

A well-designed PCB layout enhances the performance of the MIC5504-1.8YM5. Engineers should place the input and output capacitors as close to the regulator as possible. This reduces the risk of noise and voltage drops caused by long traces. Ground planes should be used to improve thermal dissipation and minimize electromagnetic interference (EMI). Additionally, keeping high-current traces short and wide ensures better current flow and reduces resistance.

Common Challenges and Solutions

Addressing thermal management in compact designs

Thermal management often becomes a challenge in compact electronic designs. The MIC5504-1.8YM5 addresses this issue with its built-in thermal shutdown protection. This feature prevents damage by shutting down the device when it overheats. Its low quiescent current of 45µA also reduces power consumption, which minimizes heat generation.

Key Benefits:
Low power consumption extends battery life.
High efficiency reduces power dissipation.

These attributes make the MIC5504-1.8YM5 a reliable choice for space-constrained applications.

Ensuring compatibility with other components

Ensuring compatibility with other components is essential for seamless integration. The MIC5504-1.8YM5 supports a wide input voltage range of 2.7V to 5.5V, making it suitable for various power sources. Engineers should verify that the connected components operate within this range. Additionally, selecting capacitors with appropriate voltage ratings ensures stable operation. Proper grounding and shielding techniques further enhance compatibility by reducing noise interference.

Tip: Testing the circuit under different load conditions helps identify potential compatibility issues early in the design process.

The MIC5504-1.8YM5 redefines voltage regulation by delivering stable and efficient power management across industries. Its low power consumption and high efficiency extend battery life in portable devices like smartphones and digital cameras. Designers leverage its small package size and voltage regulation capabilities to create compact, high-performance solutions. From consumer electronics to medical devices, this regulator enables innovative designs that meet modern demands.

Feature	Description
Small package size	Enables space-saving designs in compact devices.
Low power consumption	Extends battery life in portable applications.
High efficiency	Reduces power dissipation, enhancing performance.
Voltage regulation capability	Ensures stable operation in various electronic devices.

The MIC5504-1.8YM5 empowers engineers to build reliable, efficient, and versatile systems for diverse applications.

FAQ

What makes the MIC5504-1.8YM5 ideal for battery-powered devices?

The MIC5504-1.8YM5 consumes only 45µA of quiescent current, reducing power usage. Its low dropout voltage ensures efficient energy transfer, extending battery life. These features make it perfect for portable electronics like wearables and medical devices.

How does the MIC5504-1.8YM5 handle overheating?

The MIC5504-1.8YM5 includes built-in thermal shutdown protection. This feature automatically disables the device when it detects excessive heat, preventing damage and ensuring safe operation in high-temperature environments.

Can the MIC5504-1.8YM5 operate in noisy environments?

Yes, the MIC5504-1.8YM5 offers a high Power Supply Rejection Ratio (PSRR). This capability minimizes the impact of input voltage fluctuations, ensuring stable and noise-free output for sensitive devices like communication modules.

What type of capacitors should engineers use with the MIC5504-1.8YM5?

Engineers should use low ESR ceramic capacitors. A 1µF capacitor is recommended for the output, while a similar capacitor on the input helps filter voltage fluctuations. Proper placement near the regulator ensures optimal performance.

Is the MIC5504-1.8YM5 suitable for industrial applications?

Yes, the MIC5504-1.8YM5 operates reliably across a wide temperature range (-40°C to +125°C). Its robust design and safety features, such as current limit protection, make it ideal for industrial control systems and IoT devices.

Tip: Test the MIC5504-1.8YM5 under different load conditions to ensure compatibility with your application.
