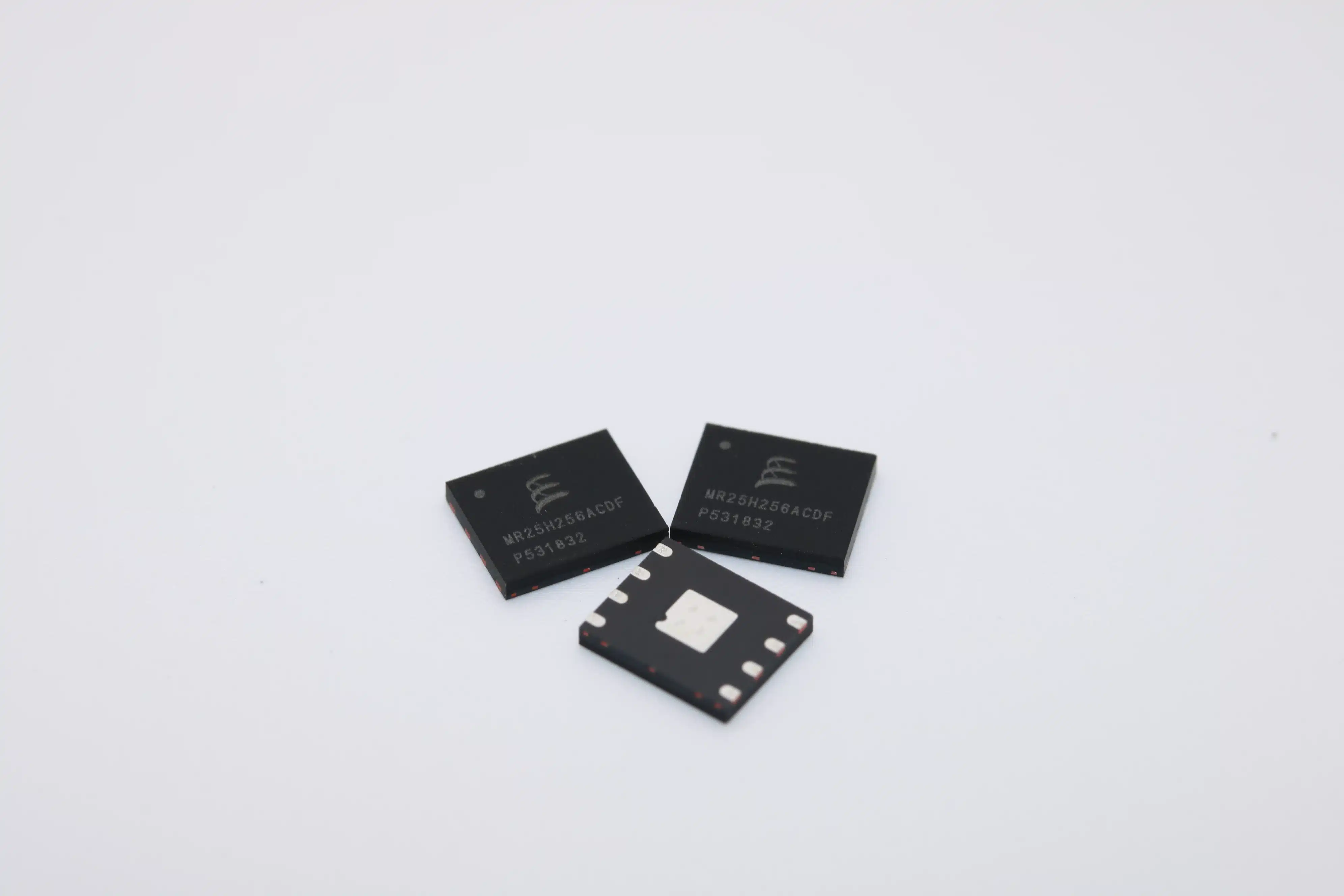

MR25H128ACDF Magic: Memory for Modern Devices

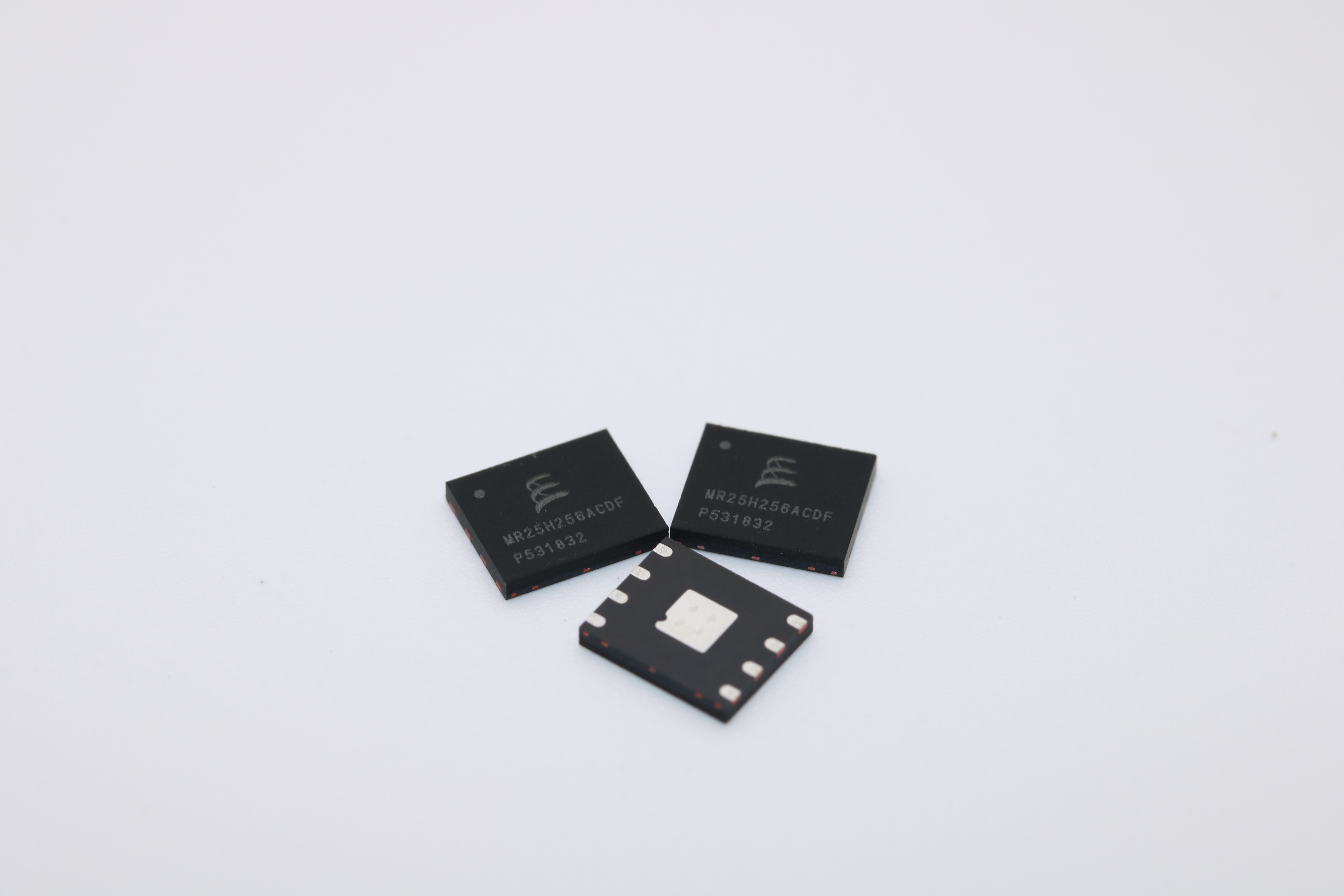

The MR25H128ACDF is a 128Kb MRAM (Magnetoresistive RAM) chip. It mixes non-volatile memory with a fast SPI (Serial Peripheral Interface). This smart memory helps power modern tools like factory machines and IoT gadgets. Its strong build works well in temperatures from -40°C to +125°C. It can handle endless read/write cycles and uses little energy. This makes it great for devices that update data often but save power. These features are perfect for gadgets needing speed, memory, and durability.

Key Takeaways

• The MR25H128ACDF is a 128Kb MRAM chip. It is fast and keeps data even without power, great for modern gadgets.

• This chip works in very hot or cold places (-40°C to +125°C). It is reliable for cars and factory machines.

• It uses little power (1.8V to 3.6V), helping batteries last longer. This makes it great for IoT devices and portable medical tools.

• Its fast SPI interface moves data quickly, up to 40 MHz. This helps in real-time tasks like smart meters and factory equipment.

• The MR25H128ACDF is strong and can handle many read/write cycles. It is perfect for devices that update data often.

Overview of MR25H128ACDF

What is MR25H128ACDF?

The MR25H128ACDF is a fast memory chip for modern gadgets. It is part of the MRAM (Magnetoresistive RAM) family. MRAM combines quick memory with the ability to save data without power. This chip can store 128Kb of data. It works well for devices that need frequent updates and long-term storage. Its SPI (Serial Peripheral Interface) allows smooth communication with other parts. This makes it useful in many different systems.

Core Technology of MR25H128ACDF

The MR25H128ACDF uses advanced MRAM technology to store data with magnets. Unlike older memory types, it does not depend on electric charges. This makes it stronger and more reliable. The chip works well with different voltages and reads/writes data quickly. Below is a simple table of its features:

These features make the MR25H128ACDF fast and energy-saving.

Importance of MR25H128ACDF in Memory Applications

The MR25H128ACDF is very important for modern memory needs. It keeps data safe even when power is off. This is great for cars and factory machines. The chip can handle endless read/write cycles. This is perfect for devices like IoT sensors and smart meters. Its fast speed helps process data quickly in medical tools and other systems.

With its reliability, speed, and low power use, the MR25H128ACDF meets the needs of advanced technology. It is a top choice for industries like healthcare and aerospace.

Key Specifications of MR25H128ACDF

Storage Capacity and Organization

The MR25H128ACDF has 128Kb of memory storage. This makes it great for small but dependable storage needs. It uses NOR flash memory, which is fast and reliable. Its design helps manage data well in many devices. These include factory machines, car systems, and home gadgets.

Key details about its storage include:

• Memory Capacity: 128Kb

• Memory Type: NOR flash memory

• Applications: Factory tools, cars, networking, and home gadgets

• Features: Reliable, fast, and works in hot or cold places

This chip is like other MRAMs, such as the MR25H40 and MR25H256. They all work well in different devices.

Data Retention and Endurance

The MR25H128ACDF keeps data safe even if power goes out. It uses MRAM technology, mixing SRAM speed with Flash memory's durability. It can handle endless read and write actions. This makes it perfect for devices that update data often.

It works in extreme temperatures from -40°C to +125°C. This makes it reliable for cars, factory sensors, and medical tools. These devices need to work well in tough conditions.

Operating Voltage Range

The MR25H128ACDF works with voltages from 1.8V to 3.6V. This range makes it fit many systems and saves energy. Other chips like MR25H10 and MR25H80 also have similar voltage ranges.

This flexibility helps it work in low-power tools like IoT sensors and smart meters. Its energy-saving design helps these devices last longer, especially on batteries.

Speed and Performance

The MR25H128ACDF is very fast and works really well. It uses a high-speed SPI interface that can go up to 40 MHz. This helps it move data quickly, which is great for systems like factory machines and car controls.

It reads and writes data super fast, so there are no delays. Unlike older memory types, it mixes SRAM's speed with Flash memory's ability to save data. This means your data stays safe even if the power goes out. For example, in IoT gadgets, it can save sensor data quickly while using little energy.

Other MRAM chips, like the MR25H40 and MR25H256, are also fast. But the MR25H128ACDF balances speed and storage size perfectly. This makes it great for things like medical tools and smart meters. It also works well in very hot or cold places, making it reliable in tough conditions.

Interface Type and Packaging

The MR25H128ACDF uses an SPI interface, which is common in small systems. This makes it easy to connect with microcontrollers and other parts. The SPI can send and receive data at the same time, making it very efficient.

The chip is packed in a small SOIC-8 case, which fits on circuit boards easily. This design is strong and works well with machines that build electronics. Its tiny size is perfect for small devices like fitness trackers and portable medical tools.

Other MRAM chips, such as the MR25H10 and MR25H80, also use SPI and similar packaging. But the MR25H128ACDF has special features that work for many industries. Its strong build and flexible design make it a top pick for high-speed memory needs.

Advantages of MR25H128ACDF

Non-Volatility and Data Persistence

The MR25H128ACDF keeps data safe even without power. This means no need for backup batteries or extra power. Devices like smart meters and IoT sensors use this feature well. They can save important data, like sensor readings, without stopping.

MRAM is faster than Flash and keeps data like SRAM. This mix makes it great for frequent data updates. Similar chips, like MR25H40 and MR25H256, also store data safely in cars and factories.

High Endurance and Reliability

The MR25H128ACDF lasts long with endless read and write cycles. It works well for tools needing constant updates, like factory machines. Flash memory wears out, but MRAM stays strong over time.

It also works in extreme heat or cold, from -40°C to +125°C. This makes it perfect for cars and space tools. Other MRAM chips, like MR25H10, are also tough and reliable for critical systems.

Low Power Consumption

The MR25H128ACDF uses very little energy to work. It runs on 1.8V to 3.6V, saving battery life. This is great for IoT gadgets and portable medical tools needing low power.

Even with low energy use, it works fast and efficiently. Other MRAM chips, like MR25H80, also save power. But the MR25H128ACDF balances speed and energy use better.

Fast Read/Write Speeds

The MR25H128ACDF is known for its quick data speeds. It uses a fast SPI interface that works up to 40 MHz. This allows data to move quickly, which is great for real-time tasks. Tools like factory sensors, car systems, and medical devices use this feature.

Tip: Faster speeds mean less waiting and better system performance.

Unlike older memory, the MR25H128ACDF mixes SRAM's speed with Flash's data-saving ability. It keeps data safe even if power goes out. For example, IoT gadgets can save sensor data fast without delays. This helps in places where timing is very important.

Here’s how the MR25H128ACDF compares to other MRAM chips:

The MR25H128ACDF is also very reliable because of its speed. It reduces delays when saving or loading data, keeping systems running smoothly. This makes it a top pick for important tools like space systems and factory machines.

Applications of MR25H128ACDF in Modern Devices

Use in IoT and Smart Metering

The MR25H128ACDF is important for IoT and smart meters. It keeps data safe even if power goes out. This is helpful for sensors tracking weather or meters recording energy use. Its low energy use makes batteries last longer, great for faraway places.

IoT gadgets enjoy its quick data speeds. For example, smart homes use it to save settings fast. Its small SOIC-8 size fits tiny devices like fitness trackers. Compared to MR25H40, it balances speed and storage well. This makes it a favorite for connected tools.

Role in Industrial Automation

In factories, the MR25H128ACDF improves machines and control systems. PLCs use it to store data and run commands quickly. It works well in very hot or cold factory areas.

Its SPI interface helps it talk to microcontrollers easily. It lasts longer than older memory types that wear out fast. Factory sensors use it to save important data, keeping machines running smoothly. The table below shows its uses:

Applications in Automotive Systems

The MR25H128ACDF is key in today’s car systems. ECUs use it to save settings and sensor data. It keeps trip logs and fixes data safe even if power fails. Its speed helps process data fast, needed for driver-assist systems.

Car parts need to handle tough conditions. The MR25H128ACDF works from -40°C to +125°C. This makes it good for engine controls and entertainment systems. Compared to MR25H256, it stores less but uses less energy and works faster. This makes it perfect for small car tools.

Use in Medical and Healthcare Equipment

The MR25H128ACDF is important for modern medical devices. It keeps data safe even if power goes out. Tools like portable monitors and MRI machines use it to store data. For example, it saves patient vitals or test results instantly, even during power failures.

Its fast SPI interface helps medical tools work quickly. This is needed for devices like defibrillators or infusion pumps. These tools need fast access to stored data. The chip also uses little energy, making it great for battery-powered devices. This helps them run longer without frequent charging.

Note: The MR25H128ACDF works well in extreme heat or cold. This makes it useful in sterilized labs or outdoor medical units.

Compared to other MRAM chips like MR25H40 and MR25H256, this chip balances speed, storage, and energy use. It is perfect for small medical tools where space and power are limited. Its strong build and long-lasting design make it reliable for healthcare needs.

Embedded Systems and Data Logging

The MR25H128ACDF is great for systems needing frequent data updates. Its memory keeps data safe even if power is lost. This is helpful for microcontroller systems like robots or factory tools. For example, it logs events or sensor data without losing information.

Its quick read/write speeds improve system performance. It allows fast data saving and retrieval, which is key for time-sensitive tasks. Devices like security alarms and weather monitors benefit from this. Its small SOIC-8 size fits easily into tiny designs, making it ideal for tight spaces.

Tip: The MR25H128ACDF lasts long, even in systems with constant data logging.

Other MRAM chips, like MR25H10 and MR25H80, have similar features but less storage. The MR25H128ACDF offers enough memory for most uses while saving energy. Its tough design and flexibility make it a top choice for many industries.

The MR25H128ACDF is a flexible memory chip for modern tools. It has important features like keeping data safe without power, lasting long, and working fast. These make it useful in cars, healthcare, and smart gadgets. It works well in tough conditions and saves energy, meeting the needs of advanced devices.

This chip, along with others like MR25H40 and MR25H256, shows how MRAM technology is improving. As devices get smarter and more connected, the MR25H128ACDF can help create new and better technologies.

What makes the MR25H128ACDF special compared to other MRAM chips?

The MR25H128ACDF balances speed, storage, and energy use well. It stores more data than smaller chips like MR25H40. Bigger chips like MR25H256 hold more but use more power. Its design works great for small, fast devices.

Can the MR25H128ACDF work in tough environments?

Yes, the MR25H128ACDF works in temperatures from -40°C to +125°C. This makes it perfect for cars, planes, and factory machines. These places often face extreme heat or cold.

How does the MR25H128ACDF save energy in IoT gadgets?

The MR25H128ACDF uses low voltage (1.8V to 3.6V) to run. It needs very little energy, helping batteries last longer. This is great for IoT tools like smart meters and sensors. They can work longer without needing new batteries.

Is the MR25H128ACDF easy to use with microcontrollers?

Yes, the MR25H128ACDF has an SPI interface that microcontrollers support. This makes it simple to connect in systems like robots or data loggers. It’s a favorite for many embedded projects.

Which industries use the MR25H128ACDF the most?

Industries like cars, healthcare, and factories use it a lot. It saves important data in car systems, medical tools, and factory machines. Its speed and reliability make it very useful.

Tip: Need more storage? Try the MR25H256, which holds 256Kb and works just as well.
