How the OPA2376AIDGK Amplifier Powers Instrumentation

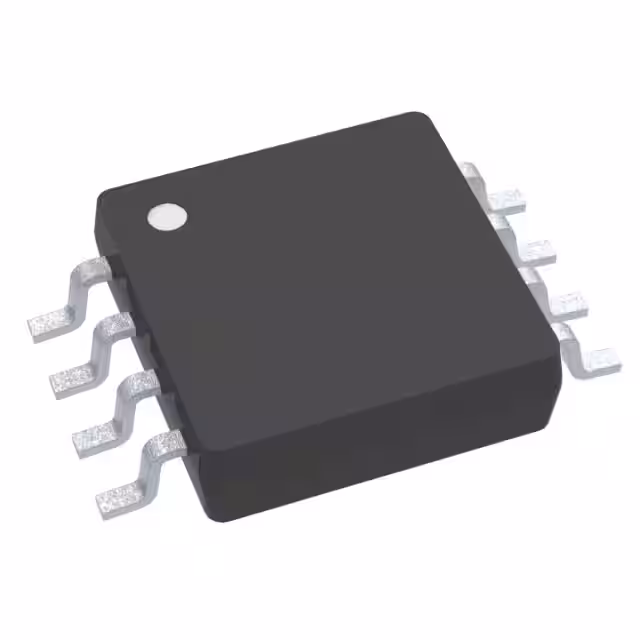

The OPA2376AIDGK is a precision operational amplifier engineered for high accuracy and low noise performance. Its advanced CMOS architecture ensures exceptional signal processing, making it a cornerstone in instrumentation amplifiers. With features like rail-to-rail input and output, it excels in applications demanding precision and reliability. Below are its key specifications:

Specification	Value
Number of channels	2
Total supply voltage (max) (V)	5.5
Total supply voltage (min) (V)	2.2
Vos (offset voltage at 25°C) (max) (mV)	0.025
GBW (typ) (MHz)	5.5
Slew rate (typ) (V/µs)	2
Rail-to-rail	In, Out
Offset drift (typ) (µV/°C)	0.32
Iq per channel (typ) (mA)	0.76
Vn at 1 kHz (typ) (nV√Hz)	7.5
CMRR (typ) (dB)	90
Operating temperature range (°C)	-40 to 125
Input bias current (max) (pA)	10

This amplifier also supports high common-mode rejection and low offset drift, ensuring stable performance in sensitive systems. The OPA2376AIDGKr variant offers similar capabilities, further expanding its versatility in precision applications.

Key Takeaways

The OPA2376AIDGK amplifier is quiet and very accurate. This makes it great for delicate tools like medical devices and data systems.
It can handle signals from the lowest to highest levels. This helps it work with clear and accurate signals.
The amplifier uses little power, so batteries last longer. This makes it perfect for portable devices like medical monitors and small tools.

Key Features of the OPA2376AIDGK

Low noise and high precision

The OPA2376AIDGK amplifier delivers exceptional low noise and high precision, making it ideal for applications requiring clean and accurate signal amplification. Its low noise ensures minimal interference, which is critical for sensitive systems like medical devices and data acquisition systems. The amplifier's precision enables accurate signal processing, even in challenging environments. These features make it a reliable choice for sensor signal conditioning and instrumentation amplifiers. The measurable benefits of these attributes are summarized below:

Feature	Benefit
Low Noise	Ensures clean and reliable signal amplification
Precision Measurements	Ideal for applications requiring accurate signal amplification
Sensor Signal Conditioning	Amplifies and conditions sensor outputs

Rail-to-rail input and output

The OPA2376AIDGK's rail-to-rail input and output capability enhances its performance in instrumentation applications. This feature allows the amplifier to utilize the full range of the power supply, ensuring high precision and low distortion during signal processing. It is particularly beneficial in systems where maximizing dynamic range is essential, such as test and measurement equipment or industrial automation systems.

Power efficiency for battery-powered applications

The OPA2376AIDGK demonstrates excellent power efficiency, making it suitable for battery-powered devices. Its typical quiescent current is 0.76 mA, while the OPA2376AIDGKRG4 variant consumes slightly more power at 1.5 mA (typical) and 2.5 mA (maximum). This efficiency ensures prolonged battery life in portable systems, such as medical monitoring devices and handheld measurement tools. Compared to other amplifiers, the OPA2376AIDGK offers a balance of performance and energy savings.

Wide bandwidth and stability

The OPA2376AIDGK features a gain bandwidth product (GBW) of 5.5 MHz, which supports stable performance across various applications. This wide bandwidth ensures reliable operation in precision measurement systems and signal processing tasks. The amplifier's design, which combines low noise and high precision, further enhances its stability under different operating conditions. These characteristics make it a dependable component in systems requiring consistent and accurate signal amplification.

How the OPA2376AIDGK Enhances Instrumentation Amplifiers

Improving signal accuracy and stability

The OPA2376AIDGK significantly improves signal accuracy and stability in instrumentation amplifiers. Its low offset voltage and low noise design ensure precise signal amplification, even in demanding environments. The rail-to-rail output further enhances stability by allowing the amplifier to operate across the full power supply range. These features make it ideal for applications requiring high accuracy, such as sensor interfaces and data acquisition systems.

Key improvements include:
- Low offset voltage and low noise for enhanced signal accuracy.
- Rail-to-rail output for stable signal amplification.
- High common-mode rejection ratio for precise signal processing.

High common-mode rejection ratio (CMRR)

The OPA2376AIDGK features a high common-mode rejection ratio (CMRR) of 76 dB, which plays a crucial role in maintaining signal fidelity. This capability effectively eliminates noise and interference that may affect both inputs, ensuring accurate and stable amplification. The high CMRR is particularly beneficial in sensitive applications, such as medical devices and industrial control systems, where signal integrity is paramount.

Feature	Value
Common Mode Rejection Ratio	76 dB

Supporting high-impedance signal sources

Instrumentation systems often rely on high-impedance signal sources, which require amplifiers with low offset voltage and low noise for accurate signal processing. The OPA2376AIDGK excels in these scenarios. Its design ensures minimal signal distortion, making it suitable for amplifying weak signals from sensors. This capability enhances the reliability and precision of instrumentation systems, particularly in applications like temperature and pressure measurement.

Reliable performance in sensitive measurement systems

The OPA2376AIDGK delivers reliable performance in sensitive measurement systems. Its low offset voltage and low noise characteristics ensure accurate signal amplification, while the wide input voltage range supports diverse applications. These features make it a dependable choice for precision measurements and sensor signal conditioning. The amplifier's robust design ensures consistent performance, even in challenging environments, making it a trusted component in critical systems.

Key benefits include:
- Accurate and reliable signal amplification.
- Wide input voltage range for versatile applications.
- Low noise for precision measurements.

Real-World Applications of the OPA2376AIDGK

Medical devices and patient monitoring systems

The OPA2376AIDGK plays a vital role in medical devices where precision and reliability are critical. Its low noise and high accuracy ensure clear signal amplification, making it suitable for patient monitoring systems like ECG and EEG machines. These systems require amplifiers that can process weak biological signals without distortion. The amplifier's low offset voltage and high common-mode rejection ratio enhance its ability to deliver accurate readings. Additionally, its compact design supports integration into portable medical equipment, such as defibrillators and handheld diagnostic tools.

Industrial automation and process control

Industrial automation systems demand components that can operate reliably in diverse environments. The OPA2376AIDGK meets these requirements with its wide operating temperature range and ultra-low noise performance. Its low offset voltage ensures precise signal amplification, which is essential for process control systems. The amplifier's low input bias current minimizes power consumption, making it efficient for long-term use.

Feature	Description
Ultra-low noise	4.5nV/√Hz, enabling high-quality amplification with minimal distortion.
Low offset voltage	250µV, ensuring accurate and precise signal amplification.
Low input bias current	1pA, allowing efficient operation with minimal power consumption.
High precision and accuracy	Designed for high-precision amplification, critical for accuracy.
Operating temperature range	-40°C to 125°C, reliable operation in various environments.

Test and measurement equipment

The OPA2376AIDGK enhances the performance of test and measurement equipment by providing accurate signal amplification. Its low noise and high precision make it ideal for applications requiring reliable data acquisition. Engineers often use this amplifier in sensor signal conditioning circuits to amplify and process sensor outputs. It also supports audio amplification tasks, delivering high fidelity and low distortion. This versatility makes it a valuable component in devices like oscilloscopes, spectrum analyzers, and signal generators.

Applications include:
- Precision measurements for accurate signal amplification.
- Sensor signal conditioning for clean and reliable outputs.
- Audio amplification for high-fidelity sound reproduction.

Sensor signal conditioning and data acquisition systems

The OPA2376AIDGK excels in sensor signal conditioning and data acquisition systems. Its wide input voltage range allows it to handle signals from various sensors, including temperature and pressure sensors. The amplifier's low offset voltage ensures accurate signal processing, while its low noise design minimizes interference. These features make it suitable for battery-powered devices, where efficiency and reliability are essential. Its small form factor also enables integration into space-constrained designs, such as portable data loggers and compact measurement tools.

Feature	Description
Wide Input Voltage Range	Accepts input voltages from a wide range, allowing for versatile applications.
Low Offset Voltage	Features low input offset voltage for accurate amplification.
Low Noise	Designed with low noise characteristics, ensuring clean and reliable signal amplification.
Low Power Consumption	Operates with low power consumption, suitable for battery-powered devices.
Small Form Factor	Comes in a compact and surface-mountable package for space-constrained designs.

The OPA2376AIDGK amplifier combines low noise, low offset voltage, and wide input voltage range to deliver exceptional precision. Its compact design and low power consumption make it ideal for battery-powered devices. These features enhance instrumentation amplifiers, ensuring reliable performance in industries like medical, industrial automation, and data acquisition systems.

Feature	Description
Wide Input Voltage Range	Accepts input voltages from a wide range, allowing for versatile applications.
Low Offset Voltage	Features low input offset voltage for accurate amplification.
Low Noise	Designed with low noise characteristics, ensuring clean and reliable signal amplification.
Low Power Consumption	Operates with low power consumption, suitable for battery-powered devices.
Small Form Factor	Comes in a compact and surface-mountable package for space-constrained designs.

What makes the OPA2376AIDGK suitable for medical devices?

The OPA2376AIDGK offers low noise and high accuracy. These features ensure precise signal amplification, which is critical for medical devices like ECG and EEG machines.

Can the OPA2376AIDGK operate in extreme temperatures?

Yes, the OPA2376AIDGK functions reliably within a wide temperature range of -40°C to 125°C. This capability makes it ideal for industrial and outdoor applications.

How does the OPA2376AIDGK improve battery-powered devices?

Its low power consumption, with a typical quiescent current of 0.76 mA, extends battery life. This efficiency benefits portable systems like handheld measurement tools and medical monitors.
