Automotive electronics are increasingly complex. Communication networks, like the LIN bus, play a critical role in modern vehicles. Electrical transients, such as ElectroStatic Discharge (ESD) and surge pulses, can damage sensitive electronic control units (ECUs). The PESD1LIN TVS diode offers a specialized solution. This device protects the LIN bus from these damaging events. This blog explains what the PESD1LIN is, why it is essential for LIN bus protection, how it functions, and its key benefits in ensuring reliable automotive network operation. We will specifically explore the role of TVS diodes PESD1LIN for Automotive LIN Bus Protection.

Key Takeaways

The LIN bus helps car parts like windows and seats talk to each other. It needs protection from sudden power spikes.
The PESD1LIN TVS diode is a special part. It acts like a shield for the LIN bus. It stops harmful electricity from damaging car electronics.
This diode works very fast. It sends extra electricity away from important car parts. This keeps the car's communication working well.
Using the PESD1LIN diode makes car electronics last longer. It also helps them follow important safety rules. This saves money by preventing expensive repairs.

Understanding the Automotive LIN Bus

The LIN Bus Explained

The Local Interconnect Network (LIN) bus is a cost-effective, single-wire serial communication protocol. Automakers use it for non-critical automotive functions. These functions include window control, seat adjustment, and climate control. The LIN bus operates with specific voltage characteristics. A recessive high state means the LIN bus is at 12V, representing a logic 1. A dominant low state means the LIN bus is close to 0V, representing a logic 0. The Commander ECU biases the LIN bus to battery voltage (12V) using a diode and a 1 kΩ pull-up resistor. Each Responder ECU LIN Bus wire connects to battery voltage via a 30 kΩ pull-up resistor. Transceivers in both Commander and Responder ECUs pull the LIN bus voltage down from 12V to near 0V during signaling.

ECU Role	Logic State	Voltage Threshold
Receiving ECUs	Logic 1	Above 60% of battery voltage (Recessive)
Receiving ECUs	Logic 0	Below 40% of battery voltage (Dominant)
Transmitting ECUs	Logic 1	Above 80% of battery voltage (Recessive)
Transmitting ECUs	Logic 0	Below 20% of battery voltage (Dominant)

For a recessive bit (logic 1), the LIN voltage must be greater than 80% of the battery voltage. For a dominant bit (logic 0), the LIN voltage must be less than 20% of the battery voltage.

Why LIN Bus Protection is Essential

The LIN bus is susceptible to various electrical transients. These include load dumps, ElectroStatic Discharge (ESD), and inductive switching. Such events can damage sensitive Electronic Control Units (ECUs). They also disrupt communication. LIN transceivers often feature comprehensive protection. This includes IEC ESD protection of ±8 kV, and sometimes ±15 kV. They also offer ±45-V bus fault tolerance on the LIN bus side. These features enhance system and network reliability. However, external protection remains crucial. Transients can cause two main types of failure. Hard failure involves the physical destruction of the Integrated Circuit (IC). Soft failure refers to functional problems within the communication link. Examples include loss of clock signals or RESET events. Robust protection prevents these failures. It ensures the continuous operation of automotive systems.

PESD1LIN TVS Diode: A Dedicated Solution

A TVS diode, or Transient Voltage Suppressor diode, protects electronic circuits from overvoltage events. It acts as a fast-acting switch. When voltage exceeds a safe level, the TVS diode clamps the transient voltage. It shunts excess current away from sensitive components. This prevents damage.

PESD1LIN's LIN-Specific Design

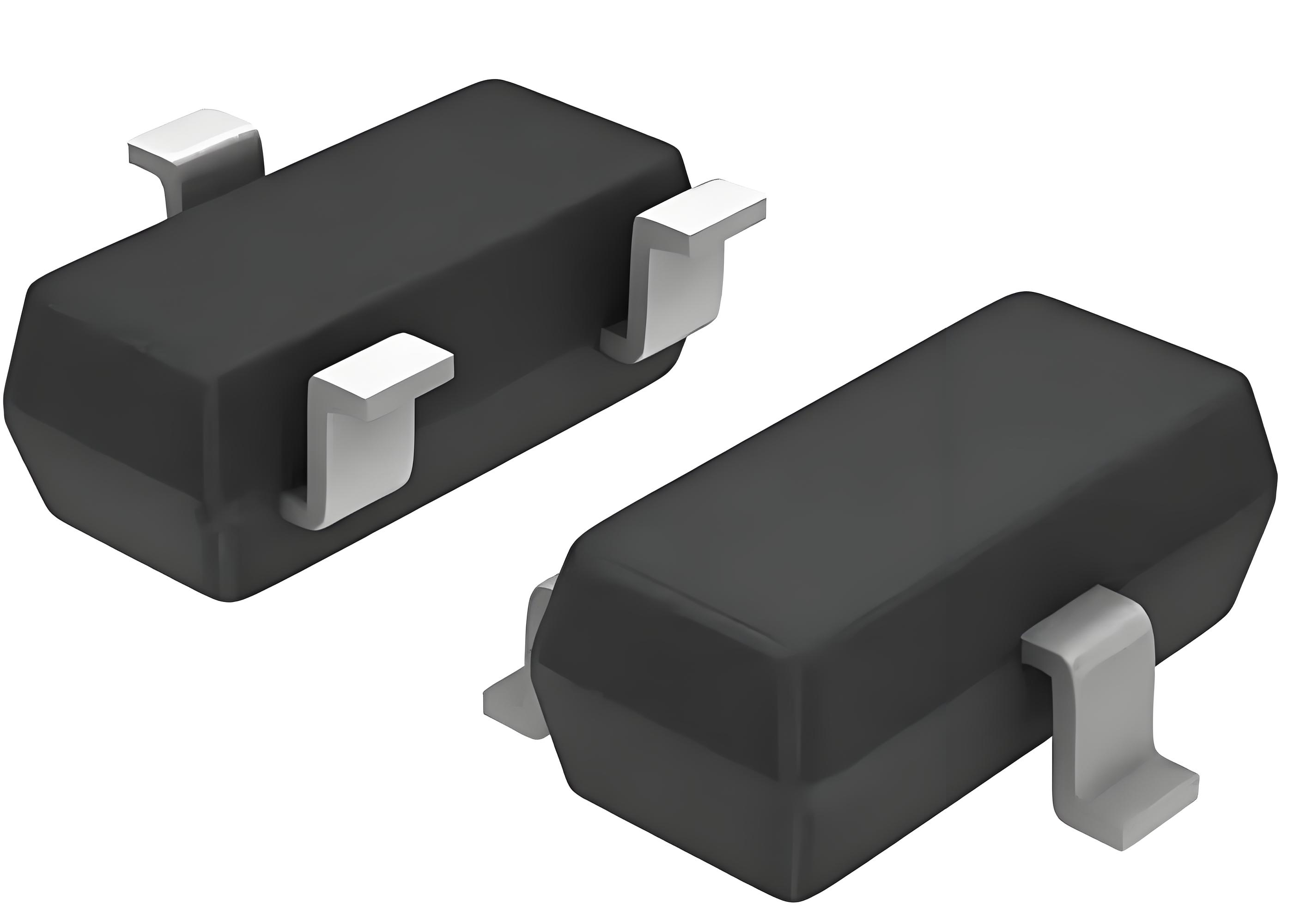

The PESD1LIN TVS diode offers a specialized design for LIN bus protection. This diode provides ESD protection for one automotive LIN-bus line. Its asymmetrical diode configuration ensures optimized protection against ElectroMagnetic Interferences (EMI) for a LIN Electronic Control Unit (ECU). The PESD1LIN handles a maximum peak pulse power (PPP) of 160W at a pulse duration of 8/20 μs. It features a low clamping voltage of 40 V at a peak pulse current (IPP) of 1 A. The diode also boasts an ultra-low leakage current, less than 1 nA. It provides robust ESD protection up to 23 kV. This device meets stringent industry standards, including IEC 61000-4-2, level 4 for ESD, and IEC 61000-4-5 for surge, handling an IPP of 3 A at 8/20 μs. The PESD1LIN is AEC-Q101 qualified, confirming its reliability in automotive environments. Its low capacitance is crucial for maintaining signal integrity. The PESD1LIN TVS diode exhibits a capacitance of 13 pF at 1 MHz. This low capacitance minimizes interference with the LIN bus communication signals. These features make TVS diodes PESD1LIN for Automotive LIN Bus Protection an ideal choice.

How PESD1LIN Protects the LIN Bus

The PESD1LIN TVS diode operates quickly to safeguard the LIN bus. When an overvoltage event occurs, such as an ESD strike or a surge pulse, the diode rapidly detects the voltage increase. It then switches into a conductive state. This action creates a low-impedance path. The diode shunts the excess current away from the protected components, directing it to ground. This process clamps the voltage across the LIN bus line to a safe, predetermined level. The fast response time of the PESD1LIN ensures that sensitive ECUs do not experience damaging voltage spikes. It effectively creates an ESD discharge path to ground. This prevents both hard failures, like component destruction, and soft failures, such as communication disruptions. The specialized design of TVS diodes PESD1LIN for Automotive LIN Bus Protection ensures reliable operation even under harsh electrical conditions.

Benefits of PESD1LIN for Automotive LIN Bus Protection

Enhanced System Reliability and Longevity

Protecting automotive electronic control units (ECUs) from electrical transients significantly improves their operational life. Overvoltage events, like electrostatic discharge (ESD) or surge pulses, can cause immediate damage or gradual degradation to sensitive components. The PESD1LIN TVS diode prevents this damage. It diverts harmful energy away from the ECU's internal circuitry. This action ensures the ECU continues to function correctly over time. Preventing such damage leads to fewer system failures. It also extends the overall operational life of the vehicle's electronic systems. This directly translates to greater reliability for the end-user.

Improved Signal Integrity

Maintaining clear and accurate communication signals on the LIN bus is crucial. The PESD1LIN TVS diode features ultra-low capacitance. This characteristic is vital for preserving signal integrity. High capacitance can distort communication signals, especially in high-speed data lines. The PESD1LIN's low capacitance minimizes interference with LIN bus communication signals. This prevents signal distortion on the LIN bus. It ensures data transmits accurately and reliably between ECUs. Minimizing capacitance is crucial for maintaining signal integrity in such applications.

Compliance with Automotive Standards

Automotive components must meet strict industry standards for safety and performance. The PESD1LIN TVS diode helps designs achieve compliance with these stringent requirements. It plays a key role in meeting automotive Electromagnetic Compatibility (EMC) and Electromagnetic Interference (EMI) standards. Examples include ISO 7637-2 for electrical transient conduction along supply lines and ISO 10605 for road vehicles—electrostatic discharge requirements. Its robust protection capabilities ensure that electronic systems can withstand harsh electrical environments. This compliance is essential for vehicle certification and market acceptance.

Cost-Effectiveness

Implementing robust protection solutions like the PESD1LIN TVS diode offers significant cost benefits. The cost of this specialized diode is minimal. It is negligible compared to the potential expenses of replacing damaged ECUs. Repairing complex automotive electronic systems can be very expensive. Furthermore, dealing with warranty claims due to component failures adds substantial costs for manufacturers. Investing in effective protection upfront, such as with TVS diodes PESD1LIN for Automotive LIN Bus Protection, prevents these much larger financial burdens. It represents a smart and economical choice for automotive designers.

PESD1LIN Integration and Application

Typical Placement in LIN Bus Circuits

Proper placement of the PESD1LIN TVS diode is crucial for effective protection. Engineers typically place the PESD1LIN directly at the bus interface. This location is often near the LIN transceiver. It can also sit at the bus line connection. This strategic positioning ensures the diode intercepts transient voltages before they reach sensitive components. The PESD1LIN acts as the first line of defense. It diverts harmful energy away from the Electronic Control Unit (ECU). Placing it close to the point where the LIN bus enters the ECU maximizes its protective capabilities. This setup creates an immediate path to ground for overvoltage events.

Design Best Practices

Optimal protection requires careful consideration of design practices. Engineers should follow specific guidelines when integrating the PESD1LIN.

Short Trace Routing: Keep the traces connecting the PESD1LIN to the LIN bus line and to ground as short as possible. Short traces minimize inductance. This reduces voltage overshoot during a transient event.
Direct Ground Connection: Ensure a low-impedance path to the system ground. A solid ground plane is ideal. This provides an effective discharge path for transient currents.
Proximity to Protected IC: Place the PESD1LIN as close as possible to the LIN transceiver or the protected integrated circuit. This minimizes the length of the unprotected trace.
Avoid Stubs: Design the PCB layout to avoid long stubs or loops in the protection path. These can act as antennas and compromise protection effectiveness.

Following these best practices ensures the PESD1LIN performs optimally. It provides robust and reliable protection for the LIN bus.

Modern vehicles demand robust protection for automotive LIN bus systems. The PESD1LIN TVS diode, with its specialized design, effectively addresses challenges from electrical transients like ESD and surge pulses. It ensures the reliability, longevity, and proper functioning of non-critical automotive communication networks. Therefore, TVS diodes PESD1LIN for Automotive LIN Bus Protection are indispensable components for engineers and designers. They aim for high-performance and durable electronic systems.

What is a TVS diode?

A TVS diode, or Transient Voltage Suppressor diode, protects electronic circuits. It clamps transient voltages. When voltage exceeds a safe level, the TVS diode shunts excess current. This prevents damage to sensitive components.

Why is the PESD1LIN specifically designed for the LIN bus?

The PESD1LIN features an asymmetrical diode configuration. It has low capacitance and a low clamping voltage. These characteristics optimize it for the LIN bus's voltage levels and signal integrity needs. It provides robust ESD protection for one LIN-bus line.

How does the PESD1LIN protect against electrical transients?

When an overvoltage event occurs, the PESD1LIN rapidly switches. It creates a low-impedance path. The diode shunts excess current to ground. This clamps the voltage across the LIN bus line to a safe level.

What are the main benefits of using PESD1LIN?

The PESD1LIN enhances system reliability and longevity. It improves signal integrity with its low capacitance. The diode helps designs comply with automotive standards. It also offers a cost-effective solution compared to replacing damaged ECUs.

Does the PESD1LIN meet automotive quality standards?

Yes, the PESD1LIN is AEC-Q101 qualified. This certification confirms its reliability and suitability for harsh automotive environments. It also meets stringent ESD and surge standards like IEC 61000-4-2 and IEC 61000-4-5.
