What is the PY32F002BF15P6TU ARM Cortex-M0+ Microcontroller and Why Does It Matter

The py32f002bf15p6tu is a compact 32-bit ARM Cortex-M0+ mcu designed for efficient, cost-effective control in embedded systems. This microcontroller stands out by offering a wide operating voltage range, up to 18 GPIO pins, and multiple package options, making it flexible for many designs. With a starting price of under $0.08 per chip, the puya py32 delivers strong value for developers. Key features such as low-power operation and versatile communication interfaces set the py32f002bf15p6tu, Puya Semiconductor microcontroll apart in the mcu market.

Key Takeaways

• The PY32F002BF15P6TU is a low-cost, energy-efficient 32-bit microcontroller ideal for embedded systems needing strong performance and low power use.

• It offers versatile peripherals like GPIOs, USART, I2C, SPI, ADC, and timers, making it suitable for IoT, consumer electronics, industrial, and healthcare applications.

• The microcontroller supports multiple low-power modes and a wide voltage range, helping devices run longer on batteries and save energy.

• Developers benefit from a solid ecosystem with popular development tools, good documentation, and official boards that simplify project setup and debugging.

• Its combination of affordability, flexibility, and reliable performance makes the PY32F002BF15P6TU a smart choice for cost-sensitive and diverse embedded projects.

PY32F002BF15P6TU Features

Core Specs

The PY32F002BF15P6TU microcontroller belongs to the py32f002 family and uses an ARM Cortex-M0+ core. This 32-bit microcontroller is based on the ARMv6-M architecture, which brings efficiency and reliability to embedded designs. The core features a two-stage pipeline that helps reduce flash memory access, making the chip both fast and energy-efficient. The ARM Cortex-M0+ core supports up to 32 interrupts, managed by a nested vector interrupt controller (NVIC) with four priority levels. A Memory Protection Unit (MPU) helps control memory access and prevents data corruption. The chip achieves a power consumption of 11.2 µW/MHz and delivers a performance of 2.42 CoreMark/MHz, which demonstrates strong processing capability for its class. The core also supports the broader Cortex-M processor series, making it compatible with many development tools.

Peripherals

The PY32F002BF15P6TU mcu integrates a wide range of peripherals, making it suitable for many applications. The chip includes up to 18 GPIOs, which allow flexible connections to sensors, actuators, and other devices. It features one USART, one I2C, and one SPI channel, supporting various communication protocols. The microcontroller also provides up to nine 12-bit ADC channels for precise analog measurements. Multiple 16-bit timers, including a dedicated low-power timer for wake-up functions, enable accurate timing and control tasks. PWM support allows the chip to drive motors or control LED brightness. The following table summarizes the main specifications and peripherals:

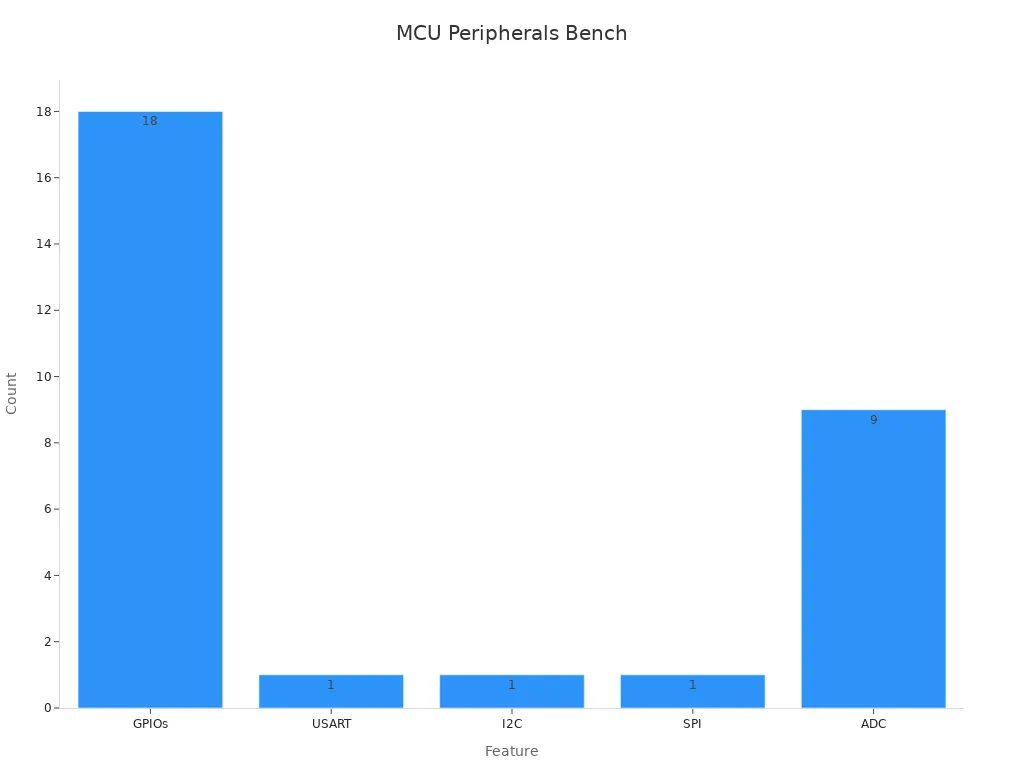

The chart below shows how the integration of peripherals in the PY32F002BF15P6TU compares to other chips in its class:

The mcu’s architecture supports three low-power modes, which help conserve energy during periods of low activity. This feature is especially important for battery-powered devices.

Power and Package

The PY32F002BF15P6TU chip stands out for its low power operation. The power consumption of 11.2 µW/MHz allows the chip to run efficiently, even in energy-sensitive applications. The chip’s performance of 2.42 CoreMark/MHz ensures that it can handle demanding tasks without draining the battery quickly. The supply voltage range from 1.7 V to 5.5 V DC gives designers flexibility when choosing power sources. The chip comes in several package sizes, including SOP8, SOP16, ESSOP10, and TSSOP20. These options make the chip easy to integrate into different board layouts and product designs. The puya py32 family offers a reliable solution for developers who need a cortex-m0+-based microcontroller with strong specifications and a rich set of peripherals.

Applications

The PY32F002BF15P6TU microcontroller supports a wide range of applications. Its low power use, flexible peripherals, and affordable price make it a strong choice for many product categories. The chip fits well in the PY32 family, which targets both simple and advanced designs.

IoT Devices

Many engineers select this microcontroller for IoT devices. It works well in smart sensors that collect and send data. Wireless modules often use it to manage communication between devices. Battery-powered monitors also benefit from its low energy use. These features help designers build reliable and long-lasting IoT solutions.

Note: The PY32F002BF15P6TU enables compact and efficient IoT products by combining low power with strong processing.

Consumer Electronics

The PY32F002BF15P6TU finds a place in many consumer electronics. Wearable devices, such as fitness trackers, use it for real-time data processing. Toys and small gadgets rely on its fast response and low cost. USB dongles and accessories also use this microcontroller for simple control tasks. The chip’s versatility allows manufacturers to create a wide range of products within the same family.

Industrial and Healthcare

Industrial automation and healthcare devices need reliable and efficient control. The PY32F002BF15P6TU supports motor controllers and digital meters in factories. Low-end PLC controllers use it for basic automation tasks. In healthcare, portable diagnostic equipment and thermometers depend on its stable performance. Low-power monitors in medical settings also use this microcontroller to extend battery life.

• Main application areas include:

  1. IoT devices

  2. Home appliances

  3. Consumer electronics

  4. Industrial automation

  5. Healthcare devices

These examples show how the PY32F002BF15P6TU serves many embedded applications. Its place in the PY32 family ensures compatibility and support for future projects.

Microcontroller Benefits

Low Power

The PY32F002BF15P6TU stands out for its low-power design. Engineers often choose this microcontroller for projects that demand limited power consumption. The device uses a Cortex-M0+ core, which is known for energy-efficient arm processors. The chip includes a low-power timer that can wake the system from deep sleep. This feature helps devices save energy when not in use. The supply voltage range from 1.7V to 5.5V allows the chip to operate in many low-power applications. Designers can use this flexibility to build products that last longer on battery power. The architecture supports three low-power modes, making it ideal for sensors, monitors, and portable devices.

Devices that use the PY32F002BF15P6TU often run for months or even years on a single battery. This benefit makes it a strong choice for energy-efficient designs.

Cost Advantage

Manufacturers look for ways to reduce costs without sacrificing performance. The PY32F002BF15P6TU offers a clear cost advantage. As a sub-$0.08 microcontroller, it delivers features that are rare at this price point. The table below shows how it compares to other options:

This combination of low price and strong performance sets the PY32F002BF15P6TU apart from other microcontrollers. Many low-cost chips use 8-bit cores and offer fewer features. The PY32F002BF15P6TU provides a 32-bit arm core, more memory, and a richer set of peripherals. Developers can create advanced products while keeping costs low.

Versatility

The PY32F002BF15P6TU brings versatility to embedded design. Its wide supply voltage range and multiple package options fit many project needs. The microcontroller supports a variety of communication protocols, such as USART, I2C, and SPI. This flexibility allows engineers to connect sensors, displays, and other modules with ease. The chip’s flash memory supports firmware updates, which helps manufacturers improve products after release. The rich set of peripherals, including ADCs and timers, enables use in both simple and complex systems.

• Designers use this microcontroller in:

  • Smart sensors for IoT

  • Wearable devices

  • Industrial controllers

  • Healthcare monitors

The PY32F002BF15P6TU adapts to many roles, from low-power applications to high-volume consumer products. Its combination of energy-efficient operation, arm architecture, and flexible features makes it a reliable choice for developers.

Comparison

Price

The PY32F002BF15P6TU microcontroller stands out for its affordability. Many engineers choose it for projects where cost matters most. At medium volumes, the price drops below $0.08 per unit, making it one of the least expensive ARM Cortex-M0+ options available. Even in small quantities, the price remains competitive at about $0.15 per unit. Most 8-bit microcontrollers offer lower prices, but they often lack the advanced features and memory found in the PY32F002BF15P6TU. The table below shows how this microcontroller compares to others in its class:

The PY32F002BF15P6TU delivers strong value for cost-sensitive designs, especially when developers need 32-bit capability.

Performance

The PY32F002BF15P6TU offers reliable performance for a wide range of embedded applications. Its ARM Cortex-M0+ core runs at 24 MHz, which supports fast data processing and responsive control. The microcontroller includes 3 KB of SRAM and 20 KB of flash memory, which allows for more complex firmware than most 8-bit MCUs. While some Cortex-M0+ chips, like the STM32F030, reach higher clock speeds, the PY32F002BF15P6TU balances speed with low power use. It also provides up to 18 GPIO pins and multiple communication buses, such as USART, I2C, and SPI. These features help engineers build products that require both flexibility and dependable performance.

Ecosystem

The ecosystem for the PY32F002BF15P6TU supports both new and experienced developers. The microcontroller uses a standard SWD interface for debugging, which works with many popular development tools. Official SDKs and documentation are available, though the resources may not be as extensive as those for larger brands like STM32. The chip comes in several package options, including SOP-8, which fits compact designs. Compared to many 8-bit MCUs, the PY32F002BF15P6TU offers better support for firmware updates and debugging. This ecosystem helps teams bring products to market quickly and with fewer obstacles.

Note: The combination of low price, solid performance, and a stable development ecosystem makes the PY32F002BF15P6TU a strong choice for many embedded projects.

Development

Tools

Developers working with the PY32F002BF15P6TU microcontroller benefit from a mature and accessible tool ecosystem. The microcontroller supports several popular ARM development environments. Many engineers use IAR Embedded Workbench and Arm Keil MDK for coding and debugging. The chip works well with common debugging and flashing tools. These include Segger’s J-Link, GDB, and pyOCD servers. The development process does not require any proprietary or unusual interfaces, which makes setup easy and reliable.

• The PY32 series supports a wide range of integrated development environments (IDEs), such as:

  • Eclipse

  • VSCode

  • Embedded Studio

  • Keil

  • IAR

Official development boards, like PUYA003 and PUYA030, help engineers start hardware projects quickly. These boards feature USB Type-C ports and I/O headers, making them suitable for both prototyping and testing. The overall tooling experience is stable and efficient. Many developers describe it as straightforward, which helps reduce time spent on setup and troubleshooting.

Documentation

Good documentation is essential for any successful development project. The PY32F002BF15P6TU microcontroller offers strong support in this area. Developers can find datasheets, reference manuals, and application notes on the official product page. The documentation is available in English and covers all major features and functions. This helps both new and experienced engineers understand the microcontroller’s capabilities.

• Key documentation resources include:

  • Detailed datasheets

  • User manuals

  • Application notes

  • Example code and reference designs

The ecosystem also supports community forums and online resources. These platforms allow developers to share knowledge and solve problems together. With accessible documentation and a robust toolchain, the development process for the PY32F002BF15P6TU remains efficient and user-friendly.

The py32f002bf15p6tu stands out for its low power use, rich peripherals, and affordable price. Engineers find this microcontroller ideal for IoT, consumer, and industrial projects.

• Flexible package options support many designs.

• Reliable performance meets the needs of cost-sensitive applications.

The py32f002bf15p6tu will help shape the future of embedded systems as more developers seek efficient solutions.

FAQ

What development tools support the PY32F002BF15P6TU?

Developers can use IAR Embedded Workbench, Arm Keil MDK, Eclipse, and VSCode. The chip works with standard SWD debugging tools like Segger J-Link. Official development boards help engineers start projects quickly.

Can the PY32F002BF15P6TU run on batteries?

Yes, the microcontroller supports low-power modes and operates from 1.7V to 5.5V. Devices using this chip often run for months or years on a single battery.

What types of peripherals does the PY32F002BF15P6TU include?

The chip features up to 18 GPIOs, USART, I2C, SPI, PWM, multiple timers, and a 12-bit ADC. These peripherals allow flexible connections to sensors, displays, and other modules.

Is the PY32F002BF15P6TU suitable for firmware updates?

The microcontroller uses flash memory, not OTP ROM. This feature allows developers to update firmware after deployment, which helps improve products and fix bugs.
