Understanding the S8550 PNP Transistor for Motor and Fan Speed Control

The S8550 PNP bipolar junction transistor is a small, useful part for circuits. It works well for controlling motor and fan speeds due to its precision and efficiency. The S8550 PNP bipolar junction transistor offers benefits like high current gain and low power consumption, which enhance its performance in various devices.

Main features of the S8550 PNP bipolar junction transistor are:

1. Maximum collector current: 700mA, which handles current well.

2. Power dissipation: 625mW, helping it stay cool.

3. Transition frequency: 150MHz, good for fast operations.

4. Voltage ratings: 40V (Vcb), 25V (Vce), and 5V (Veb), making it strong and reliable.

These qualities make the S8550 PNP bipolar junction transistor an excellent choice for motor and fan speed control.

Key Takeaways

• The S8550 PNP transistor is great for controlling motor and fan speeds. It can handle up to 700mA of current easily.

• This transistor has high current gain. It strengthens weak signals, making it useful for LED drivers and signal boosters.

• Using PWM (Pulse Width Modulation) with the S8550 helps control motor and fan speeds smoothly and efficiently.

• Always check the voltage and current limits of your devices. This prevents damage when using the S8550 in circuits.

• Add a flyback diode in motor circuits to protect the S8550. This stops voltage spikes and makes it last longer.

What is the S8550 PNP Bipolar Junction Transistor?

Overview of the S8550 Transistor

The S8550 transistor is a PNP type used in low-power circuits. It is common in projects needing good switching and signal boosting. This transistor lets current move from emitter to collector when a small base current is applied. Its small size and steady performance make it great for many electronics. With a collector current limit of 500mA and a collector-emitter voltage of 25V, the S8550 transistor works well in low-power setups.

Key Features of the S8550

The S8550 transistor has features that improve its use in circuits:

• High current gain (hFE) between 85 and 300, boosting weak signals.

• Low power use, perfect for devices running on batteries.

• Maximum power dissipation of 300mW, keeping it cool.

• Works in temperatures up to 150°C, fitting different conditions.

These features make the S8550 transistor useful for low-power electronic designs.

Common Applications of the S8550

The S8550 transistor is reliable and works in many ways. Some examples are:

• Signal Amplification: Makes weak signals stronger in audio systems.

• LED Drivers: Adjusts LED brightness in lights and indicators.

• Motor and Fan Speed Control: Changes speed in small motors and fans.

• DC-AC Conversion: Helps inverters for power supplies work properly.

S8550 Circuit Example: Simple LED Driver 💡
Application: Adjusting LED Brightness with a PNP Transistor
This circuit uses the S8550 to switch an LED or several LEDs. It is helpful for microcontroller projects, touch switches, and battery-powered lights.

🛠 Components Needed:

• S8550 Transistor (PNP)

• Resistors:

  • R1 = 1kΩ (base resistor)

  • R2 = 330Ω (limits LED current)

• LED (Any color, or multiple LEDs in series)

• Switch (Optional, for manual control)

• Power Supply: 5V – 12V (Battery or DC adapter)

How It Works:
The S8550 transistor acts like a switch. When the base voltage is low, it turns on, letting current flow through the LED. This setup allows easy control of LED brightness, making it great for microcontroller projects.

Technical Specifications of the S8550 Transistor

Electrical Parameters

The S8550 transistor has strong electrical features, making it dependable for small circuits. It is a PNP transistor that can handle up to 700mA of current. This means it can manage medium loads without trouble. Its voltage ratings include 40V for collector-base (Vcbo), 25V for collector-emitter (Vceo), and 5V for emitter-base (Veb). These values help keep the transistor stable in different circuit setups.

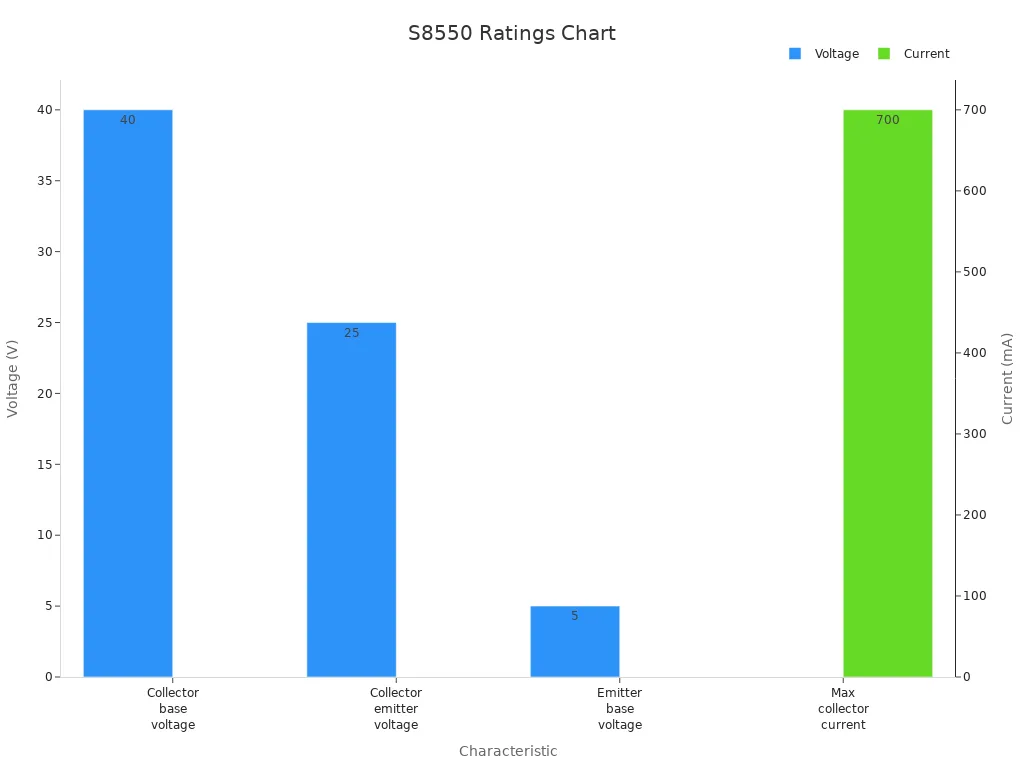

The S8550 also has a high DC current gain (hFE) between 120 and 320. This gain helps make weak signals stronger, which is useful for signal processing. Its transition frequency (ft) of 150MHz allows it to switch quickly. Below is a table showing its main electrical features:

Thermal and Physical Characteristics

The S8550 transistor works well in many conditions due to its thermal and physical properties. It can handle temperatures up to 150°C, making it reliable in different environments. Its maximum power dissipation of 625mW keeps it from overheating during long use. The small TO-92 package makes it easy to fit into circuit boards, saving space.

The transistor's voltage drop across collector-emitter (Vce) is about 600mV at 50mA. This helps reduce power loss while working. The table below shows its thermal and physical details:

Relevance to Motor and Fan Speed Control

The S8550 transistor is important for controlling motor and fan speeds. Its ability to handle 700mA of current makes it good for small DC motors and fans. The high DC current gain helps amplify signals, allowing accurate speed control. Its low power use and small size make it perfect for battery-powered gadgets.

In PWM (pulse-width modulation) circuits, the S8550 works as a switch. It adjusts motor speed by changing the input signal's duty cycle. This method ensures smooth and energy-saving speed control. The transistor's thermal stability keeps it working well, even for long periods.

Tip: When building motor or fan control circuits, check the S8550's voltage and current limits. This will help avoid damage and ensure it works properly.

How the S8550 Works in Motor and Fan Speed Control

How the S8550 Functions

The S8550 transistor works as a switch or amplifier. It lets current flow from emitter to collector when a small base current is applied. This PNP transistor is great for controlling motor and fan speeds. It boosts weak signals and manages current flow. It also protects circuits from voltage reversal, avoiding damage. The S8550 can be used in PWM control for precise operations.

Simple Circuit for Motor and Fan Speed Control

To control motor or fan speed, the S8550 transistor acts as a switch. You need basic parts like resistors and a power source. Below is an example of an LED driver circuit that can be adjusted for motors:

🛠 Needed Parts:

• S8550 Transistor (PNP)

• Resistors: R1 = 1kΩ (base resistor), R2 = 330Ω (limits current)

• LED (or motor)

• Switch (optional)

• Power Source: 5V – 12V

Circuit Diagram:

    +VCC (5V - 12V)
        │
       LED
        │
       R2 (330Ω)
        │
       C (Collector)
      S8550 (PNP)
       E (Emitter)
        │
        ├──► GND (When Switch is ON)
        │
       R1 (1kΩ)
        │
       Switch (or Microcontroller)
        │
       GND

How It Works:

The S8550 stays off when the base voltage is high. When the switch or microcontroller lowers the base voltage, the transistor turns on. This allows current to flow through the LED or motor. The resistor limits current to keep the circuit safe.

Benefits of Using the S8550 for Speed Control

The S8550 transistor has many benefits for speed control. It handles up to 500mA of current and 25V of voltage. Its high DC current gain, at least 120, helps amplify signals to drive other parts. It regulates current, making devices more stable. Its ability to act as a switch and protect against voltage reversal makes it ideal for motor and fan speed control systems.

Practical Uses of the S8550 in Motor and Fan Speed Control

Example Circuits for Motor and Fan Speed Control

The S8550 transistor is important for controlling motor and fan speeds. One common circuit is a PWM (Pulse Width Modulation) setup. Here, the S8550 works as a switch to adjust motor speed. Changing the PWM signal's duty cycle controls power to the motor. This ensures smooth and efficient performance.

Another example is a simple circuit for a small DC motor. It uses basic parts like resistors, a diode for protection, and a power source. The S8550 transistor turns the motor on or off based on the input signal. This allows precise control of the motor's speed.

Note: Always use a base resistor to limit current to the transistor's base. This protects the transistor and ensures it works well.

Real-Life Uses of the S8550

The S8550 transistor is versatile and reliable, making it useful in many devices. Some examples include:

• Cooling Systems: Adjusting fan speeds in computers and appliances to keep them cool.

• Small Devices: Controlling motor speeds in gadgets like toy cars and shavers.

• Automation: Managing small motors in conveyor belts and robotic arms.

Its ability to handle medium loads and boost weak signals makes it ideal for these tasks. The S8550 is also great for switching, like controlling LEDs or relays, showing its flexibility.

Tips for Using the S8550 in Speed Control Circuits

When building circuits with the S8550 transistor, follow these tips for better results:

1. Check Ratings: Ensure the motor or fan doesn't exceed 700mA or 25V.

2. Use a Heat Sink: Add a heat sink if the transistor will run for long periods.

3. Add a Flyback Diode: Place a diode across the motor to protect from voltage spikes.

4. Pick the Right Resistors: Calculate the base resistor to provide enough current safely.

5. Test First: Use a breadboard to test the circuit before finalizing it.

By following these steps, you can make the S8550 transistor work efficiently and last longer in motor and fan speed control circuits.

The S8550 transistor is a dependable part for small circuits. It can handle up to 700mA of current, making it great for controlling motors and fans. Its high DC current gain helps improve performance and makes devices last longer.

The S8550 is affordable and flexible, making it popular with engineers and hobbyists. Its small size and low energy use make it easy to add to designs like motor controllers or LED circuits.

What does the S8550 transistor do?

The S8550 transistor is used for small switching and signal boosting. It works well with devices like motors, fans, and LEDs. Its high current gain and low energy use make it great for battery-powered gadgets.

Can the S8550 adjust motor speed?

Yes, the S8550 can change motor speed using PWM (Pulse Width Modulation). It works like a switch, controlling power by changing the input signal's duty cycle. This allows smooth and accurate speed control.

How is the S8550 used in LED circuits?

The S8550 acts as a switch in LED circuits. When the base voltage drops, it lets current flow to the LED. A resistor limits the current to keep it safe. This setup helps control LED brightness in projects.

What parts are needed for an S8550 circuit?

To build an S8550 circuit, you need:

• S8550 transistor (PNP)

• Resistors (e.g., 1kΩ for base, 330Ω for current limiting)

• LED or motor

• Power source (5V–12V)

• Optional switch or microcontroller for control

Can the S8550 work with microcontrollers?

Yes, the S8550 works with microcontrollers like Arduino or Raspberry Pi. The microcontroller lowers the base voltage to turn the transistor on. This allows precise control of LEDs or motors.
