Quectel SG560D 5G Sub-6 GHz Smart ModuleSecrets: Wi-Fi 6E and Bluetooth

sales@keepboomingtech.com

·November 12, 2024

·10 min read

Unlock the full potential of the SG560D, Quectel SG560D Series 5G Sub-6 GHz Smart Module with Wi-Fi 6E & Bluetooth, for M2M applications by integrating it into your system. This module supports the Wi-Fi 6E bands of 2.4 GHz, 5 GHz, and 6 GHz, along with Bluetooth 5.2, enhancing network coverage and data rates. The integration process involves configuring these advanced wireless technologies to ensure seamless connectivity for M2M applications. By following the main steps, you will enhance your device's performance and connectivity capabilities. For more information, visit https://www.quectel.com

Understanding SG560D

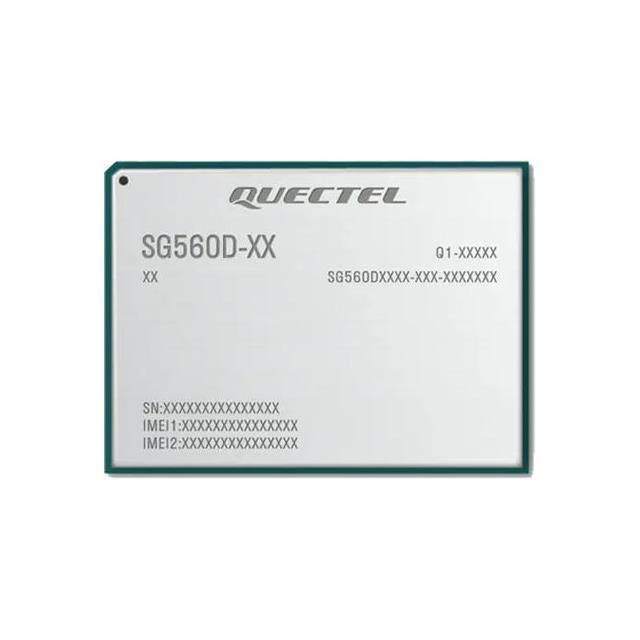

The SG560D module stands out as a versatile and powerful solution for both industrial and consumer applications. You will find it equipped with a Qualcomm QCM6490 SoC, which includes a Kyro 670 CPU and an Adreno 642L GPU. This combination ensures high-performance computing and graphics capabilities. The module also features an AI accelerator, allowing it to achieve up to 14 TOPS in computing performance. Such specifications make it ideal for complex application scenarios like in-vehicle infotainment and industrial handheld devices.

Capabilities of SG560D

The SG560D offers a range of impressive capabilities. It comes with 4GB LPDDR4X RAM and 64GB UFS storage by default, supporting displays with a maximum resolution of 2520 x 1080 pixels and a refresh rate of 144 Hz. You can enjoy video performance with 4K video encoding at 30 fps and decoding at 60 fps. Additionally, the module supports up to five groups of cameras, making it suitable for multimedia-rich applications.

The module's functional interfaces, such as LCM, camera, touchscreen, PCIe, UART, USB, I2C, and I2S, expand its application scope significantly. You can use it in smart IoT fields, including smart cash registers, intelligent robots, edge computing terminals, and more. Its versatility extends to smart gateways, CPE, MiFi, MID, PND, POS, routers, digital billboards, industrial PDAs, and smart security systems.

Benefits of Integrating with Wi-Fi 6E and Bluetooth

Integrating the SG560D with Wi-Fi 6E and Bluetooth 5.2 brings numerous benefits. Wi-Fi 6E operates on the 2.4 GHz, 5 GHz, and 6 GHz bands, enhancing network coverage and data rates. You will experience improved connectivity and reduced latency, crucial for M2M applications. The dual-band simultaneous (DBS) operation allows the module to transmit and receive data on multiple frequencies, boosting network efficiency.

Bluetooth 5.2 integration enhances wireless communication with compatible devices, offering improved range and speed. This feature is particularly beneficial for IoT devices that require reliable and fast connectivity. By leveraging these advanced wireless technologies, you can ensure seamless connectivity and enhanced performance for your applications.

For more detailed information on the SG560D and its integration process, you can visit the official documentation .

Preparing for Integration

Before you begin integrating the SG560D module with Wi-Fi 6E and Bluetooth, ensure you have the necessary hardware and software in place. This preparation will streamline the process and help you avoid potential issues.

Hardware Requirements

To successfully integrate the SG560D module, you need specific hardware components. First, ensure you have a compatible device that supports the SG560D module. This device should have the necessary slots and interfaces, such as PCIe, USB, and UART, to connect the module. You also need antennas that support Wi-Fi 6E and Bluetooth 5.2 to maximize the module's wireless capabilities.

Additionally, verify that your power supply can handle the module's requirements. The SG560D module demands a stable power source to function optimally. Check the specifications in the official documentation at https://www.quectel.com/content/uploads/2024/03/Qu to confirm the exact power needs.

Software Updates

Software plays a crucial role in the integration process. Ensure your device's operating system is up-to-date. This step is vital because it ensures compatibility with the SG560D module's features. You should also update any drivers related to the module. These updates often include enhancements and bug fixes that improve performance.

Next, download and install the latest firmware for the SG560D module. Firmware updates can provide new features and improve existing functionalities. You can find these updates on the official Quectel website. Follow the instructions provided to ensure a smooth installation process.

Finally, configure your network settings to accommodate the new wireless technologies. Adjust the settings to enable Wi-Fi 6E and Bluetooth 5.2. This configuration will allow your device to take full advantage of the module's capabilities.

Step-by-Step Integration Process

Configuring Wi-Fi 6E

Accessing the SG560D Interface

To begin configuring Wi-Fi 6E on your SG560D, you need to access the module's interface. Start by connecting your device to a computer using a USB cable. Open a web browser and enter the IP address provided in the SG560D documentation. This action will take you to the login page. Enter your credentials to access the interface. Once logged in, navigate to the wireless settings section. Here, you will find options to configure Wi-Fi 6E.

Setting Up Wi-Fi 6E Parameters

After accessing the interface, you can set up the Wi-Fi 6E parameters. First, select the Wi-Fi 6E band you wish to use: 2.4 GHz, 5 GHz, or 6 GHz. Each band offers unique advantages. The 2.4 GHz band provides broader coverage, while the 5 GHz and 6 GHz bands offer faster speeds. Choose the band that best suits your needs. Next, enable dual-band simultaneous (DBS) operation. This feature allows the SG560D to transmit and receive data on multiple frequencies, enhancing network efficiency. Finally, configure the Wi-Fi 2x2 MU-MIMO settings to allow multiple devices to connect simultaneously without degrading performance.

Setting Up Bluetooth

Enabling Bluetooth on SG560D

To enable Bluetooth on your SG560D, return to the main interface menu. Locate the Bluetooth settings section. Here, you will find an option to turn on Bluetooth. Click the toggle switch to enable it. The SG560D supports Bluetooth 5.2, which provides improved range and speed for wireless communication. Once enabled, your module will be ready to connect with compatible devices.

Configuring Bluetooth Settings

With Bluetooth enabled, proceed to configure the settings. Start by setting the visibility of your SG560D. You can choose to make it discoverable to other devices or keep it hidden for security purposes. Next, pair your module with the devices you want to connect. Follow the on-screen instructions to complete the pairing process. Ensure that both devices are within range to establish a stable connection. Once paired, you can adjust additional settings, such as audio quality and data transfer preferences, to optimize performance.

By following these steps, you will successfully integrate the Quectel SG560D Series 5G Sub-6 GHz Smart Module with Wi-Fi 6E & Bluetooth for M2M applications. This integration enhances your device's connectivity and performance, making it ideal for various industrial and consumer applications.

Troubleshooting Common Issues

When integrating the SG560D module with Wi-Fi 6E and Bluetooth, you might encounter some common issues. Understanding these problems and knowing how to address them will ensure a smoother integration process.

Connectivity Problems

You may face connectivity problems when setting up Wi-Fi 6E or Bluetooth. These issues often arise from incorrect configurations or environmental factors. To resolve them, follow these steps:

Check Signal Strength: Ensure that your device is within range of the Wi-Fi or Bluetooth signal. Physical obstructions like walls can weaken signals. Try moving closer to the source or removing obstacles.
Verify Settings: Double-check your Wi-Fi 6E and Bluetooth settings. Make sure you have selected the correct frequency bands and enabled dual-band simultaneous (DBS) operation. This feature allows the SG560D to transmit and receive data on multiple frequencies, improving network efficiency.
Restart Devices: Sometimes, a simple restart can fix connectivity issues. Turn off your device and the SG560D module, then power them back on. This action can reset connections and resolve temporary glitches.
Update Firmware: Outdated firmware can cause connectivity problems. Visit the official Quectel website to download the latest firmware updates. Follow the instructions provided to install them correctly.
Interference Check: Other electronic devices can interfere with Wi-Fi and Bluetooth signals. Identify and minimize sources of interference, such as microwaves or cordless phones, to improve connectivity.

Compatibility Issues

Compatibility issues may occur if your device or software does not support the SG560D module's features. Address these issues by following these guidelines:

Ensure Device Compatibility: Confirm that your device supports the SG560D module. Check for compatible slots and interfaces, such as PCIe, USB, and UART. Refer to the official documentation at https://www.quectel.com/content/uploads/2024/03/Qu for detailed specifications.
Update Software: Keep your operating system and drivers up-to-date. Software updates often include compatibility improvements and bug fixes. Regularly check for updates and install them promptly.
Check Network Settings: Incorrect network settings can lead to compatibility issues. Review your network configurations to ensure they align with the SG560D module's requirements. Adjust settings as needed to enable Wi-Fi 6E and Bluetooth 5.2.
Consult Documentation: If compatibility issues persist, consult the official Quectel documentation. It provides detailed information on supported features and troubleshooting tips.

By addressing these common issues, you can successfully integrate the SG560D module with Wi-Fi 6E and Bluetooth. This integration will enhance your device's connectivity and performance, making it suitable for various applications.

Benefits of Integration

Integrating the SG560D, Quectel SG560D Series 5G Sub-6 GHz Smart Module with Wi-Fi 6E & Bluetooth, for M2M applications offers significant advantages. You will find that these benefits enhance both connectivity and performance, making your devices more efficient and reliable.

Improved Connectivity

You will experience a noticeable improvement in connectivity when you integrate the SG560D module. The module supports Wi-Fi 6E, which operates on the 2.4 GHz, 5 GHz, and 6 GHz bands. This capability allows your devices to connect to networks with greater speed and reliability. You can enjoy faster data transfer rates and reduced latency, which are crucial for M2M applications.

Bluetooth 5.2 integration further enhances connectivity. It provides improved range and speed for wireless communication with compatible devices. You will find this particularly beneficial for IoT devices that require stable and fast connections. By leveraging these advanced wireless technologies, you ensure seamless connectivity for your applications.

Enhanced Performance

The integration of the SG560D module also leads to enhanced performance. You will notice that the module's support for dual-band simultaneous (DBS) operation allows it to transmit and receive data on multiple frequencies. This feature boosts network efficiency and ensures that multiple devices can connect simultaneously without degrading performance.

The module's capabilities extend to supporting Wi-Fi 2x2 MU-MIMO technology. This technology allows multiple devices to connect at the same time, maintaining high network performance. You will find that this is particularly useful in environments with many connected devices, such as smart homes or industrial settings.

By integrating the SG560D, Quectel SG560D Series 5G Sub-6 GHz Smart Module with Wi-Fi 6E & Bluetooth, for M2M applications, you enhance your device's connectivity and performance. This integration makes your devices more suitable for a wide range of applications, from industrial automation to consumer electronics.

You have explored the integration of the SG560D module with Wi-Fi 6E and Bluetooth, unlocking its full potential for M2M applications. This process enhances connectivity and performance, making your devices more efficient and reliable. By implementing these steps, you can leverage advanced wireless technologies to improve network coverage and data rates. The SG560D module supports intelligent development across various industries, providing high performance and connectivity. Embrace this integration to future-proof your technology solutions and elevate your applications to new heights.
