STM32F401VET6 Features and Specifications Unveiled

sales@keepboomingtech.com

·November 21, 2024

·10 min read

STM32F401VET6 Features and Specifications Unveiled — Image Source: pexels

The STM32F401VET6, a prominent member of STMicroelectronics' hot sales STM32F Microcontroller series IC, boasts impressive specifications that cater to a wide range of applications. This 32-bit ARM Cortex-M4 microcontroller offers outstanding performance with a clock speed reaching up to 84 MHz. Its detailed technical specifications include 512 KB of flash memory and 96 KB of SRAM, providing sufficient space for complex algorithms. The datasheet emphasizes its versatile connectivity options, such as SPI, I2C, and CAN, making it an ideal choice for embedded systems. With its robust specifications, the STM32F401VET6 stands out as a top choice for demanding projects.

Core Architecture of STM32F401VET6

The STM32F401VET6 microcontroller, a product of STMicroelectronics, showcases a robust core architecture that enhances its performance and versatility. This section delves into the core components that make this 32-bit ARM Cortex-M4 MCU a preferred choice for various applications.

ARM Cortex-M4 Core

The ARM Cortex-M4 core forms the heart of the STM32F401VET6. It is designed to deliver high performance and efficiency, making it suitable for demanding tasks.

Performance Capabilities

The Cortex-M4 core operates at a maximum clock speed of 84 MHz, providing the necessary power for complex computations. This high-speed processing capability ensures that the microcontroller can handle intensive tasks with ease. The core's architecture supports a wide range of operations, enhancing the overall performance of the MCU.

Instruction Set and Processing Power

The 32-bit ARM Cortex-M4 core includes a rich instruction set that optimizes processing power. It features a Digital Signal Processor (DSP) and a Floating Point Unit (FPU), which are crucial for executing complex algorithms efficiently. These features enable the STM32F401VET6 to perform precise calculations, making it ideal for applications requiring high computational accuracy.

Integrated Peripherals

The STM32F401VET6 comes equipped with a variety of integrated peripherals that expand its functionality and connectivity options.

Timers and Counters

The microcontroller includes multiple timers and counters, which are essential for managing time-sensitive tasks. These components allow developers to implement precise timing operations, crucial for applications like motor control and signal generation.

Analog and Digital Interfaces

The STM32F401VET6 offers a comprehensive range of analog and digital interfaces. It features a 12-bit Analog-to-Digital Converter (ADC) with up to 16 channels, enabling accurate sensor data acquisition. Additionally, the datasheet highlights its support for various communication protocols, such as SPI, I2C, and CAN, facilitating seamless integration into embedded systems.

The STM32F401VET6 stands out as a versatile and powerful 32-bit ARM Cortex-M4 microcontroller. Its core architecture, combined with integrated peripherals, makes it a reliable choice for diverse applications.

Memory Specifications of STM32F401VET6

The STM32F401VET6, a remarkable microcontroller from STMicroelectronics, offers robust memory specifications that cater to a wide range of applications. Its memory architecture ensures efficient data handling and storage, making it a preferred choice for developers.

Flash Memory

Flash memory plays a crucial role in the STM32F401VET6's performance. It provides ample space for storing programs and essential data.

Storage Capacity

The STM32F401VET6 boasts a substantial 512 KB of flash memory. This capacity allows developers to store complex algorithms and large datasets, ensuring the microcontroller can handle demanding tasks with ease. The datasheet highlights this feature as a key advantage for applications requiring extensive program storage.

Read and Write Speeds

The flash memory in the STM32F401VET6 offers impressive read and write speeds. These speeds facilitate quick data access and modification, enhancing the overall efficiency of the microcontroller. The datasheet emphasizes the importance of these speeds in applications where rapid data processing is critical.

SRAM

SRAM is another vital component of the STM32F401VET6's memory architecture. It provides temporary storage for data during program execution.

Available Memory Size

The STM32F401VET6 includes 96 KB of SRAM. This memory size ensures that the microcontroller can efficiently manage data during operation. The datasheet notes that this capacity supports the execution of complex tasks without compromising performance.

Access Times and Efficiency

The SRAM in the STM32F401VET6 offers fast access times, which are essential for real-time data processing. Efficient memory access contributes to the microcontroller's ability to perform high-speed computations. The datasheet underscores the significance of these access times in applications requiring quick data retrieval and manipulation.

The STM32F401VET6's memory specifications, including its flash memory and SRAM, make it a powerful tool for developers. Its efficient data handling capabilities, as detailed in the datasheet, ensure that it meets the demands of various embedded applications.

Connectivity Options in STM32F401VET6

The STM32F401VET6 from STMicroelectronics offers a wide array of connectivity options, making it a versatile choice for various applications. Its comprehensive communication interfaces and flexible pin configurations enhance its adaptability in different embedded systems.

Communication Interfaces

The STM32F401VET6 microcontroller supports multiple communication protocols, ensuring seamless data exchange in diverse environments.

UART, SPI, and I2C

The datasheet highlights the inclusion of UART, SPI, and I2C interfaces in the STM32F401VET6. These interfaces facilitate efficient serial communication, which is crucial for connecting with other devices and peripherals. UART provides asynchronous communication, ideal for simple data transmission. SPI offers high-speed synchronous data transfer, making it suitable for applications requiring rapid data exchange. I2C enables multi-master and multi-slave communication, allowing multiple devices to connect over a single bus.

USB and CAN Support

The STM32F401VET6 also features USB and CAN support, as detailed in the datasheet. USB connectivity allows for easy integration with computers and other USB-enabled devices, enhancing the microcontroller's versatility. CAN (Controller Area Network) support is essential for automotive and industrial applications, where reliable communication between multiple nodes is required.

GPIO and External Connections

The STM32F401VET6 includes numerous General-Purpose Input/Output (GPIO) pins, providing flexibility in design and external connections.

Pin Configuration

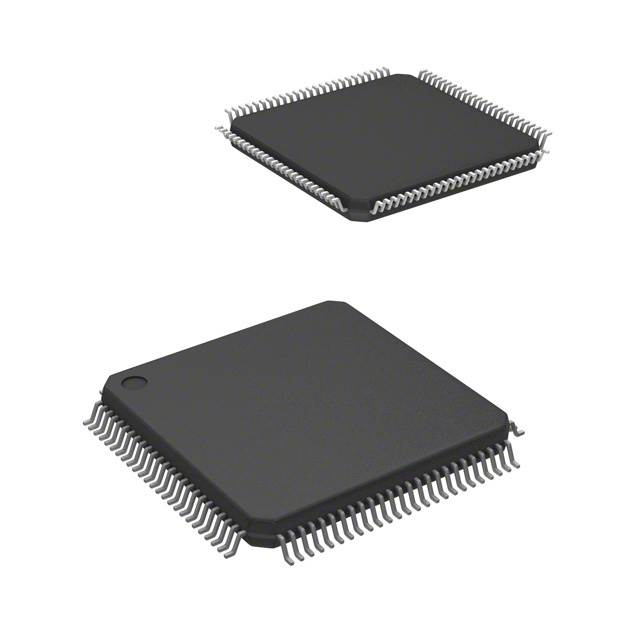

The 100-pin LQFP package of the STM32F401VET6 offers a well-organized pinout that simplifies the connection of external components. The datasheet provides detailed information on each pin's function, ensuring developers can easily configure the microcontroller for their specific needs. This organized pinout supports efficient circuit design and reduces development time.

Flexibility in Design

The STM32F401VET6's GPIO pins offer significant flexibility in design. Developers can configure these pins as input or output, depending on the application's requirements. This flexibility allows the MCU to adapt to various tasks, from simple LED control to complex sensor interfacing. The 100-pin LQFP tray ensures that the microcontroller fits seamlessly into different hardware configurations.

The STM32F401VET6 from STMicroelectronics stands out with its robust connectivity options. Its comprehensive communication interfaces and flexible GPIO configurations make it an ideal choice for a wide range of embedded applications.

Power Requirements of STM32F401VET6

The STM32F401VET6 from STMicroelectronics demonstrates remarkable power efficiency, making it suitable for a variety of embedded applications. Understanding its power requirements is crucial for optimizing performance and ensuring reliable operation.

Voltage and Current Specifications

The STM32F401VET6 operates within a specific voltage range, which is essential for maintaining its functionality and efficiency.

Operating Voltage Range

The datasheet specifies that the STM32F401VET6 functions effectively within an operating voltage range of 1.7V to 3.6V. This range allows the microcontroller to adapt to different power supply conditions, ensuring stable performance across various applications. The flexibility in voltage range supports the 32-bit ARM Cortex-M4 core's ability to handle diverse tasks efficiently.

Power Consumption Metrics

Power consumption is a critical factor in the design of any embedded system. The STM32F401VET6 exhibits low power consumption, which is vital for battery-operated devices and energy-efficient applications. The datasheet highlights its optimized power usage, which contributes to prolonged device operation and reduced energy costs.

Power Management Features

Advanced power management features in the STM32F401VET6 enhance its efficiency and adaptability in power-sensitive environments.

Low-Power Modes

The STM32F401VET6 includes several low-power modes, such as Stop, Standby, and Sleep. These modes allow the microcontroller to conserve energy when full processing power is not required. By utilizing these modes, developers can significantly extend the battery life of portable devices and reduce overall power consumption in embedded systems.

Efficiency Optimizations

Efficiency optimizations in the STM32F401VET6 ensure that it operates effectively under varying conditions. The datasheet emphasizes the importance of these optimizations in maintaining high performance while minimizing energy usage. These features make the STM32F401VET6 a reliable choice for applications where power efficiency is paramount.

The STM32F401VET6 from STMicroelectronics stands out with its comprehensive power management capabilities. Its voltage and current specifications, combined with advanced power management features, make it an ideal choice for a wide range of embedded applications.

Potential Applications of STM32F401VET6

The STM32F401VET6, a versatile microcontroller from STMicroelectronics, finds its place in a variety of applications due to its robust specifications and advanced features. Its adaptability makes it a preferred choice for both consumer electronics and industrial sectors.

Consumer Electronics

The STM32F401VET6 plays a significant role in the realm of consumer electronics. Its capabilities enhance the functionality of smart devices and home automation systems.

Use in Smart Devices

Smart devices, such as fitness trackers and smartwatches, benefit from the STM32F401VET6's efficient processing power. The ARM Cortex-M4 core ensures that these devices can perform real-time monitoring and data processing. The microcontroller's compact pinout allows for seamless integration into small form factor devices, making it ideal for wearable technology.

Integration in Home Automation

In home automation, the STM32F401VET6 excels by providing reliable control and connectivity. It powers IoT hubs, smart thermostats, and lighting controllers, enabling users to manage their home environments efficiently. The datasheet highlights its support for various communication protocols, ensuring smooth interaction between different smart home components.

Industrial and Automotive

The industrial and automotive sectors also leverage the STM32F401VET6's capabilities. Its robust design and comprehensive datasheet make it suitable for demanding environments.

Role in Control Systems

In industrial settings, the STM32F401VET6 serves as a key component in control systems. It manages robotic arms, conveyors, and other automated machinery with precision. The microcontroller's ability to handle complex algorithms ensures that industrial processes run smoothly and efficiently.

Applications in Automotive Electronics

Automotive electronics benefit from the STM32F401VET6's advanced features. It supports infotainment systems, vehicle tracking, and telematics, providing essential data processing and communication capabilities. The microcontroller's specifications, including its wide operating voltage range, make it a reliable choice for automotive applications where durability and performance are critical.

The STM32F401VET6 from STMicroelectronics stands out as a versatile microcontroller with a wide range of applications. Its robust specifications and comprehensive datasheet ensure that it meets the demands of both consumer electronics and industrial sectors.

The STM32F401VET6 from STMicroelectronics exemplifies versatility and advanced features, making it a standout choice in the realm of microcontrollers. Its robust specifications, highlighted in the datasheet, cater to a wide array of applications, from consumer electronics to industrial automation. The ARM Cortex-M4 core ensures high performance and connectivity, vital for embedded systems. Developers are encouraged to explore its capabilities further, leveraging the comprehensive datasheet to unlock potential in specific projects. This microcontroller's adaptability and power make it an invaluable asset in modern technology solutions.
