How to Integrate Sensors and Bluetooth with STM32L443CCT6 for IoT

The integration of sensors and Bluetooth with the STM32L443CCT6 opens new possibilities for IoT applications. This microcontroller combines low power consumption with advanced processing capabilities, making it ideal for battery-powered devices like wearables and smart meters. Its ARM Cortex-M4 core ensures high performance, while multiple communication interfaces, such as USB and Ethernet, enhance connectivity. These features allow developers to create energy-efficient IoT systems that deliver reliable performance. By connecting sensors and Bluetooth modules, the STM32 enables seamless data collection and wireless communication, essential for modern IoT solutions.

Key Takeaways

• The STM32L443CCT6 chip works well for IoT projects. It uses little power and performs fast, great for battery devices.

• Adding sensors to the STM32L443CCT6 is simple. Use I2C, SPI, or UART to share data correctly.

• You can connect Bluetooth modules like HC-05 to it. This allows wireless data sharing easily.

• Using STM32CubeIDE and STM32CubeMX makes coding and fixing errors easier. It helps you build faster.

• Test each part alone before combining everything. This finds problems early and makes the system better.

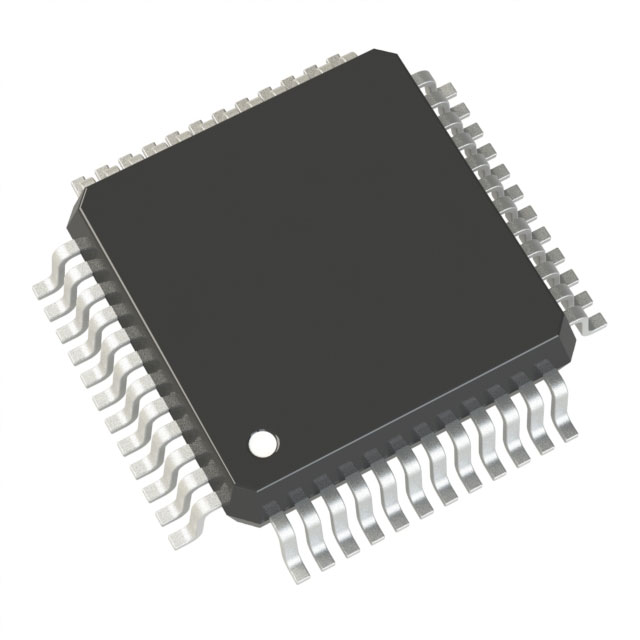

Understanding STM32L443CCT6

Key Features for IoT Applications

The STM32L443CCT6 microcontroller offers a range of features that make it highly suitable for IoT applications. Its ultra-low power operation, ranging from 1.71V to 3.6V, ensures efficient energy usage, which is critical for battery-powered devices. The ARM Cortex-M4 core, capable of running at up to 80 MHz, delivers high performance while maintaining energy efficiency. This balance makes it ideal for IoT systems requiring both processing power and low energy consumption.

The microcontroller achieves impressive performance metrics, including 1.25 DMIPS/MHz and high CoreMark scores. It also supports versatile connectivity options, such as USB, audio, and ADC functionalities, which are essential for integrating sensors and communication modules. With up to 83 fast I/O pins, including 5V-tolerant ones, the STM32L443CCT6 provides flexibility for various hardware configurations. Additional embedded features, such as an RTC, LCD support, capacitive sensing channels, and multiple timers, enhance its functionality for diverse IoT applications.

Advantages of STM32L443CCT6 for IoT Systems

The STM32L443CCT6 stands out among microcontrollers due to its combination of advanced processing capabilities and low-power operation. It is specifically designed for battery-powered applications, making it an excellent choice for IoT devices. Its energy-efficient peripherals and built-in RTC allow developers to create systems that operate reliably over extended periods without frequent battery replacements.

This microcontroller supports multiple communication interfaces, including USB, Ethernet, and GPIOs, enabling seamless integration with sensors and wireless modules. Its ability to maintain high performance while consuming minimal power makes it suitable for IoT systems that require continuous data collection and communication. Applications such as industrial automation, home automation, and wearable devices benefit from its versatile design.

The STM32L443CCT6 provides a robust solution for embedded applications that demand connectivity and energy efficiency. Its low-power operation and advanced features make it a preferred choice for developers building IoT systems.

Hardware Setup

Connecting Sensors to STM32L443CCT6

Connecting sensors to the STM32L443CCT6 involves identifying the type of sensor required for the application. For IoT applications, sensors such as temperature, humidity, motion, and soil moisture are commonly used. Each sensor typically communicates with the microcontroller through interfaces like I2C, SPI, or UART. Developers must connect the sensor's output pins to the corresponding GPIO pins on the STM32. For analog sensors, the microcontroller's ADC (Analog-to-Digital Converter) converts the analog signals into digital data for processing.

To ensure proper functionality, developers should consult the sensor's datasheet for pin configurations and voltage requirements. Pull-up or pull-down resistors may be necessary for certain connections. Testing the sensor's output using a multimeter or oscilloscope before integration can help verify its operation.

Adding Bluetooth Modules

Bluetooth modules enable wireless communication between the STM32 and external devices. Modules like HC-05 or BLE-based modules are popular choices. These modules typically use UART for communication. Developers must connect the module's TX and RX pins to the STM32's UART pins. Powering the module requires a stable voltage supply, often 3.3V or 5V, depending on the module specifications.

Configuring the Bluetooth module involves setting parameters such as baud rate and pairing credentials. This can be done using AT commands sent through a serial terminal. Once configured, the module allows the STM32 to transmit and receive data wirelessly, enabling seamless communication in IoT systems.

Preparing the STM32 Development Board

Preparing the STM32 development board requires assembling the necessary tools and components. The following table outlines the essential items:

Developers should install STM32CubeMX, a graphical tool for configuring the microcontroller and generating initialization code. STM32CubeIDE, an integrated development environment, simplifies coding and debugging. These tools streamline the setup process, ensuring the STM32 is ready for sensor and Bluetooth integration.

Tip: Organizing the workspace and labeling connections can prevent errors during hardware assembly.

Firmware Development

Setting Up the STM32 Development Environment

Setting up the STM32 development environment is a crucial step in firmware development. Developers need to begin by downloading and installing STM32CubeIDE from the official STMicroelectronics website. This integrated development environment provides tools for coding, debugging, and project management. STM32CubeMX, another essential tool, helps configure the microcontroller settings and generates initialization code.

After installing the software, the STM32 development board must be connected to the computer using a USB cable. The ST-Link V2 driver ensures proper communication between the board and the computer. Verifying the connection through the built-in ST-Link debugger confirms that the setup is ready for development. Using STM32CubeMX, developers can configure project settings, including clock configurations, GPIO pins, and peripheral initialization.

Writing Code for Sensor Integration

Writing code for sensor integration involves initializing the microcontroller peripherals and configuring the communication protocols. Developers can use STM32CubeMX to generate boilerplate code for I2C, SPI, or UART interfaces, depending on the sensor type. For analog sensors, the ADC must be configured to convert analog signals into digital data.

The STM32 firmware libraries simplify the process of writing sensor-specific code. These libraries provide functions for reading sensor data and processing it. For example, a temperature sensor might require code to read raw data and convert it into Celsius or Fahrenheit. Developers should test the sensor output using debugging tools to ensure accurate data acquisition.

Implementing Bluetooth Communication

Bluetooth communication enables the STM32 to transmit data wirelessly to other devices. Developers can use UART to establish communication between the microcontroller and the Bluetooth module. The STM32 firmware must include code to initialize the UART interface and handle data transmission.

Configuring the Bluetooth module involves setting parameters like baud rate and pairing credentials. AT commands sent through the UART interface allow developers to customize these settings. Once configured, the STM32 can send sensor data to a smartphone or an edge device for further processing. This setup is ideal for IoT applications, such as anomaly detection or real-time monitoring.

Tip: Testing the Bluetooth connection with a serial terminal before deployment ensures reliable communication in the final project.

Testing and Deployment

Verifying Sensor and Bluetooth Functionality

Testing ensures that the sensors and Bluetooth module function as expected. Developers should begin by verifying the sensor outputs. Using debugging tools like STM32CubeIDE, they can monitor the data received from the sensors. For analog sensors, the ADC values should match the expected range. Digital sensors require checking the communication protocol, such as I2C or SPI, to confirm proper data transmission.

The Bluetooth module also requires thorough testing. Developers can use a serial terminal to send and receive data between the STM32 and a paired device, such as a smartphone or computer. Testing the connection stability and data transfer speed ensures reliable communication. Simulating real-world scenarios, such as environmental monitoring or anomaly detection, helps validate the system's performance.

Tip: Testing each component individually before integrating them into the system reduces troubleshooting time.

Deploying the IoT System with STM32L443CCT6

Deployment involves assembling all components into a functional IoT system. Developers should mount the STM32L443CCT6, sensors, and Bluetooth module onto a PCB or breadboard. Proper cable management and secure connections prevent hardware failures during operation.

The firmware must be uploaded to the STM32 using STM32CubeIDE. Developers should configure the system to collect sensor data and transmit it via Bluetooth. For AI-based applications, the STM32 can process data locally or send it to a cloud platform for advanced analysis. Testing the system in its intended environment ensures it meets the project requirements.

Applications like smart home automation, industrial monitoring, and health tracking benefit from this setup. The STM32L443CCT6's low power consumption and robust performance make it ideal for long-term IoT deployments.

Note: Regular maintenance and firmware updates enhance system reliability and extend its lifespan.

Practical IoT Use Cases

Smart Home Applications

The STM32L443CCT6 microcontroller plays a vital role in advancing smart home technologies. Its low-power operation and versatile connectivity make it ideal for integrating sensors and Bluetooth modules into home automation systems. Developers can use this microcontroller to create efficient and reliable solutions for various applications.

These applications demonstrate how the STM32L443CCT6 enables smart homes to become more energy-efficient and secure. Its ability to process data from sensors and communicate wirelessly ensures seamless operation in real-world scenarios.

Industrial IoT Solutions

The STM32L443CCT6 excels in industrial IoT systems due to its advanced processing capabilities and energy-efficient design. The ARM Cortex-M4 core, operating at up to 80 MHz, includes a Floating Point Unit and DSP instructions. These features enhance the microcontroller's ability to handle complex computations, making it suitable for industrial automation and control.

This microcontroller supports multiple communication interfaces, such as USB, Ethernet, and GPIOs. These interfaces allow seamless integration with sensors, actuators, and other industrial components. Its built-in RTC and energy-efficient peripherals ensure reliable operation in battery-powered applications. Developers can use the STM32L443CCT6 to build robust systems for factory automation, process control, and environmental monitoring.

Wearable and Health Monitoring Devices

The STM32L443CCT6 is an excellent choice for wearable and health monitoring devices. Its energy-efficient operation ensures long battery life, which is essential for portable devices. The microcontroller's robust peripheral set supports a wide range of connectivity options, enabling seamless communication with external devices.

• Energy-efficient operation ideal for battery-powered devices.

• Low power consumption suitable for wearable applications.

• High performance with ARM Cortex-M4 architecture.

• Advanced processing capabilities for accurate data analysis.

• Versatile connectivity options, including USB and GPIOs.

These features make the STM32L443CCT6 suitable for applications like fitness trackers, ECG monitors, and glucose meters. Developers can leverage its capabilities to create innovative solutions for health monitoring and wearable technology.

Tip: Combining the STM32L443CCT6 with AI algorithms can enhance data analysis and enable predictive insights in wearable and health monitoring devices.

Integrating sensors and Bluetooth with the STM32L443CCT6 enables developers to create efficient IoT systems. The process involves connecting hardware components, configuring the development environment, and writing firmware for seamless communication. This microcontroller’s advanced processing capabilities and ultra-low power consumption make it a versatile solution for embedded applications. Its support for USB, Ethernet, and GPIOs ensures compatibility with various IoT devices.

Future possibilities with this kit include wearables, smart meters, and portable medical devices. Developers can leverage its energy efficiency and connectivity to innovate in IoT applications. The STM32L443CCT6 empowers creators to build reliable, energy-efficient systems that address real-world challenges.

What types of sensors can be integrated with the STM32L443CCT6?

The STM32L443CCT6 supports a wide range of sensors, including temperature, humidity, motion, and pressure sensors. It works with both analog and digital sensors through interfaces like I2C, SPI, UART, and ADC. This flexibility makes it suitable for diverse IoT applications.

How does the STM32L443CCT6 handle low-power operation?

The STM32L443CCT6 uses advanced power-saving modes, such as Stop and Standby, to minimize energy consumption. Its ultra-low-power design ensures efficient operation, making it ideal for battery-powered devices like wearables and remote sensors.

Which Bluetooth modules are compatible with the STM32L443CCT6?

The STM32L443CCT6 works with popular Bluetooth modules like HC-05 and BLE modules (e.g., HM-10). These modules communicate via UART, enabling seamless wireless data transmission for IoT systems.

What tools are required for firmware development?

Developers need STM32CubeIDE for coding and debugging, STM32CubeMX for configuration, and an ST-Link debugger for uploading firmware. These tools simplify the development process and ensure efficient integration of sensors and Bluetooth modules.

Can the STM32L443CCT6 process data locally?

Yes, the ARM Cortex-M4 core in the STM32L443CCT6 supports local data processing. Its Floating Point Unit and DSP instructions enable real-time analysis, reducing the need for external processing or cloud dependency.

Tip: Local processing improves response time and enhances system reliability in critical applications.
