Practical Applications of TIP122 Transistors for Switching and Amplification

The TIP122 transistor is a versatile NPN Darlington power device widely used in electronic circuits. It combines two transistors in a single package, enabling high current gain and efficient performance. This design simplifies circuit configurations and makes it suitable for diverse applications.

TIP122’s relevance lies in its ability to handle high currents and moderate voltages, making it ideal for switching and amplification tasks. Its applications range from motor control in industrial automation to audio amplification in consumer devices. For instance:

1. The global industrial automation market is growing at a 9% CAGR through 2030, boosting the demand for discrete semiconductor products like TIP122 in motor control systems.

2. Over 30% of low-power audio modules in budget devices utilize Darlington BJTs, showcasing their simplicity and cost-effectiveness.

While the TIP122 excels in its category, PNP transistors from keepbooming also offer reliable solutions for various electronic needs, complementing the versatility of NPN transistors in modern electronics. This transistor remains a critical component in discrete semiconductor products, providing reliability and efficiency in today’s technology.

Key Takeaways

• The TIP122 transistor is great for switching and boosting signals. It handles high currents and medium voltages well.

• Add a base resistor to your circuit. This protects the TIP122 and helps it work with little input current.

• Use the TIP122 for motor control. It easily handles strong power loads like motors and solenoids.

• For sound boosting, the TIP122's high current gain strengthens weak signals. This makes it perfect for powering speakers.

• Always use heat sinks to cool the TIP122. This keeps it working well and stops it from overheating.

Overview of TIP122 Transistor

Features and specifications of TIP122

The TIP122 is an NPN Darlington power transistor designed for high current and voltage applications. It features a collector-emitter voltage of up to 100V and can handle a continuous collector current of 5A, with a peak current of 8A. This makes it suitable for driving motors, relays, and other high-power loads. Its high current gain, typically around 1000, allows it to amplify small base currents into large collector currents efficiently. Additionally, the transistor includes a built-in anti-parallel diode, which protects circuits from voltage spikes caused by inductive loads.

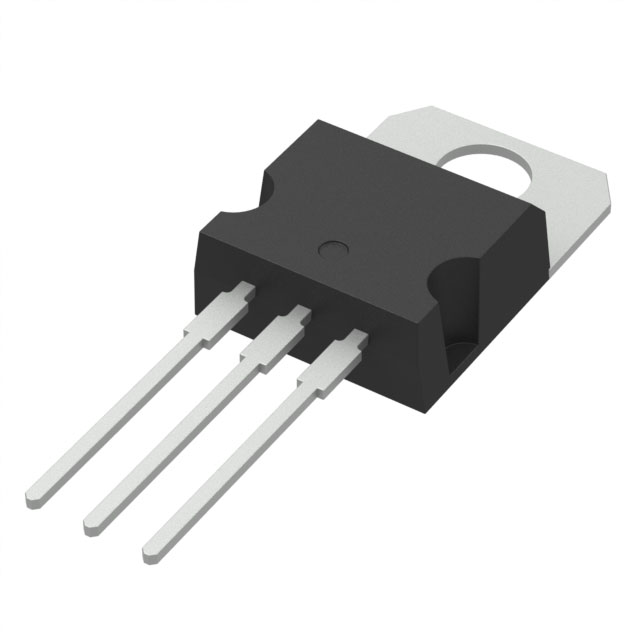

The TIP122 is housed in a TO-220 package, which provides excellent heat dissipation. It can dissipate up to 65W of power, ensuring stable performance even under demanding conditions. The low collector-emitter saturation voltage of 2V at 3A further enhances its efficiency in switching and amplification tasks. These specifications align with industry standards, making the TIP122 a reliable choice for discrete semiconductor products.

Pin configuration and functionality

The TIP122 transistor has three pins: Base, Collector, and Emitter. Each pin plays a specific role in the transistor's operation:

The base pin requires a small current to activate the transistor. Once activated, the collector pin allows a larger current to flow through the load, which exits via the emitter pin. This configuration enables the TIP122 to function effectively in both switching and amplification circuits.

Role of TIP122 in discrete semiconductor products

The TIP122 plays a vital role in enhancing the performance of discrete semiconductor products. Its ability to drive high collector currents, such as powering a 48V motor with a continuous 3A current, demonstrates its efficiency in motor control systems. The transistor's versatility extends to audio amplifiers, where it provides reliable signal amplification. It also improves circuit efficiency in medium power switching applications, such as lighting control and industrial automation.

In inverter circuits, the TIP122 contributes to better reliability and performance, supporting sustainable energy solutions. Its adaptability and robust design make it a preferred choice for engineers working on diverse electronic projects.

Switching Applications of TIP122

Using TIP122 as a switch

The TIP122 transistor is widely recognized for its ability to function as an efficient switch in electronic circuits. Its high current gain allows it to control large currents with minimal input, making it ideal for managing high-power loads such as motors, lights, and solenoids. By applying a small current to the base pin, the TIP122 enables a larger current to flow between the collector and emitter, effectively acting as an electronic switch.

This transistor's low saturation voltage drop enhances its efficiency in switching applications. It minimizes power losses during operation, which is particularly beneficial in systems requiring consistent performance. Additionally, the TIP122's built-in freewheeling diode protects circuits from voltage spikes caused by inductive loads, ensuring reliability in demanding environments.

Key performance metrics of the TIP122 in switching applications include:

These specifications highlight the TIP122's suitability for high-power switching tasks, where reliability and efficiency are critical.

Circuit design for switching applications

Designing a circuit with the TIP122 as a switch involves a straightforward process. The transistor's base pin receives a small input current, typically from a microcontroller or a low-power signal source. This input activates the transistor, allowing a larger current to flow through the collector to the emitter, which powers the connected load.

A typical circuit design includes:

• Base Resistor: A resistor is connected to the base pin to limit the input current and protect the transistor from damage.

• Load Connection: The load, such as a motor or LED array, is connected to the collector pin.

• Power Supply: The emitter pin is connected to the ground, while the load is powered through the collector.

For example, the following circuit diagram demonstrates the TIP122 controlling a DC motor:

+12V ---- Motor ---- Collector (TIP122)
           |          |
           |          |
          Base       Emitter
           |           |
Microcontroller      Ground

In this setup, the microcontroller sends a signal to the base pin, activating the TIP122 and allowing current to flow through the motor. This design ensures efficient switching with minimal power loss.

Practical examples of switching with TIP122

The TIP122 transistor finds extensive use in practical switching applications due to its high current gain and robust design. Some common examples include:

• Motor Control: The TIP122 is used to switch DC motors in robotics and automation systems. It can handle currents up to 5A, making it suitable for medium-power motors.

• Lighting Systems: It serves as a switch for LED arrays and incandescent bulbs, enabling on/off control or dimming through pulse-width modulation (PWM).

• Relay Driving: The TIP122 can drive relays in home automation systems, allowing microcontrollers to control high-power devices like fans and pumps.

• Solenoid Actuation: In industrial setups, the TIP122 switches solenoids for controlling valves and actuators.

For instance, in a home automation project, the TIP122 can control a 12V fan. A microcontroller sends a signal to the base pin, activating the transistor and powering the fan. This setup demonstrates the TIP122's versatility in managing high-power loads with precision.

Tip: For applications requiring higher efficiency or faster switching speeds, consider using logic-level MOSFETs like the IRLZ44N as an alternative to the TIP122.

Amplification Applications of TIP122 Transistor

Signal amplification with TIP122

The TIP122 transistor excels in signal amplification tasks due to its high gain performance. Its Darlington configuration provides a current gain of approximately 1000, making it ideal for amplifying weak input signals into strong output currents. This capability is particularly useful in audio systems, where the transistor amplifies low-level audio signals to drive speakers or other output devices.

In amplification applications, the TIP122 operates in the active region. A small input current applied to the base pin controls the larger current flowing between the collector and emitter. This process ensures precise signal amplification without distortion. The built-in freewheeling diode further enhances reliability by protecting the circuit from voltage spikes, especially in inductive load scenarios.

Engineers often use the TIP122 in pre-amplifier stages or as part of the output stage in class A/B audio amplifiers. Its ability to handle high currents and moderate voltages makes it a versatile choice for amplification tasks in consumer electronics and industrial systems.

Designing amplification circuits with TIP122

Designing an amplification circuit with the TIP122 transistor involves careful planning to ensure optimal performance. The circuit typically includes components such as resistors, capacitors, and a power supply to regulate the transistor's operation. Below is a step-by-step guide to designing a basic amplification circuit:

1. Input Signal Connection: Connect the input signal source to the base pin through a resistor. This resistor limits the base current and prevents damage to the transistor.

2. Load Placement: Attach the load, such as a speaker or LED, to the collector pin. Ensure the load's power requirements match the transistor's specifications.

3. Power Supply: Provide a stable DC voltage to the circuit. Connect the emitter pin to the ground and the collector pin to the positive terminal of the power supply.

4. Biasing: Use resistors to set the biasing conditions for the transistor. Proper biasing ensures the TIP122 operates in the active region for amplification.

Here is an example circuit diagram for an audio amplifier using the TIP122:

+12V ---- Speaker ---- Collector (TIP122)
           |            |
           |            |
          Base         Emitter
           |             |
Audio Signal          Ground

In this setup, the audio signal enters the base pin, where the TIP122 amplifies it to drive the speaker. The circuit's simplicity and efficiency make it suitable for various amplification applications.

Real-world examples of TIP122 in amplification

The TIP122 transistor finds widespread use in real-world amplification scenarios. Its high gain performance and robust design make it a preferred choice for engineers and hobbyists alike. Below are some practical examples:

• Audio Amplifiers: The TIP122 is commonly used in class A/B audio amplifiers to boost sound signals. It drives speakers in home audio systems and portable sound devices.

• Signal Boosters: In communication systems, the TIP122 amplifies weak signals to ensure clear transmission over long distances.

• Industrial Sensors: The transistor amplifies signals from sensors in industrial automation systems, enabling accurate data processing and control.

• LED Drivers: The TIP122 amplifies control signals to drive high-power LED arrays in lighting systems.

For instance, in a home audio setup, the TIP122 can amplify a low-level audio signal from a pre-amplifier stage to drive a 12V speaker. This application highlights the transistor's ability to deliver consistent performance in amplification tasks.

Note: While the TIP122 is highly effective in amplification circuits, engineers may consider alternatives like the BD679 or IRF540N for specific applications requiring higher efficiency or lower saturation voltage.

Safety and Best Practices for TIP122

Heat dissipation techniques for TIP122

The TIP122 transistor generates heat during operation, especially when handling high currents. Proper heat dissipation ensures reliable performance and prevents damage. Engineers often use heat sinks to manage thermal performance. A heat sink absorbs and dissipates excess heat, keeping the transistor's temperature within safe limits. Thermal paste or pads improve the contact between the transistor and the heat sink, enhancing heat transfer.

The following table highlights key thermal performance data for the TIP122:

These values emphasize the importance of heat management. For applications requiring continuous operation, adding a cooling fan near the heat sink can further improve thermal regulation.

Avoiding common mistakes in TIP122 circuits

Designers sometimes encounter issues when using the TIP122 in circuits. One common mistake involves insufficient base current. The TIP122 requires a small but adequate base current to operate efficiently. Using a resistor with an incorrect value can lead to poor performance or failure to switch properly.

Another frequent error is neglecting the built-in freewheeling diode. While the diode protects against voltage spikes, additional external diodes may be necessary for circuits with highly inductive loads. Overlooking this can result in damage to the transistor or connected components.

Incorrect placement of the load is another issue. The load should always connect to the collector pin, not the emitter. This configuration ensures proper current flow and optimal performance.

Ensuring proper voltage and current ratings

Operating the TIP122 within its specified voltage and current ratings is crucial for safety and longevity. The transistor can handle a maximum collector-emitter voltage of 100V and a continuous collector current of 5A. Exceeding these limits can cause overheating or permanent damage.

For switching applications, the low saturation voltage of 2V at 3A enhances efficiency by minimizing power loss. Designers should verify that the power supply and load requirements align with the TIP122's capabilities. Using a fuse or circuit breaker adds an extra layer of protection, preventing damage from unexpected surges.

Tip: Always consult the TIP122 datasheet to confirm the voltage and current ratings for your specific application.

Real-World Applications of TIP122 Transistor

TIP122 in motor drivers and control systems

The TIP122 transistor plays a crucial role in motor drivers and control systems. Its high current gain, exceeding 1,000, allows it to control high-power loads with minimal input current. This makes it ideal for driving DC motors in robotics, conveyor belts, and automated machinery. The transistor's voltage tolerance of up to 100V ensures reliable performance in demanding environments, such as industrial automation.

In motor control systems, the TIP122 enables precise speed and direction control. Engineers often use it in H-bridge configurations to drive motors in both forward and reverse directions. The global industrial automation market, growing at a 9% CAGR through 2030, highlights the increasing adoption of components like the TIP122. Additionally, Darlington configurations, such as those in the TIP122, achieve current gains up to 10,000, making them indispensable in industrial measurement and control systems.

Lighting control with TIP122

The TIP122 transistor is highly effective in lighting control applications. It can handle voltages up to 60V and supports a continuous current of 5A, with a peak current capacity of 8A. These specifications make it suitable for controlling high-power lighting systems, including LED arrays and incandescent bulbs.

In lighting circuits, the TIP122 enables dimming and on/off control through pulse-width modulation (PWM). This feature is particularly useful in home automation systems, where energy efficiency and precise control are essential. The transistor's ability to manage solenoids and other inductive loads further enhances its versatility in lighting applications. Its robust design ensures consistent performance, even in circuits requiring high power.

Industrial automation using TIP122

The TIP122 transistor is a key component in industrial automation systems. Its ability to handle high currents and voltages makes it suitable for controlling solenoid valves, actuators, and contactors. These features are essential for automating processes in manufacturing, packaging, and material handling industries.

In industrial settings, the TIP122 ensures reliable operation under varying load conditions. Its built-in freewheeling diode protects circuits from voltage spikes, enhancing durability. The 3.1% CAGR forecast for industrial-grade Darlington transistors through 2028 underscores their ongoing relevance in automation. By integrating the TIP122 into control systems, engineers can achieve efficient and precise operation, reducing downtime and improving productivity.

The TIP122 transistor demonstrates remarkable versatility in switching and amplification tasks. Its ability to handle high currents and moderate voltages makes it a reliable choice for diverse applications, including motor control, lighting systems, and audio amplification. Understanding its features, such as high current gain and built-in freewheeling diode, allows engineers to design efficient circuits tailored to specific needs.

Exploring the TIP122 in personal projects offers an opportunity to learn practical electronics and create innovative solutions. Whether for home automation or industrial systems, this transistor provides a solid foundation for achieving reliable performance.

What makes the TIP122 transistor different from standard transistors?

The TIP122 is a Darlington transistor, which combines two transistors in one package. This design provides a much higher current gain, typically around 1000. It allows the TIP122 to amplify small input currents into large output currents, making it ideal for high-power applications.

Can the TIP122 handle inductive loads like motors or solenoids?

Yes, the TIP122 includes a built-in freewheeling diode. This feature protects the transistor from voltage spikes caused by inductive loads, such as motors or solenoids. It ensures reliable operation in circuits with these components.

How do you calculate the base resistor value for a TIP122 circuit?

To calculate the base resistor, divide the base voltage by the required base current. Use Ohm’s Law: ( R = V/I ). Ensure the base current is at least 1/1000th of the load current, as the TIP122 has a high current gain of 1000.

Is the TIP122 suitable for audio amplification?

Yes, the TIP122 works well in audio amplification circuits. Its high current gain and ability to handle high currents make it suitable for driving speakers in class A/B amplifiers. It amplifies weak audio signals into strong outputs with minimal distortion.

What precautions should be taken when using the TIP122?

Always use a heat sink to manage heat dissipation. Operate the transistor within its voltage and current ratings. Use a base resistor to limit input current and avoid damage. For inductive loads, ensure proper circuit design to handle voltage spikes effectively.
