TLV75733PDRVR Voltage Regulator and Its Impact on Consumer Electronics

The TLV75733PDRVR plays a vital role in powering modern consumer electronics by delivering stable and efficient voltage regulation. Its wide input voltage range of 1.45V to 5.5V and fixed output voltage from 0.6V to 5V make it suitable for a variety of devices. The regulator ensures reliable operation even in challenging conditions, thanks to features like 1% output accuracy at 85°C and integrated thermal protection.

This device enhances energy efficiency with a low quiescent current of 25 µA, extending battery life in portable electronics. Its soft-start function prevents inrush current spikes, safeguarding sensitive components. Additionally, the TLV75733PDRVR minimizes noise impact with a high PSRR of 46 dB, ensuring optimal performance in consumer devices.

By combining efficiency, reliability, and advanced features, the TLV75733PDRVR supports the growing demands of consumer electronics, ensuring devices operate seamlessly and sustainably.

Key Takeaways

• The TLV75733PDRVR voltage regulator offers a wide input voltage range of 1.45V to 5.5V, making it versatile for various consumer electronics applications.

• With a low quiescent current of just 25 µA, this regulator enhances battery life in portable devices, ensuring efficient power management.

• Integrated features like thermal protection and a built-in soft-start function safeguard sensitive components, improving device reliability and performance.

• The regulator's high power supply rejection ratio (PSRR) of 46 dB minimizes noise, ensuring stable power delivery for sensitive electronics like audio systems and sensors.

• Its compact design and low dropout voltage make the TLV75733PDRVR ideal for space-constrained applications, supporting the trend towards smaller, more efficient devices.

Overview of Voltage Regulators in Consumer Electronics

Role of Voltage Regulators in Consumer Devices

Voltage regulators play a critical role in ensuring the stable operation of consumer electronics. These devices maintain a consistent voltage output, even when the input supply fluctuates. This stability is essential for protecting sensitive components and ensuring reliable performance. For example, regulators prevent damage caused by sudden voltage changes, which can occur due to shifts in power demand.

In addition to protecting devices, voltage regulators contribute to their longevity. By delivering clean and stable power, they reduce wear on electronic components. This is particularly important in devices like smartphones, tablets, and IoT systems, where consistent voltage regulation ensures optimal functionality. Voltage regulators also enhance energy efficiency, which is vital for battery-powered devices.

Types of Voltage Regulators and Their Functions

Voltage regulators come in several types, each designed for specific applications. Understanding how voltage regulators work helps in selecting the right one for a given device.

Linear Voltage Regulators

Linear voltage regulators provide a stable output by dissipating excess power as heat. They are ideal for applications requiring low noise, such as audio systems and sensitive analog circuits. These regulators are simple to use and offer excellent voltage regulation, making them a popular choice in consumer electronics.

Low-Dropout (LDO) Voltage Regulators

Low-dropout regulators, like the TLV75733PDRVR, are a specialized type of linear regulator. They operate efficiently even when the input voltage is close to the output voltage. This feature makes them suitable for battery-powered devices, where maximizing energy efficiency is crucial. LDO regulators also deliver low noise, ensuring stable power for sensitive components.

Switching Voltage Regulators

Switching voltage regulators use high-frequency switching to regulate voltage. These regulators are highly efficient and are commonly used in power supply systems for digital circuits, motor drives, and battery-powered devices. Their ability to handle higher power levels makes them suitable for applications requiring robust voltage regulation.

Voltage regulators are indispensable in modern electronics. Their ability to stabilize voltage, protect components, and enhance efficiency ensures that devices perform reliably across various applications.

Key Features and Advantages of the TLV75733PDRVR

Technical Specifications of the TLV75733PDRVR

Input Voltage Range and Output Stability

The TLV75733PDRVR offers a wide input voltage range of 1.45V to 5.5V, making it compatible with various power supply systems. Its fixed output voltage, adjustable in 50-mV steps from 0.6V to 5V, ensures precise voltage regulation for sensitive components. This regulator maintains exceptional output stability, even under fluctuating input conditions, thanks to its high power supply rejection ratio (PSRR) of 45 dB at 100 kHz. These specifications make it ideal for devices requiring consistent and reliable voltage regulation.

Low Dropout Voltage and Quiescent Current

The TLV75733PDRVR excels in efficiency with a low dropout voltage of 425 mV at 1 A (3.3 VOUT). This feature ensures stable operation even when the input voltage approaches the output voltage. Its low quiescent current of 25 μA minimizes power consumption, making it suitable for battery-powered devices. These attributes enhance energy efficiency and extend battery life, which is crucial for portable electronics.

Unique Features of the TLV75733PDRVR

Compact Design and Thermal Protection

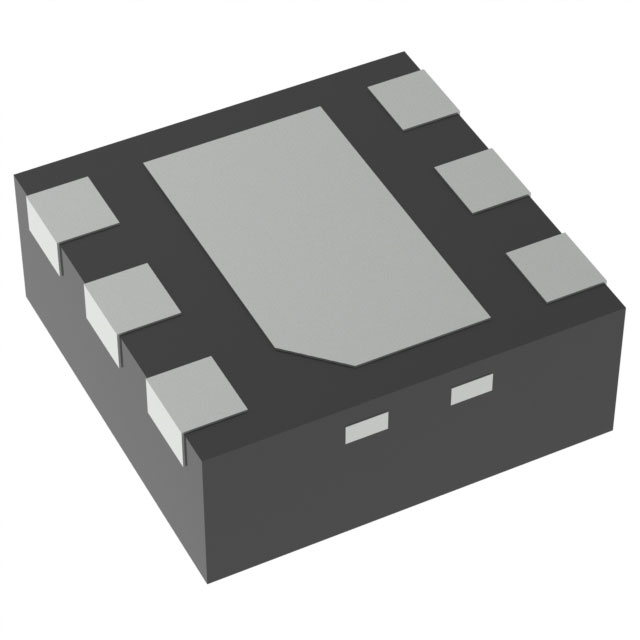

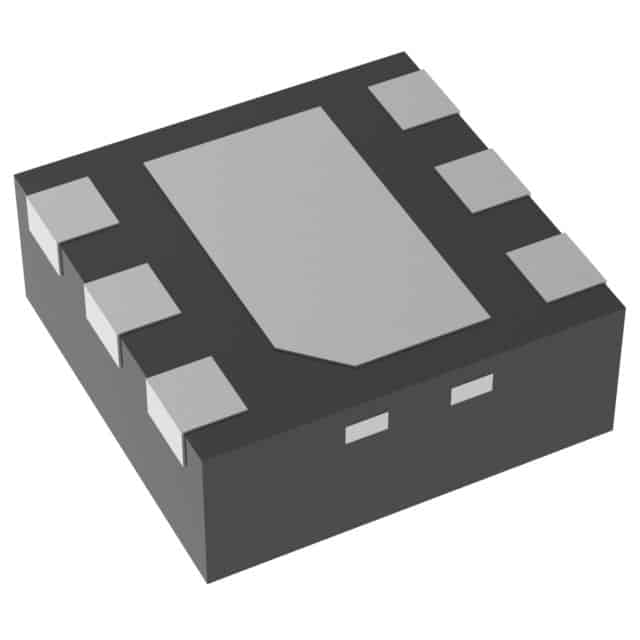

The TLV75733PDRVR features a compact design, available in SOT-23-5 and WSON-6 packages, making it ideal for space-constrained applications. Integrated thermal protection safeguards the regulator and connected components from overheating, ensuring reliable operation in demanding environments. This combination of size and safety enhances its versatility across various devices.

High Power Efficiency and Low Noise

This voltage regulator delivers high efficiency by reducing energy waste during operation. Its low noise output ensures clean power delivery, which is essential for sensitive circuits like audio systems and communication devices. The built-in soft-start feature further enhances performance by controlling inrush current during startup, preventing voltage drops.

Benefits Over Other Voltage Regulators

The TLV75733PDRVR outperforms many other voltage regulators in terms of efficiency and reliability. Its low dropout voltage and high PSRR ensure stable power delivery, even in challenging conditions. The integrated features, such as active output discharge and thermal turn-off, provide additional safety and convenience. These advantages make it a preferred choice for applications requiring precise voltage regulation and high efficiency.

The TLV75733PDRVR combines advanced specifications, unique features, and superior performance, making it a standout solution in the voltage regulator market.

Applications of the TLV75733PDRVR in Consumer Electronics

Smartphones and Tablets

Powering Processors and Sensors

The TLV75733PDRVR plays a crucial role in powering processors and sensors in smartphones and tablets. Its low dropout voltage regulator ensures efficient power management, which is essential for battery-powered devices. The regulator’s high power supply rejection ratio (PSRR) filters out noise from the power supply, providing stable power to sensitive components. Additionally, its fixed output voltage supports modern microcontroller requirements, ensuring reliable operation.

Enhancing Battery Life and Efficiency

The TLV75733PDRVR enhances battery life and efficiency in portable devices by minimizing power consumption. Its low quiescent current reduces energy usage during standby, while the internal soft-start function lowers inrush current during startup. These features improve energy efficiency and extend the operational time of smartphones and tablets. The regulator’s stability with small capacitors also allows for compact designs, making it ideal for portable devices.

Gaming Consoles and Wearable Devices

Stable Power for GPUs and Compact Components

Gaming consoles and wearable devices require stable power for their GPUs and compact components. The TLV75733PDRVR ensures reliable power delivery with its low dropout voltage and high PSRR. These features prevent voltage fluctuations, which can disrupt performance. The built-in soft-start function further enhances stability by controlling inrush current during startup.

• The TLV75733PDRVR is a low dropout voltage regulator that ensures efficient power management.

• It features low quiescent current, built-in soft-start, and high power supply rejection ratio.

• These features are critical for stable and reliable power delivery in gaming consoles and wearable devices.

Reducing Heat and Prolonging Battery Life

The TLV75733PDRVR reduces heat generation and prolongs battery life in gaming consoles and wearable devices. Its low quiescent current minimizes power consumption, while the low dropout voltage ensures efficient operation. The foldback current limit reduces thermal dissipation during short-circuit events, enhancing safety and reliability.

• Low quiescent current minimizes power consumption, prolonging battery life.

• Low dropout voltage ensures efficient operation, reducing heat generation.

• Built-in soft-start function lowers inrush current, which helps manage heat during startup.

• Foldback current limit reduces thermal dissipation during short-circuit events.

Home Appliances and IoT Devices

Supporting Smart Features and Energy Efficiency

The TLV75733PDRVR supports smart features and energy efficiency in home appliances and IoT devices. Its low quiescent current reduces energy consumption in standby mode, while the built-in soft-start function minimizes inrush current during startup. Protective features like thermal turn-off and undervoltage lockout enhance reliability, making it suitable for smart devices.

• The TLV75733PDRVR features low quiescent current, which helps reduce energy consumption in standby mode.

• It includes a built-in soft-start function that minimizes inrush current and controls voltage during startup, enhancing energy efficiency.

• Various protective features such as thermal turn-off, current limiting, and undervoltage lockout (UVLO) improve reliability and performance in smart devices.

Reliable Power for Sensors and Controllers

The TLV75733PDRVR provides reliable power for sensors and controllers in home appliances and IoT devices. Its ability to maintain stable power under fluctuating conditions ensures consistent performance. Applications include set-top boxes, TVs, gaming consoles, and portable equipment.

The TLV75733PDRVR’s advanced features make it a versatile solution for powering modern consumer electronics.

Broader Impact of the TLV75733PDRVR on Consumer Electronics

Enhancing Energy Efficiency in Devices

The TLV75733PDRVR significantly improves energy efficiency in consumer electronics. Its low static and quiescent current reduces power consumption, making it ideal for battery-powered devices. The internal soft-start function minimizes inrush current during startup, ensuring efficient energy use. Additionally, the regulator's design supports a smaller overall solution size, which helps reduce energy waste in compact devices. These features make the TLV75733PDRVR a valuable component for modern electronics that prioritize energy efficiency.

• Low static and quiescent current directly lower power consumption.

• Soft-start functionality reduces energy spikes during startup.

• Compact design minimizes energy waste in space-constrained applications.

• Standby power consumption is reduced, enhancing overall efficiency.

Prolonging Device Longevity and Reliability

The TLV75733PDRVR enhances the longevity and reliability of electronic devices by minimizing power loss and heat generation. Its low dropout voltage ensures efficient operation, while the low quiescent current reduces overall power consumption. The built-in soft-start feature controls inrush current, preventing damage during startup. Integrated protection mechanisms, such as thermal turn-off and current limiting, safeguard the regulator and connected components. These attributes ensure stable operation and extend the lifespan of consumer devices.

• Low dropout voltage reduces heat and power loss.

• Quiescent current optimization lowers energy usage, improving reliability.

• Soft-start functionality ensures smooth and stable startups.

• Protection features like thermal turn-off and current limiting enhance safety.

Optimizing User Experience and Sustainability

The TLV75733PDRVR improves user experience and promotes sustainability through its advanced features. Its low static current minimizes standby power consumption, contributing to energy conservation. Good line and load transient performance ensure stable operation, enhancing the user experience. The built-in soft-start function provides controlled voltage during startup, while active output discharge ensures a known boot state. Safety features like thermal turn-off and undervoltage locking further improve reliability. The regulator's small ceramic output capacitor supports compact designs, making it suitable for portable devices.

The TLV75733PDRVR combines energy efficiency, reliability, and user-focused features, making it a key component in sustainable and high-performing consumer electronics.

The TLV75733PDRVR revolutionizes consumer electronics by delivering efficient and reliable power regulation. Its wide input voltage range, low quiescent current, and 1% output accuracy ensure optimal performance across devices like gaming consoles, TVs, and portable equipment.

Its compact design and advanced features, such as built-in soft-start and thermal protection, enhance device longevity and sustainability. By minimizing power consumption and supporting smaller designs, the TLV75733PDRVR fosters innovation while promoting energy efficiency.

This voltage regulator exemplifies the future of sustainable and high-performing electronics.

What is the TLV75733PDRVR, and why is it important?

The TLV75733PDRVR is a low-dropout (LDO) voltage regulator from Texas Instruments. It provides stable and efficient power regulation for consumer electronics. Its advanced features, such as low quiescent current and thermal protection, enhance energy efficiency, device reliability, and performance in modern applications.

How does the TLV75733PDRVR improve battery life in portable devices?

The TLV75733PDRVR minimizes power consumption with its low quiescent current of 25 µA. Its low dropout voltage ensures efficient operation, even when the input voltage approaches the output voltage. These features reduce energy waste, extending battery life in smartphones, tablets, and wearables.

What makes the TLV75733PDRVR suitable for compact devices?

The TLV75733PDRVR features a compact design with SOT-23-5 and WSON-6 packages. It supports stability with small ceramic capacitors, reducing the overall solution size. These attributes make it ideal for space-constrained devices like wearables, IoT systems, and portable electronics.

Can the TLV75733PDRVR handle fluctuating input conditions?

Yes, the TLV75733PDRVR maintains exceptional output stability under fluctuating input conditions. Its high power supply rejection ratio (PSRR) of 45 dB at 100 kHz ensures clean and stable power delivery, protecting sensitive components in consumer electronics.

What safety features does the TLV75733PDRVR offer?

The TLV75733PDRVR includes integrated thermal protection, current limiting, and undervoltage lockout (UVLO). These features safeguard the regulator and connected components from overheating, overcurrent, and low voltage conditions, ensuring reliable operation in demanding environments.
