TPS4H000AQPWPRQ1: Smart Lighting for Modern Cars

The TPS4H000AQPWPRQ1 is a 40-V, 4-channel automotive smart high-side switch designed to revolutionize vehicle lighting systems. It plays a critical role in enabling efficient and adaptive lighting, which is increasingly in demand due to advancements in automotive technology. Smart lighting systems, including adaptive headlights and ambient lighting, enhance visibility, improve energy efficiency, and elevate vehicle aesthetics. Global trends show that these systems are becoming essential for safety and customization, with features like automatic high beam control and integration with advanced driver assistance systems (ADAS). The TPS4H000-Q1 aligns with these trends by offering robust performance and compatibility with modern vehicle systems.

Key Takeaways

The TPS4H000AQPWPRQ1 enhances vehicle safety with adaptive lighting that adjusts beam patterns based on driving conditions, improving visibility and reducing glare.
This smart switch features adjustable current limiting and overload protection, ensuring longevity and reliability of connected lighting components.
With AEC-Q100 qualification, the TPS4H000AQPWPRQ1 operates effectively in extreme temperatures, making it suitable for harsh automotive environments.
The device supports both LED and halogen lighting systems, providing precise control for consistent brightness and performance across various applications.
Advanced diagnostic capabilities, including overcurrent and fault detection, simplify maintenance and enhance the reliability of automotive lighting systems.

Overview of TPS4H000AQPWPRQ1

Key Features and Specifications

High-side switch design and 4-channel functionality

The TPS4H000AQPWPRQ1 features a high-side switch design with four independent channels. This configuration allows it to control multiple lighting circuits simultaneously, making it ideal for modern automotive lighting systems. Each channel operates independently, ensuring precise control over various lighting components, such as headlights, taillights, and interior lights. The integrated NMOS power FETs enhance efficiency and reliability, even under demanding conditions.

Adjustable current limiting and overload protection

This device includes adjustable current limiting, which provides flexibility for different lighting applications. It protects against electrical faults by limiting the current flow during overload conditions. This feature ensures the longevity of connected components and prevents damage caused by short circuits or excessive current. The intelligent load control further enhances its reliability, making it a robust solution for automotive lighting.

AEC-Q100 qualification and robust thermal performance

The TPS4H000AQPWPRQ1 meets the stringent AEC-Q100 qualification standards, ensuring its suitability for automotive environments. It operates reliably across a wide temperature range of -40°C to +125°C, making it capable of withstanding extreme conditions. The thermally enhanced 20-pin PWP package ensures efficient heat dissipation, which is critical for maintaining performance in high-power applications.

Feature	Specification
Voltage Range	40 V
On-Resistance	1 Ω
Channels	4
Current Limit	Adjustable
Operating Temperature Range	-40°C to +125°C
Integrated NMOS Power FETs	Yes

How It Works in Automotive Lighting Systems

Control of LED and halogen lighting systems

The TPS4H000AQPWPRQ1 provides precise control over both LED and halogen lighting systems. Its high-accuracy current-sense capabilities ensure consistent brightness and performance. This makes it suitable for applications requiring stable illumination, such as headlights and signal lights. The adjustable current limit allows it to adapt to the specific requirements of different lighting technologies.

Integration with vehicle ECUs for adaptive lighting

This device integrates seamlessly with vehicle electronic control units (ECUs) to enable adaptive lighting features. It supports advanced functionalities like dynamic beam adjustment and automatic high-beam control. These features improve visibility for drivers while reducing glare for oncoming traffic. The TPS4H000AQPWPRQ1 addresses the challenges of standardization and compatibility, ensuring smooth operation across various vehicle models.

Diagnostic capabilities, including the role of the quad comparator

The TPS4H000AQPWPRQ1 includes advanced diagnostic capabilities, such as overcurrent, open-load, and global fault detection. The quad comparator plays a crucial role in monitoring the system's performance and identifying potential issues. This ensures timely fault detection and enhances the overall reliability of the lighting system. These diagnostic features simplify maintenance and reduce downtime, making it a cost-effective solution for automotive manufacturers.

Feature	Description
Automotive Qualification	AEC-Q100 Qualified with Temperature Grade 1: –40°C to 125°C
Current Sense Accuracy	±15% Under >5-mA Load
Adjustable Current Limit	±20% Under >100-mA Load
Protection Features	Short-to-GND, Thermal Shutdown, Inductive Load Negative Voltage Clamp
Diagnostic Capabilities	Overcurrent, Open-Load, and Global Fault Detection

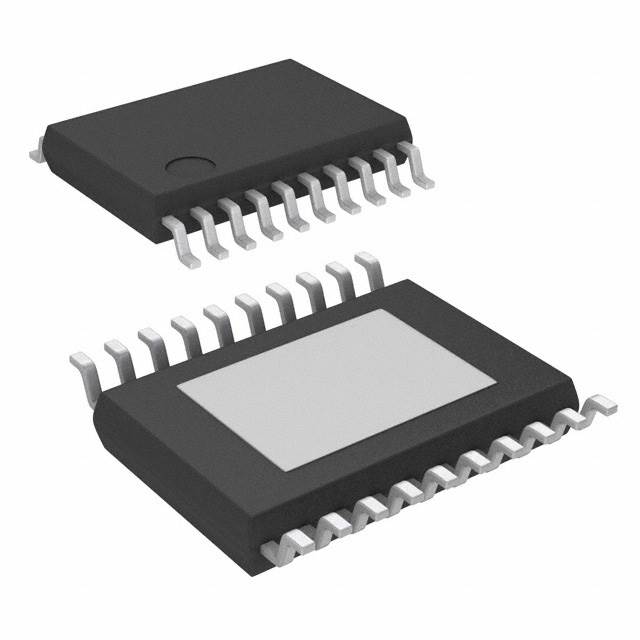

Package Type	20-Pin Thermally-Enhanced PWP Package

Note: The TPS4H000AQPWPRQ1 addresses the complexities of modern automotive lighting systems by offering advanced features like adaptive current control and robust fault diagnostics. These capabilities make it a reliable choice for manufacturers aiming to meet global regulatory standards.

Benefits of Using TPS4H000AQPWPRQ1 in Modern Cars

Enhanced Safety and Reliability

Adaptive lighting for improved visibility

The TPS4H000AQPWPRQ1 enhances safety by enabling adaptive lighting systems. These systems adjust beam patterns dynamically based on driving conditions. For example, they optimize visibility during nighttime driving or adverse weather. This feature reduces glare for oncoming drivers and improves road safety. The device’s precise control of LED and halogen lights ensures consistent brightness, which is essential for clear visibility.

Protection against electrical faults and overloads

This device offers robust protection against electrical faults and overloads. Its integrated NMOS power FETs, with a resistance of 1000 mΩ, ensure efficient performance. Advanced diagnostics monitor electrical faults, while high-accuracy current-sense capabilities allow precise load control. The external adjustable current limit prevents inrush or overload currents, enhancing system reliability.

Feature	Description
Integrated NMOS power FETs	1000 mΩ for efficient performance
Full diagnostics	Enables monitoring of electrical faults
High-accuracy current sense	Allows for precise load control
External adjustable current limit	Prevents inrush or overload current, enhancing system reliability

Energy Efficiency and Cost Savings

Optimized power consumption for LED systems

The TPS4H000AQPWPRQ1 supports intelligent power management, which is critical for energy-efficient automotive technologies. It optimizes power consumption in LED systems, reducing energy waste. This efficiency contributes to lower fuel consumption in vehicles, especially those with extensive lighting systems. The device’s ability to manage load switching ensures consistent performance while conserving energy.

Reduced maintenance costs due to durability

Durability is another key benefit of this device. Its robust thermal performance and AEC-Q100 qualification ensure reliable operation in extreme conditions. This reduces the likelihood of component failure, minimizing maintenance costs. Automotive manufacturers benefit from fewer warranty claims and improved customer satisfaction.

Compatibility with Advanced Lighting Technologies

Support for matrix lighting and adaptive headlights

The TPS4H000AQPWPRQ1 supports advanced lighting technologies like matrix lighting and adaptive headlights. These systems rely on precise control to adjust individual light segments. The device’s quad-channel design and high-accuracy current-sense capabilities make it ideal for these applications. Drivers experience improved visibility and enhanced safety, especially in complex driving environments.

Seamless integration with smart vehicle systems

This device integrates seamlessly with smart vehicle systems. It includes advanced diagnostics and intelligent load control, ensuring optimal operation. Its adjustable current limit and wide operating temperature range (-40°C to +125°C) make it suitable for various automotive applications. These features allow manufacturers to incorporate the TPS4H000AQPWPRQ1 into modern vehicles with ease.

Tip: The TPS4H000AQPWPRQ1 combines advanced features like the quad comparator and intelligent diagnostics to meet the demands of modern automotive lighting systems. Its compatibility with smart vehicle systems ensures future-proof solutions for manufacturers.

Applications in Automotive Lighting

Adaptive Headlights

Dynamic beam adjustment for varying conditions

Adaptive headlights improve driving safety by adjusting their beam patterns dynamically. The TPS4H000AQPWPRQ1 enables this functionality by providing precise control over lighting systems. It works seamlessly with vehicle ECUs to adjust the light beam based on speed, steering angle, and road conditions. For instance, the headlights can widen the beam during low-speed turns or extend it at higher speeds for better visibility. This dynamic adjustment ensures optimal illumination in all driving scenarios.

Enhanced driver visibility and reduced glare

The TPS4H000AQPWPRQ1 enhances visibility by maintaining consistent brightness in LED and halogen systems. Its high-accuracy current-sense capabilities ensure uniform light output, which is crucial for clear vision. Additionally, the device supports advanced features like automatic high-beam control. This reduces glare for oncoming drivers, improving safety for everyone on the road.

Interior Ambient Lighting

Customizable and energy-efficient lighting

Interior ambient lighting enhances the driving experience by creating a comfortable and visually appealing environment. The TPS4H000AQPWPRQ1 supports customizable lighting options through its adjustable current limit and intelligent load control. These features allow manufacturers to design energy-efficient lighting systems that suit individual preferences. The device’s efficient performance ensures consistent illumination without excessive power consumption.

Improved vehicle aesthetics and user experience

Ambient lighting contributes to a vehicle's aesthetics and user experience. The TPS4H000AQPWPRQ1 ensures reliable operation of these systems, even under demanding conditions. Its advanced diagnostics and integrated NMOS power FETs enhance reliability, making it ideal for ambient lighting applications.

Feature	Description
Adjustable Current Limit	Prevents inrush or overload current, enhancing reliability for ambient lighting applications.
Efficient Performance	Integrated 1000-mΩ NMOS power FETs ensure reliable operation, crucial for consistent lighting.
Advanced Diagnostics	Allows for intelligent load control, ensuring optimal operation of lighting systems.

Signal and Indicator Lights

Reliable operation for turn signals and brake lights

Signal and indicator lights play a critical role in vehicle safety. The TPS4H000AQPWPRQ1 ensures their reliable operation through features like high-accuracy current-sense capabilities and advanced diagnostics. These features allow the device to monitor and control the lighting system effectively. Its integrated NMOS power FETs and adjustable current limit provide additional protection against overloads, ensuring consistent performance.

Compliance with automotive safety standards

The TPS4H000AQPWPRQ1 meets stringent automotive safety standards, making it suitable for signal and indicator lights. Its robust design ensures compliance with regulations while maintaining reliability. The device’s intelligent load control and diagnostic capabilities simplify maintenance, reducing downtime for vehicle owners.

Key features for signal and indicator lights:
- Integrated 1000-mΩ NMOS power FETs
- Advanced diagnostics for intelligent load control
- High-accuracy current-sense capabilities
- External adjustable current limit for overload protection

Note: The TPS4H000AQPWPRQ1 stands out in automotive lighting applications due to its advanced features and robust performance. Its compatibility with modern vehicle systems ensures reliable and efficient operation across various lighting applications.

Comparison with Other Solutions

Advantages Over Traditional Lighting Control Systems

Superior energy efficiency and thermal management

The TPS4H000AQPWPRQ1 outperforms traditional lighting control systems by offering superior energy efficiency and thermal management. Its integrated 1000-mΩ NMOS power FETs reduce power loss, ensuring optimal energy usage. High-accuracy current-sense capabilities enable intelligent load control, which minimizes unnecessary energy consumption. The external adjustable current limit prevents inrush or overload currents, improving thermal stability. These features make the device an ideal choice for modern automotive lighting systems that demand efficiency and reliability.

Advanced diagnostic features, including the quad comparator

The TPS4H000AQPWPRQ1 includes advanced diagnostic features that set it apart from conventional systems. Its quad comparator plays a vital role in monitoring and identifying potential issues, ensuring timely fault detection. The device also offers comprehensive diagnostic capabilities, as shown in the table below:

Diagnostic Feature	Description
Overcurrent and Short to Ground Detection	Detects excessive current and short circuits to ground.
Open-Load and Short-to-Battery Detection	Identifies open load conditions and shorts to battery.
Global Fault for Fast Interrupt	Provides a quick indication of faults across the system.

These features simplify maintenance and enhance the reliability of automotive lighting systems.

How It Stands Out Among Competitors

Unique features like adjustable current limiting

The adjustable current limiting feature gives the TPS4H000AQPWPRQ1 a competitive edge. This functionality enhances system reliability by preventing damage to components. It limits inrush or overload currents, ensuring stable operation under varying conditions. Key benefits of this feature include:

Improved protection for connected components.
Enhanced stability during high-load scenarios.

This unique capability makes the device a standout solution for automotive manufacturers.

Proven reliability in harsh automotive environments

The TPS4H000AQPWPRQ1 demonstrates exceptional reliability in harsh automotive environments. Its AEC-Q100 qualification ensures consistent performance across a wide temperature range, from -40°C to +125°C. The robust design withstands extreme conditions, making it suitable for demanding applications. Unlike competitors, the device integrates seamlessly with advanced systems like the 74hc series and quad 2-input nor gate, ensuring compatibility with modern automotive technologies.

Note: The TPS4H000AQPWPRQ1 combines advanced diagnostics, intelligent load control, and unique features like adjustable current limiting. These attributes make it a reliable and efficient choice for automotive lighting systems.

The TPS4H000AQPWPRQ1 stands out as a cutting-edge solution for modern automotive lighting. Its advanced diagnostics, high-accuracy current-sense capabilities, and adjustable current limits ensure precise and reliable operation. Integrated 1000-mΩ NMOS power FETs enhance energy efficiency and durability. These features enable smart lighting systems that improve safety, reduce energy consumption, and support advanced technologies like adaptive headlights. By offering robust performance and seamless integration with vehicle systems, the TPS4H000AQPWPRQ1 empowers manufacturers to meet evolving automotive demands. This device is an excellent choice for those seeking innovative and efficient lighting solutions.

What is the purpose of the TPS4H000AQPWPRQ1 in automotive lighting?

The TPS4H000AQPWPRQ1 controls and manages lighting systems in vehicles. It ensures efficient operation, protects against electrical faults, and supports advanced features like adaptive headlights and matrix lighting.

How does the quad comparator enhance the device's functionality?

The quad comparator monitors system performance and detects faults like overcurrent or open-load conditions. This feature improves reliability and simplifies maintenance for automotive lighting systems.

Can the TPS4H000AQPWPRQ1 handle extreme temperatures?

Yes, the device operates reliably between -40°C and +125°C. Its robust design and thermal management make it suitable for harsh automotive environments.

Is the TPS4H000AQPWPRQ1 compatible with LED and halogen lights?

The device supports both LED and halogen lighting systems. Its adjustable current limit and high-accuracy current-sense capabilities ensure consistent brightness and performance.

What makes the TPS4H000AQPWPRQ1 energy efficient?

The device optimizes power consumption through intelligent load control and integrated NMOS power FETs. These features reduce energy waste, making it ideal for modern automotive lighting systems.
