3 Easy Steps to Use MCP1700T-5002E/MB LDO Voltage Regulators

sales@keepboomingtech.com

·November 22, 2024

·11 min read

3 Easy Steps to Use MCP1700T-5002E/MB — Image Source: unsplash

The MCP1700T-5002E/MB simplifies voltage regulation for microcontroller systems. It delivers a stable 5V output with minimal energy consumption, making it ideal for battery-powered devices. Its low dropout voltage of 178mV ensures efficient performance even with low input voltages. Users can easily integrate this regulator by following three straightforward steps: selecting the right components, wiring the connections, and testing the setup. With built-in protections against short circuits and overheating, this regulator guarantees reliability. Explore its detailed specifications at https://www.alldatasheet.com/datasheet-pdf/pdf/846544/MICROCHIP/MCP1700T-5002E/MB.html.

Key Takeaways

Select the MCP1700T-5002E/MB by verifying its compatibility with your microcontroller and ensuring it meets your power requirements.
Properly wire the regulator by correctly identifying its pins and using short, thick wires to minimize resistance and voltage drops.
Install the recommended 1.0µF ceramic capacitors on both the input and output to enhance stability and performance.
Test the output voltage with a multimeter to ensure it delivers a stable 5V, and monitor performance under varying load conditions.
Regularly inspect your setup for loose connections or component wear to maintain long-term reliability and performance.
Utilize the MCP1700T-5002E/MB in battery-powered devices to maximize battery life with its low quiescent current and low dropout voltage.
Leverage the compact design of the MCP1700T-5002E/MB for easy integration into IoT and embedded systems, ensuring efficient power delivery.

Step 1: Select the MCP1700T-5002E/MB and Verify Compatibility

Choosing the right voltage regulator is essential for ensuring stable and efficient power delivery in electronic systems. The MCP1700T-5002E/MB stands out as a reliable option for microcontroller-based applications. This step focuses on understanding its specifications, verifying compatibility with your microcontroller, and selecting the necessary supporting components.

Understand the MCP1700T-5002E/MB Specifications

The MCP1700T-5002E/MB is a CMOS low dropout voltage regulator designed for energy-efficient applications. It provides a stable 5V output with a maximum current of 250mA. Its low dropout voltage of 178mV ensures consistent performance even when the input voltage is close to the output voltage. This feature makes it ideal for battery-powered devices, where maximizing battery life is critical. Additionally, the regulator consumes only 1.6µA of quiescent current, further enhancing its suitability for low-power systems.

The device operates seamlessly with a 1.0µF ceramic output capacitor, ensuring stability and high current handling in compact designs. Built-in protections, such as short-circuit and over-temperature safeguards, enhance its reliability under various conditions. These features make the MCP1700T-5002E/MB a dependable choice for powering microcontrollers and sensors.

Check Compatibility with Your Microcontroller

Before integrating the MCP1700T-5002E/MB, ensure it meets the power requirements of your microcontroller. Verify that the microcontroller operates at a 5V input voltage and does not exceed the regulator's maximum output current of 250mA. Check the input voltage range of the regulator, which spans from 2.3V to 6V, to confirm compatibility with your power source.

Consider the power consumption of all connected peripherals. The total current draw should remain within the regulator's capacity. For systems with fluctuating power demands, account for peak current requirements to avoid overloading the regulator. Proper compatibility checks prevent potential issues and ensure optimal performance.

Choose Supporting Components

Selecting the right supporting components is crucial for the proper functioning of the MCP1700T-5002E/MB. Use a 1.0µF ceramic capacitor on the output to maintain stability and improve transient response. For the input, choose a capacitor with a value of at least 1.0µF to filter noise and stabilize the power supply.

Evaluate the quality and specifications of the capacitors to match the regulator's requirements. Ceramic capacitors are preferred due to their low equivalent series resistance (ESR) and high reliability. Ensure the components are rated for the operating voltage and temperature range of your application. Proper component selection enhances the overall efficiency and longevity of the system.

Step 2: Wire and Connect the MCP1700T-5002E/MB

Proper wiring and connection of the MCP1700T-5002E/MB ensure stable and efficient operation. This step involves understanding the pin configuration, connecting the input and output, and placing capacitors for stability. Following these guidelines will help users achieve a reliable setup.

Understand the Pin Configuration

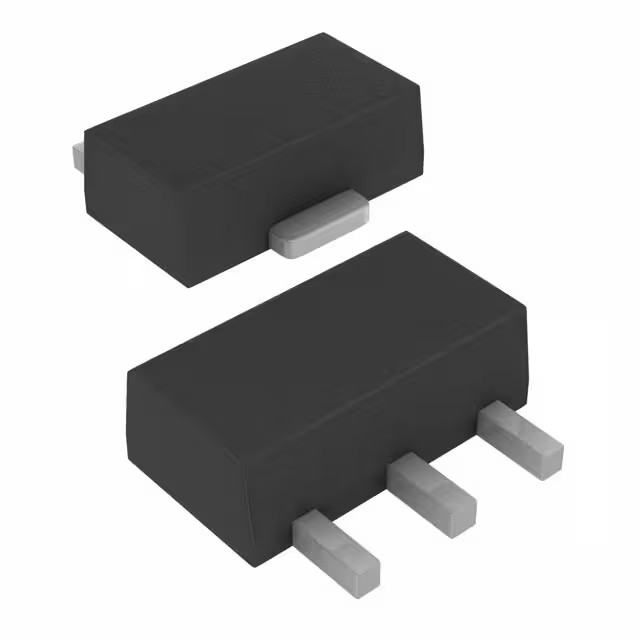

The MCP1700T-5002E/MB comes in a compact SOT-89 package with three pins. Each pin serves a specific purpose:

Pin 1 (Input): Accepts the unregulated input voltage, which should range between 2.3V and 6V.
Pin 2 (Ground): Acts as the common ground for the circuit.
Pin 3 (Output): Delivers the regulated 5V output.

Users must identify these pins correctly before proceeding. Misidentifying the pins can lead to improper connections, which may damage the regulator or other components in the circuit. Referring to the datasheet for a detailed pinout diagram is highly recommended.

Connect the Input and Output

To connect the MCP1700T-5002E/MB, follow these steps:

Attach the input pin to the power source. Ensure the input voltage falls within the specified range of 2.3V to 6V.
Connect the ground pin to the system's ground. This establishes a common reference point for the circuit.
Link the output pin to the load, such as a microcontroller or sensor, that requires a stable 5V supply.

Use short and thick wires for these connections to minimize resistance and voltage drops. Double-check all connections to confirm accuracy and prevent potential issues during operation.

Place Capacitors for Stability

Capacitors play a crucial role in maintaining the stability of the MCP1700T-5002E/MB. Install the following capacitors:

Input Capacitor: Place a 1.0µF ceramic capacitor close to the input pin. This capacitor filters noise from the power source and ensures a steady input voltage.
Output Capacitor: Position a 1.0µF ceramic capacitor near the output pin. This capacitor improves transient response and stabilizes the output voltage.

Ensure the capacitors meet the regulator's specifications, particularly in terms of voltage rating and equivalent series resistance (ESR). Ceramic capacitors are preferred due to their reliability and low ESR. Proper placement of these capacitors enhances the regulator's performance and prevents instability.

Step 3: Test and Troubleshoot the Setup

Testing and troubleshooting ensure the MCP1700T-5002E/MB operates as intended. This step involves verifying the voltage output, identifying potential issues, and implementing measures for long-term reliability.

Test the Voltage Output

Begin by measuring the output voltage of the MCP1700T-5002E/MB. Use a digital multimeter to check the voltage at the output pin. The regulator should deliver a stable 5V output under normal operating conditions. Ensure the input voltage falls within the acceptable range of 2.3V to 6V. If the output voltage deviates from 5V, recheck the connections and verify the capacitor placement.

For systems with varying loads, test the voltage stability under different load conditions. Gradually increase the load and monitor the output voltage. The MCP1700T-5002E/MB, with its low dropout voltage of 178mV, maintains regulation even when the input voltage approaches the output voltage. This feature ensures consistent performance in battery-powered applications.

Check for Common Issues

Inspect the setup for common issues that may affect performance. Loose connections, incorrect pin identification, or improper capacitor placement can lead to instability. Verify that the input and output capacitors meet the regulator's specifications. Ceramic capacitors with low equivalent series resistance (ESR) are essential for optimal performance.

Overheating may occur if the regulator operates near its maximum current limit of 250mA for extended periods. Ensure the load does not exceed this limit. Built-in protection mechanisms, such as short-circuit and over-temperature safeguards, enhance the reliability of the MCP1700T-5002E/MB. However, addressing the root cause of these issues prevents unnecessary strain on the regulator.

Ensure Long-Term Reliability

To ensure long-term reliability, implement best practices in circuit design and maintenance. Use high-quality components rated for the operating temperature and voltage range of the application. Secure all connections to prevent accidental disconnections during operation.

Regularly inspect the setup for signs of wear or damage. Replace any components showing signs of degradation. For battery-powered systems, monitor the battery voltage to ensure it remains within the regulator's input range. The MCP1700T-5002E/MB's low quiescent current of 1.6µA minimizes power consumption, extending battery life in portable devices.

By following these steps, users can achieve a stable and reliable setup with the MCP1700T-5002E/MB. Proper testing and troubleshooting enhance the performance and longevity of the regulator in various applications.

Benefits of Using the MCP1700T-5002E/MB

Low Dropout Voltage

The MCP1700T-5002E/MB excels in providing a low dropout voltage, which is critical for efficient power regulation. With a voltage differential of just 178mV at full load, this regulator ensures stable output even when the input voltage approaches the output voltage. This feature proves invaluable in battery-powered devices, where every millivolt counts in extending battery life. By minimizing energy loss, the regulator optimizes performance and supports longer operational periods for portable electronics.

Compact and Easy to Use

The compact SOT-89 package of the MCP1700T-5002E/MB makes it an excellent choice for space-constrained designs. Its small size allows seamless integration into embedded systems, IoT devices, and other modern electronic applications. The regulator's straightforward pin configuration simplifies the wiring process, reducing the likelihood of errors during installation. Additionally, its stability with a 1.0µF ceramic capacitor enhances ease of use, as users can achieve reliable performance without complex component requirements.

Reliable Power Delivery

Reliability stands as a hallmark of the MCP1700T-5002E/MB. It delivers a consistent 5V output with a maximum current of 250mA, ensuring dependable power for microcontrollers, sensors, and other peripherals. Built-in protections, such as short-circuit and over-temperature safeguards, enhance its durability and safety. These features make the regulator a trusted solution for applications demanding stable and uninterrupted power delivery. Whether used in battery-operated devices or energy-efficient systems, the MCP1700T-5002E/MB guarantees long-term reliability.

Common Applications of the MCP1700T-5002E/MB

The MCP1700T-5002E/MB serves as a versatile voltage regulator, finding applications across various fields. Its efficiency, reliability, and compact design make it an essential component in modern electronics. Below are some of its most common applications.

Battery-Powered Devices

Battery-powered devices demand efficient power regulation to maximize battery life. The MCP1700T-5002E/MB excels in this area due to its low quiescent current of 1.6µA and low dropout voltage of 178mV. These features ensure minimal energy loss, allowing devices to operate longer on a single charge.

In portable gadgets like fitness trackers and wireless headphones, the regulator provides a stable 5V output to power microcontrollers and sensors. Toys and remote-control devices also benefit from its energy efficiency, enabling extended playtime without frequent battery replacements. Wearable devices, such as smartwatches, rely on the MCP1700T-5002E/MB to supply consistent power to their processors and connectivity modules, ensuring smooth performance.

IoT and Embedded Systems

The MCP1700T-5002E/MB plays a critical role in IoT and embedded systems. These systems often operate in environments with limited power resources, making energy efficiency a top priority. The regulator's ability to maintain stable voltage output under varying conditions ensures reliable operation for IoT nodes and embedded devices.

IoT sensors and communication modules depend on the MCP1700T-5002E/MB to deliver clean, regulated power. This ensures accurate data collection and seamless connectivity. In microcontroller-based systems, the regulator powers both the microcontroller and its peripherals, supporting efficient and uninterrupted operation. Its compact SOT-89 package allows easy integration into space-constrained designs, making it a popular choice for IoT applications.

Prototyping and Development Boards

Prototyping and development boards require reliable power regulation to test and develop electronic circuits. The MCP1700T-5002E/MB provides a dependable 5V output, making it ideal for powering microcontrollers, sensors, and other components during the prototyping phase.

Developers often use this regulator in small-scale embedded designs to evaluate circuit performance. Its low dropout voltage ensures consistent operation even when the input voltage approaches the output voltage. This feature proves valuable in testing scenarios where power sources may vary. The MCP1700T-5002E/MB simplifies the prototyping process by offering a stable and efficient power solution, enabling developers to focus on innovation.

The MCP1700T-5002E/MB simplifies voltage regulation with its three easy steps: selecting the regulator, wiring and connecting it, and testing the setup. Its low dropout voltage, ultra-low current consumption, and built-in protections make it a reliable choice for microcontroller power systems. This regulator ensures stable and efficient power delivery, even in energy-constrained applications. By integrating this device into their projects, users can achieve enhanced performance and extended battery life. The MCP1700T-5002E/MB offers a practical solution for powering modern electronics, encouraging innovation and reliability in design.
