Steps to Use TPS5430DDAR for Set-Top Boxes and More

The TPS5430DDAR from TI, a Switching Voltage Regulator, is essential for consumer electronics like set-top boxes, DVDs, and LCD displays. This component is exceptional in power management, ensuring efficient operation of set-top boxes and other consumer devices. With an impressive energy efficiency of up to 95%, it significantly reduces power loss, thereby enhancing the overall performance of electronic systems. The TPS5430DDAR's versatility extends beyond set-top boxes, proving to be a valuable asset in various applications. Its wide input voltage range and robust output capabilities make it indispensable in the realm of electronic innovation.

Understanding TPS5430DDAR Specifications

The TPS5430DDAR stands out as a versatile and efficient component in the realm of power management. This section delves into its key features and general specifications, providing a comprehensive understanding of its capabilities.

Key Features and Benefits

The TPS5430DDAR is a high-performance step-down DC-DC converter that ensures stable power delivery across various applications. It integrates a low-resistance, high-side N-channel MOSFET, which contributes to its high efficiency, reaching up to 95%. This efficiency minimizes power loss, making it ideal for consumer electronics like set-top boxes and LCD displays. The device's flexibility is further enhanced by its adjustable output voltage, allowing customization for specific needs.

Key features include:

High Efficiency: Achieves up to 95% efficiency, reducing energy waste.
Integrated Protection: Offers thermal shutdown and overcurrent protection to safeguard devices.
Flexible Control Options: Supports adjustable output voltage for tailored applications.
Robust Design: Ensures consistent performance under varying conditions.

General Specifications

Understanding the general specifications of the TPS5430DDAR is crucial for its effective application in electronic systems.

Input Voltage Range

The TPS5430DDAR operates over a wide input voltage range of 5.5V to 36V. This broad range allows it to accommodate various power sources, including a 24V bus. Its ability to handle such a wide input voltage range makes it suitable for diverse applications, from industrial control systems to portable gadgets.

Output Current Capabilities

This step-down DC-DC converter supports an impressive output current capability of up to 3A. This high current capacity ensures that the device can power demanding applications efficiently. Whether used in home entertainment systems or telecommunications equipment, the TPS5430DDAR delivers reliable performance.

The TPS5430DDAR's specifications highlight its adaptability and reliability in power management. Its wide input voltage range and robust output capabilities make it an indispensable component in modern electronic design.

Pin Layout and Configuration

The TPS5430DDAR features a well-defined pin layout that plays a crucial role in its integration into electronic projects. Understanding the pin configuration is essential for engineers and designers aiming to harness the full potential of this component.

Pin Description

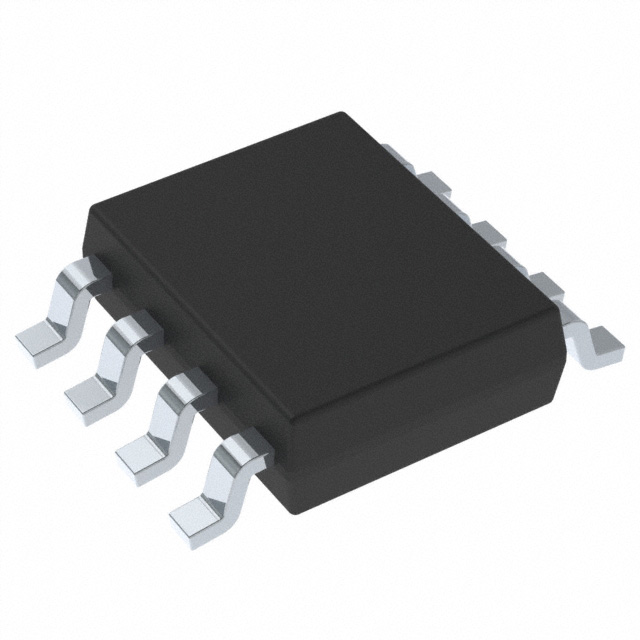

The TPS5430DDAR comprises a total of 8 pins, each serving a specific function. These pins are meticulously designed to ensure optimal performance and ease of use in various applications. Here's a breakdown of the pin functions:

Pin 1 (VIN): This pin serves as the input voltage supply. It accepts a wide range of input voltages, making it versatile for different power sources.
Pin 2 (GND): The ground pin provides a common return path for the current, ensuring stability in the circuit.
Pin 3 (BOOT): This pin connects to an external capacitor, which boosts the gate drive voltage for the internal MOSFET.
Pin 4 (SW): The switch node pin connects to the inductor, playing a pivotal role in the step-down conversion process.
Pin 5 (EN): The enable pin allows the device to be turned on or off, providing control over the power supply.
Pin 6 (COMP): This pin connects to the compensation network, which stabilizes the feedback loop.
Pin 7 (FB): The feedback pin monitors the output voltage, ensuring it remains within the desired range.
Pin 8 (SS/TR): This pin is used for soft-start and tracking functions, allowing for controlled startup and shutdown.

Schematic Design Considerations

When designing a circuit with the TPS5430DDAR, careful attention to the schematic layout is vital. Proper design ensures efficient operation and minimizes potential issues. Here are some key considerations:

Component Placement: Place components like capacitors and inductors close to their respective pins to reduce parasitic inductance and resistance.
Ground Plane: Implement a solid ground plane to minimize noise and enhance thermal performance.
Trace Width: Use appropriate trace widths for high-current paths to prevent excessive voltage drops and overheating.
Thermal Management: Ensure adequate heat dissipation by incorporating thermal vias and copper pours around the device.

Understanding the pin layout and configuration of the TPS5430DDAR is fundamental for successful integration into electronic designs. By adhering to these guidelines, engineers can optimize the performance and reliability of their projects.

Electrical Characteristics and Operating Conditions

Understanding the electrical characteristics and operating conditions of the TPS5430DDAR is crucial for its effective application in various electronic devices. This section provides insights into the voltage and current ratings, as well as thermal management strategies, to ensure optimal performance.

Voltage and Current Ratings

The TPS5430DDAR serves as a reliable step-down DC-DC converter, efficiently converting higher input voltages to stable lower output voltages. It operates within a wide input voltage range of 5.5V to 36V, making it suitable for diverse applications, from low-voltage battery-operated devices to higher-voltage industrial systems. This versatility allows designers to integrate the converter into various power management applications, ensuring consistent power delivery.

The TPS5430DDAR can deliver up to 3A of continuous output current, which is ideal for powering devices such as set-top boxes, DVDs, and LCD displays. Its high output current capability ensures that it can handle demanding applications efficiently. The integrated low-resistance, high-side N-channel MOSFET contributes to its high efficiency, minimizing power loss and enhancing overall system performance.

Thermal Management

Effective thermal management is crucial to ensure the reliable operation of the TPS5430DDAR. The device operates over a temperature range from -40°C to 125°C, making it suitable for use in diverse environmental conditions. To maintain high efficiency and prevent overheating, designers should consider several thermal management strategies:

Heat Dissipation: Incorporate thermal vias and copper pours around the device to enhance heat dissipation. This approach helps maintain the converter's efficiency by preventing excessive temperature rise.
Component Placement: Position components such as capacitors and inductors close to their respective pins. This placement reduces parasitic inductance and resistance, contributing to better thermal performance.
Solid Ground Plane: Implement a solid ground plane to minimize noise and improve thermal conductivity. This design choice ensures stable operation and enhances the overall reliability of the system.

By adhering to these thermal management practices, engineers can ensure that the TPS5430DDAR operates efficiently and reliably in various applications. Proper integration of this voltage regulator into electronic designs not only optimizes performance but also extends the lifespan of the components.

Application in Set-Top Boxes and Other Devices

The TPS5430DDAR finds extensive use in various electronic projects due to its efficient power management capabilities. Its ability to deliver stable power under diverse conditions makes it a preferred choice for many applications. This section explores specific use cases and highlights case studies that demonstrate its effectiveness.

Specific Use Cases

Set-Top Boxes: The TPS5430DDAR plays a crucial role in set-top boxes by providing a stable power supply. Its adjustable output voltage feature allows designers to customize the voltage levels according to the device's requirements. This flexibility ensures optimal device performance, even under varying conditions.
Consumer Electronics: In consumer electronics, such as DVDs and LCD displays, the TPS5430DDAR enhances power supply efficiency. Its high output current capability supports demanding applications, ensuring consistent performance across different devices.
Industrial Control Systems: The TPS5430DDAR's robust design makes it suitable for industrial control systems. It provides reliable power management, ensuring stable operation in harsh environmental conditions. The device's thermal management features help maintain high performance, even in challenging settings.
Telecommunications Equipment: Telecommunications equipment benefits from the TPS5430DDAR's efficient power conversion. Its wide input voltage range accommodates various power sources, making it adaptable to different projects. The device's ability to handle high output currents ensures reliable performance in communication systems.
Battery-Powered Devices: For battery-powered devices, the TPS5430DDAR offers an efficient solution with its low shutdown supply current. This feature extends battery life, making it ideal for portable electronic projects that require long-lasting power solutions.

Case Studies

Case Study 1: Enhancing Set-Top Box Performance: A leading electronics manufacturer integrated the TPS5430DDAR into their set-top box design. By utilizing its adjustable output voltage, they optimized the device's power consumption, resulting in improved performance and reduced energy costs. The device's thermal management capabilities ensured reliable operation, even in high-temperature conditions.
Case Study 2: Improving Industrial System Reliability: An industrial automation company adopted the TPS5430DDAR for their control systems. The device's robust power management features provided stable power delivery, enhancing system reliability. Its ability to operate efficiently under diverse conditions contributed to the project's success, ensuring consistent performance in demanding environments.

These case studies highlight the TPS5430DDAR's versatility and effectiveness in various applications. Its ability to deliver stable power and maintain high performance under different conditions makes it an invaluable component in modern electronic projects.

Troubleshooting and Best Practices

The TPS5430DDAR, a reliable component in electronic projects, occasionally presents challenges. Users may face issues like overheating or unstable output voltage. Addressing these problems ensures optimal performance and longevity of the device.

Common Issues and Solutions

Overheating: Overheating can compromise the performance of the TPS5430DDAR. Users should ensure proper heat dissipation to prevent this issue. Incorporating thermal vias and copper pours around the device enhances heat dissipation. This approach maintains efficiency by preventing excessive temperature rise.
Unstable Output Voltage: Unstable output voltage affects the performance of connected devices. Users should verify voltage levels regularly. Ensuring that the feedback loop is stable and components are correctly placed helps maintain consistent voltage output.
Inadequate Power Supply: An inadequate power supply can lead to performance issues. Users should confirm that the input voltage falls within the specified range of 5.5V to 36V. This verification ensures that the device receives sufficient power for optimal operation.
Component Placement: Incorrect component placement can cause performance degradation. Users should place capacitors and inductors close to their respective pins. This placement reduces parasitic inductance and resistance, contributing to better performance.

Best Practices for Optimal Performance

Regular Voltage Checks: Regularly checking the voltage levels ensures stable performance. Users should monitor the output voltage to confirm it remains within the desired range. This practice helps identify potential issues early.
Efficient Thermal Management: Efficient thermal management is crucial for maintaining performance. Users should implement a solid ground plane to minimize noise and improve thermal conductivity. This design choice enhances the overall reliability of the system.
Proper Schematic Design: Proper schematic design ensures efficient operation. Users should use appropriate trace widths for high-current paths to prevent excessive voltage drops and overheating. This practice optimizes performance and extends the lifespan of the components.
Adhering to Specifications: Adhering to the device's specifications guarantees optimal performance. Users should follow the guidelines provided in the datasheet for successful integration. This adherence ensures that the device operates efficiently in various applications.

By following these troubleshooting tips and best practices, users can enhance the reliability and efficiency of their electronic projects using the TPS5430DDAR. Proper integration and maintenance of this voltage regulator not only optimize performance but also extend the lifespan of the components.

The TPS5430DDAR stands as a cornerstone in consumer electronics, offering unmatched power management capabilities. Its high efficiency and adjustable output voltage make it indispensable for engineers seeking optimal performance. By integrating this component, designers can ensure reliable power delivery across various applications. The TPS5430DDAR's protective features, such as thermal shutdown and overcurrent protection, further enhance its value. Embracing best practices in its implementation guarantees not only improved performance but also extended device longevity. As a result, the TPS5430DDAR remains a preferred choice for those aiming to achieve excellence in electronic design.
